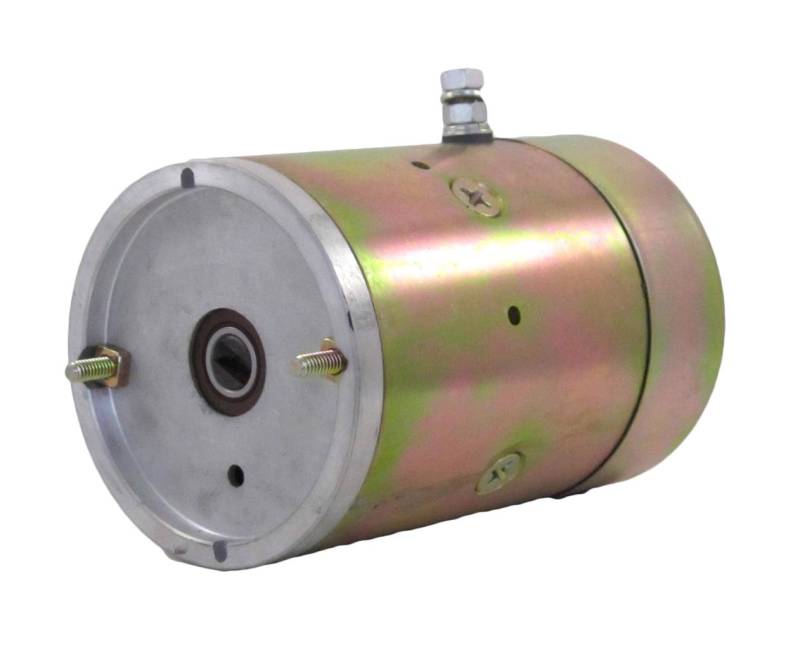

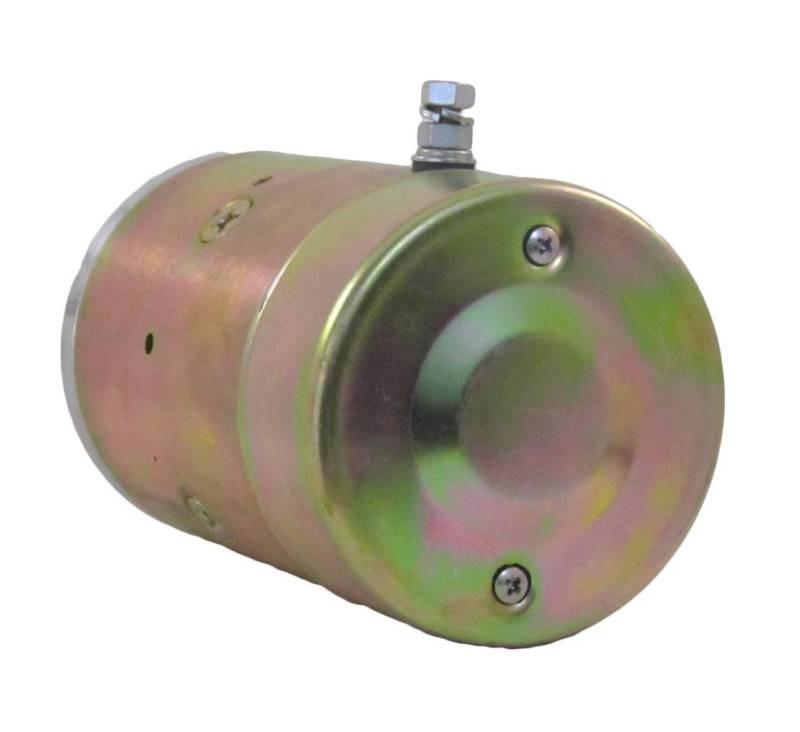

12V Snow Plow Lift Motor Compatible With Meyer E57 E60 Diamond Pump Hydraulic Quick Lift Cw Slotted

10710*4
OEM PART NUMBERS:
• Iskra: 11-212-981
• Meyer: 15687 / 15689 / 15727 / 15753
• Meyer: 2529AB / 2529AC / 2869AB / 2869AC
• Prestolite: 46-4196 / MUE-6209 / MUE-6209S
• W-8991

SPECIFICATIONS:
• Voltage: 12V
• Rotation: CW (Clockwise)
• Power: 1.7kW / 2.28 HP
• Shaft OD: 15mm (0.591 in) Slotted
• Terminal: 5/16-24
• Field Housing OD: 114.3mm / 4.5 in
• Overall Length: 168.3mm / 6.626 in
• Bearings: Double Ball Bearing
• Ground: Common Ground
• Weight: 16 lbs
• Condition: New

APPLICATION:
• Meyer E57 and E60 Hydraulic Pump Units
• Diamond Snow Plow Quick Lift Systems

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $280.91
Sale: $160.52
Save: 43%
Save: $120.39
Qty:
Free Shipping!

Description

MEYER SNOW PLOW PUMP APPLICATIONS:
• Meyer E57 Hydraulic Pump Unit
• Meyer E60 Hydraulic Pump Unit
• Meyer Snow Plow Quick Lift Systems
• Meyer Plow Pump Assemblies Using Part Numbers 2869AB and 2869AC

DIAMOND SNOW PLOW APPLICATIONS:
• Diamond Snow Plow Quick Lift Hydraulic Pump Systems
• Diamond Snow Plow Lift Motor Applications

MOTOR FEATURES:
• 15mm (0.591 in) Slotted Output Shaft
• 5/16-24 Terminal Connection
• 4.5-Inch (114.3mm) Frame Diameter
• 6.626-Inch (168.3mm) Overall Length
• Double Ball Bearing Construction
• Common Ground Configuration
• 1.7kW / 2.28 HP Output
• 12V DC Clockwise Rotation

COMPATIBLE PUMP SYSTEMS:
• Meyer E57 Pump (Lift and Angle Functions)
• Meyer E60 Pump (Lift, Angle Left, and Angle Right Functions)
• Diamond Quick Lift Pump Systems
• Used on Commercial and Residential Snow Plow Installations

NOTE:
• Verify OEM part number from your original unit before ordering
• This is the motor only - does not include solenoid or pump assembly
• Double ball bearings provide extended service life in harsh winter conditions
