OEM PART NUMBERS:
• OMC: 986280 / 0986280
• OMC: 778026 / 0778026
• Volvo Penta: 3853945 / 03853945
• Mercury Marine: 3853945
AFTERMARKET CROSS REFERENCE:
• API Marine: PT304NM-3
• Arco Marine: 6245
• 18-6779
SPECIFICATIONS:

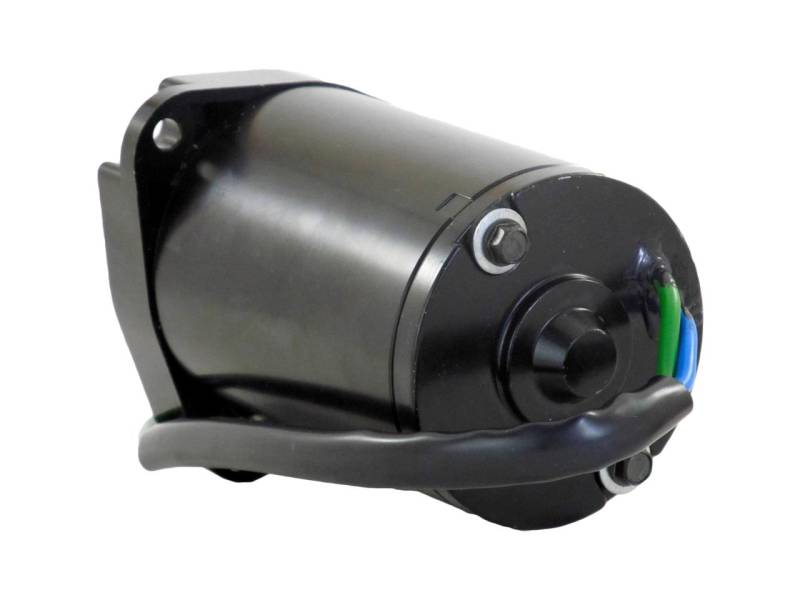

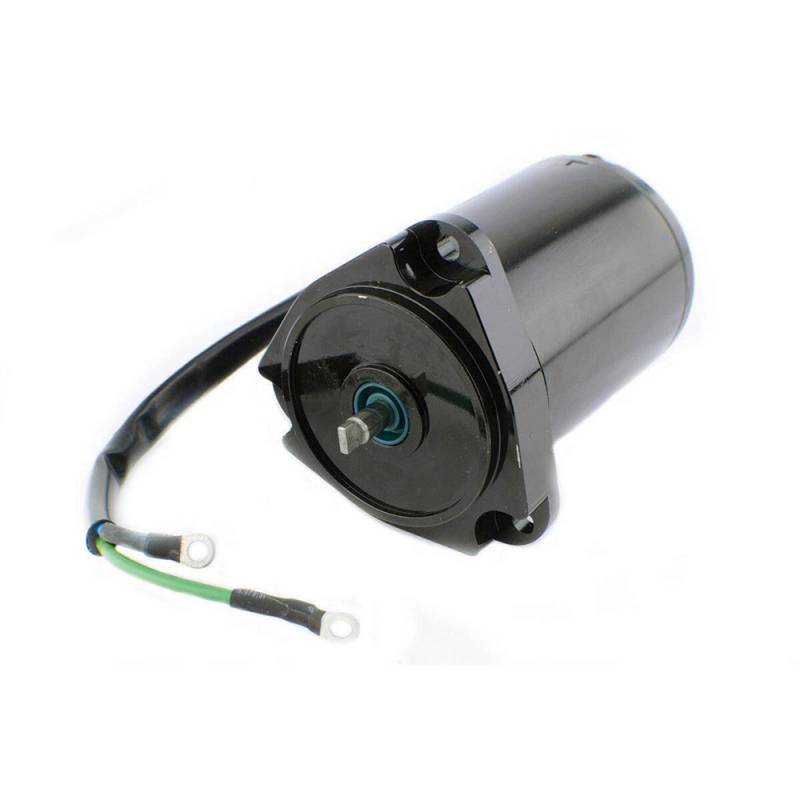

• Type: Tilt Trim Motor
• Voltage: 12V
• Rotation: Reversible
• Connection: 2-Wire
• Mounting: 3-Bolt
• Shaft OD: 7.9mm / Fan Blade Shaft
• Terminal: 12 Gauge Fork Spade (x2)
• Field Housing OD: 75.6mm / 2.976in
• Overall Length: 153.9mm / 6.059in
• O-Ring Included
• Weight: 6 lbs
• Condition: New
APPLICATIONS SUMMARY:
• OMC Cobra/King Cobra 2.3L-8.2L Sterndrive (1989-1998)
• Volvo Penta SX/DPS/DP 3.0L-8.2L (1994-2007)
• Evinrude/Johnson 88-175HP Outboard (1991-1994)
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
