OEM PART NUMBERS:
• OMC: 982957
• OMC: 983195
• OMC: 982758
• OMC: 982343 / 0982343
• ESQ4012
• ESQ4015S1
• 40-403 / 40403
• 40-438 / 40438
AFTERMARKET CROSS REFERENCE:
• API Marine: PT115N
• Arco Marine: 6214
• 18-6257
SPECIFICATIONS:

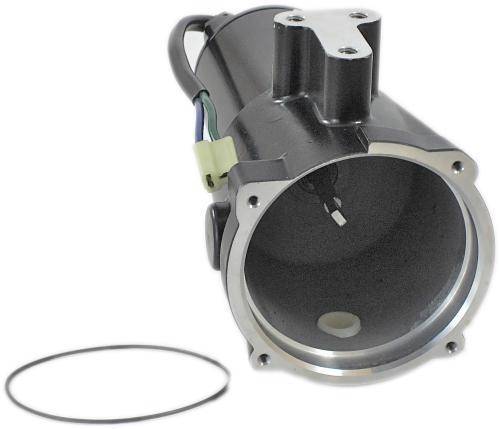

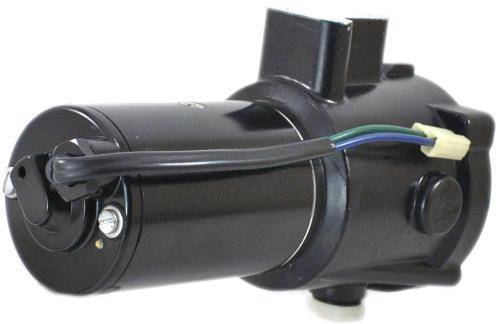

• Type: Tilt Trim Motor with Reservoir
• Design: Stringer Mount (Pre-Cobra)
• Voltage: 12V
• Rotation: Reversible
• Connection: 2-Wire
• Shaft OD: 8mm / 0.315in
• Shaft: 4mm Drive Tang, 75mm Length
• Field Housing OD: 94.1mm / 3.705in
• Overall Length: 208mm / 8.189in
• Includes Reservoir & O-Ring
• Weight: 8 lbs
• Condition: New
OMC STRINGER STERNDRIVE APPLICATIONS:
• 175/190/235HP (1975-1977), 240HP (1978), 250HP (1979)
• 3.0L I4 / 3.8L V6 (1980-1985)
• 4.3L V6 / 5.0L V8 / 5.7L V8 (1981-1985)
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
