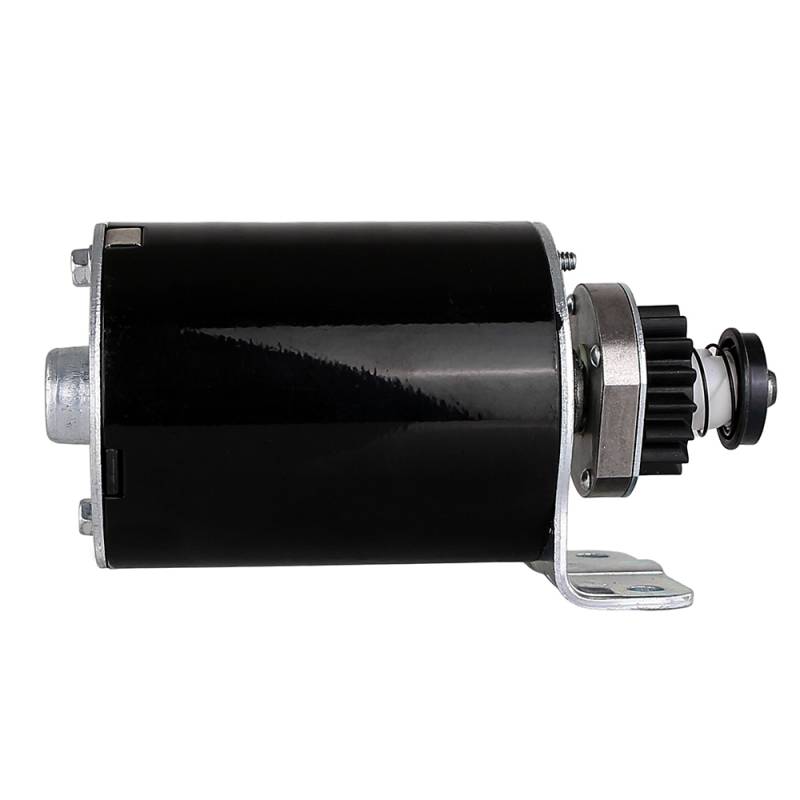

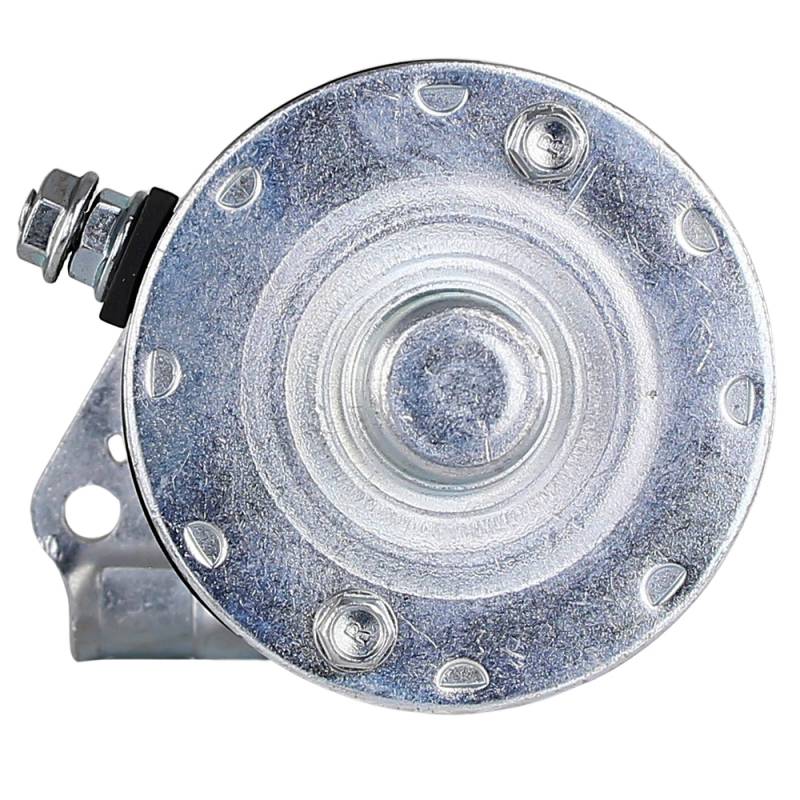

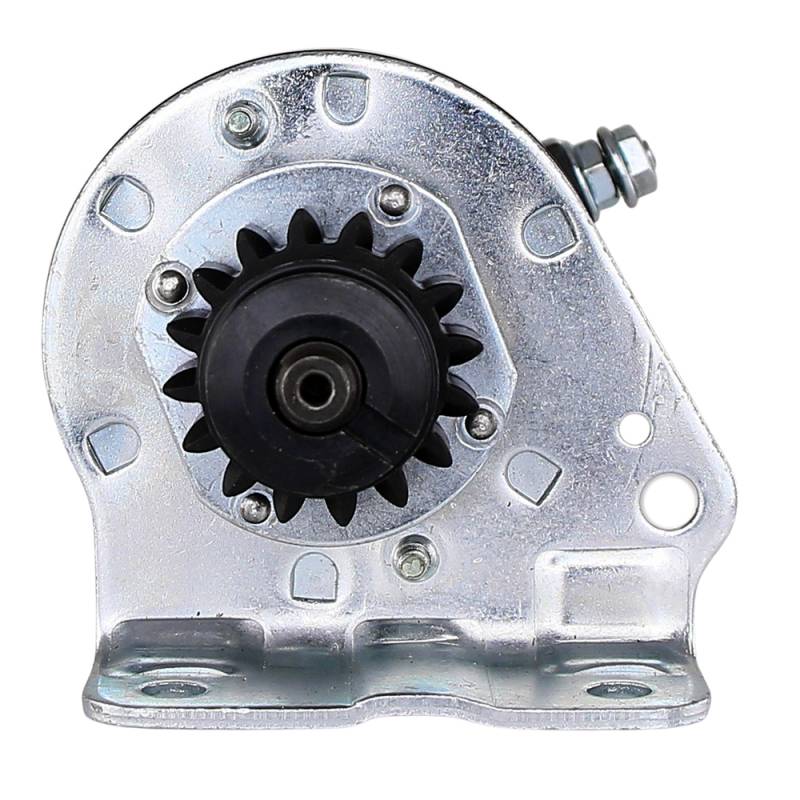

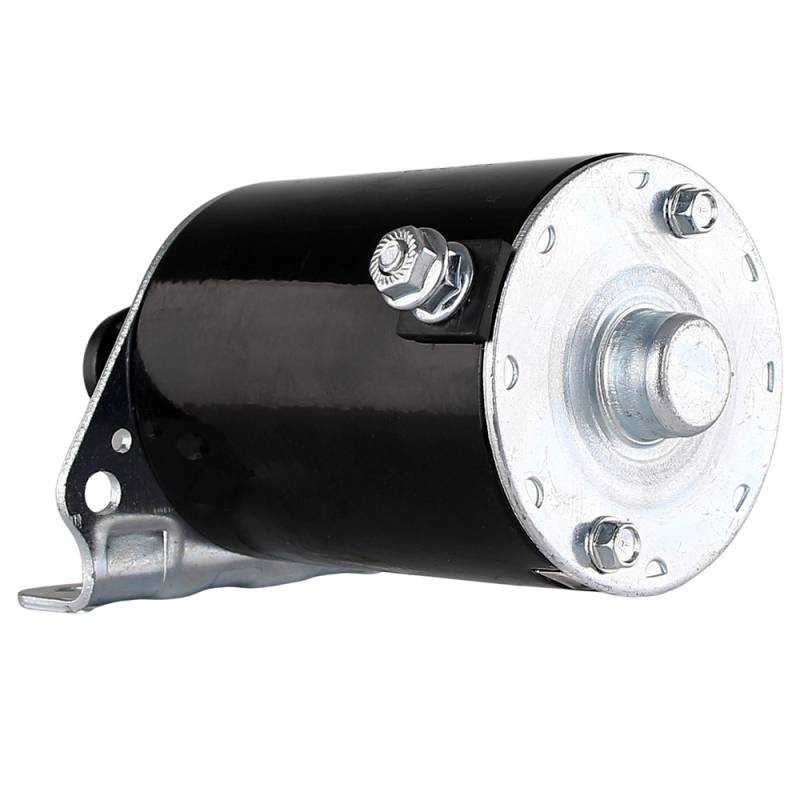

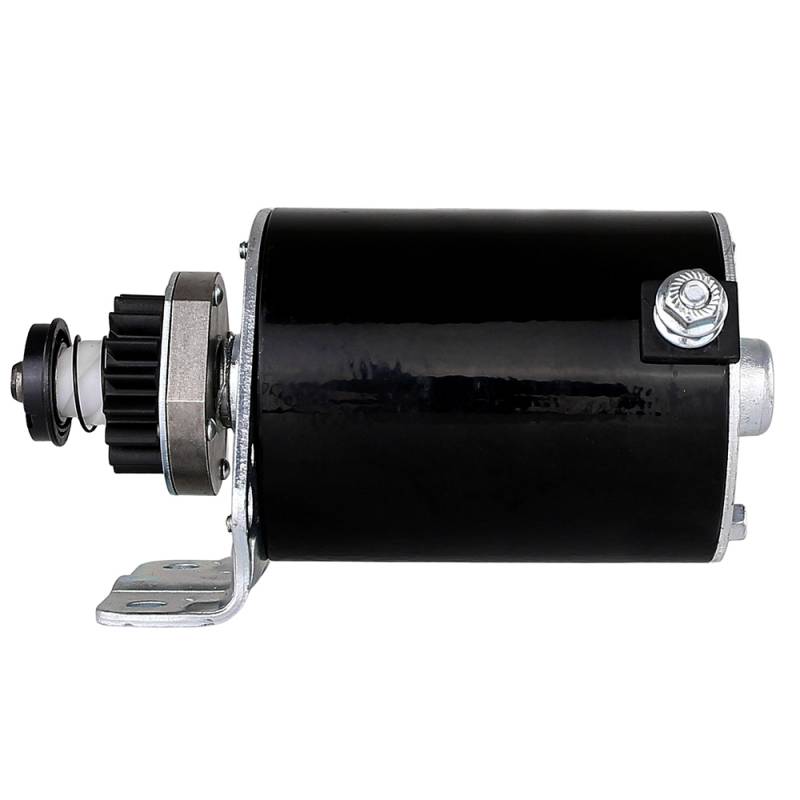

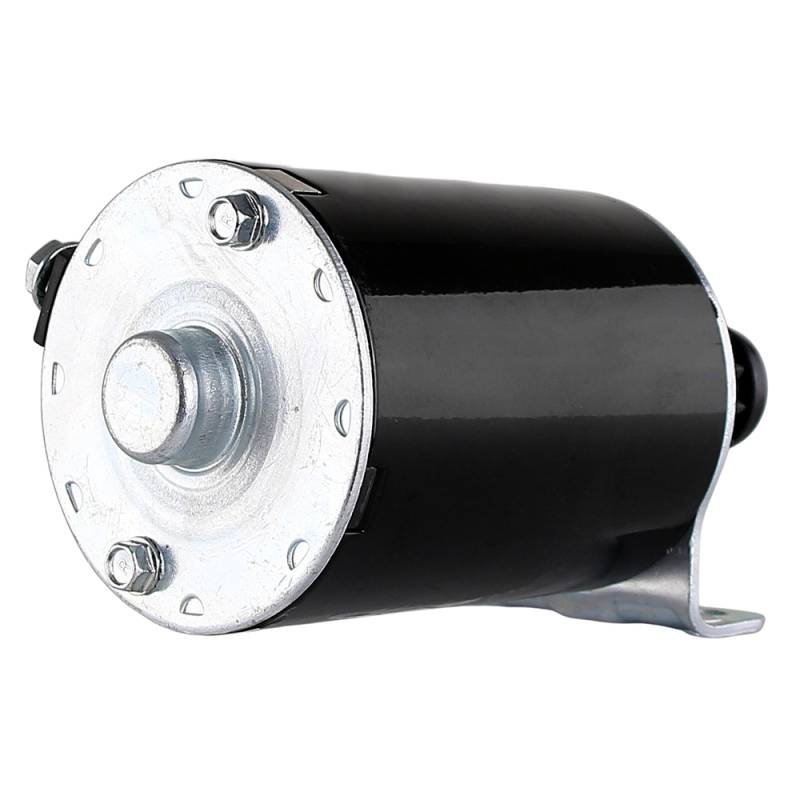

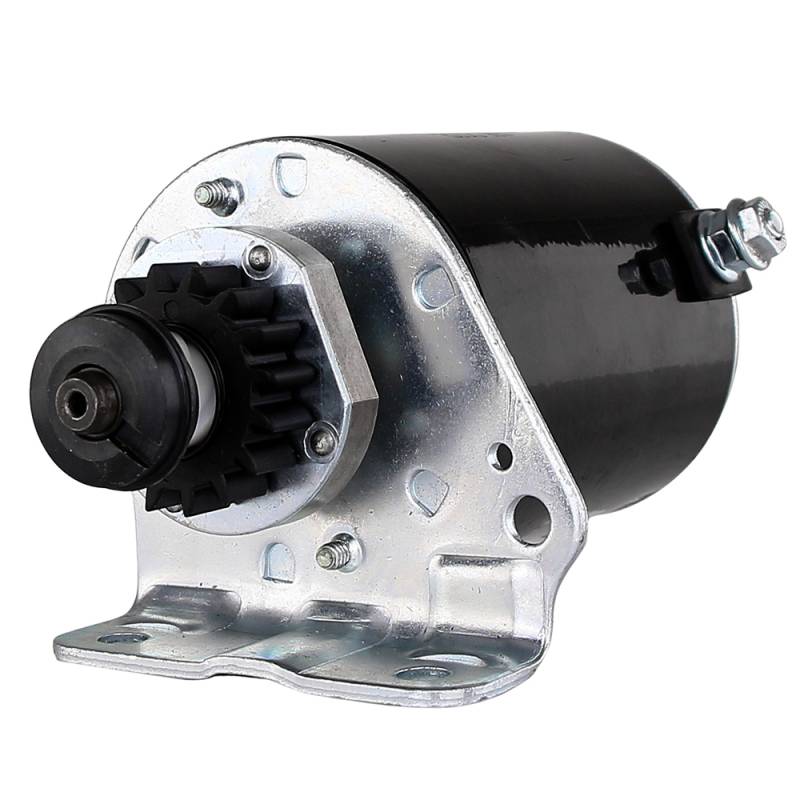

12V Starter Motor Compatible With Cub Cadet 2160 2164 2165 1180 1212 Rzt50 Z245 Lawn Tractor 494198

5746B1
BRIGGS & STRATTON PART NUMBERS:
• 795121 (current number)
• 499521
• 497401
• 691262
• 393499
• 394943
• 399169
• 490420
• 494148
• 494198
• 494990
• 499529
• 494490
• 497595, 693054

CUB CADET PART NUMBERS:
• BS-795121, BS795121
• BS-499521, BS499521
• BS-399169, BS399169
• BS-497401, BS497401

GENERAC PART NUMBERS:
• 075255, 75255
• 75255A, 75255-A

TORO PART NUMBERS:
• 78-4340, 784340

JOHN DEERE PART NUMBERS:
• LG499521, MIA11175 (current)
• SE501860 (exchange)
• AM106883
• AM38136
• AM39285
• LG490420
• LG497401
• LG691262
• LG497595
• AM122337, AM122237

REPLACEMENT PART NUMBERS:
• Stens 435-320, 435320
• Rotary 9798
• Oregon 33-700, 33700
• United Technologies SM01965, 0196540

SPECIFICATIONS:
• Product: Starter
• Type: starter motor, PMDD (permanent magnet direct drive)
• Voltage: 12 volt
• Rotation: CCW (counterclockwise)
• Pinion: 16 tooth plastic gear, gear OD 40.6 mm (1.598 in)
• Field case length: 3.75 in (95.3 mm), short case
• Mounting: three unthreaded ears, 8.1 to 8.3 mm ID
• Power: 0.7 kW
• Flywheel: plastic or aluminum ring gears only, not for steel ring gears
• Replaces: both short 3.75 in (95.3 mm) and long 4.25 in (108 mm) field case originals

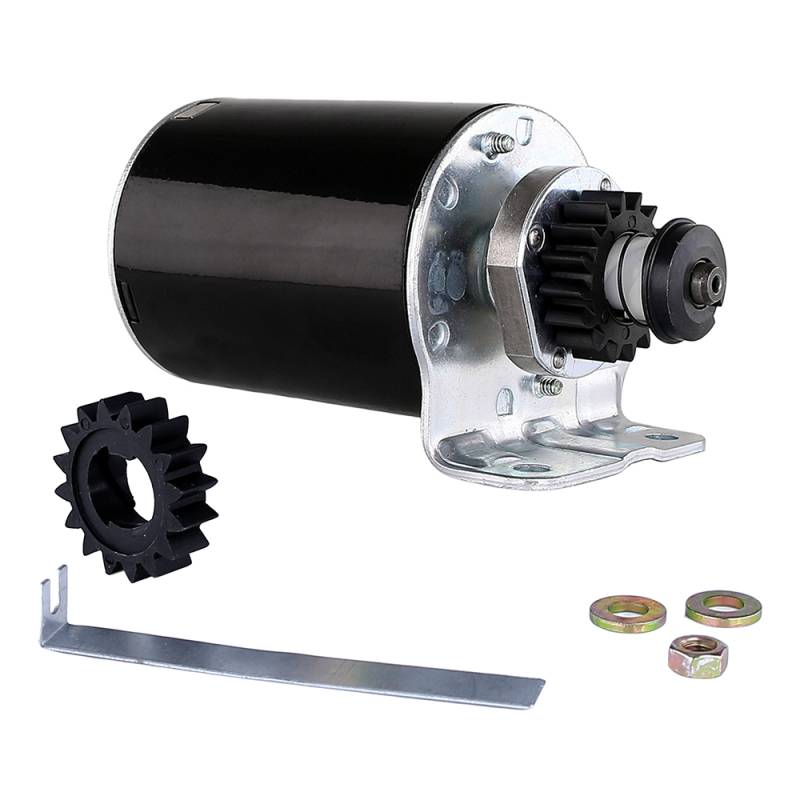

• Includes: extra 16 tooth plastic gear
• Weight: 2.34 kg (5.14 lb)
• Condition: New aftermarket

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $120.31
Sale: $68.75
Save: 43%
Save: $51.56
Qty:
Free Shipping!

Description

CUB CADET LAWN TRACTORS AND RIDERS (BRIGGS & STRATTON):
• Cub Cadet GMT-125 ride behind with the Briggs & Stratton 12.5 HP 1989-1990
• Cub Cadet GMT-150 ride behind with the Briggs & Stratton 15 HP 1989-1990
• Cub Cadet 125 and 150
• Cub Cadet 364 riding mower with the Briggs & Stratton 18 HP 2000-2002
• Cub Cadet 1180 with the Briggs & Stratton 18 HP 2000-2001
• Cub Cadet 1212 with the Briggs & Stratton 21 HP 2000-2001
• Cub Cadet 1215 and 1220 with the Briggs & Stratton 12 HP 1987-1988
• Cub Cadet 1440 with the Briggs & Stratton 14 HP 1992-1997
• Cub Cadet 1641 with the Briggs & Stratton 16 HP 1992-1997
• Cub Cadet 1600 16.5 HP and 1800 18 HP
• Cub Cadet 2160 with the Briggs & Stratton 16 HP 1994-1997
• Cub Cadet 2164 16 HP 1999-2001 and 2165 16 HP 1994-1999
• Cub Cadet 3165 16 HP 1998-1999 and 3185 18 HP
• Cub Cadet GT1222 with the Briggs & Stratton 44K777 22 HP 2004
• Cub Cadet LT1018 with the Briggs & Stratton 31Q777 18 HP 2004
• Cub Cadet LT1022 22 HP 2004 and LT1024 with the Briggs & Stratton 446877 24 HP 2004
• Cub Cadet 4016 utility vehicle with the Briggs & Stratton 16 HP 1996

CUB CADET ZERO TURN MOWERS (BRIGGS & STRATTON V-TWIN):
• Cub Cadet Z-Force 18 with the Briggs & Stratton 18 HP 2003
• Cub Cadet Z-Force 44 with the Briggs & Stratton 18 HP 2004
• Cub Cadet Z-Force 48 with Briggs & Stratton
• Cub Cadet RZT50 with Briggs & Stratton
• Cub Cadet Z245 and Z425

JOHN DEERE (BRIGGS & STRATTON):
• John Deere L118 22 HP 441577 and L120 20 HP 406577 with the Briggs & Stratton 655 cc V-twin 2003-2005
• John Deere LT166 and LTR166 with the Briggs & Stratton 16 HP 1998-2001
• John Deere Z245 EZtrak with the Briggs & Stratton 23 HP 724 cc 2008-2012
• John Deere Z425 EZtrak with the Briggs & Stratton 23 HP 724 cc 2007-2015
• John Deere 111 1979-1985 and 111H 1982-1984 with the Briggs & Stratton 11 HP

SCOTTS LAWN TRACTORS (BRIGGS & STRATTON V-TWIN):
• Scotts L2048 with the Briggs & Stratton 20 HP OHV V-twin 2002-2008
• Scotts L2548 with the Briggs & Stratton 25 HP OHV V-twin
• Scotts S2046 with Briggs & Stratton
• Scotts S2546 with the Briggs & Stratton 25 HP 1999-2000

CUB CADET AND WHITE OUTDOOR MODEL NUMBERS (BRIGGS & STRATTON):
• Cub Cadet 13VR91AP009, 13VR91AP010, 13VR92AK009
• Cub Cadet 13WR91AP009, 13WR91AP010, 13WR92AK009, 13WR92AK010
• Cub Cadet 14VR13CK009, 14VR13CK010
• Cub Cadet 17AA5A7P710, 17AA5A7P712 with the Briggs & Stratton 407577
• Cub Cadet 17BA5A7P709, 17BA5A7P710, 53AA5A7M710
• Cub Cadet 17BK2ACP009, 17BK2ACP010, 17VK2ACP010, 17WK2ACP009
• Cub Cadet 17WK2ACP010 with the Briggs & Stratton 44P777
• White Outdoor 17AK2ACK090, 17AK2ACP090, 17BK2ACP090

SPECIFICATIONS:
• Type: starter motor, PMDD (permanent magnet direct drive)
• Voltage: 12 volt
• Rotation: CCW (counterclockwise)
• Pinion: 16 tooth plastic gear, gear OD 40.6 mm (1.598 in)
• Field case length: 3.75 in (95.3 mm), short case
• Mounting: three unthreaded ears, 8.1 to 8.3 mm ID
• Power: 0.7 kW
• Flywheel: plastic or aluminum ring gears only, not for steel ring gears
• Replaces: both short 3.75 in (95.3 mm) and long 4.25 in (108 mm) field case originals
• Includes: extra 16 tooth plastic gear
• Weight: 2.34 kg (5.14 lb)
• Condition: New aftermarket
