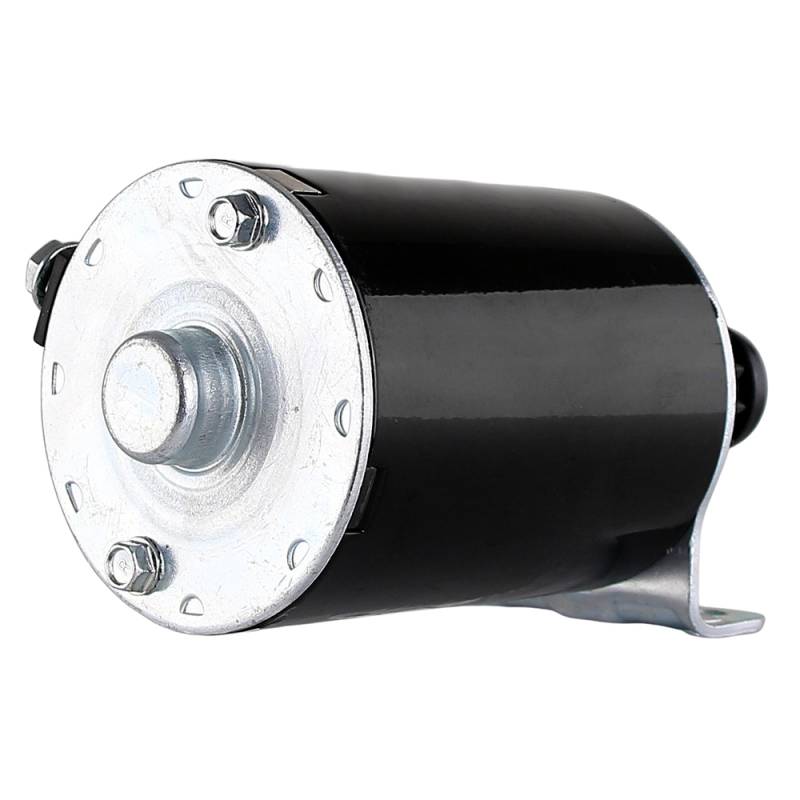

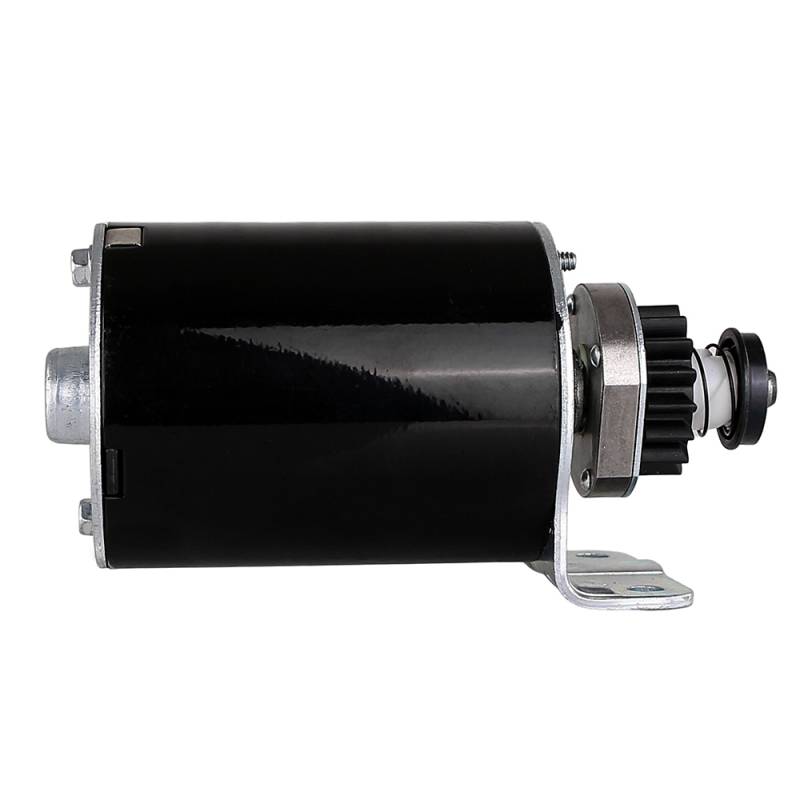

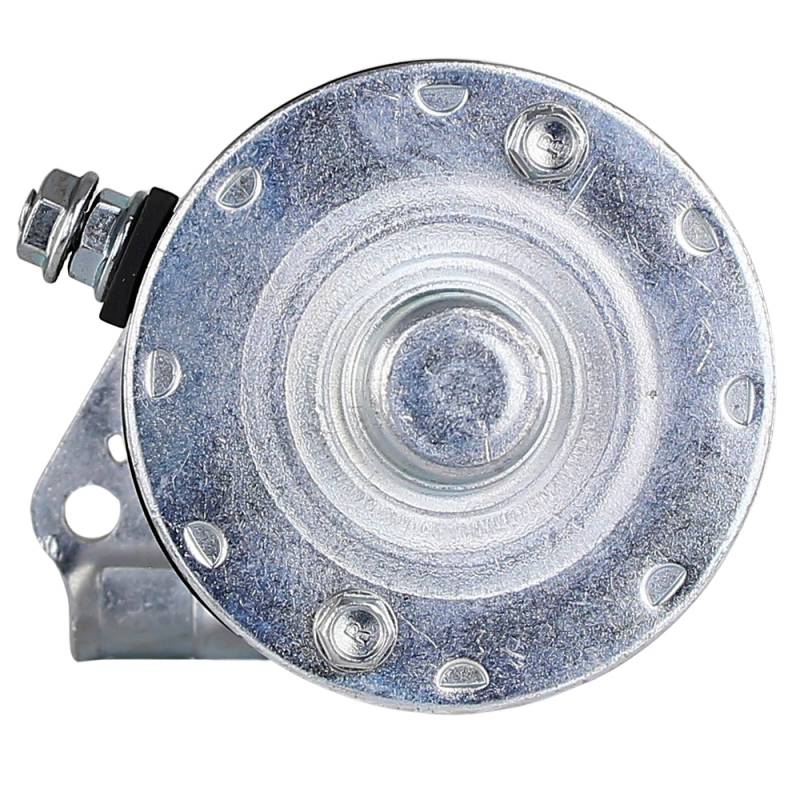

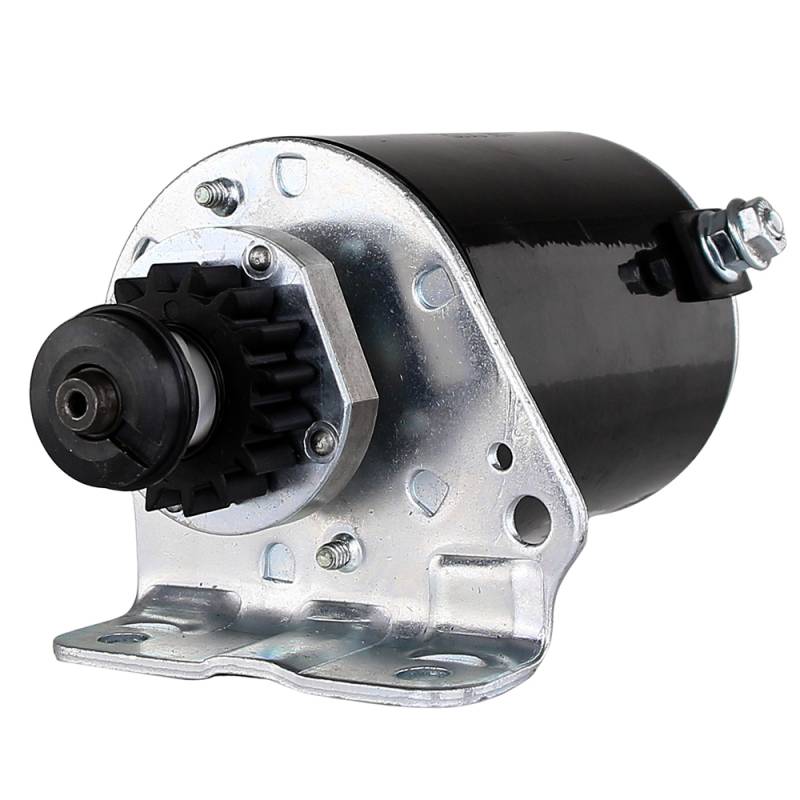

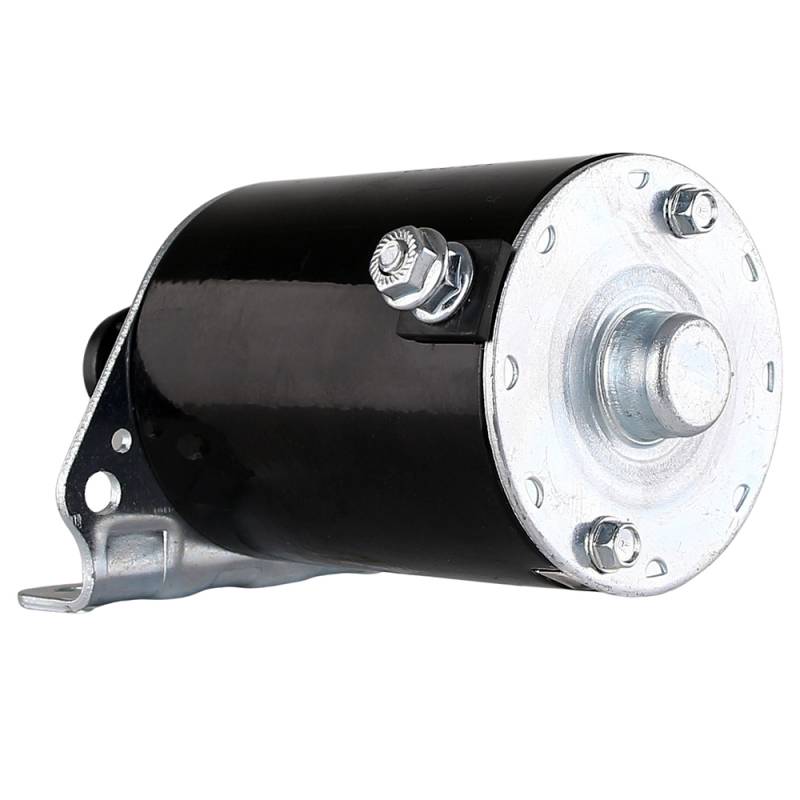

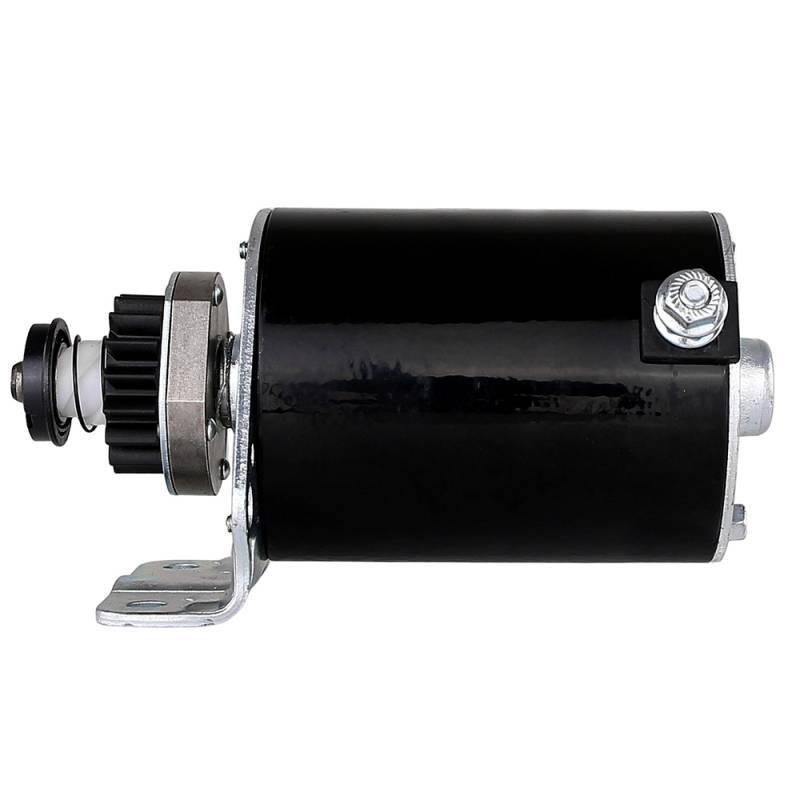

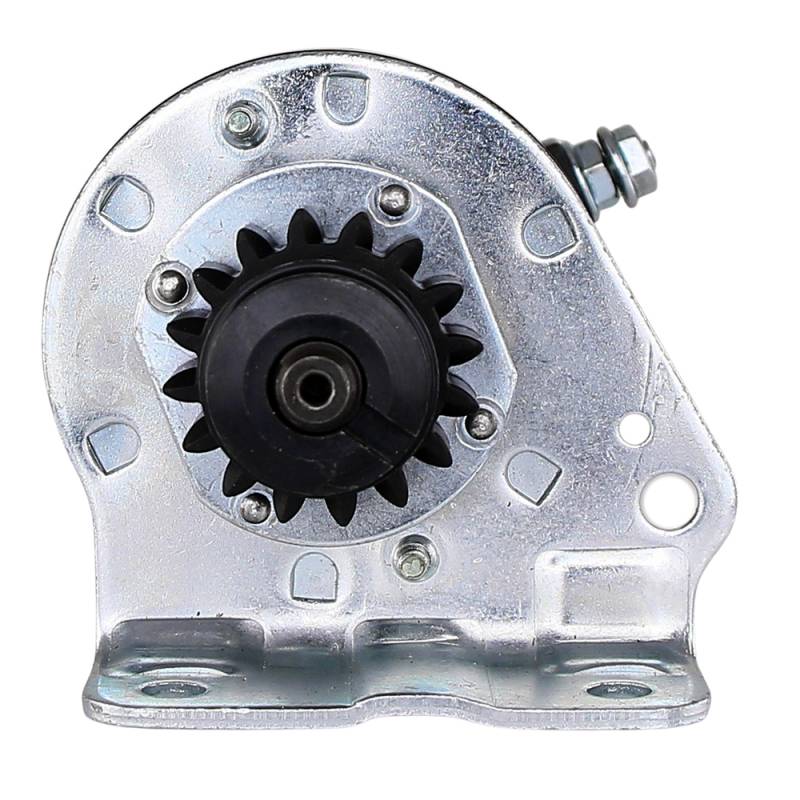

12V Starter Motor Compatible With Cub Cadet 382 383 1015 1020 1105 1110 1225 1300 1405 Lawn Tractor

5742A2
BRIGGS & STRATTON PART NUMBERS:
• 497595 (current number)
• 693054
• 391423
• 394805
• 390838
• 392749
• 491766
• 497594
• 390849
• 391177
• 392744
• 494325
• 392749R
• 394399
• 497595P
• 5406H, 5406K (retail pack)

JOHN DEERE PART NUMBERS:
• LG497595
• AM37352, AM39137 (current)
• AM122337, AM122237
• SE501880 (exchange)
• MIA12048, MIU13772

REPLACEMENT PART NUMBERS:
• Stens 435-303, 435303
• Stens 435-320, 435320
• Oregon 33-700, 33700
• Rotary 9798
• Remy RS41075, 96763
• Lucas LRS2170, LRS02170
• United Technologies SM01965, 0196540, 0196540MO30SM
• Johnson Evinrude SM01965, 0196540MO30SM
• Mitsubishi M1T02271
• Elmot 49-7955, 497955

OTHER BRIGGS & STRATTON STARTER NUMBERS REPLACED:
• 499521, 795121
• 497401, 691262
• 494490, 499529

SPECIFICATIONS:
• Product: Starter
• Type: starter motor, PMDD (permanent magnet direct drive)
• Voltage: 12 volt
• Rotation: CCW (counterclockwise)
• Pinion: 16 tooth plastic gear, gear OD 40.6 mm (1.598 in)
• Field case length: 3.75 in (95.3 mm), short case
• Mounting: three unthreaded ears, 8.1 to 8.3 mm ID
• Power: 0.7 kW
• Flywheel: plastic or aluminum ring gears only, not for steel ring gears
• Replaces: both short 3.75 in (95.3 mm) and long 4.25 in (108 mm) field case originals

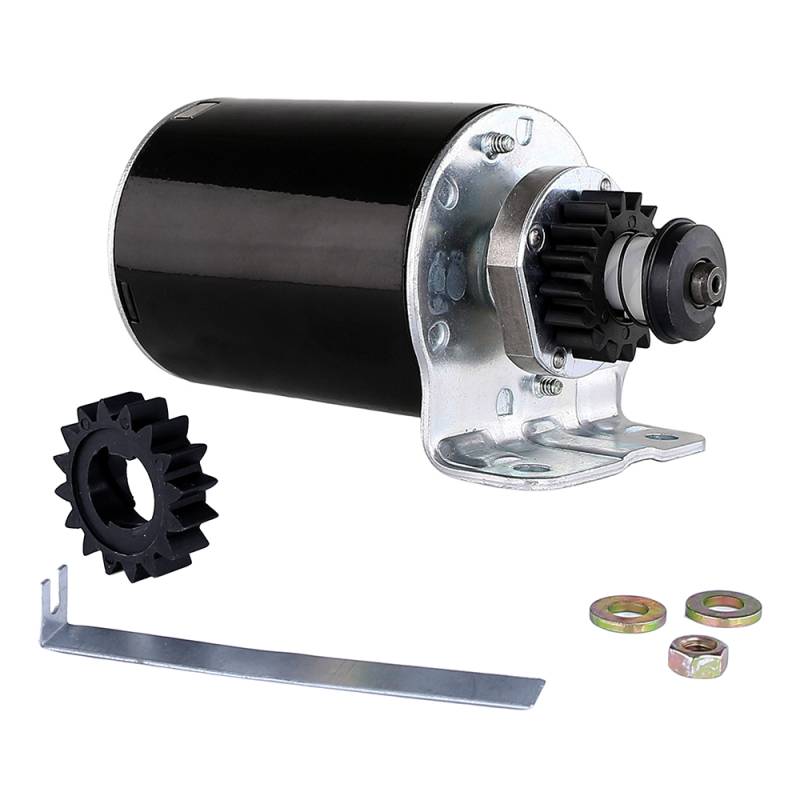

• Includes: extra 16 tooth plastic gear
• Weight: 2.34 kg (5.14 lb)
• Condition: New aftermarket

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $120.31
Sale: $68.75
Save: 43%
Save: $51.56
Qty:
Free Shipping!

Description

CUB CADET LAWN TRACTORS (BRIGGS & STRATTON SINGLE):
• Cub Cadet 70 with the Briggs & Stratton 7 HP 1972-1976, also listed with the K-161 gas engine
• Cub Cadet 80 with the Briggs & Stratton 8 HP 318 cc
• Cub Cadet 81 with the Briggs & Stratton 8 HP 318 cc 1977-1978
• Cub Cadet 111 with the Briggs & Stratton 11 HP 399 cc 1978-1979
• Cub Cadet 182 and 282 with the Briggs & Stratton 8 HP 318 cc
• Cub Cadet 283 with the Briggs & Stratton 8 HP 318 cc 1980-1984
• Cub Cadet 382 with the Briggs & Stratton 11 HP 399 cc
• Cub Cadet 383 with the Briggs & Stratton 11 HP 399 cc 1980-1984
• Cub Cadet 805 with the Briggs & Stratton 8 HP 318 cc 1985-1986
• Cub Cadet 1105 and 1110 with the Briggs & Stratton 11 HP 399 cc 1985-1986
• Cub Cadet 1015 and 1020 with the Briggs & Stratton 10 HP 399 cc 1988-1991
• Cub Cadet 1225 with the Briggs & Stratton 12 HP 465 cc 1992-1993
• Cub Cadet 1300 with the Briggs & Stratton 13 HP 465 cc 1998
• Cub Cadet 1405 with the Briggs & Stratton 14 HP 1998

JOHN DEERE LAWN TRACTORS AND RIDING MOWERS (BRIGGS & STRATTON SINGLE):
• John Deere 65 and 66 riding mowers with Briggs & Stratton
• John Deere 68 riding mower with the Briggs & Stratton 8 HP 1975-1983
• John Deere 100 with the Briggs & Stratton 8 HP 318 cc 1975-1978
• John Deere 108 with the Briggs & Stratton 8 HP 318 cc 1979-1985
• John Deere 111 with the Briggs & Stratton 11 HP 399 cc 1979-1985
• John Deere 111H with the Briggs & Stratton 11 HP 399 cc 1982-1984
• John Deere 112L 1985
• John Deere R70 and R72 riding mowers with the Briggs & Stratton 8 HP 1984-1986
• John Deere R92 riding mower with the Briggs & Stratton 11 HP 1985-1986
• John Deere S80 riding mower with the Briggs & Stratton 8 HP 1984
• John Deere S82 8 HP and S92 11 HP riding mowers with Briggs & Stratton 1984-1986
• John Deere GX85 and SX85 riding mowers with the Briggs & Stratton 28M707 13 HP 465 cc 1997-2003
• John Deere 820 and 820A rear tine tillers with Briggs & Stratton

BRIGGS & STRATTON ENGINES (AIR COOLED):
• Briggs & Stratton 7 HP and 8 HP horizontal and vertical engines
• Briggs & Stratton 176432, 176437, 176452
• Briggs & Stratton 190402, 190406, 190407, 190412, 190415, 190417, 190432, 190436
• Briggs & Stratton 191700, 191702, 192402, 192412, 192417, 192432, 195422, 195432
• Briggs & Stratton 196402, 196412, 196417, 196427, 196432, 196436, 196437, 196707
• Briggs & Stratton 197402, 197412, 197415, 197417, 198707, 19E412
• Briggs & Stratton 220416, 220432, 220702, 220707, 221437
• Briggs & Stratton 251412, 251416, 251702, 251707, 252412, 252417, 252702
• Briggs & Stratton 254412, 254422, 254427, 255707
• Briggs & Stratton 282707, 284702, 284777, 285707, 286702, 289702
• Briggs & Stratton 28B707, 28F707, 28M706, 28M707, 28N707, 28Q777

SPECIFICATIONS:
• Type: starter motor, PMDD (permanent magnet direct drive)
• Voltage: 12 volt
• Rotation: CCW (counterclockwise)
• Pinion: 16 tooth plastic gear, gear OD 40.6 mm (1.598 in)
• Field case length: 3.75 in (95.3 mm), short case
• Mounting: three unthreaded ears, 8.1 to 8.3 mm ID
• Power: 0.7 kW
• Flywheel: plastic or aluminum ring gears only, not for steel ring gears
• Replaces: both short 3.75 in (95.3 mm) and long 4.25 in (108 mm) field case originals
• Includes: extra 16 tooth plastic gear
• Weight: 2.34 kg (5.14 lb)
• Condition: New aftermarket

Details

Shipping Information

  • Item Requires Shipping
  • 6.1 lbs.
  • W4.0000” x H4.0000” x L8.0000”
  • Free Shipping!
