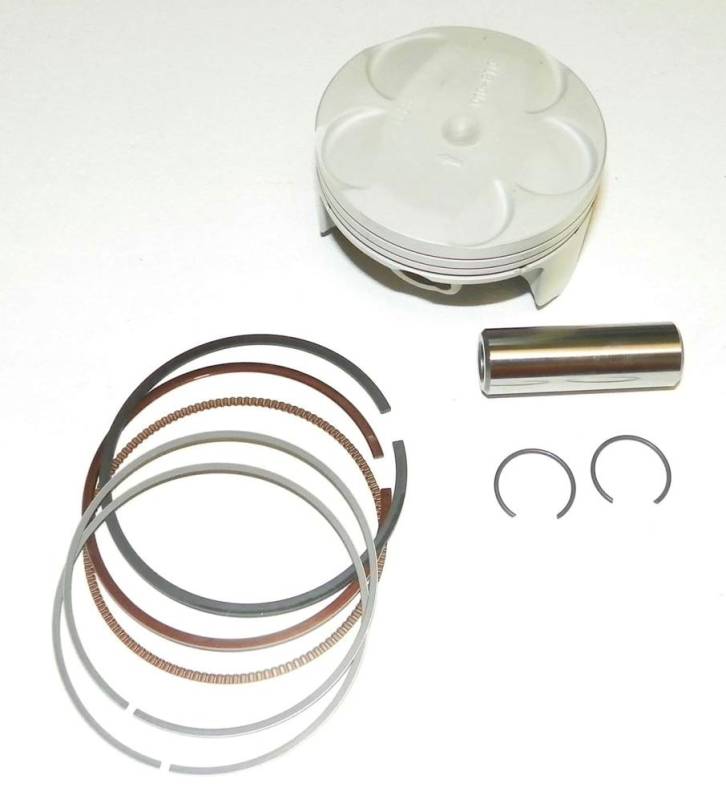

New Piston Kit Standard Bore 74Mm Compatible With Yamaha Fx 140 Fx Cruiser Waverunner 1000 2002-2008

(0) Reviews: Write first review
010-870K
OEM PART NUMBERS:
• Yamaha Piston: 60E-11631-00-B0 / 60E1163100B0
• Yamaha Ring Set: 4XV-11603-00-00

SPECIFICATIONS:
• Product: Piston Kit (Piston + Ring Set)
• Engine: Yamaha MR-1 (Marine R-1) — Based on Yamaha R1 Superbike Technology
• Bore Size: Standard — 74.0mm
• Stroke: 58mm
• Displacement: 998cc DOHC 20V 4-Stroke Inline 4-Cylinder
• Compression Ratio: 11.4:1
• Power: 140HP (103 kW) @ 10,000 RPM
• Valves: 20 (5 per cylinder), Dual Overhead Cam (DOHC)
• Fuel: EFI Electronic Fuel Injection (40mm injectors)
• Ignition: TCI
• Cooling: Open Loop Water Cooled
• Lubrication: Dry Sump — Dual Oil Pumps
• Standard bore — no cylinder machining required
• Light 400-grit hone recommended for ring seating
• Kit Includes: 1 Piston + 1 Ring Set per kit
• Qty 4 pistons per engine | Jet boats use dual engines (8 pistons per boat)
• Source: Aftermarket | Condition: New

OVERSIZE SERIES (OEM 60E-11631-00-B0):
• 010-870K — STD 74.0mm (THIS ITEM)
• 010-870-04K — 0.25mm Over 74.25mm
• 010-870-05K — 0.50mm Over 74.50mm
• 010-870-06K — 0.75mm Over 74.75mm
• 010-870-07K — 1.00mm Over 75.0mm

YAMAHA MR-1 1000 APPLICATIONS:
• FX 140 WaveRunner 998cc 140HP (2002-2004) — PWC
• FX WaveRunner 998cc 140HP (2005-2008) — PWC (renamed FX 140)
• FX Cruiser 998cc 140HP (2003-2008) — PWC
• SR 230 998cc 140HP/engine (2003-2005) — Dual-Engine Jet Boat
• AR 230 998cc 140HP/engine (2004-2006) — Dual-Engine Jet Boat
• SX 230 998cc 140HP/engine (2004-2006) — Dual-Engine Jet Boat
• AR 210 998cc 140HP/engine (2008-2014) — Dual-Engine Jet Boat
• SX 210 998cc 140HP/engine (2011-2014) — Dual-Engine Jet Boat
• AR 240 HO 998cc 140HP/engine (2014) — Dual-Engine Jet Boat

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $177.43
Sale: $101.39
Save: 43%
Save: $76.04
Qty:
Free Shipping!

Description

YAMAHA WAVERUNNER PWC — FX SERIES (2002-2008):
• FX 140 WaveRunner 998cc DOHC 20V 4-Cyl 4-Stroke 140HP (2002) — STD Bore 74.0mm
• FX 140 WaveRunner 998cc DOHC 20V 4-Cyl 4-Stroke 140HP (2003) — STD Bore 74.0mm
• FX 140 WaveRunner 998cc DOHC 20V 4-Cyl 4-Stroke 140HP (2004) — STD Bore 74.0mm
• FX WaveRunner 998cc DOHC 20V 4-Cyl 4-Stroke 140HP (2005) — (renamed from FX 140)
• FX WaveRunner 998cc DOHC 20V 4-Cyl 4-Stroke 140HP (2006) — STD Bore 74.0mm
• FX WaveRunner 998cc DOHC 20V 4-Cyl 4-Stroke 140HP (2007) — STD Bore 74.0mm
• FX WaveRunner 998cc DOHC 20V 4-Cyl 4-Stroke 140HP (2008) — STD Bore 74.0mm

YAMAHA WAVERUNNER PWC — FX CRUISER SERIES (2003-2008):
• FX Cruiser 998cc DOHC 20V 4-Cyl 4-Stroke 140HP (2003) — STD Bore 74.0mm
• FX Cruiser 998cc DOHC 20V 4-Cyl 4-Stroke 140HP (2004) — STD Bore 74.0mm
• FX Cruiser 998cc DOHC 20V 4-Cyl 4-Stroke 140HP (2005) — STD Bore 74.0mm
• FX Cruiser 998cc DOHC 20V 4-Cyl 4-Stroke 140HP (2006) — STD Bore 74.0mm
• FX Cruiser 998cc DOHC 20V 4-Cyl 4-Stroke 140HP (2007) — STD Bore 74.0mm
• FX Cruiser 998cc DOHC 20V 4-Cyl 4-Stroke 140HP (2008) — STD Bore 74.0mm

YAMAHA JET BOATS — 230 SERIES (2003-2006):
NOTE: 230-series jet boats use DUAL MR-1 engines (280HP total) — 8 pistons per boat
• SR 230 998cc DOHC 4-Cyl 4-Stroke 140HP per engine (2003-2005) — STD Bore 74.0mm
• AR 230 998cc DOHC 4-Cyl 4-Stroke 140HP per engine (2004-2006) — STD Bore 74.0mm
• SX 230 998cc DOHC 4-Cyl 4-Stroke 140HP per engine (2004-2006) — STD Bore 74.0mm

YAMAHA JET BOATS — 210/240 SERIES (2008-2014):
NOTE: 210/240-series jet boats use DUAL MR-1 engines — 8 pistons per boat
• AR 210 998cc DOHC 4-Cyl 4-Stroke 140HP per engine (2008-2014) — STD Bore 74.0mm
• SX 210 998cc DOHC 4-Cyl 4-Stroke 140HP per engine (2011-2014) — STD Bore 74.0mm
• AR 240 HO 998cc DOHC 4-Cyl 4-Stroke 140HP per engine (2014) — STD Bore 74.0mm

ENGINE SPECIFICATIONS — YAMAHA MR-1 998CC:
• Engine Name: MR-1 (Marine R-1) — Based on Yamaha R1 Superbike Technology
• Configuration: DOHC 20-Valve 4-Stroke Inline 4-Cylinder
• Displacement: 998cc (marketed as 1000cc)
• Bore x Stroke: 74.0mm x 58mm (Standard Bore)
• Compression Ratio: 11.4:1
• Power: 140HP (103 kW) @ 10,000 RPM
• Fuel System: EFI — Electronic Fuel Injection (40mm injectors)
• Induction: Naturally Aspirated
• Ignition: TCI (Transistor Controlled Ignition)
• Cooling: Open Loop Water Cooled
• Lubrication: Dry Sump — Dual Oil Pumps w/ Rollover/Slant Protection
• OEM Piston: 60E-11631-00-B0 / 60E1163100B0
• OEM Ring Set: 4XV-11603-00-00

OVERSIZE SERIES (OEM 60E-11631-00-B0):
• 010-870K — STD 74.0mm (THIS ITEM)
• 010-870-04K — 0.25mm 74.25mm
• 010-870-05K — 0.50mm 74.50mm
• 010-870-06K — 0.75mm 74.75mm
• 010-870-07K — 1.00mm 75.0mm
