OEM PART NUMBERS:
• Kawasaki: 13001-3730 / 130013730
• Kawasaki: 13001-3731 / 130013731
SPECIFICATIONS:

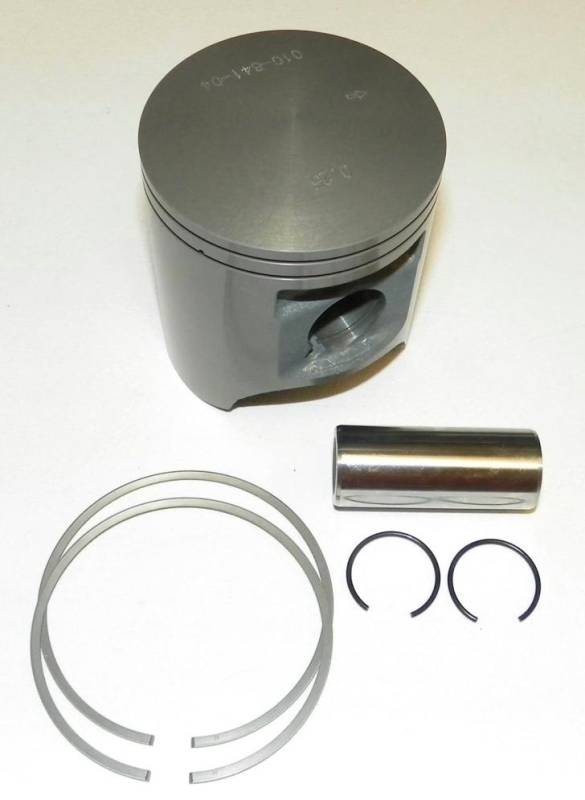

• Product: Piston Kit
• Bore Size: Standard — 79.87mm
• Stroke: 78mm
• Engine: 1176cc 3-Cylinder 2-Stroke Water Cooled
• Power: 145HP @ 6,750 RPM
• Carburetion: Triple Keihin CDCV 40-35
• Factory Piston-to-Wall Clearance: .004-.0045 in
• No cylinder machining required — standard bore direct fit
• Light 400-grit hone recommended for ring seating
• Kit Includes: 1 Piston + 1 Ring Set per kit
• Qty 3 pistons required per engine
• Source: Aftermarket
• Condition: New
OVERSIZE SERIES (OEM 13001-3730 / 13001-3731):
• 010-841K — STD 79.87mm (THIS ITEM)
• 010-841-04K — 0.25mm Over 80.12mm
• 010-841-05K — 0.50mm Over 80.37mm
• 010-841-06K — 0.75mm Over 80.62mm
• 010-841-07K — 1.00mm Over 80.87mm
KAWASAKI 1200 APPLICATIONS:
• Ultra 150 1200 1176cc 145HP (1999-2005) — 2-Seater Flagship
• STX-R 1200 1176cc 145HP (2002-2005) — 3-Seater Race Runabout
• Both models share same 145HP 1176cc 3-Cyl 2-Stroke engine
