New Piston Kit Standard Bore 83Mm Compatible With Kawasaki Stx-15F 1500 2004-2015 Ultra Lx 1500

(0) Reviews: Write first review
010-845K
OEM PART NUMBERS:
• Kawasaki: 13001-3737 / 130013737

SPECIFICATIONS:
• Product: Piston Kit
• Bore Size: Standard — 83.0mm
• Stroke: 69.2mm
• Engine: 1498cc DOHC 16V 4-Stroke Inline 4-Cylinder
• Engine Technology: Based on Kawasaki Ninja Motorcycle Engine
• Power: 160HP (118 kW) @ 7,500 RPM
• Torque: 152 N.m. @ 7,250 RPM
• Compression Ratio: 10.6:1
• Fuel: EFI — Electronic Fuel Injection (60mm throttle body)
• Induction: Naturally Aspirated
• Cooling: Inducted Water (Open Loop)
• Standard bore — no cylinder machining required
• Light hone with 400-grit recommended for ring seating

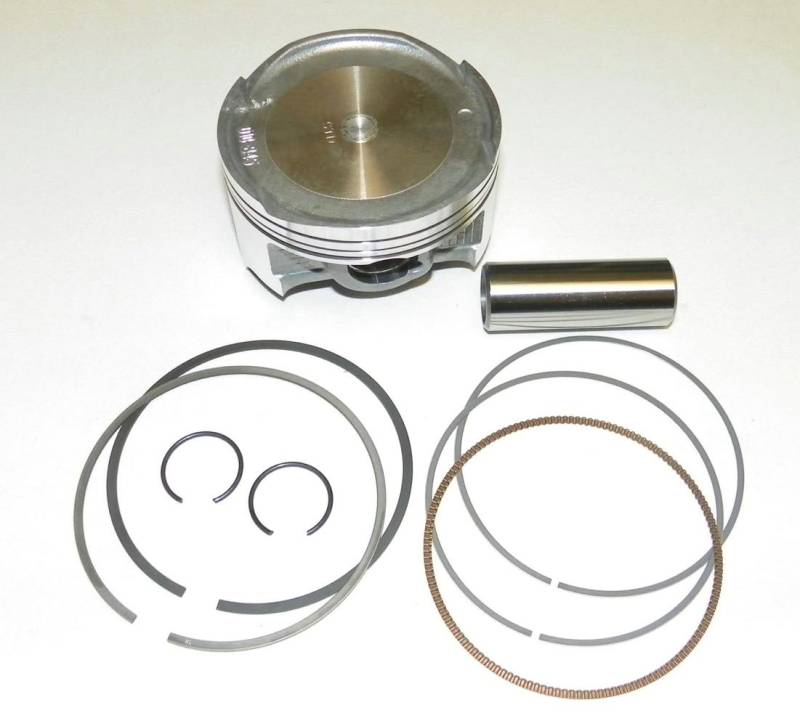

• Kit Includes: 1 Piston + 1 Ring Set + 1 Pin + 2 Circlips per kit
• Qty 4 pistons required per engine
• Source: Aftermarket
• Condition: New

OVERSIZE SERIES (OEM 13001-3737):
• 010-845K — STD 83.0mm (THIS ITEM)
• 010-845-04K — 0.25mm Over 83.25mm
• 010-845-05K — 0.50mm Over 83.50mm
• 010-845-06K — 0.75mm Over 83.75mm
• 010-845-07K — 1.00mm Over 84.0mm

KAWASAKI 1500 APPLICATIONS:
• STX-15F 1500 1498cc 160HP (2004-2015) — 3-Seater Flagship
• Ultra LX 1500 1498cc 160HP (2007-2015) — 3-Seater Luxury
• STX 1500 1498cc 160HP (2009-2010)
• All models share same 1498cc DOHC 4-Cyl 4-Stroke engine

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $158.39
Sale: $90.51
Save: 43%
Save: $67.88
Qty:
Free Shipping!

Description

KAWASAKI STX-15F 1500 — 3-SEATER JET SKI (2004-2015):
• STX-15F 1498cc DOHC 4-Cyl 4-Stroke 160HP (2004) — JT1500-A1 — STD Bore 83.0mm
• STX-15F 1498cc DOHC 4-Cyl 4-Stroke 160HP (2005) — JT1500-A2 — STD Bore 83.0mm
• STX-15F 1498cc DOHC 4-Cyl 4-Stroke 160HP (2006) — JT1200D6F — STD Bore 83.0mm
• STX-15F 1498cc DOHC 4-Cyl 4-Stroke 160HP (2007) — JT1500A7F — STD Bore 83.0mm
• STX-15F 1498cc DOHC 4-Cyl 4-Stroke 160HP (2008) — JT1500A8F — STD Bore 83.0mm
• STX-15F 1498cc DOHC 4-Cyl 4-Stroke 160HP (2009) — JT1500A9F — STD Bore 83.0mm
• STX-15F 1498cc DOHC 4-Cyl 4-Stroke 160HP (2010) — JT1500AAF — STD Bore 83.0mm
• STX-15F 1498cc DOHC 4-Cyl 4-Stroke 160HP (2011) — JT1500ABF — STD Bore 83.0mm
• STX-15F 1498cc DOHC 4-Cyl 4-Stroke 160HP (2012) — JT1500ACF — STD Bore 83.0mm
• STX-15F 1498cc DOHC 4-Cyl 4-Stroke 160HP (2013) — JT1500ADF — STD Bore 83.0mm
• STX-15F 1498cc DOHC 4-Cyl 4-Stroke 160HP (2014) — JT1500AEF — STD Bore 83.0mm
• STX-15F 1498cc DOHC 4-Cyl 4-Stroke 160HP (2015) — JT1500AFF — STD Bore 83.0mm

KAWASAKI ULTRA LX 1500 — 3-SEATER JET SKI (2007-2015):
• Ultra LX 1498cc DOHC 4-Cyl 4-Stroke 160HP (2007) — JT1500C7F — STD Bore 83.0mm
• Ultra LX 1498cc DOHC 4-Cyl 4-Stroke 160HP (2008) — JT1500C8F — STD Bore 83.0mm
• Ultra LX 3-Pass 1498cc DOHC 4-Cyl 4-Stroke 160HP (2009) — JT1500G9F
• Ultra LX 3-Pass 1498cc DOHC 4-Cyl 4-Stroke 160HP (2010) — JT1500GAF
• Ultra LX 3-Pass 1498cc DOHC 4-Cyl 4-Stroke 160HP (2011) — JT1500GBF
• Ultra LX 1498cc DOHC 4-Cyl 4-Stroke 160HP (2012) — JT1500KCF
• Ultra LX 1498cc DOHC 4-Cyl 4-Stroke 160HP (2013) — JT1500KDF
• Ultra LX 1498cc DOHC 4-Cyl 4-Stroke 160HP (2014) — JT1500KEF
• Ultra LX 1498cc DOHC 4-Cyl 4-Stroke 160HP (2015) — JT1500KFF

KAWASAKI STX 1500 (2009-2010):
• STX 1498cc DOHC 4-Cyl 4-Stroke 160HP (2009) — JT1500D9F
• STX 1498cc DOHC 4-Cyl 4-Stroke 160HP (2010) — JT1500DAF

ENGINE SPECIFICATIONS — 1498CC 4-STROKE:
• Configuration: DOHC 16-Valve 4-Stroke Inline 4-Cylinder
• Technology: Based on Kawasaki Ninja Motorcycle Engine
• Displacement: 1498cc (marketed as 1500cc)
• Bore x Stroke: 83.0mm x 69.2mm (Standard Bore)
• Compression Ratio: 10.6:1
• Power: 160HP (118 kW) @ 7,500 RPM
• Torque: 152 N.m. (112 lb-ft) @ 7,250 RPM
• Fuel System: EFI — Electronic Fuel Injection (60mm throttle body)
• Induction: Naturally Aspirated
• Cooling: Inducted Water (Open Loop)
• Ignition: Digital
• OEM Part Number: 13001-3737 / 130013737

OVERSIZE SERIES (OEM 13001-3737):
• 010-845K — STD 83.0mm (THIS ITEM)
• 010-845-04K — 0.25mm 83.25mm
• 010-845-05K — 0.50mm 83.50mm
• 010-845-06K — 0.75mm 83.75mm
• 010-845-07K — 1.00mm 84.0mm

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 1.1 lbs.
  • W4.0000” x H4.0000” x L6.0000”
