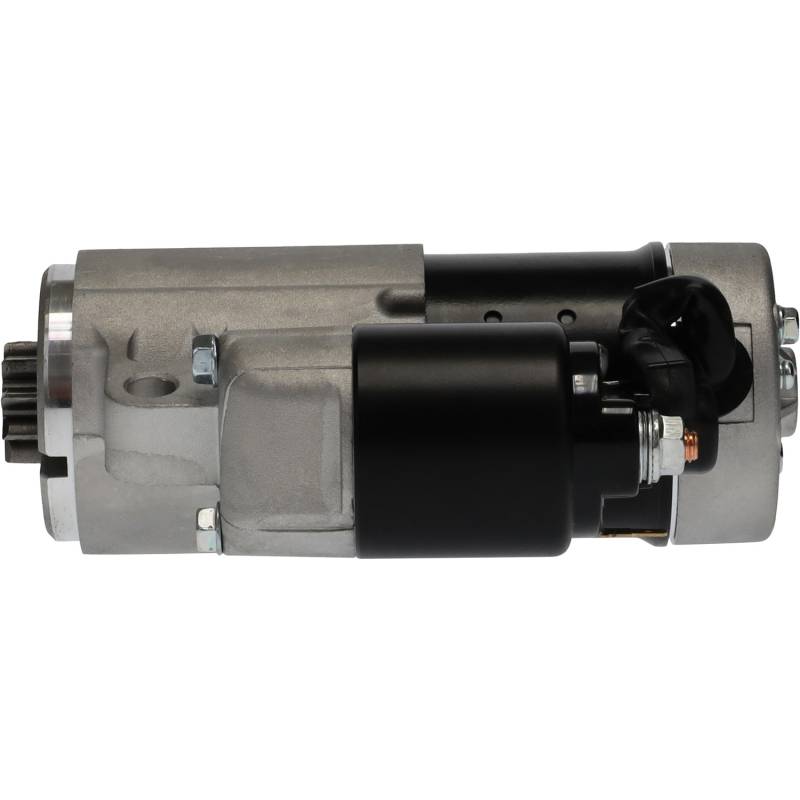

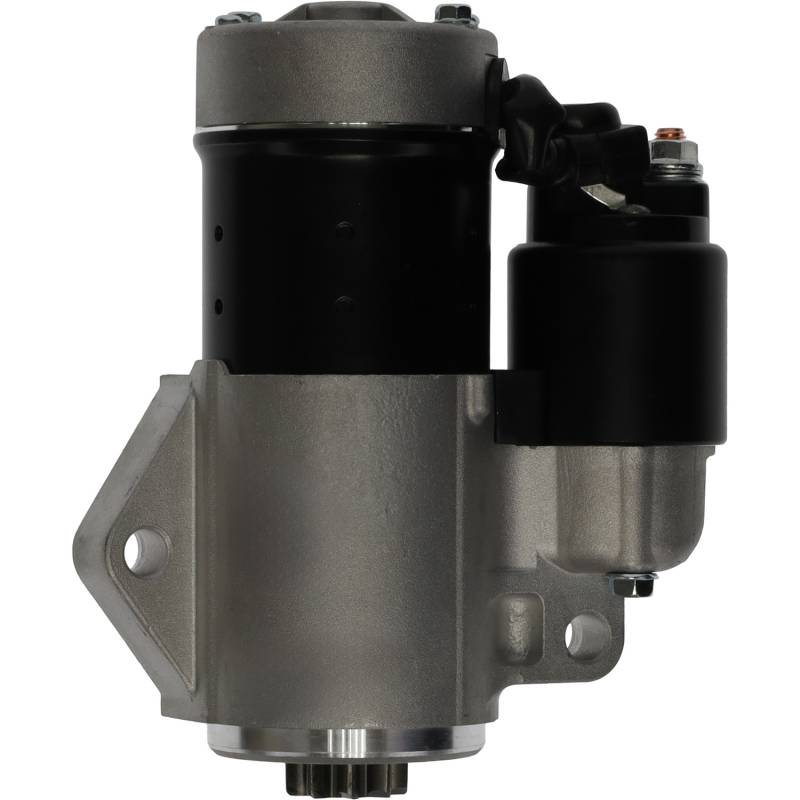

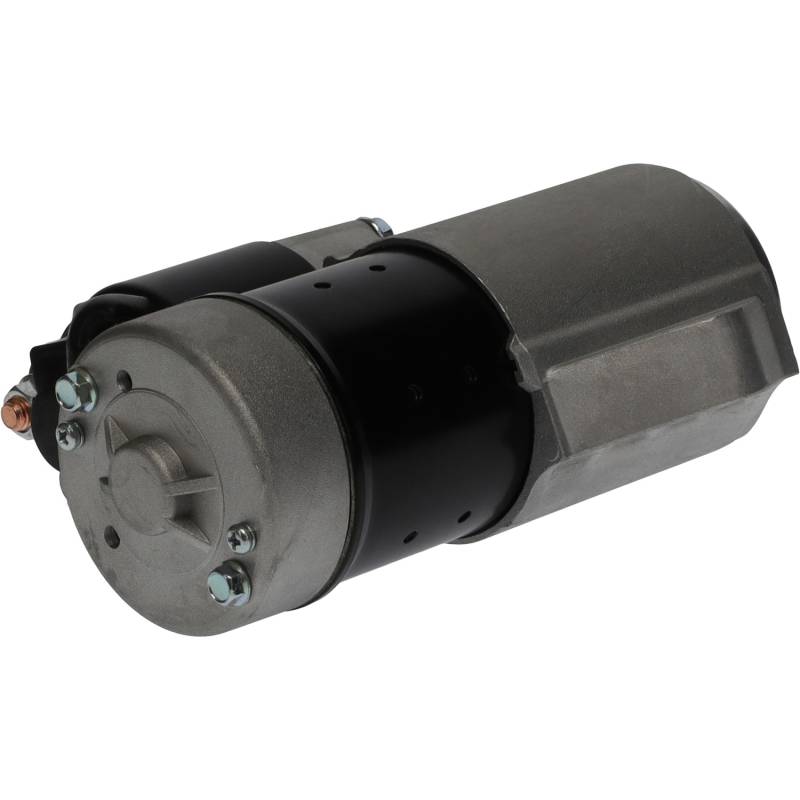

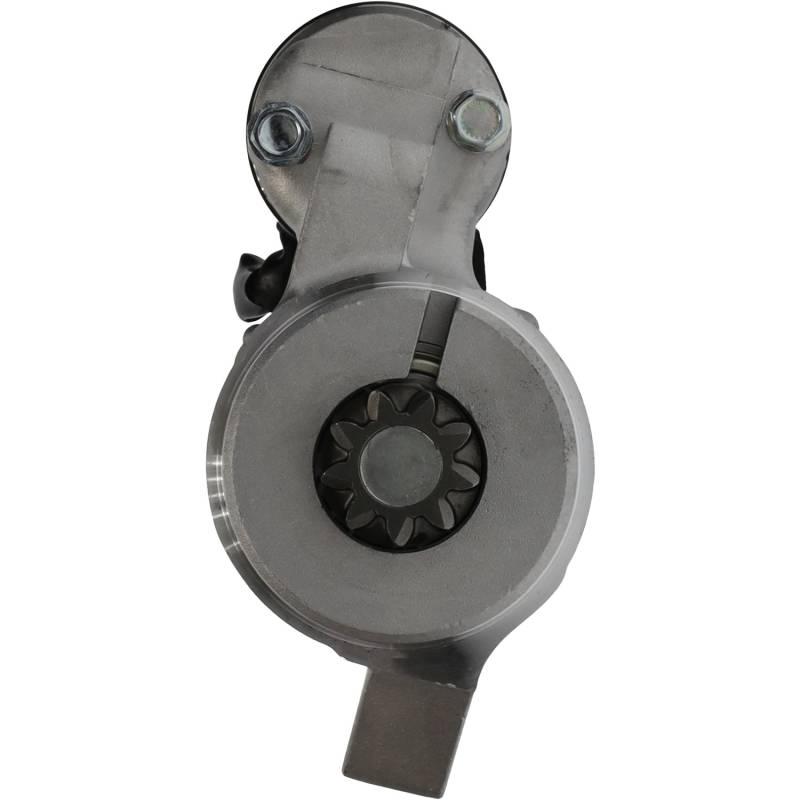

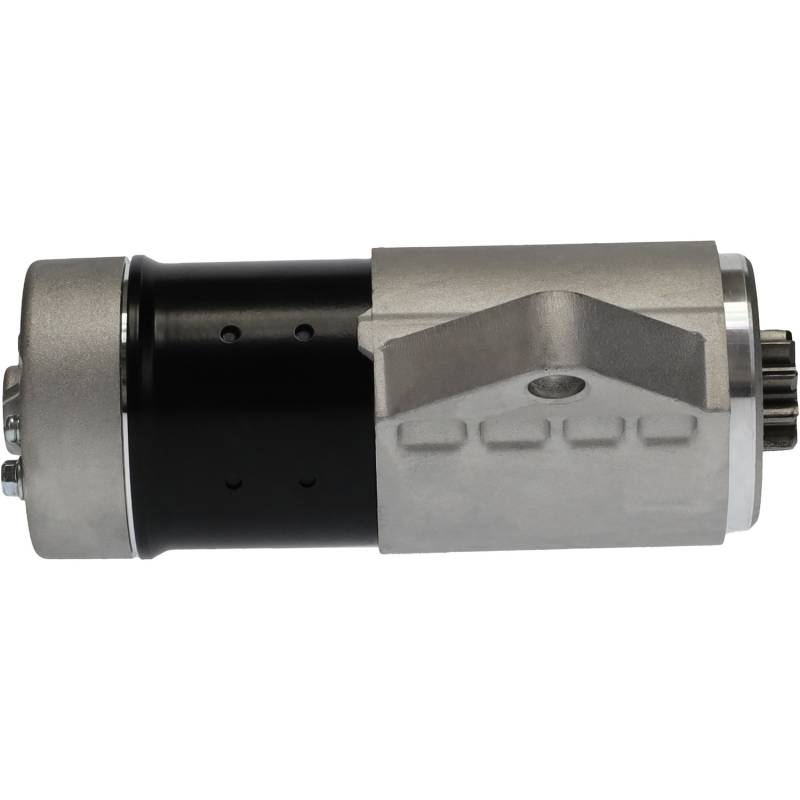

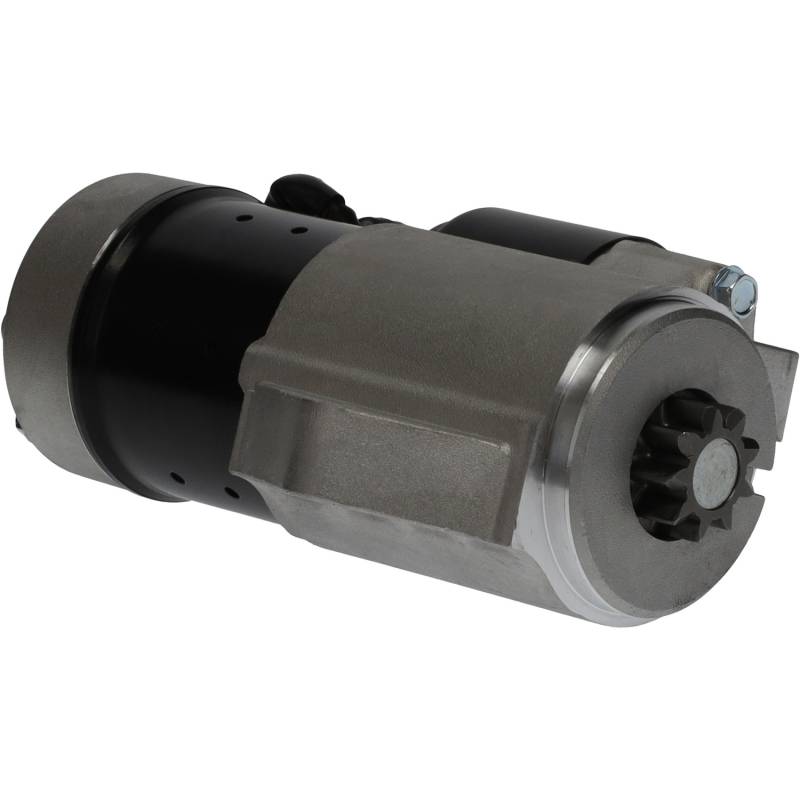

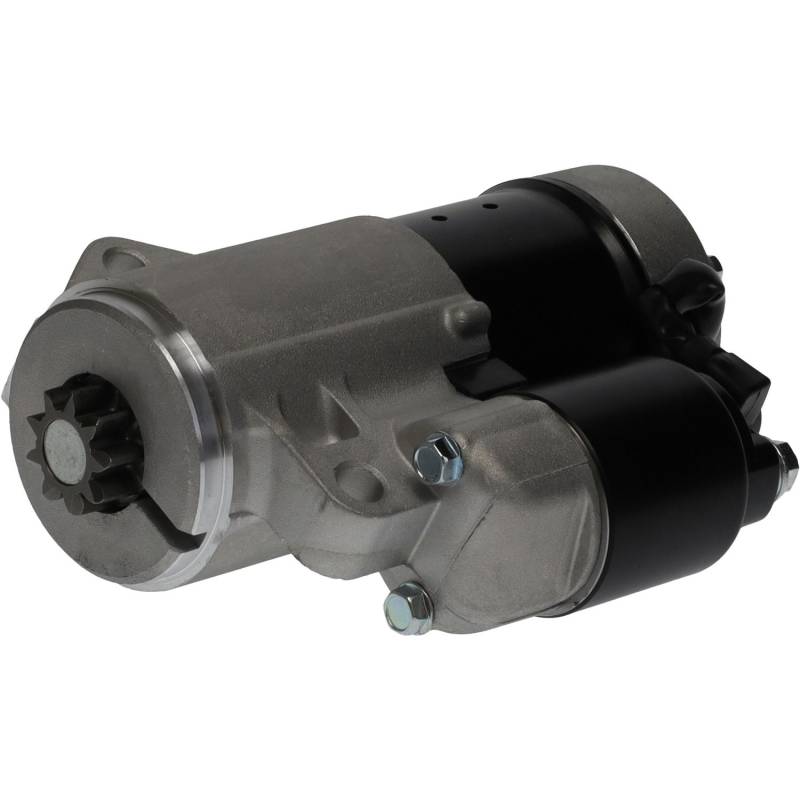

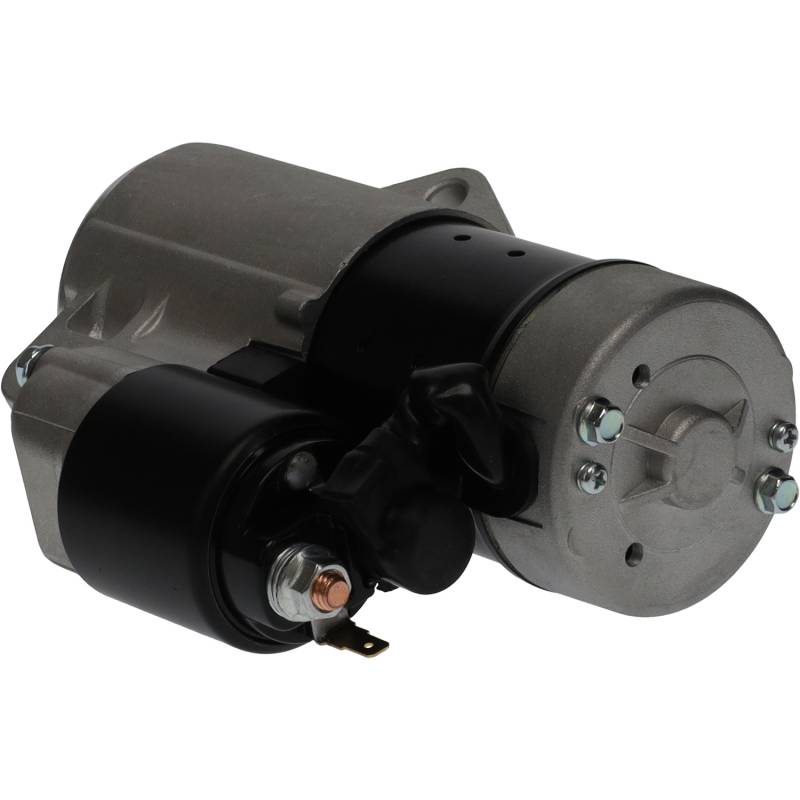

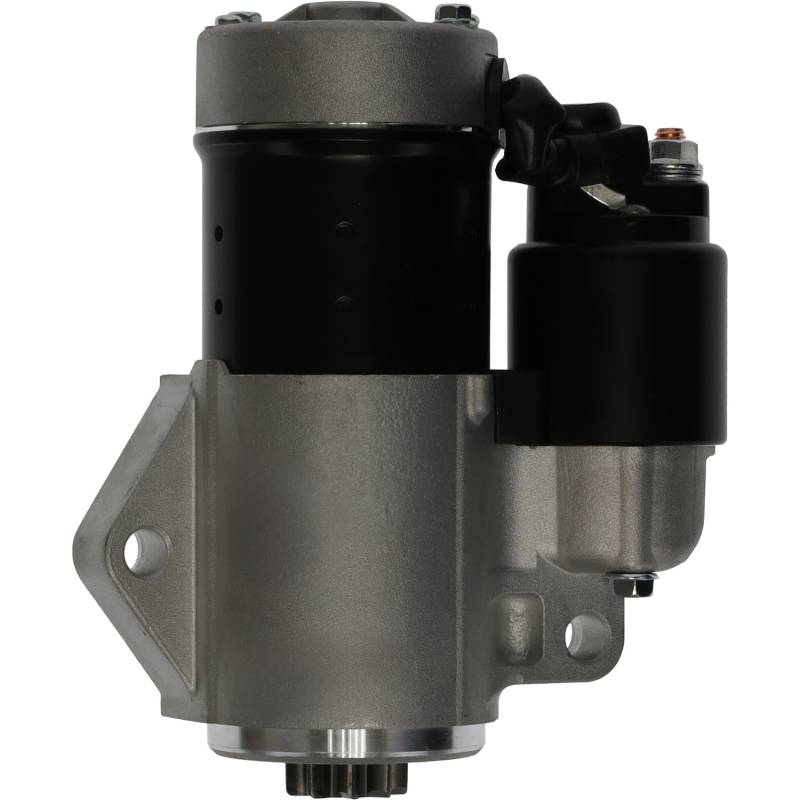

Starter Motor Compatible With 2001-2008 Suzuki Df90tl 2009-2011 Df100t 2001-2015 Df115 Df140

(0) Reviews: Write first review
19701*4
OEM PART NUMBERS:
• S114-837 / S114837 (Hitachi)
• S114-837A / S114837A (Hitachi)
• S114-837AN / S114837AN (Hitachi)
• 31100-90J00 / 3110090J00 (Suzuki)
• 31100-90J01 / 3110090J01 (Suzuki)
• 5033799 (OMC/BRP)
• 18-6831 (Sierra Marine)

SPECIFICATIONS:
• Voltage: 12V
• Power: 1.4kW
• Type: PMGR (Permanent Magnet Gear Reduction)
• Rotation: CW (Clockwise)
• Tooth Count: 9
• Gear OD: 28.8mm / 1.134 in
• Mounting Ear 1: 10.8mm ID Unthreaded
• Mounting Ear 2: 10.8mm ID Unthreaded
• Weight: 8 lbs
• SAE J1171 Marine Ignition Protection Certified

FITS SUZUKI 4-STROKE OUTBOARDS:
• DF90TL 90HP (2001-2008)
• DF100T/TL/TX 100HP (2009-2011)
• DF115T 115HP (2001-2013) / DF115A 115HP (2013-2015)
• DF140T/Z 140HP (2002-2013) / DF140A 140HP (2013-2015)

FITS EVINRUDE / JOHNSON 4-STROKE OUTBOARDS:
• 90PL4, 90PX4, BJ90PL4, BJ90PX4, J90PL4, J90PX4 (2003-2006)
• 115PL4, 115PX4, BJ115L4, BJ115PL4, BJ115PX4, BJ115X4, J115PL4, J115PX4 (2003-2006)
• 140CX4, 140PL4, 140PX4, BJ140CX4, BJ140L4, BJ140PL4, BJ140PX4, BJ140X4, J140CX4, J140PL4, J140PX4 (2003-2006)

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $324.38
Sale: $186.69
Save: 42%
Save: $137.69
Qty:
Free Shipping!

Description

SUZUKI MARINE OUTBOARDS:

DF90 (90HP):
• Suzuki DF90TL 4-Stroke 118.9CI 90HP - 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008

DF100 (100HP):
• Suzuki DF100T 4-Stroke 118.9CI 100HP - 2009
• Suzuki DF100TL 4-Stroke 100HP - 2009, 2010, 2011
• Suzuki DF100TX 4-Stroke 100HP - 2009, 2010, 2011

DF115 (115HP):
• Suzuki DF115T 4-Stroke 118.9CI 115HP - 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013
• Suzuki DF115ATL 4-Stroke 115HP - 2013, 2014, 2015
• Suzuki DF115ATX 4-Stroke 115HP - 2013, 2014, 2015
• Suzuki DF115ATXZ 4-Stroke 115HP - 2013, 2014, 2015

DF140 (140HP):
• Suzuki DF140T 4-Stroke 124.7CI 140HP - 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013
• Suzuki DF140Z 4-Stroke 140HP - 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010
• Suzuki DF140A 4-Stroke 140HP - 2013, 2014, 2015

EVINRUDE / JOHNSON 4-STROKE OUTBOARDS:

90HP:
• Evinrude/Johnson 90PL4 - 2003, 2004, 2005, 2006
• Evinrude/Johnson 90PX4 - 2005, 2006
• Evinrude/Johnson BJ90PL4 - 2003, 2004, 2005, 2006
• Evinrude/Johnson BJ90PX4 - 2003, 2004, 2005, 2006
• Evinrude/Johnson J90PL4 - 2003, 2004, 2005, 2006
• Evinrude/Johnson J90PX4 - 2003, 2004, 2005, 2006

115HP:
• Evinrude/Johnson 115PL4 - 2003, 2004, 2005, 2006
• Evinrude/Johnson 115PX4 - 2003, 2004, 2005, 2006
• Evinrude/Johnson BJ115L4 115H - 2003, 2004
• Evinrude/Johnson BJ115PL4 115H - 2005, 2006
• Evinrude/Johnson BJ115PX4 115H - 2005, 2006
• Evinrude/Johnson BJ115X4 115H - 2003, 2004
• Evinrude/Johnson J115PL4 - 2003, 2004, 2005, 2006
• Evinrude/Johnson J115PX4 - 2003, 2004, 2005, 2006

140HP:
• Evinrude/Johnson 140CX4 - 2003, 2004, 2005, 2006
• Evinrude/Johnson 140PL4 - 2003, 2004, 2005, 2006
• Evinrude/Johnson 140PX4 - 2003, 2004, 2005, 2006
• Evinrude/Johnson BJ140CX4 140H - 2004, 2005, 2006
• Evinrude/Johnson BJ140L4 140H - 2006
• Evinrude/Johnson BJ140PL4 140H - 2004, 2005
• Evinrude/Johnson BJ140PX4 140H - 2004, 2005
• Evinrude/Johnson BJ140X4 140H - 2006
• Evinrude/Johnson J140CX4 - 2003, 2004, 2005, 2006
• Evinrude/Johnson J140PL4 - 2003, 2004, 2005, 2006
• Evinrude/Johnson J140PX4 - 2003, 2004, 2005, 2006

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 7.5 lbs.
  • W8.0000” x H4.0000” x L14.0000”
  • Free Shipping!
