Starter Motor Compatible With 2005-2018 Yamaha Outboard F250 Lf250 250Hp F225 225Hp 4-Stroke

OEM PART NUMBERS:
• Hitachi: S114-867 / S114867 (original)
• Hitachi: S114-867A / S114867A
• Hitachi: S114-867B / S114867B (current)
• Hitachi: S114-867BN / S114867BN
• Yamaha: 63P-81800-00 / 63P-81800-00-00 / 63P8180000
• Yamaha: 6BR-81800-00 / 6BR-81800-00-00 / 6BR8180000
• Yamaha: 6BR-81800-01 / 6BR-81800-01-00
• Yamaha: 6BR-81800-02 / 6BR-81800-02-00

SPECIFICATIONS:
• Unit Type: Hitachi
• Type: PMGR (Permanent Magnet Gear Reduction)
• Voltage: 12V
• Power Output: 1.4kW
• Rotation: CCW (Counterclockwise)
• Teeth: 13
• Gear OD: 1.567 in / 39.8mm
• Mounting Ear 1: 8.7mm Unthreaded
• Mounting Ear 2: 8.7mm Unthreaded
• Mounting Ear 3: 9.9mm x 8.7mm Slotted
• CE Housing: M8-1.25 Threaded Hole
• Condition: New
• Weight: 8 lbs / 3.64 kg

APPLICATION:
• Yamaha F150/LF150 150HP 4-Stroke Outboard (2004-2018)
• Yamaha F200 200HP 4-Stroke Outboard (2011-2018)
• Yamaha F225 225HP 4-Stroke Outboard (2006-2018)
• Yamaha F250/LF250 250HP 4-Stroke Outboard (2005-2018)


12V Starter Motor - Yamaha Outboard F150 F200 F225 F250 LF150 LF250 150HP 200HP 225HP 250HP 4-Stroke

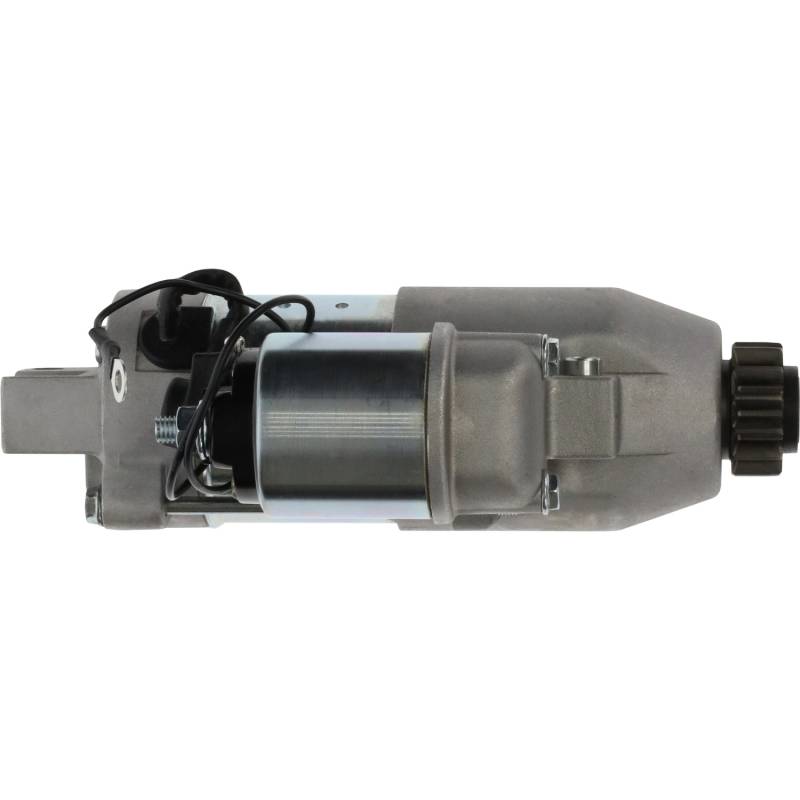

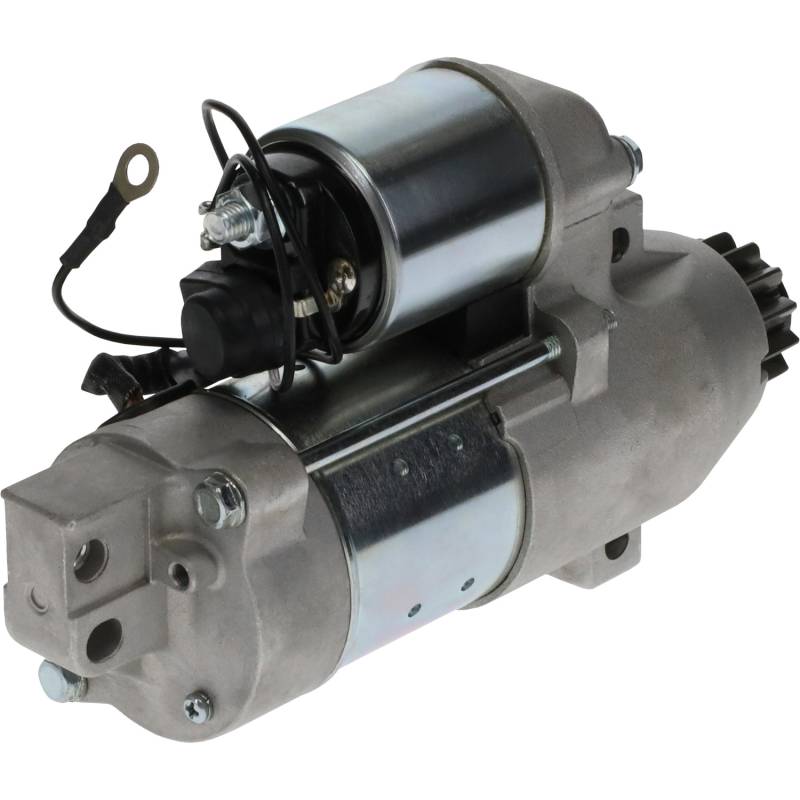

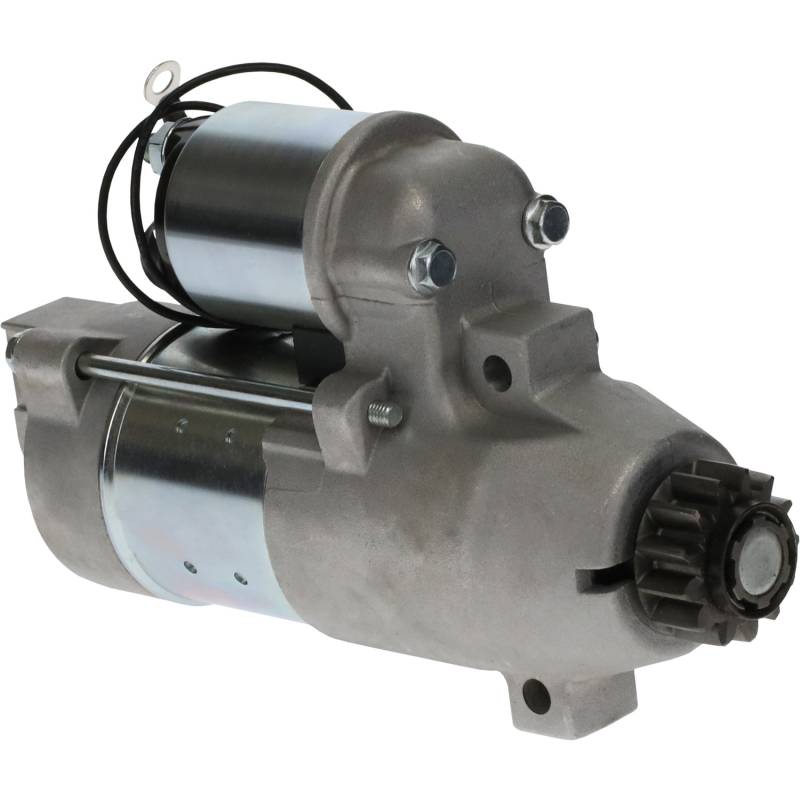

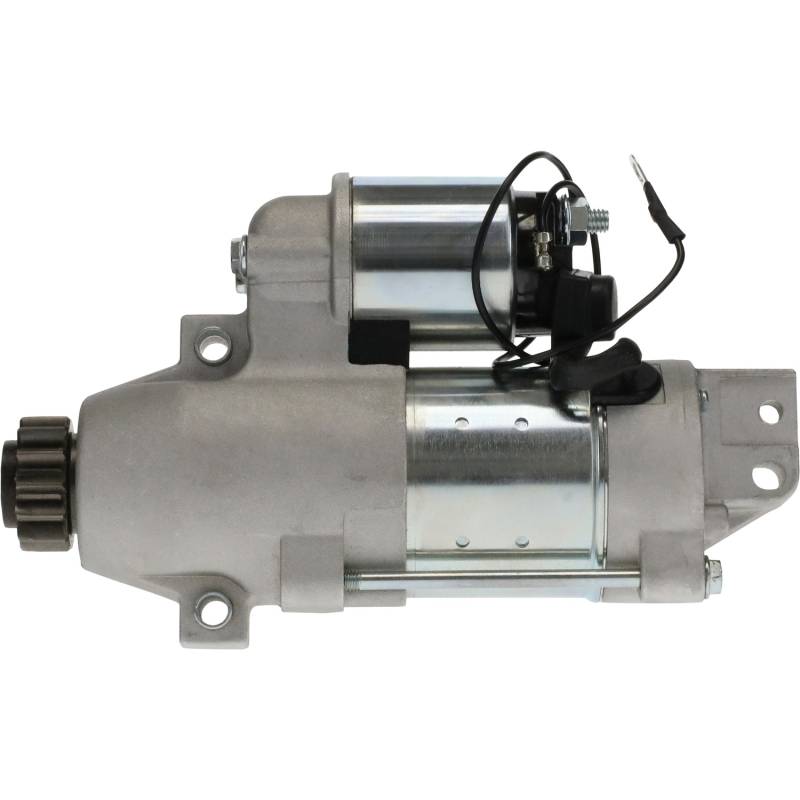

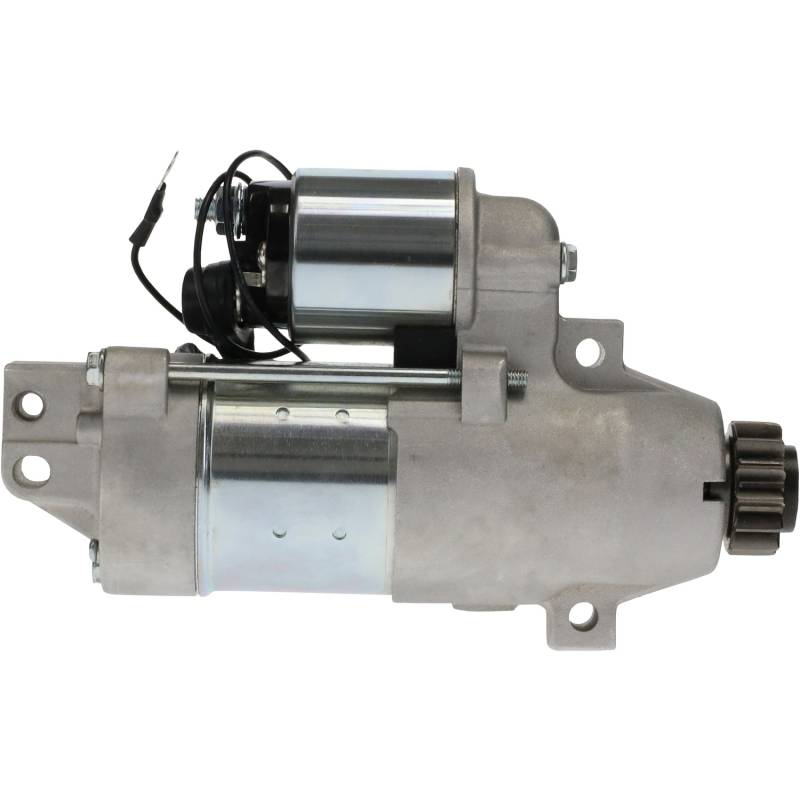

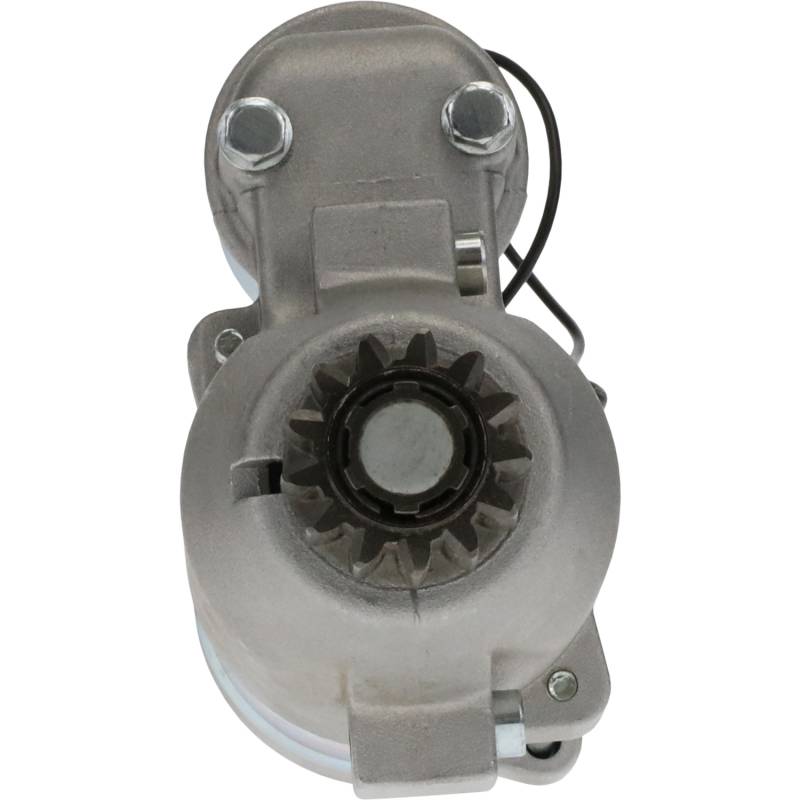

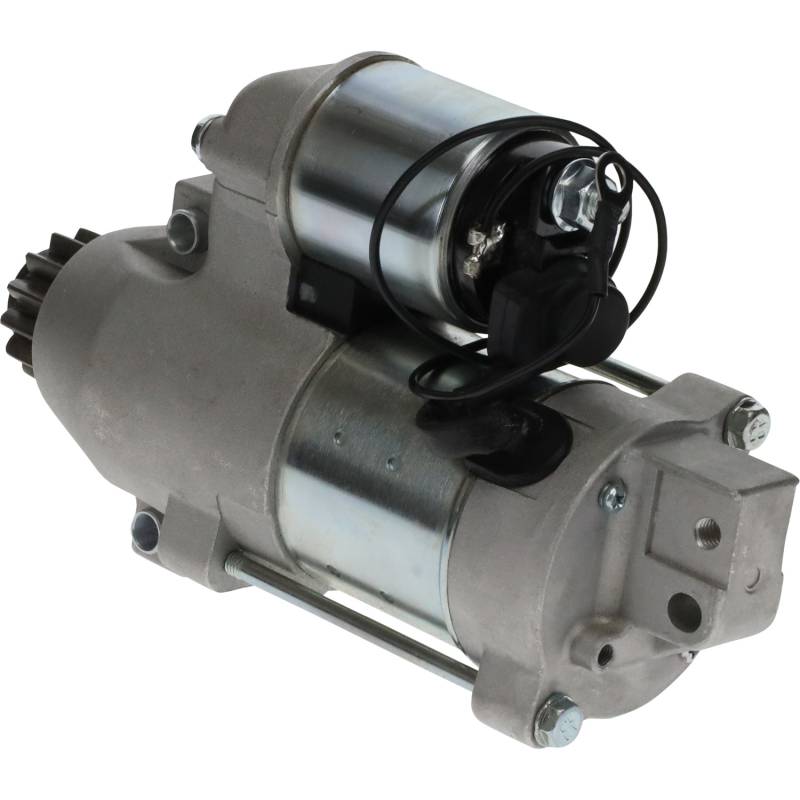

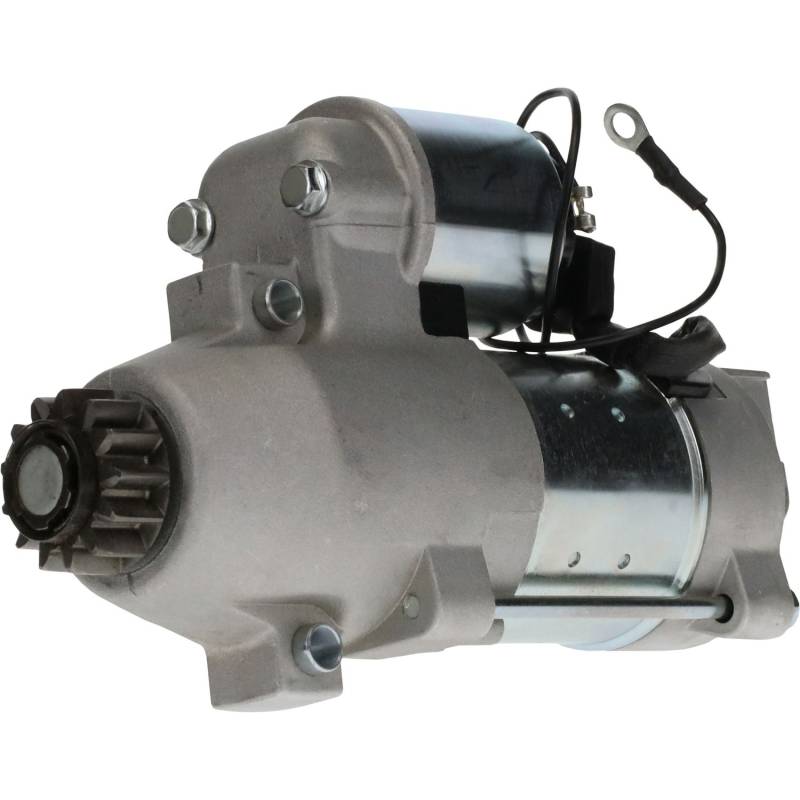

Brand new Hitachi PMGR starter motor for Yamaha 4-stroke outboard motors ranging from 150HP to 250HP. Fits Yamaha F150, LF150, F200, F225, F250, and LF250 series outboards from 2004 through 2018 model years. Covers F150TLR, F150TXR, F150JA, F150JB, F150LA, F150LB, F150XA, F150XB, LF150TXR, F200XA, F225TLR, F225XA, F250TUR, F250TXR, F250UA, F250XA, LF250TUR, and LF250TXR models. 12 volt design with counterclockwise rotation and 13-tooth pinion gear. Power output rated at 1.4kW. Features three mounting ears with 8.7mm unthreaded holes (ear 3 has 9.9mm x 8.7mm slotted hole) and M8-1.25 threaded hole in CE housing. Gear OD measures 1.567 inches (39.8mm). Weight approximately 8 lbs (3.64 kg). Direct OEM replacement for Yamaha 6BR-81800-01 and Hitachi S114-867B. Supersedes Yamaha 63P-81800-00.
