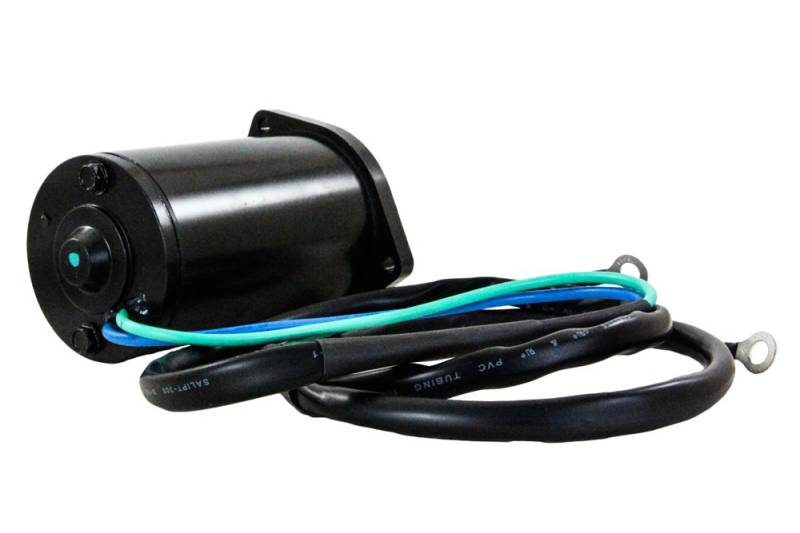

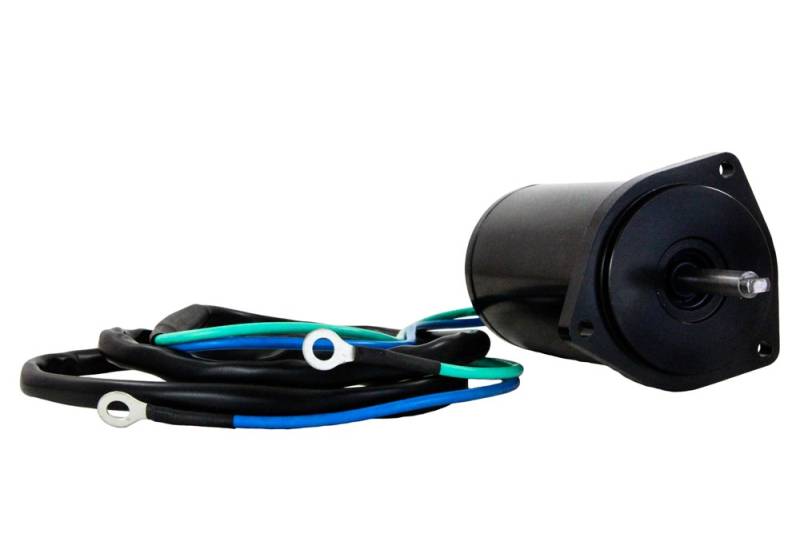

Tilt Trim Motor Compatible With Yamaha 40Hp 50Hp Outboard 40Tlr 50Tlr F50tlr T50tlr 2-Stroke

OEM PART NUMBERS:
• Yamaha: 62Y-43880-01 / 62Y-43880-01-00 / 62Y438800100
• Yamaha: 62Y-43880-02 / 62Y-43880-02-00 / 62Y438800200
• Yamaha: 69W-43880-00 / 69W-43880-00-00 / 69W438800000
• Yamaha: 69W-43880-01 / 69W-43880-01-00 / 69W438800100
• Yamaha: 69W-43880-09 / 69W-43880-09-00 / 69W438800900
• Yamaha: CS3-43880-00 / CS3-43880-00-00 / CS3438800000



AFTERMARKET CROSS REFERENCE:
• API Marine: PT614NM
• Arco Marine: 6259
• 18-6811
SPECIFICATIONS:
• Type: Tilt Trim Motor (Long Shaft)
• Voltage: 12V DC
• Rotation: Reversible (Bi-Directional)
• OD: 63.6mm (2.504 in)
• Length: 120.4mm (4.740 in)
• Shaft OD: 7.9mm (0.311 in)
• Shaft Type: 37mm x 8mm Drive Tang (Long Shaft)
• Shaft Note: 1.5" from seal to flat blade
• Connection: 2-Wire with Ring Terminal Ends
• Mounting: 3-Bolt
• Weight: Approximately 2.68 lbs (1.22 kg)
• Fits: 2-Stroke and 4-Stroke Yamaha Outboards
• Condition: New

YAMAHA OUTBOARD APPLICATIONS:
• 40HP 2-Stroke (2001-2006+): 40MJH, 40MLH, 40TLR
• 50HP 2-Stroke (2001-2010): 50EJR, 50TLR
• 40HP Commercial (2001-2003): C40TLR
• 50HP 4-Stroke/Hi-Thrust (2001-2004): F50TLR, F50TJR, T50TLR
• 60HP 4-Stroke/Hi-Thrust (2002-2004+): F60TLR, F60TJR, T60TLR
• 70HP 4-Stroke (2006+): F70LA

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
