OEM PART NUMBERS:
• Yamaha: 6H5-43880-00 / 6H5-43880-00-00 / 6H5438800000
• Yamaha: 6H5-43880-01 / 6H5-43880-01-00 / 6H5438800100
• Yamaha: 6H5-43880-02 / 6H5-43880-02-00 / 6H5438800200
• Yamaha: 6H5-43880-09 / 6H5-43880-09-00 / 6H5438800900
• Mercury/Quicksilver: 8M6007567
AFTERMARKET CROSS REFERENCE:
• API Marine: PT613NM
• Arco Marine: 6264
• 18-6788
SPECIFICATIONS:

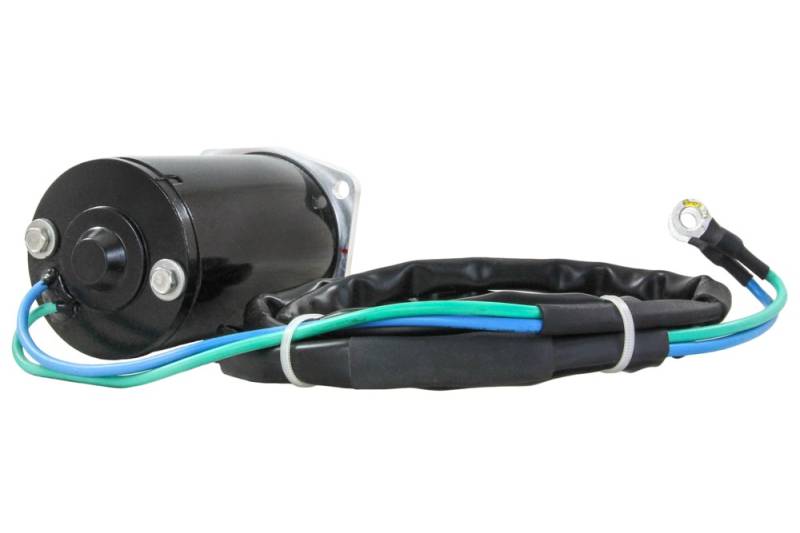

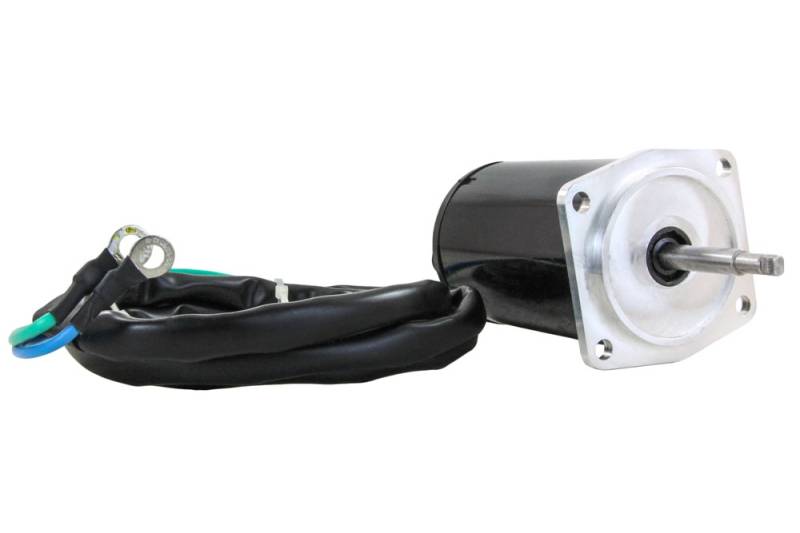

• Type: Tilt Trim Motor (4-Bolt Mount)
• Voltage: 12V DC
• Rotation: Reversible (Bi-Directional)
• Field Housing OD: 67.2mm (2.646 in)
• Overall Length: 155.5mm (6.122 in)
• Shaft OD: 11mm (0.433 in)
• Connection: 2-Wire with Ring Terminal Ends
• Mounting: 4-Bolt with O-Ring Included
• Weight: Approximately 4 lbs
• Condition: New
YAMAHA OUTBOARD APPLICATIONS:
• 40HP Pre-Suffix (1985-1990): 40EL, 40ES, 40ETL, 40L, 40S, 40SJD
• 40HP Suffix (1991-1994): 40EJR, 40ELR, 40ESR, 40MJH, 40MLH, 40MSH, 40PLR, 40TLR
• C40 Commercial (1992-1997): C40ELR, C40ESH, C40MLH, C40MSH, C40PLR
• 50HP 2-Stroke (1985-1992): All 50HP models with 4-bolt tilt trim mount
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
