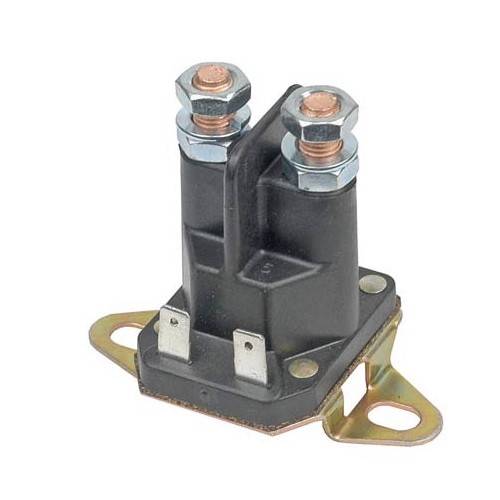

New 12V 100 Amp Continuous Duty Spst Solenoid Relay 4-Terminal Silver Contacts Compatible With Lawn

OEM PART NUMBERS:
• Cole Hersee (Littelfuse): 24512-10 / 2451210
• Cole Hersee (Littelfuse): 24512-10-BX / 24512-10BX (Boxed)

SPECIFICATIONS:
• Type: SPST Normally Open Continuous Duty Solenoid Relay
• Voltage: 12V DC (14V Maximum Operating Voltage)
• Continuous Current: 100 Amps
• Surge/Inrush Current: 400 Amps (5 sec ON, 5 min OFF, max 20 sec ON)
• Duty Cycle: Continuous
• Contact Material: Silver
• Contact Stud Material: Copper
• Contact Stud Threads: 5/16"-24 (hex nuts and lock washers included)
• Coil Stud Material: Steel
• Coil Stud Threads: 10-32" (hex nuts and lock washers included)
• Coil Terminals: (2) 6.4mm / 0.25" Blade Terminals
• Number of Terminals: 4 Total (2 Battery/Motor Studs + 2 Coil Blades)
• Housing Material: Glass-Filled Nylon (Plastic)
• Mounting: F-Style Metal Bracket, Flat 180 (F180)
• Bracket Holes: 5/16" x 19/32", 2-13/64" on center
• Condition: New / Genuine Cole Hersee (Littelfuse)
