OEM PART NUMBERS:
• Prestolite: SBD4201D / SBD-4201D
• Prestolite: SBD4201
• John Deere: AM35906
• Cole Hersee: 24401-01BX / 2440101BX
• Item Reference: 15-338 / 15338
SPECIFICATIONS:

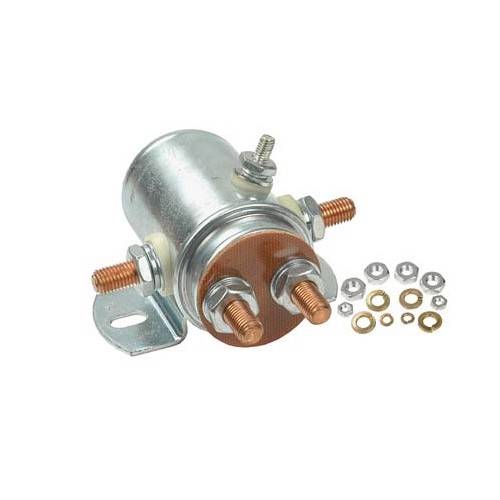

• Product Type: Power Solenoid (Continuous Duty)
• Unit Type / OEM Design: Prestolite / Ametek
• Voltage: 12 Volts DC
• Continuous Amperage: 100 Amps
• Duty Cycle: Continuous
• Number of Terminals: 5
• Electrical Configuration: SPDT (Single Pole Double Throw)
• Mounting Style: Flat 180 (F180) Flat Base
• Mounting Centers: 2.16 inches
• Dimensions: 4.12" L x 3.75" W x 2.33" H
• Case Material: Metal (Sealed Construction)
• Motor Stud: 5/16-24 Threaded
• Battery Stud: 5/16-24 Threaded
• Excitation Terminal: 10-32 Threaded
• Condition: New
• Country of Origin: United States
• CAUTION: Use back-up wrench when tightening bottom nut
• Mounting Hardware Included: No
VEHICLE & EQUIPMENT APPLICATIONS SUMMARY:
• John Deere Lawn & Garden Tractors 200 / 208 / 210 / 212 / 214 / 216 (Electric Lift Circuit)
• Case Industrial & Agricultural Equipment 12V Continuous Duty Circuit
• Marine Equipment (Bow Thrusters, Windlasses, Battery Isolators)
• Industrial Equipment 12V Continuous Duty Accessory Circuits
• Emergency Vehicle 12V Electrical Systems
• Commercial Liftgate 12V Operation Circuits
• Winch / Golf Cart / Utility Vehicle Electrical Systems
• Bus / Heavy Truck 12V Accessory Power Circuits
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
