OEM PART NUMBERS:
• Yamaha: 61A-43880-00 / 61A-43880-00-00 / 61A438800000
• Yamaha: 61A-43880-01 / 61A-43880-01-00 / 61A438800100
• Yamaha: 61A-43880-02 / 61A-43880-02-00 / 61A438800200
• Mercury/Quicksilver: 8M6007576
AFTERMARKET CROSS REFERENCE:
• API Marine: PT603NM-3
• 18-6782
SPECIFICATIONS:

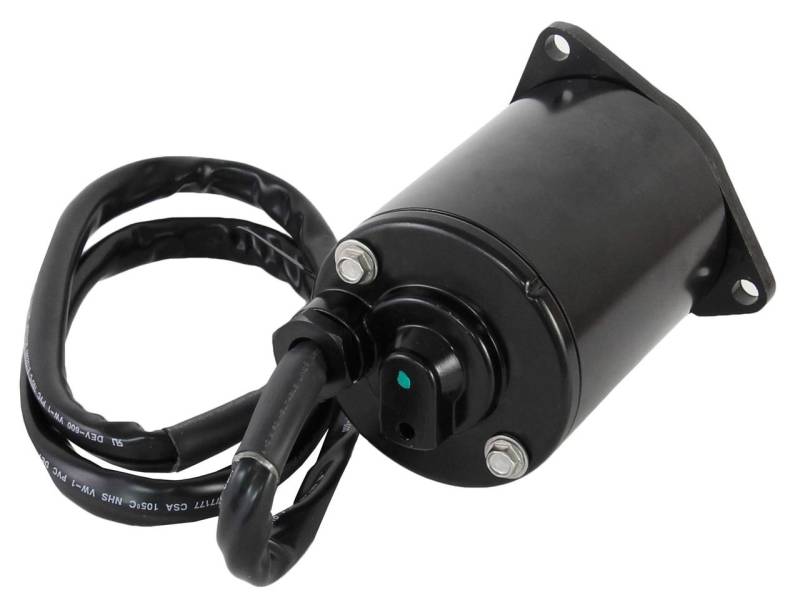

• Type: Tilt Trim Motor
• Voltage: 12V DC
• Rotation: Reversible (Bi-Directional)
• OD: 91mm (3.583 in)
• Length: 126.2mm (4.969 in)
• Shaft OD: 8mm (0.315 in)
• Shaft Type: Slotted

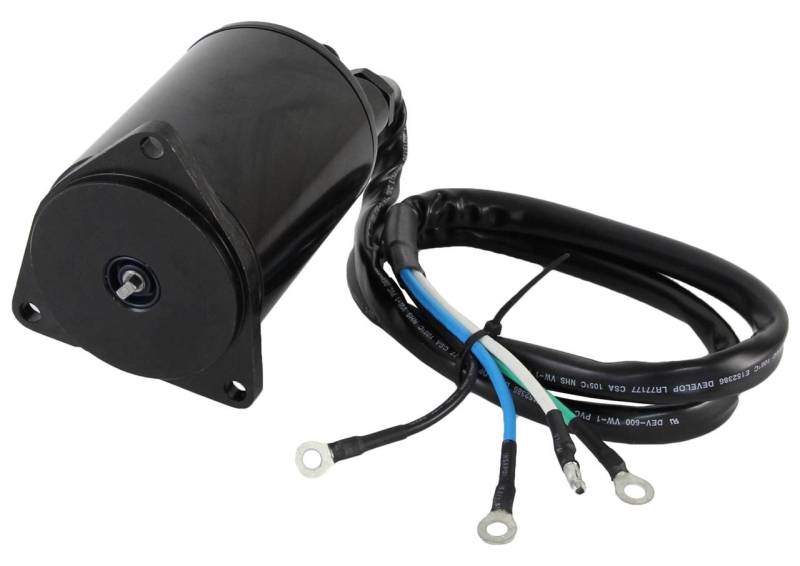

• Connection: 4-Wire with Ring Terminal Ends
• Mounting: 3-Bolt
• Weight: Approximately 4.5 lbs (2.05 kg)
• Condition: New
YAMAHA OUTBOARD APPLICATIONS:
• Yamaha 225HP V6 2-Stroke (1994-2003): 225TUR, 225TXR, L225TUR, L225TXR, S225TUR, S225TXR, LX225TXR, SX225TUR
• Yamaha 250HP V6 2-Stroke (1990-2003): 250ETX, 250TUR, 250TXR, L250ETX, L250TUR, L250TXR, S250TUR, S250TXR, LX250TUR, LX250TXR, SX250TXR
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
