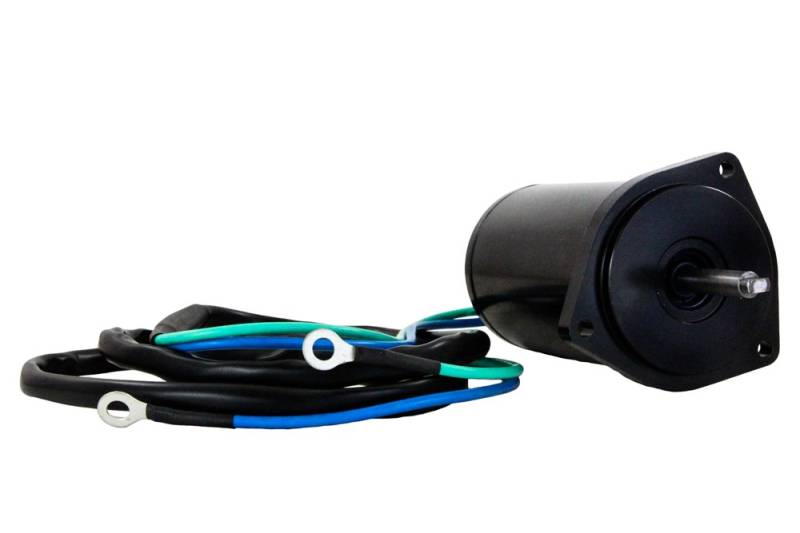

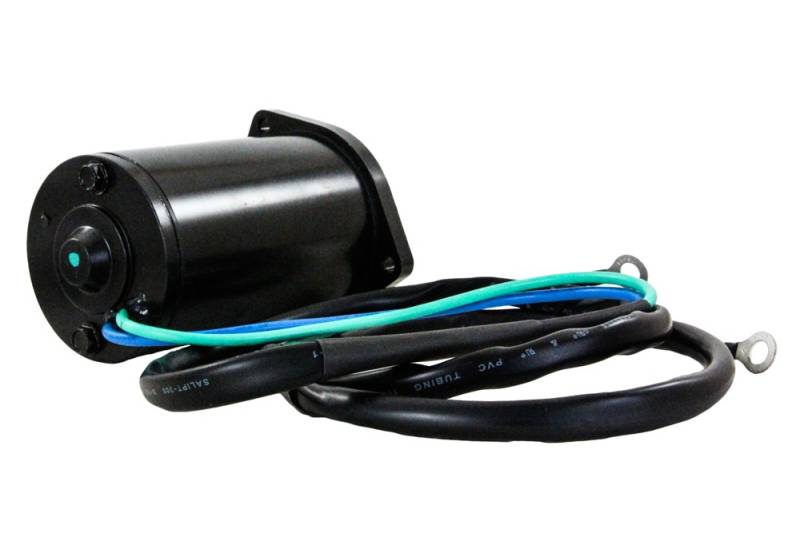

Tilt Trim Motor Compatible With Yamaha Outboard 40 50 60 Hp F50tjr F60tjr F60tlr T60tlr 4-Stroke

OEM PART NUMBERS:
• Yamaha: 62Y-43880-01 / 62Y-43880-01-00 / 62Y438800100
• Yamaha: 62Y-43880-02 / 62Y-43880-02-00 / 62Y438800200
• Yamaha: 69W-43880-00 / 69W-43880-00-00 / 69W438800000
• Yamaha: 69W-43880-01 / 69W-43880-01-00 / 69W438800100
• Yamaha: 69W-43880-09 / 69W-43880-09-00 / 69W438800900
• Yamaha: CS3-43880-00 / CS3-43880-00-00 / CS3438800000



AFTERMARKET CROSS REFERENCE:
• API Marine: PT614NM
• Arco Marine: 6259
• 18-6811
SPECIFICATIONS:
• Type: Tilt Trim Motor (Long Shaft)
• Voltage: 12V DC
• Rotation: Reversible (Bi-Directional)
• OD: 63.6mm (2.504 in)
• Length: 120.4mm (4.740 in)
• Shaft OD: 7.9mm (0.311 in)
• Shaft Type: 37mm x 8mm Drive Tang (Long Shaft)
• Shaft Note: 1.5" from seal to flat blade
• Connection: 2-Wire with Ring Terminal Ends
• Mounting: 3-Bolt
• Weight: Approximately 2.68 lbs (1.22 kg)
• Fits: 2-Stroke and 4-Stroke Yamaha Outboards
• Condition: New

YAMAHA OUTBOARD APPLICATIONS:
• 40HP 2-Stroke (2001-2006+): 40MJH, 40MLH, 40TLR
• 50HP 2-Stroke (2001-2010): 50EJR, 50TLR
• 40HP Commercial (2001-2003): C40TLR
• 50HP 4-Stroke/Hi-Thrust (2001-2004): F50TLR, F50TJR, T50TLR
• 60HP 4-Stroke/Hi-Thrust (2002-2004+): F60TLR, F60TJR, T60TLR
• 70HP 4-Stroke (2006+): F70LA
