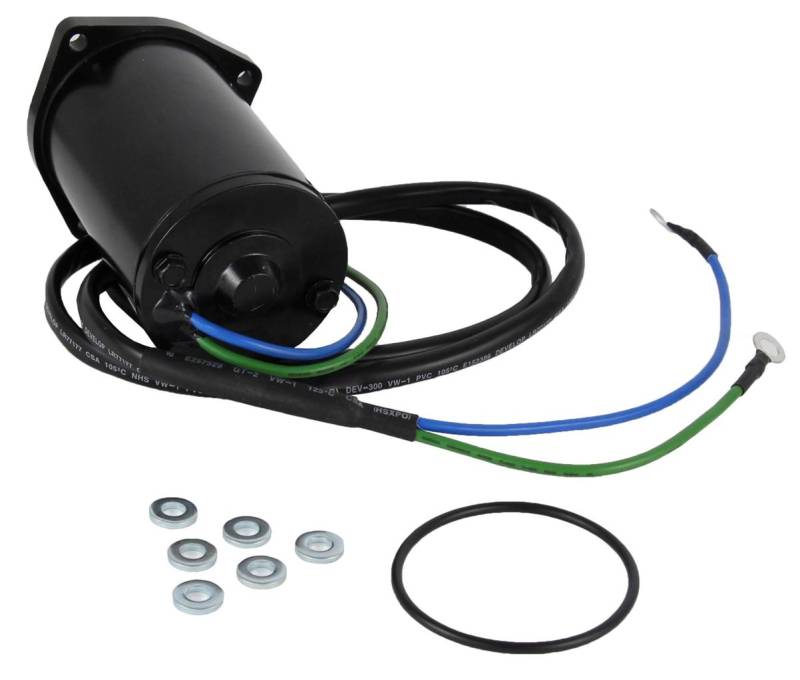

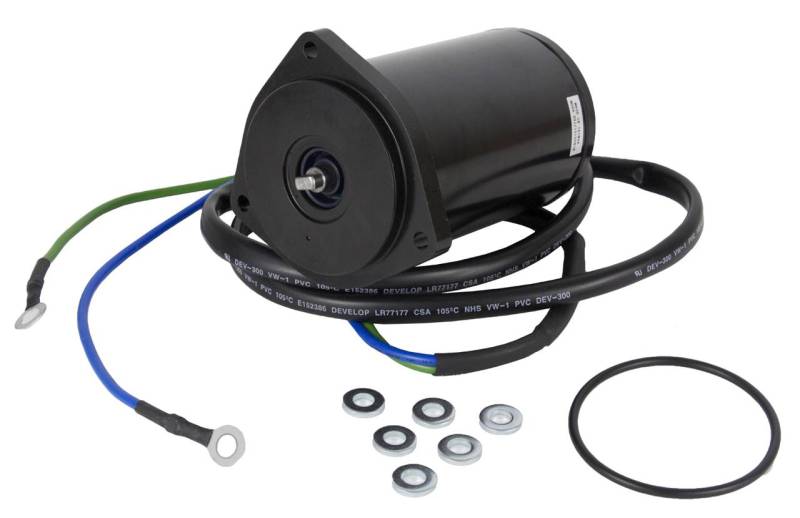

Tilt Trim Motor Compatible With Yamaha Outboard C40tlr C50tlr F50tlr F50tlh 40Hp 50Hp 1995-2001 12V

OEM PART NUMBERS:
• Yamaha: 62X-43880-00 / 62X-43880-00-00 / 62X438800000
• Yamaha: 62X-43880-01 / 62X-43880-01-00 / 62X438800100
• Yamaha: 62X-43880-09 / 62X-43880-09-00 / 62X438800900
• Mercury/Quicksilver: 8M6007573



AFTERMARKET CROSS REFERENCE:
• API Marine: PT611NM
• Arco Marine: 6266
• 18-6789
SPECIFICATIONS:
• Type: Tilt Trim Motor
• Voltage: 12V DC
• Rotation: Reversible (Bi-Directional)
• OD: 63.6mm (2.504 in)
• Length: 120.4mm (4.740 in)
• Shaft OD: 7.9mm (0.311 in)
• Shaft Type: 4mm x 8mm Drive Tang
• Connection: 2-Wire with Ring Terminal Ends
• Mounting: 3-Bolt
• O-Ring: Included
• Weight: Approximately 2.68 lbs (1.22 kg)
• Condition: New

YAMAHA OUTBOARD APPLICATIONS:
• Yamaha 40HP 2-Stroke (1995-2000): 40EJR, 40ELR, 40ESR, 40MJH, 40MLH, 40MSH, 40TLH, 40TLR
• Yamaha 50HP 2-Stroke (1995-1999): 50EJR, 50ELR, 50TLH, 50TLR
• Yamaha Commercial (1997-2001): C40TLR, C50TLR
• Yamaha 4-Stroke (1996-2000): F40TLR, F50TLH, F50TLR
• Yamaha Other (1995-2000): P40TLH, P50TLR, T50TLR
