OEM PART NUMBERS:
• OMC: 435532 / 0435532
• OMC: 437801 / 0437801
• OMC: 433226 / 0433226
• Honda: 36120-ZV5-821 / 36120ZV5821
AFTERMARKET CROSS REFERENCE:
• API Marine: PT302NM
• Arco Marine: 6242
• 18-6280
SPECIFICATIONS:

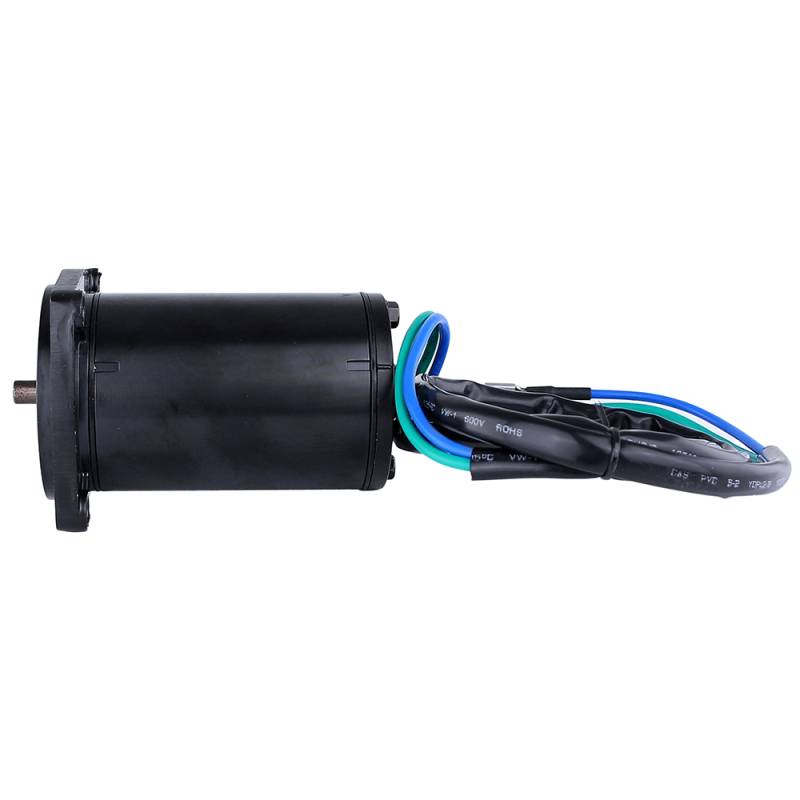

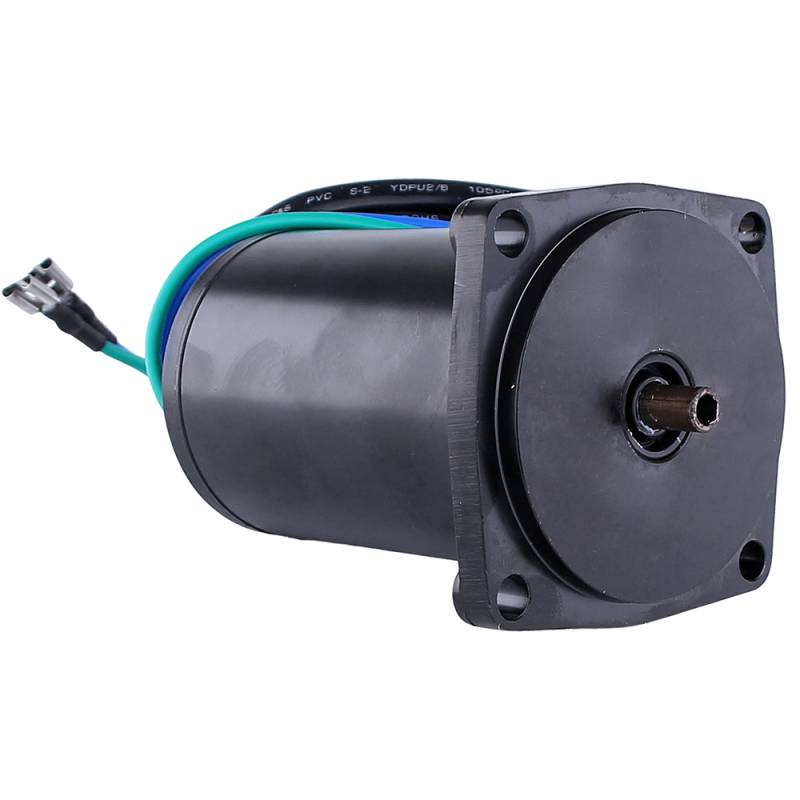

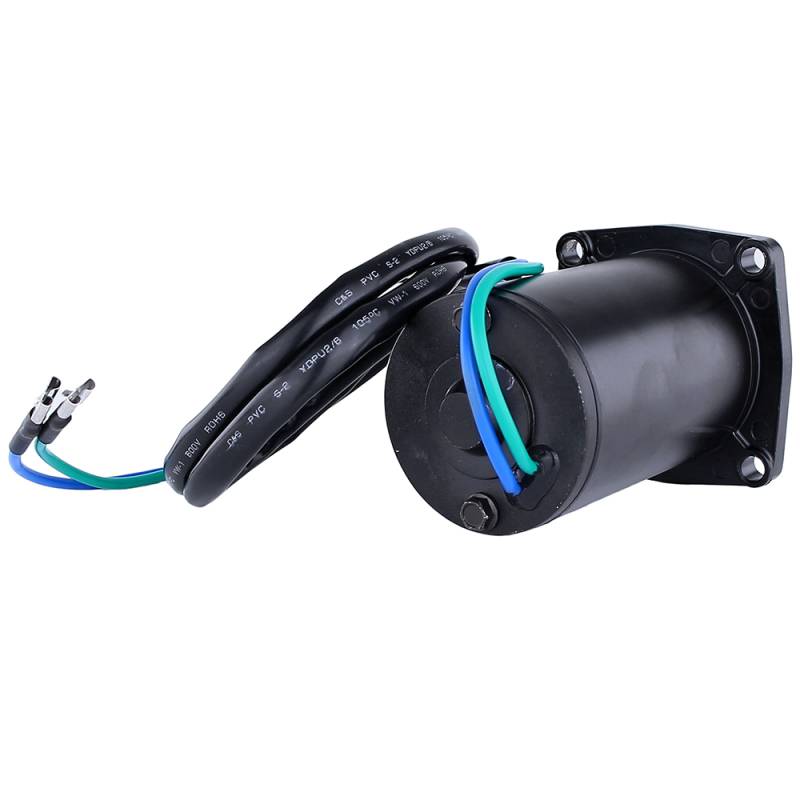

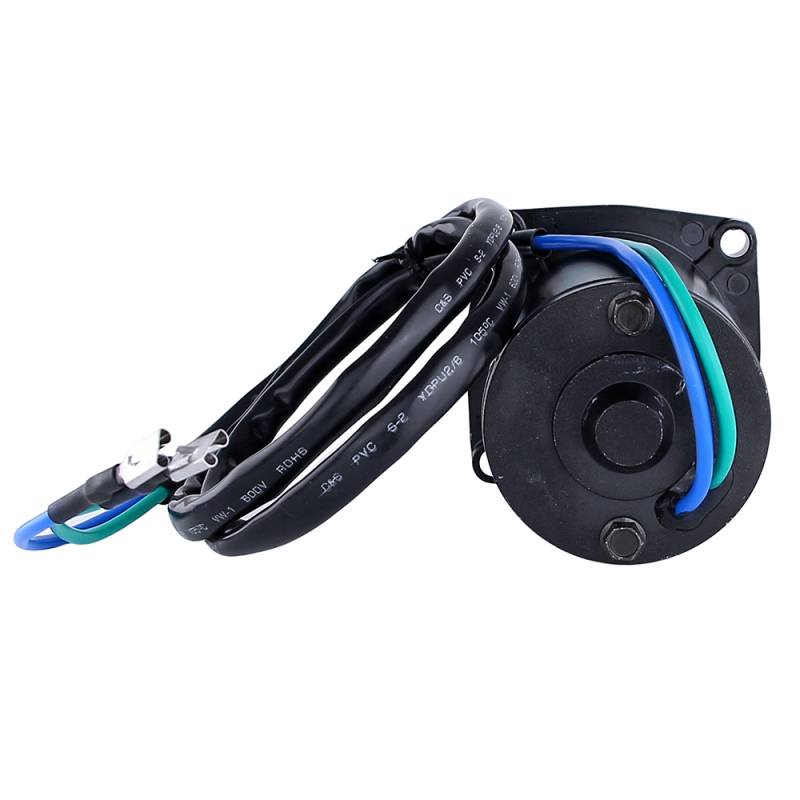

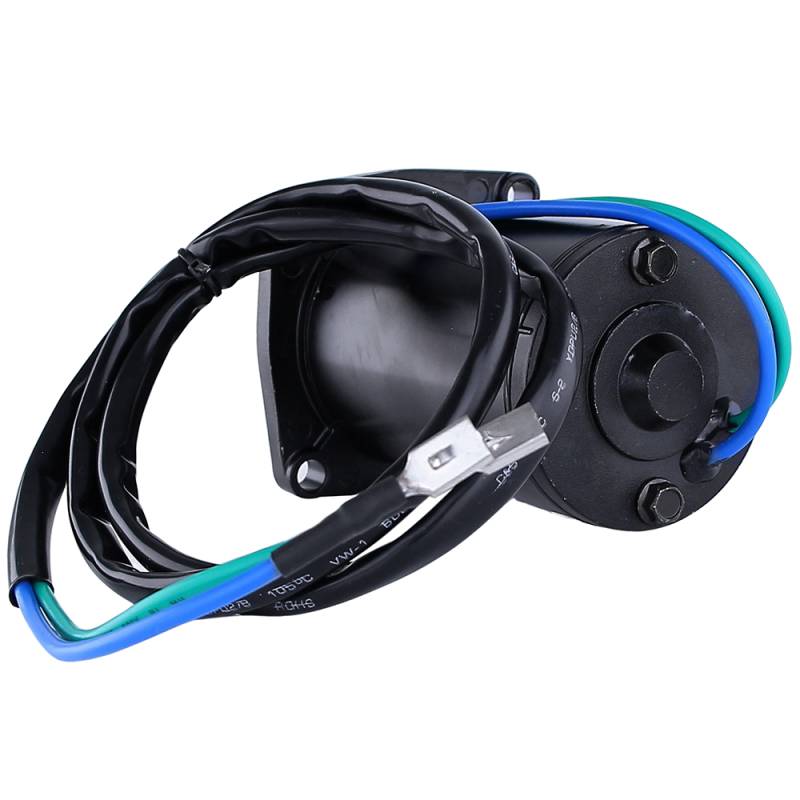

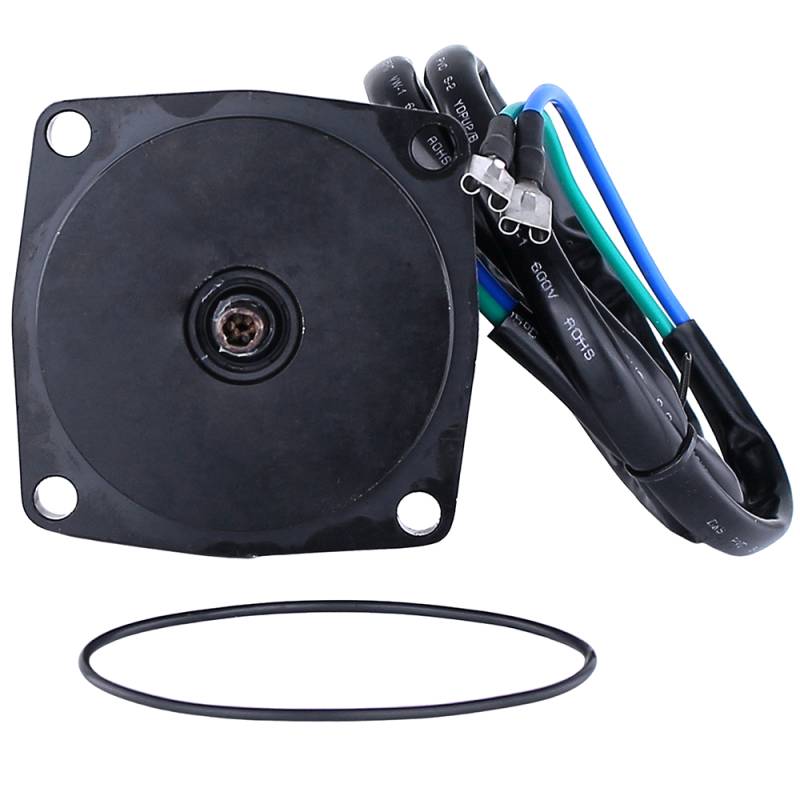

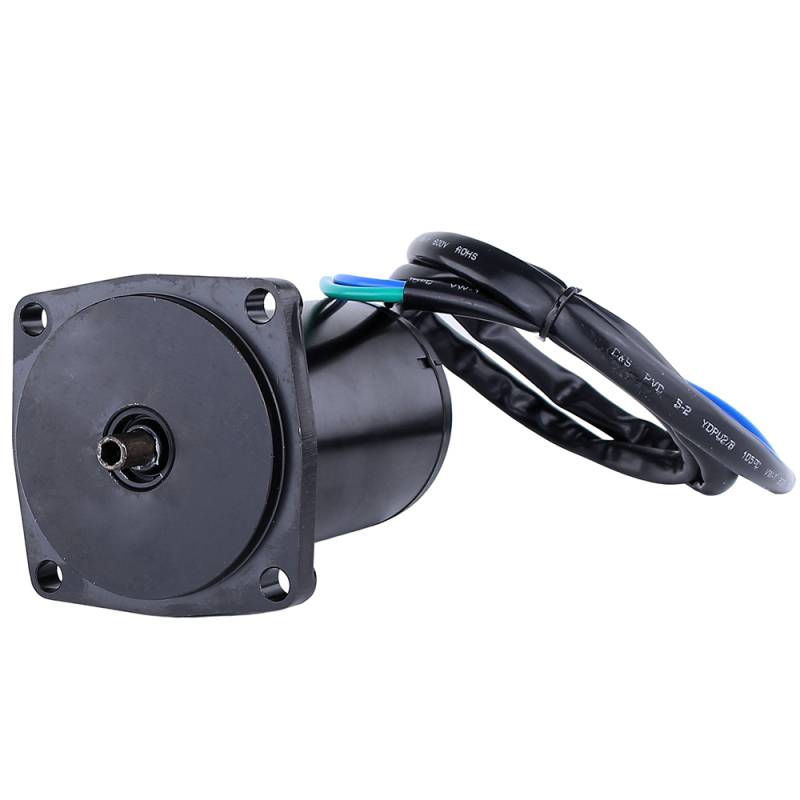

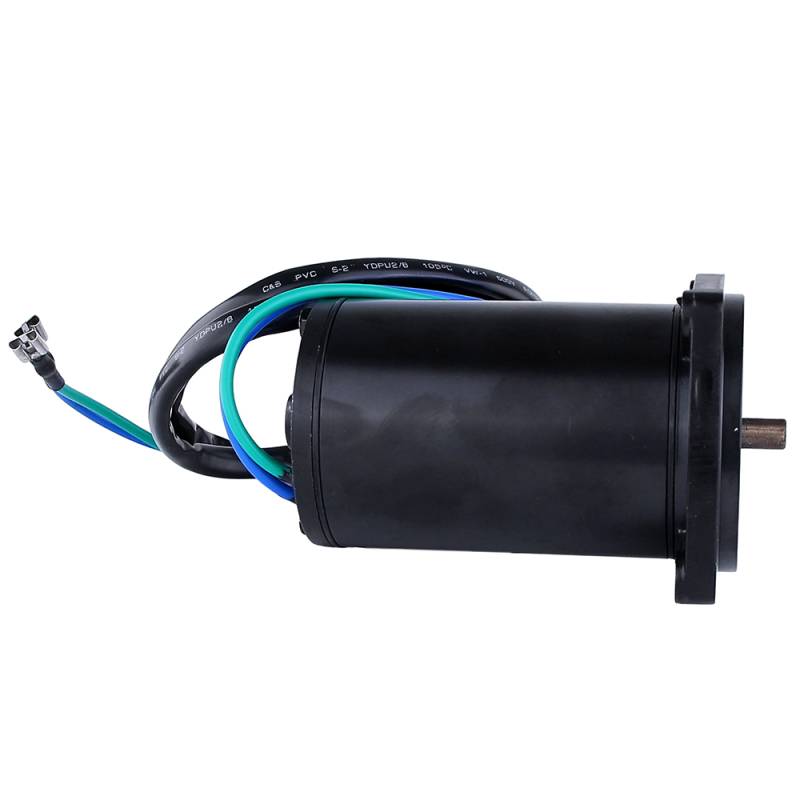

• Type: Tilt Trim Motor
• Unit Type: OMC Outboard Marine
• Voltage: 12V
• Rotation: Reversible
• Wire Connection: 2-Wire (Female Spade Terminals)
• Mounting: (4) 7mm Unthreaded Mounting Holes
• Shaft OD: 8mm (0.315 in)
• Shaft Type: 5mm Female Hex
• Field Housing OD: 63.6mm (2.504 in)
• Overall Length: 124mm (4.882 in)
• Weight: 6 lbs
• Condition: New
EVINRUDE / JOHNSON / OMC APPLICATIONS:
• Evinrude 40/48/50 HP 2-Stroke Outboard w/Power Tilt & Trim (1989-1999)
• Johnson 40/48/50 HP 2-Stroke Outboard w/Power Tilt & Trim (1989-1999)
• OMC 40/48/50 HP Outboard w/Power Tilt & Trim (1989-1999)
HONDA OUTBOARD APPLICATIONS:
• Honda BF35AM 35HP 4-Stroke (1997)
• Honda BF45AM 45HP 4-Stroke (1997)
• Honda BF40A/AW/AX/AY/A1/A2 40HP 4-Stroke (Pre-1997 to 2002)
• Honda BF50A/AW/AX/AY/A1/A2 50HP 4-Stroke (Pre-1997 to 2002)
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
