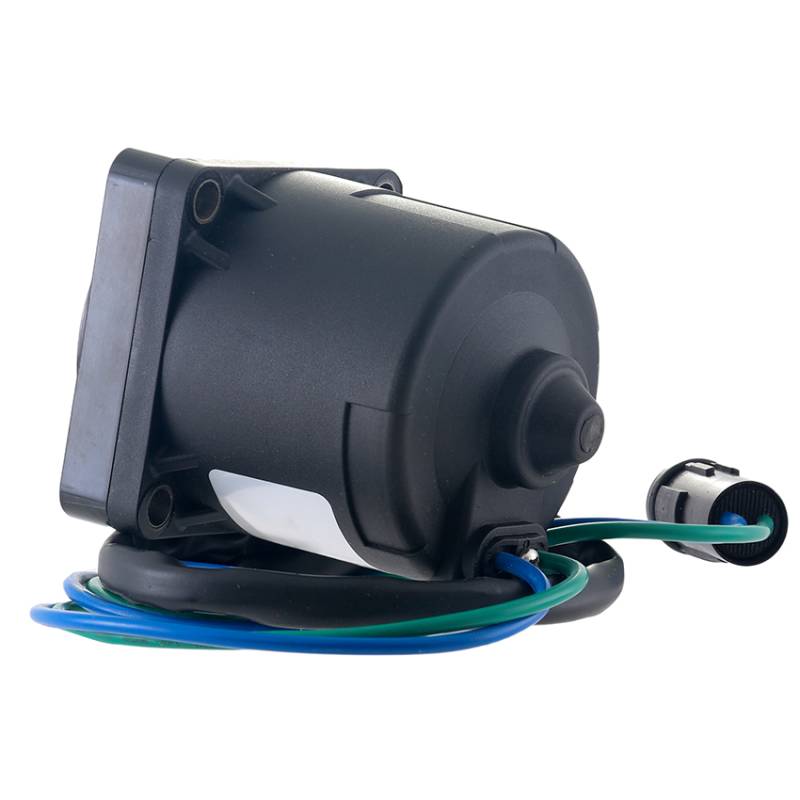

12V Power Tilt Motor Compatible With Honda Outboard Bf250a Bf250d 250Hp Bf225d Bf225ak3 225Hp 3.6L

OEM PART NUMBERS:
• Honda: 36120-ZX2-013 / 36120ZX2013 (current)
• Honda: 36120-ZX2-003 / 36120ZX2003 (superseded)



AFTERMARKET CROSS REFERENCE:
• Arco Marine: 6234
• Sierra: 18-6742
SPECIFICATIONS:
• Type: Power Tilt Motor Assembly
• Voltage: 12V
• Mounting: 4-Bolt
• Wires: 2-Wire
• Connection: Female Spade Terminals, Sealed

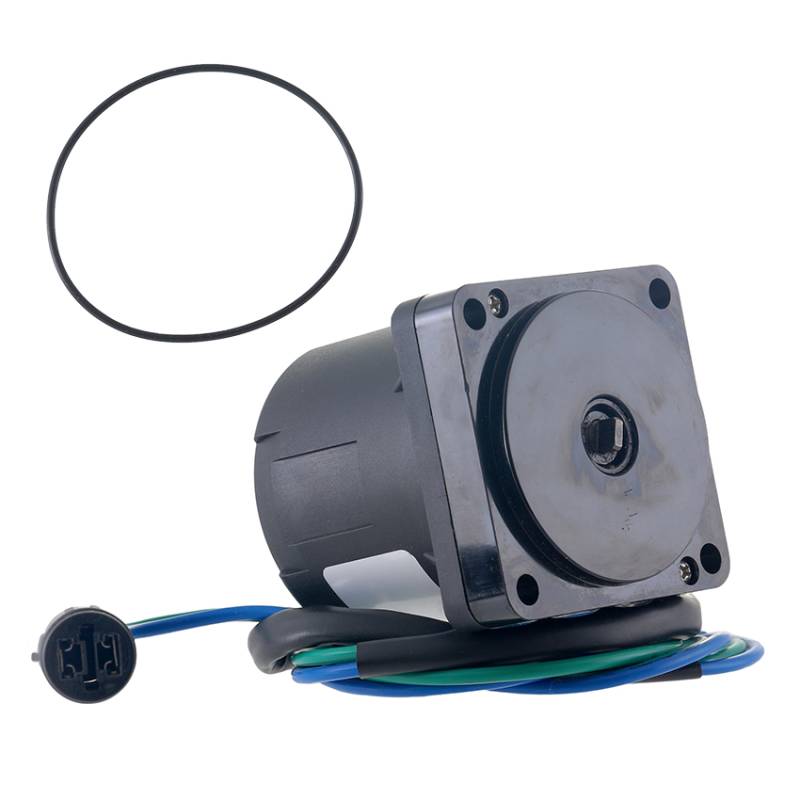

• Includes: O-Ring
• Engine: Honda 3.5L (3471cc) V6 SOHC 24-Valve 60° 4-Stroke (BF200AK3/BF225AK3)
• Engine: Honda 3.6L (3583cc) V6 SOHC 24-Valve 60° VTEC 4-Stroke (BF225D/BF250A/BF250D)
• BF250 Bore x Stroke: 89mm x 96mm (3.50" x 3.78")
• Condition: New

HONDA OUTBOARD APPLICATIONS (200-250HP V6 4-Stroke):
• BF200AK3 200HP 3.5L V6 — LA, LW, XA, XCA, XCW, XW (2007+)
• BF225AK3 225HP 3.5L V6 VTEC — LA, LW, X5, XA, XC5, XCA, XCW, XW, XXA, XXCA, XXCW, XXW (2007+)
• BF225D 225HP 3.6L V6 VTEC — LDA, LRA, UCDA, UCRA, UDA, URA, XCDA, XCRA, XDA, XRA (2007+)
• BF250A 250HP 3.6L V6 VTEC — LA, LW, XA, XCA, XCW, XW, XXA, XXCA, XXCW, XXW (2007+)
• BF250D 250HP 3.6L V6 VTEC — LDA, LDS, LRA, UCDA, UCDS, UCRA, UDA, UDS, URA, XCDA, XCDS, XCRA, XDA, XDS, XRA (2007+)

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
