OEM TROMBETTA PART NUMBERS:
• Trombetta OEM: 684-1261-212 / 6841261212 (Primary)
• Trombetta OEM: 684-1251-212 / 6841251212 (Superseded)
• Industry: 800 Series PowerSeal Family
INDUSTRY CROSS-REFERENCES:
• Industry: P34016-1
• Other Names: Solenoid / Solenoid Switch
• Other Names: Solenoid Relay / Starter Solenoid
• Other Names: Contactor / DC Contactor
• Other Names: PowerSeal Solenoid
• Other Names: Intermittent Duty Solenoid
• Other Names: 12V Solenoid / 4-Terminal Solenoid
• Other Names: Power Relay / Isolator Solenoid
• Other Names: Case Solenoid
• Other Names: Liftgate Solenoid
• Other Names: Snow Plow Solenoid
PRODUCT SPECIFICATIONS:

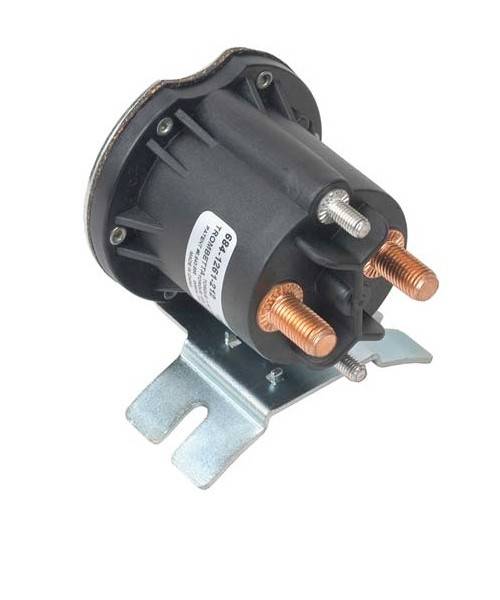

• Product Type: Solenoid (Intermittent Duty Contactor)
• OEM Manufacturer: Trombetta
• Voltage: 12 Volt DC
• Intermittent Amps: 150A
• Surge Amps: 800A Full Surge Rated
• Duty Cycle: 25% Intermittent
• Mounting: Curved 2.22in Radius (C222)
• Mounting Style: L-Bracket Curved
• Case Material: Plastic (High-Temp)
• Number of Terminals: 4
• Main Terminals: (2) 5/16-24 Copper Contact Studs
• Control Terminals: (2) 10-32 Non-Grounded Studs
• Coil Wire: 180°C Copper Winding
• Condition: New Genuine Trombetta
• Country of Origin: United States
• Sealed Design: Weather Resistant
• Compliance: OEM Specification
ELECTRICAL CHARACTERISTICS:
• Operating Voltage Range: 9-16V DC
• Intermittent Duty Rating: 150 Amp
• Surge Rating: 800 Amp Peak
• Duty Cycle: 25% Intermittent
• Coil Temperature Range: 180°C Rated Wire
• Environmental Rating: Sealed
• Operating Temperature: -40°F to +185°F
EQUIPMENT COMPATIBILITY:
• Case Construction / IH Agricultural Equipment
• Hydraulic Pump / Liftgate / Snow Plow Systems
• Meyer / Boss / Western Snow Plows
• Maxon / Tommy Gate / Waltco Liftgates
• Big Tex / PJ / Load Trail Dump Trailers
• RV House Battery / Slide-Out Systems
• Golf Cart / UTV / ATV Electrical
• Forklift / Material Handling Equipment
• Diesel Engine Grid Heater Circuit
• Industrial Winch / Compressor Systems
CRITICAL FITMENT NOTES:
• 150A INTERMITTENT DUTY — NOT Continuous
• 25% Duty Cycle Maximum
• 4-Terminal Configuration
• C222 Curved 2.22in Radius Mount (NOT F180)
• Verify Mounting Configuration
• Confirm Terminal Count / Layout
• ⚠️ Use Back-Up Wrench When Tightening
WHAT IS INCLUDED:
• One (1) Genuine Trombetta Solenoid
• 4-Terminal Configuration
• C222 Curved Mounting Bracket
• Sealed Weather-Resistant Design
WHAT IS NOT INCLUDED:
• Installation Hardware
• Wiring Harness
• Terminal Lugs
• Installation Instructions
INSTALLATION STEPS:
• Disconnect Vehicle / Equipment Battery
• Note Original Wiring Configuration
• Remove Original Solenoid
• Transfer Wires to New Solenoid
• Install with Back-Up Wrench on Bottom Nut
• Torque to OEM Specification
• Reconnect Battery / Test Operation
WHEN TO REPLACE:
• Failure to Engage When Activated
• Chattering / Intermittent Operation
• Visible Burning / Corroded Terminals
• Cracked Plastic Case
• Stuck Contacts / Voltage Drop
• Excessive Heat During Operation
TROMBETTA HERITAGE:
• Trombetta US Manufacturer Since 1947
• PowerSeal 800 Series Family
• Industry Standard for Heavy Equipment
• OEM Supplier to Case, Maxon, Meyer
• 25% Duty Cycle Industrial Specification
