New Tilt Trim Motor Compatible With Yamaha 4-Stroke F90txr 6D8438800100 6D8-43880-01-00 6D8438800100

PT626NM*4

YAMAHA: 6D8-43880-01-00 6D8438800100 6D8-43880-00-00 6D8438800000 6D8-43880-09-00 6D8438800900

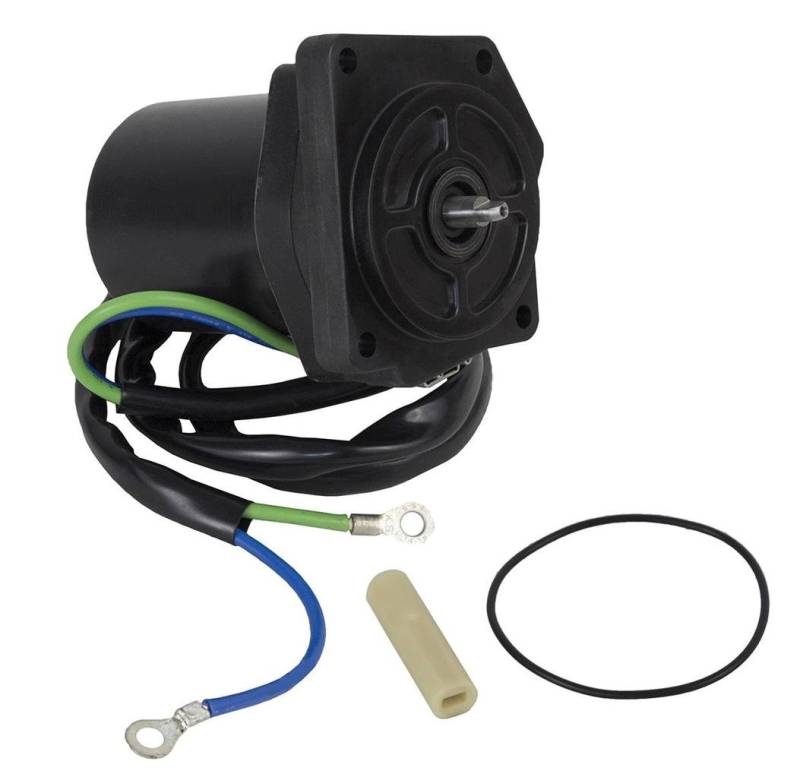

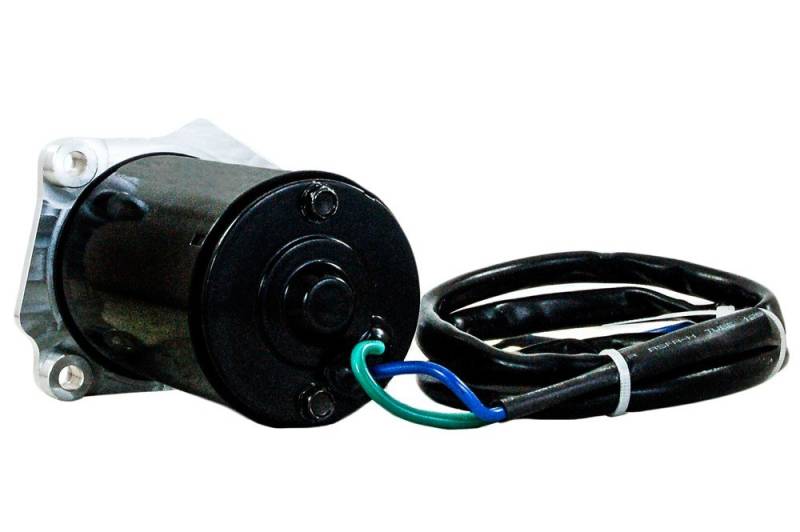

ITEM DESCRIPTION: TILT TRIM MOTOR
UNIT TYPE: YAMAHA
VOLTS: 12
ROTATION: REVERSIBLE
OD: 2.563IN / 65.1MM
SHAFT: 0.311IN / 7.9MM
LENGTH: 5.496IN / 139.6MM
SHAFT: 3.4MM KEYED
CURRENT TYPE: DC
WEIGHT: 3.43 LBS / 1.56 KG
NOTES: OE SHAFT LENGTH MAY VARY - USE SUPPLIED COUPLER IF LONGER SHAFT LENGTH IS NEEDED
NOTES: 4 BOLT MOUNT
NOTES: O-RING INCLUDED

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $216.83
Sale: $123.90
Save: 43%
Save: $92.93
Qty:
Free Shipping!

Description

PLEASE NOTE THAT THIS IS THE TILT TRIM MOTOR FOR THESE APPLICATIONS WITH A "SHORT SHAFT" 5/8" PLEASE CHECK YOUR PART NUMBER BEFPRE ORDERING.

YAMAHA OUTBOARD MOTOR 4-STROKE F75TLR POWER TRIM TILT 75HP 97CI 2005-2009
YAMAHA OUTBOARD MOTOR 4-STROKE F90TJR POWER TRIM TILT 90HP 2005-2009
YAMAHA OUTBOARD MOTOR 4-STROKE F90TLR POWER TRIM TILT 90HP 2005-2009
YAMAHA OUTBOARD MOTOR 4-STROKE F90TXR POWER TRIM TILT 90HP 2005-2009

Details

  • PT626NM*4
  • PT626NM*4
  • Rareelectrical
  • New

Categories

Shipping Information

  • Item Requires Shipping
  • 3.6 lbs.
  • W6.0000” x H6.0000” x L10.0000”
  • Free Shipping!
