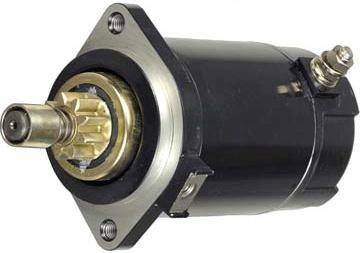

12 Volt Marine Starter Compatible With 1985-1996 Yamaha Outboard Motor 150Tlr 150Txr 175Etl 175Etx

OEM PART NUMBERS:
• Hitachi: S114-323A, S114323A
• Yamaha: 6E5-81800-11, 6E5-81800-11-00, 6E58180011, 6E5818001100
• Sierra Marine: 18-6413
• Mercury Marine: 50-825095
• Prestolite: 20513554TBA

SPECIFICATIONS:
• Type: Starter - DD (Direct Drive)
• Unit Type: Hitachi
• Voltage: 12V
• Power: 1.1 kW / 1.47 HP
• Rotation: CCW (Counter-Clockwise)
• Teeth: 9
• Pinion OD: 28.5mm / 1.122 in
• Gear OD: 29.5mm / 1.161 in
• Mounting Hole 1: M8-1.25 ID Threaded
• Mounting Hole 2: M8-1.25 ID Threaded
• Mounting Hole 3: 8.8mm Unthreaded
• Overall Length: 222mm
• Weight: 6.905 lbs / 3.14 kg

FITS YAMAHA OUTBOARD 150HP (1991-1996):
• 150TLR (1991-1996), 150TXR (1991-1995)

FITS YAMAHA OUTBOARD 175HP (1985-1996):
• 175ETL (1985-1990), 175ETX (1985-1990)
• 175TLR (1991-1996), 175TXR (1991-1995)

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
