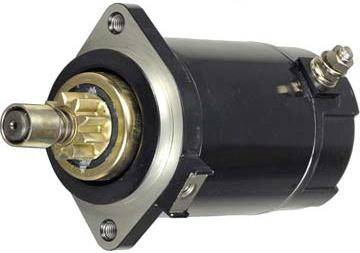

12 Volt Marine Starter Compatible With 1996-2002 Yamaha Outboard F40tlr F50tjr F50tlh F50tlr T50tlr

(0) Reviews: Write first review
18314C3
OEM PART NUMBERS:
• Hitachi: S114-323B, S114323B, S114-323C, S114323C
• Yamaha: 6E5-81800-12, 6E5-81800-12-00, 6E58180012, 6E5818001200
• Yamaha: 6N7-81800-01-00, 6N7-81800-10-00
• Sierra Marine: 18-6413
• Mercury Marine: 50-825095
• Prestolite: 20513554TBA

SPECIFICATIONS:
• Type: Starter - DD (Direct Drive)
• Unit Type: Hitachi
• Voltage: 12V
• Power: 1.1 kW / 1.47 HP
• Rotation: CCW (Counter-Clockwise)
• Teeth: 9
• Pinion OD: 28.5mm / 1.122 in
• Gear OD: 29.5mm / 1.161 in
• Mounting Hole 1: M8-1.25 ID Threaded
• Mounting Hole 2: M8-1.25 ID Threaded
• Mounting Hole 3: 8.8mm Unthreaded
• Overall Length: 222mm
• Weight: 6.905 lbs / 3.14 kg

FITS YAMAHA OUTBOARD 200HP (1984-1996):
• 200ETL (1984-1990), 200ETLJD (1989-1990), 200ETX (1984-1990)
• 200TJR (1991-1995), 200TLR (1991-1996), 200TXR (1991-1995)

FITS YAMAHA OUTBOARD C115/C150 SERIES:
• C115TLR (1991-1996), C115TXR (1992-1996)
• C150TLR (1996), C150TXR (1996)

FITS YAMAHA OUTBOARD F40/F50 4-STROKE (1996-2002):
• F40TLR (1999), F50TJR (2001-2002)
• F50TLH (1996-1998), F50TLR (1996-2002)

FITS YAMAHA OUTBOARD L SERIES (1986-1996):
• L130ETX (1989-1990), L130TXR (1991-1996)
• L150ETX (1986-1990), L150TXR (1991-1996)
• L200ETX (1986-1990), L200TLR (1995), L200TXR (1991-1996)

FITS YAMAHA OUTBOARD P SERIES (1986-1996):
• P115TLR (1993-1996), P150TLR (1991-1996), P175TLR (1994-1996)
• PRO150L (1986-1990)

FITS YAMAHA OUTBOARD S SERIES (1996):
• S115TLR, S115TXR, S130TLR, S130TRX, S150TLR, S150TSR, S175TXR, S200TXR

FITS YAMAHA OUTBOARD T50/V6 (1985-2002):
• T50TLR (1996-2002), V6 Special (1985-1986)

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $150.08
Sale: $85.76
Save: 43%
Save: $64.32
Qty:
Free Shipping!

Description

YAMAHA OUTBOARD MOTORS - 200HP (1984-1996):

200ETL:
• Yamaha 200ETL 200HP 2-Stroke Outboard - 1984, 1985, 1986, 1987, 1988, 1989, 1990

200ETLJD:
• Yamaha 200ETLJD 200HP 2-Stroke Outboard - 1989, 1990

200ETX:
• Yamaha 200ETX 200HP 2-Stroke Outboard - 1984, 1985, 1986, 1987, 1988, 1989, 1990

200TJR:
• Yamaha 200TJR 200HP 2-Stroke Outboard - 1991, 1992, 1993, 1994, 1995

200TLR:
• Yamaha 200TLR 200HP 2-Stroke Outboard - 1991, 1992, 1993, 1994, 1995, 1996

200TXR:
• Yamaha 200TXR 200HP 2-Stroke Outboard - 1991, 1992, 1993, 1994, 1995

YAMAHA OUTBOARD MOTORS - C115 SERIES (1991-1996):

C115TLR:
• Yamaha C115TLR 115HP 2-Stroke Outboard - 1991, 1992, 1993, 1994, 1995, 1996

C115TXR:
• Yamaha C115TXR 115HP 2-Stroke Outboard - 1992, 1993, 1994, 1995, 1996

YAMAHA OUTBOARD MOTORS - C150 SERIES (1996):

C150TLR:
• Yamaha C150TLR 150HP 2-Stroke Outboard - 1996

C150TXR:
• Yamaha C150TXR 150HP 2-Stroke Outboard - 1996

YAMAHA OUTBOARD MOTORS - F40/F50 4-STROKE (1996-2002):

F40TLR:
• Yamaha F40TLR 40HP 4-Stroke Outboard - 1999

F50TJR:
• Yamaha F50TJR 50HP 4-Stroke Outboard - 2001, 2002

F50TLH:
• Yamaha F50TLH 50HP 4-Stroke Outboard - 1996, 1997, 1998

F50TLR:
• Yamaha F50TLR 50HP 4-Stroke Outboard - 1996, 1997, 1998, 1999, 2000, 2001, 2002

YAMAHA OUTBOARD MOTORS - L SERIES (1986-1996):

L130ETX:
• Yamaha L130ETX 130HP 2-Stroke Outboard - 1989, 1990

L130TXR:
• Yamaha L130TXR 130HP 2-Stroke Outboard - 1991, 1992, 1993, 1994, 1995, 1996

L150ETX:
• Yamaha L150ETX 150HP 2-Stroke Outboard - 1986, 1987, 1988, 1989, 1990

L150TXR:
• Yamaha L150TXR 150HP 2-Stroke Outboard - 1991, 1992, 1993, 1994, 1995, 1996

L200ETX:
• Yamaha L200ETX 200HP 2-Stroke Outboard - 1986, 1987, 1988, 1989, 1990

L200TLR:
• Yamaha L200TLR 200HP 2-Stroke Outboard - 1995

L200TXR:
• Yamaha L200TXR 200HP 2-Stroke Outboard - 1991, 1992, 1993, 1994, 1995, 1996

YAMAHA OUTBOARD MOTORS - P SERIES (1991-1996):

P115TLR:
• Yamaha P115TLR 115HP 2-Stroke Outboard - 1993, 1994, 1995, 1996

P150TLR:
• Yamaha P150TLR 150HP 2-Stroke Outboard - 1991, 1992, 1993, 1994, 1995, 1996

P175TLR:
• Yamaha P175TLR 175HP 2-Stroke Outboard - 1994, 1995, 1996

PRO150L:
• Yamaha PRO150L 150HP 2-Stroke Outboard - 1986, 1987, 1988, 1989, 1990

YAMAHA OUTBOARD MOTORS - S SERIES (1996):

S115TLR / S115TXR:
• Yamaha S115TLR, S115TXR 115HP 2-Stroke Outboard - 1996

S130TLR / S130TRX:
• Yamaha S130TLR, S130TRX 130HP 2-Stroke Outboard - 1996

S150TLR / S150TSR:
• Yamaha S150TLR, S150TSR 150HP 2-Stroke Outboard - 1996

S175TXR:
• Yamaha S175TXR 175HP 2-Stroke Outboard - 1996

S200TXR:
• Yamaha S200TXR 200HP 2-Stroke Outboard - 1996

YAMAHA OUTBOARD MOTORS - T50 SERIES (1996-2002):

T50TLR:
• Yamaha T50TLR 50HP 2-Stroke Outboard - 1996, 1997, 1998, 1999, 2000, 2001, 2002

YAMAHA OUTBOARD MOTORS - V6 SPECIAL (1985-1986):

V6 Special:
• Yamaha V6 Special 2-Stroke Outboard - 1985, 1986

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 7.3 lbs.
  • W8.0000” x H4.0000” x L14.0000”
  • Free Shipping!
