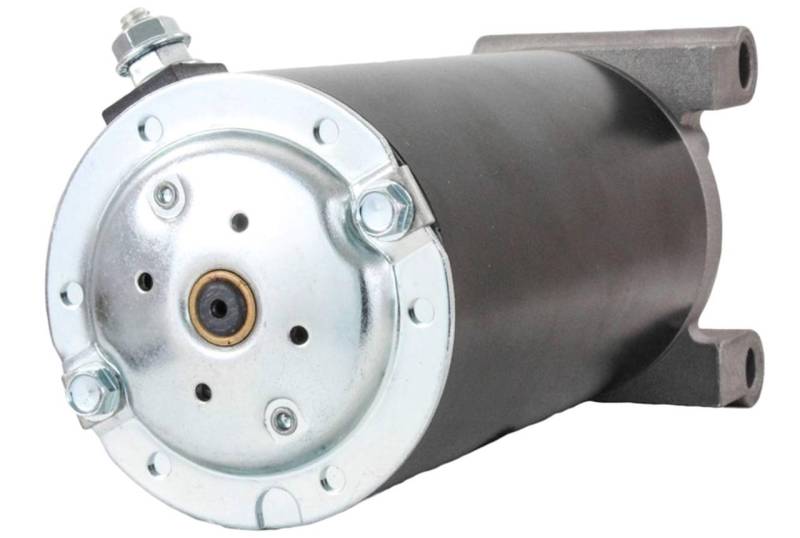

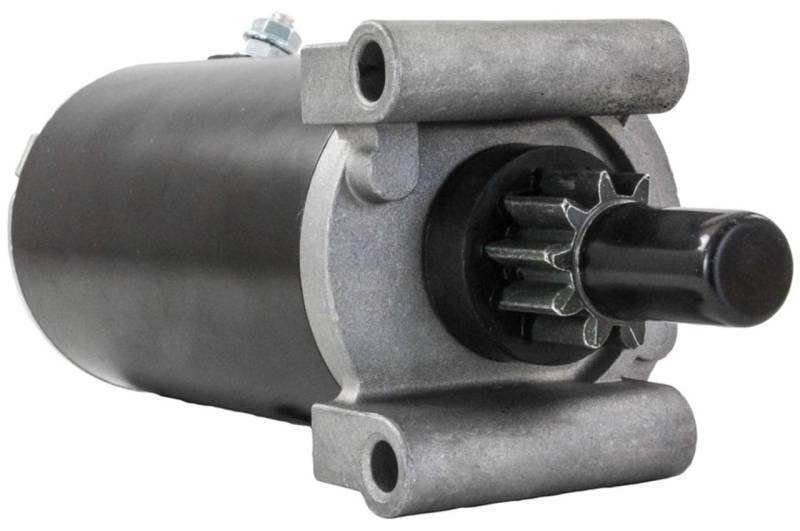

New 12V Ccw Pmdd Starter 10-Tooth Compatible With 2005-2006 Cub Cadet Lt1045le Lt1046 Slt1550

(0) Reviews: Write first review
5801*1
OEM CROSS-REFERENCE PART NUMBERS — KOHLER:
• Kohler: 32-098-01 / 32-098-01S / 32-098-01-S / 3209801 / 3209801S
• Kohler: 32-098-03 / 32-098-03S / 32-098-03-S / 3209803 / 3209803S
• Kohler: 32-098-04 / 32-098-04S / 32-098-04-S / 3209804 / 3209804S

OEM CROSS-REFERENCE PART NUMBERS — NEW HOLLAND:
• New Holland: K0H3209801S (catalog cross-reference for Kohler 3209801S)

SPECIFICATIONS:
• Product Type: Kohler Courage Twin SV-Series Engine Starter Motor (PMDD)
• OEM Manufacturer: Johnson Electric
• Voltage: 12 Volt
• Rotation: Counterclockwise (CCW)
• Starter Type: PMDD (Permanent Magnet Direct Drive)
• Number of Teeth: 10
• Pinion / Gear OD: 32.6mm / 1.283"
• Mounting Ear 1: 11mm ID Unthreaded
• Mounting Ear 2: 8mm ID Unthreaded
• Power: 1.0 kW
• Weight: 7.05 lbs / 3.2 kg
• Engine: Kohler Courage SV710-SV740 / SV810-SV840 + 7000 Series KT715-KT745 (20HP-27HP V-Twin)
• Application: Cub Cadet LT/SLT/i-Series/RZT/LTX/SLTX/XT1 + New Holland G4030/G4035/G4050 + Toro G/GT/LX/SL/TimeCutter Z/Titan Z (2005-2009)
• Condition: New

APPLICATION SUMMARY — KOHLER COURAGE TWIN 20-27HP ON CUB CADET / NEW HOLLAND / TORO 2005-2009:
• 2005-2006 Cub Cadet LT1045LE / LT1046 / SLT1550 / SLT1554 with Kohler Courage Twin 20-27HP
• 2006+ Cub Cadet i1046 / i1050 / RZT-Series / LTX-Series / SLTX-Series / XT1 GT50 Enduro
• New Holland G4030 / G4035 / G4050 Zero-Turn Mowers with Kohler Courage Twin 23-25HP
• 2006-2009 Toro G4030 / G4035 / G4050 / GT2100 / GT2200 / GT2300 / LX425 / LX468 / LX500 / SL500
• 2007-2009 Toro TimeCutter Z4202 / Z5020 / Z5060 + Titan Z4800 / Z5200 with Kohler Courage Twin

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $138.92
Sale: $79.38
Save: 43%
Save: $59.54
Qty:
Free Shipping!

Description

CUB CADET COMPACT TRACTORS — KOHLER COURAGE V-TWIN (2005-2006):
• 2005-2006 Cub Cadet LT1045LE Compact Lawn Tractor with Kohler 20HP Courage Twin Gas V-Twin (CV20)
• 2005-2006 Cub Cadet LT1046 Compact Lawn Tractor with Kohler 23HP Courage Twin Gas V-Twin (CV23)
• 2005-2006 Cub Cadet SLT1550 Compact Lawn Tractor with Kohler 25HP Courage Twin Gas V-Twin (SV25)
• 2005-2006 Cub Cadet SLT1554 Compact Lawn Tractor with Kohler 27HP Courage Twin Gas V-Twin (SV27)

CUB CADET ZERO-TURN MOWERS — KOHLER COURAGE V-TWIN (2006+):
• Cub Cadet i1046 Zero-Turn Mower with Kohler 20HP Courage Twin Gas V-Twin
• Cub Cadet i1050 Zero-Turn Mower with Kohler 25HP Courage Twin Gas V-Twin
• Cub Cadet RZT 42 / RZT 46 / RZT 50 / RZT 54 Zero-Turn Mowers with Kohler Courage Twin V-Twin
• Cub Cadet RZT L42 / L46 / L50 / L54 (Large) Zero-Turn Mowers
• Cub Cadet RZT S42 / S46 / S50 / S54 (Smaller) Zero-Turn Mowers
• Cub Cadet LTX1042 KH / LTX1046 / LTX1046 M / LTX1050 Lawn Tractors
• Cub Cadet SLTX1050 / SLTX1054 Lawn Tractors
• Cub Cadet XT1 GT50 Enduro Garden Tractor

NEW HOLLAND ZERO-TURN MOWERS — KOHLER COURAGE V-TWIN:
• New Holland G4030 Zero-Turn Mower with Kohler 23HP Courage Twin Gas V-Twin
• New Holland G4035 Zero-Turn Mower with Kohler 25HP Courage Twin Gas V-Twin
• New Holland G4050 Zero-Turn Mower with Kohler 25HP Courage Twin Gas V-Twin

TORO LAWN/GARDEN TRACTORS & ZERO-TURN MOWERS — KOHLER COURAGE V-TWIN (2006-2009):
• 2007-2008 Toro G4030 Zero-Turn Mower with Kohler 23HP Courage Twin V-Twin
• 2009 Toro G4035 Zero-Turn Mower with Kohler 25HP Courage Twin V-Twin
• 2008 Toro G4050 Zero-Turn Mower with Kohler 25HP Courage Twin V-Twin
• 2006-2008 Toro GT2100 Garden Tractor with Kohler 23HP Courage Twin V-Twin
• 2006-2008 Toro GT2200 Garden Tractor with Kohler 25HP Courage Twin V-Twin
• 2006 Toro GT2300 Garden Tractor with Kohler 26HP Courage Twin V-Twin
• 2007 Toro LX425 Lawn Tractor with Kohler 20HP Courage Twin V-Twin
• 2008-2009 Toro LX468 Lawn Tractor with Kohler 22HP Courage Twin V-Twin
• 2006 Toro LX500 Lawn Tractor with Kohler 22HP Courage Twin V-Twin
• 2007 Toro SL500 Special Lawn Tractor with Kohler 23HP Courage Twin V-Twin
• 2008-2009 Toro TimeCutter Z4202 Zero-Turn Mower with Kohler 20HP Courage Twin V-Twin
• 2007-2009 Toro TimeCutter Z5020 Zero-Turn Mower with Kohler 23HP Courage Twin V-Twin
• 2008-2009 Toro TimeCutter Z5060 Zero-Turn Mower with Kohler 25HP Courage Twin V-Twin
• 2008-2009 Toro Titan Z4800 Zero-Turn Mower with Kohler 23HP Courage Twin V-Twin
• 2007-2009 Toro Titan Z5200 Zero-Turn Mower with Kohler 25HP Courage Twin V-Twin

KOHLER COURAGE TWIN SV-SERIES & 7000 SERIES — STANDALONE ENGINE APPLICATIONS:
• Kohler Courage SV710 / SV715 / SV720 / SV725 / SV730 / SV735 / SV740 (20HP-27HP V-Twin)
• Kohler Courage SV810 / SV815 / SV820 / SV830 / SV840 (larger V-Twin variants)
• Kohler 7000 Series KT715 / KT725 / KT730 / KT735 / KT740 / KT745 (20HP-27HP)
• All Kohler Courage Twin and 7000 Series 20HP-27HP gasoline V-Twin variants

FITMENT NOTES — CRITICAL APPLICATION REQUIREMENTS:
• 12 VOLT SYSTEM REQUIRED
• Counterclockwise (CCW) rotation, 10-tooth pinion, 1.283" (32.6mm) gear OD
• PMDD (Permanent Magnet Direct Drive) starter — original Johnson Electric design
• UNUSUAL MOUNTING: Mounting Ear 1 = 11mm ID unthreaded, Mounting Ear 2 = 8mm ID unthreaded (different sizes!)
• Power: 1.0 kW
• Weight: 7.05 lbs (3.2 kg)
• OEM Manufacturer: Johnson Electric
• Will NOT fit Kohler Command CV/CH-Series engines (those use or 5802 — different starter family)
• Will NOT fit Kohler K-Series K-161 / K-181 cast-iron L-head engines
• Will NOT fit Kohler M-Series Magnum M-8 thru M-16 engines
• Will NOT fit Cub Cadet pre-2005 lawn/garden tractors (different engine/starter)
• Will NOT fit Cub Cadet tractors with Briggs & Stratton engines (different starter family)
• Will NOT fit Toro mowers with Honda or Kawasaki engines (different starter family)
• Always verify Kohler engine model (Courage SV-Series or 7000 Series) AND verify mounting hole sizes (11mm and 8mm) before ordering
