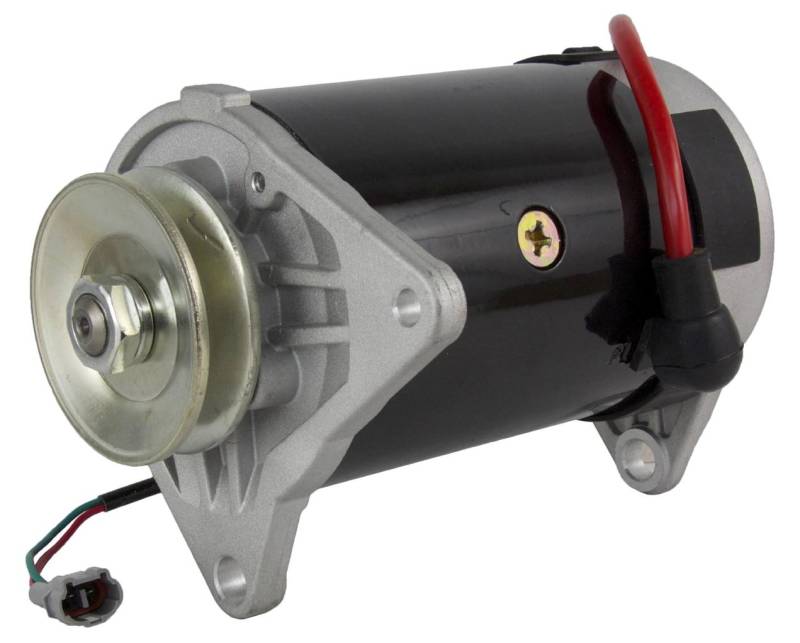

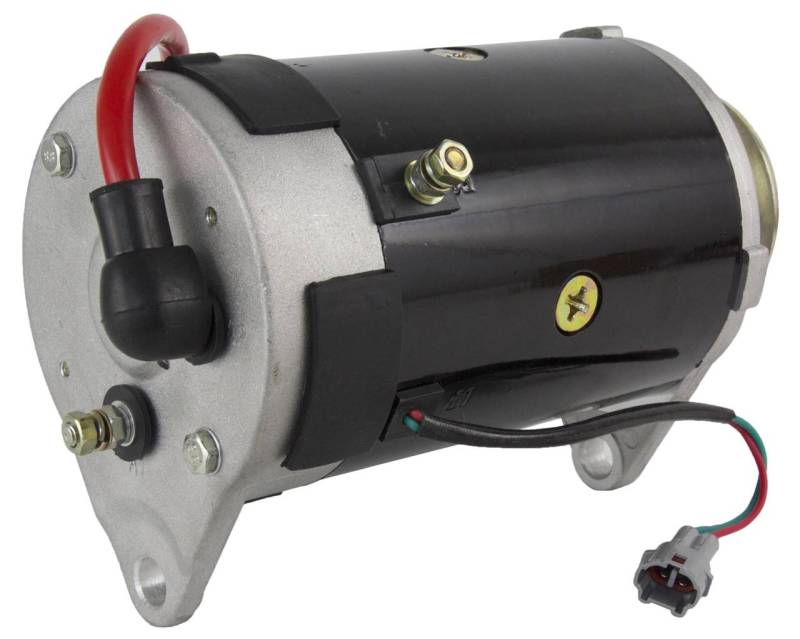

12V Starter Generator Motor Compatible With 1996-2007 G16a Ultima G22a G-Max Golf Cart

YAMAHA OEM PART NUMBERS:
• JN6-H1100-00-00 - Superseded by JN6-H1100-04-00
• JN6-H1100-01-00 - Superseded by JN6-H1100-04-00
• JN6-H1100-02-00

HITACHI OEM PART NUMBERS:
• GSB107-06
• GSB107-06E

SPECIFICATIONS:
• Type: Motor Generator
• Voltage: 12V
• Rotation: Bi-Directional
• Amperage: 15 Amps
• Configuration: 4 Terminal 2 Wire
• Unit Type: Hitachi
• Field Housing OD: 113mm / 4.449in
• Overall Length: 221.4mm / 8.717in
• Shaft OD: 17mm / 0.669in
• Shaft Type: Threaded with Keyway
• Terminal Size: M6-1.0 (x4)
• Weight: 19.17 lbs / 8.71 kg

FITS YAMAHA GOLF CARTS:
• G16A Ultima (1996-2002)
• G20A Concierge (2000-2002)
• G21A Yamahauler (2001-2004)
• G22A G-Max (2003-2007)

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
