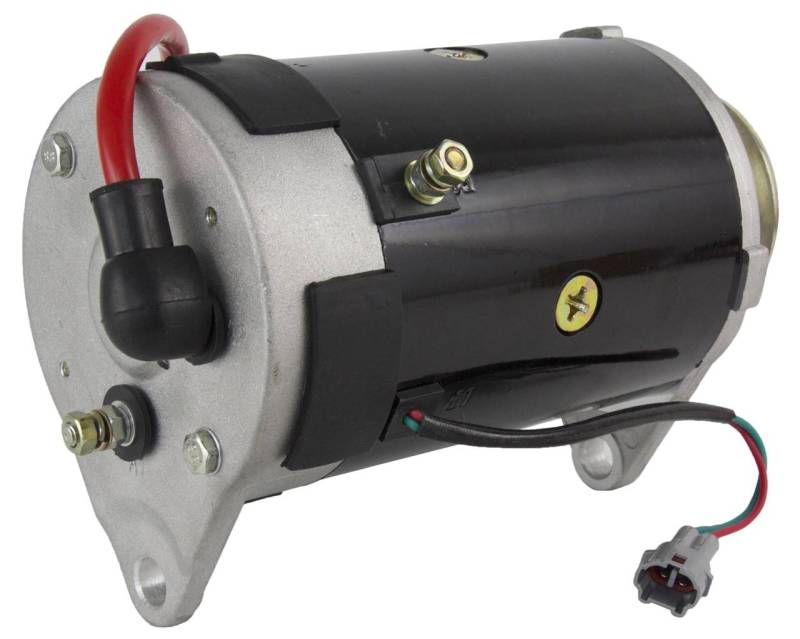

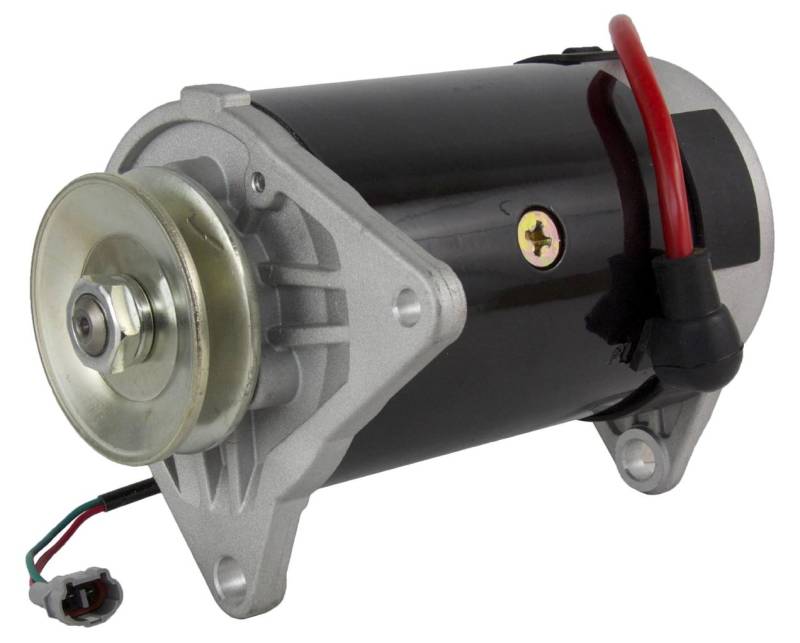

12V Starter Generator Motor Compatible With 1996-2016 G16a G22a G23a G28a Ydra Drive Golf Cart

(0) Reviews: Write first review
JN6-H1100-03-00*1
YAMAHA OEM PART NUMBERS:
• JN6-H1100-03-00
• JN6-H1100-04-00 - Current supersession number

HITACHI OEM PART NUMBERS:
• GSB107-06F
• GSB107-06H
• GSB107-06K

JOHN DEERE OEM PART NUMBERS:
• AM125672
• AM133730
• AM135707

SPECIFICATIONS:
• Type: Motor Generator
• Voltage: 12V
• Rotation: Bi-Directional
• Amperage: 15 Amps
• Configuration: 5 Terminal
• Unit Type: Hitachi
• Field Housing OD: 113mm / 4.449in
• Overall Length: 221.4mm / 8.717in
• Shaft OD: 17mm / 0.669in
• Shaft Type: Threaded with Keyway
• Terminal Size: M6-1.0 (x5)
• Weight: 18.98 lbs / 8.63 kg

FITS YAMAHA GOLF CARTS:
• G16A Ultima (1996-2002)
• G19E (1997-2002)
• G20A Concierge (2000-2002)
• G21A Yamahauler (2001-2004)
• G22A G-Max (2003-2007)
• G23A U-Max (2004-2009)
• G27A U-Max (2004-2008)
• G28A U-Max (2004-2009)
• YDRA (Drive) Fleet/PTV/EFI (2007-2016)
• YTF1A Adventurer One (2009-2013)

FITS YAMAHA UTV:
• Pro Hauler 700 YXP700A 357cc (2004-2006)
• Pro Hauler 1000 YXP1000A 357cc (2004-2005)

FITS JOHN DEERE:
• Gator Turf

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $334.57
Sale: $191.18
Save: 43%
Save: $143.39
Qty:
Free Shipping!

Description

YAMAHA GOLF CARTS:

G16A ULTIMA:
• Yamaha G16A Ultima 4 Cycle Gas - 1996, 1997, 1998, 1999, 2000, 2001, 2002

G19E:
• Yamaha G19E 4 Cycle Gas - 1997, 1998, 1999, 2000, 2001, 2002

G20A CONCIERGE:
• Yamaha G20A Concierge 4 Cycle Gas - 2000, 2001, 2002

G21A YAMAHAULER:
• Yamaha G21A Yamahauler 4 Cycle Gas - 2001, 2002, 2003, 2004

G22A G-MAX:
• Yamaha G22A G-Max 4 Cycle Gas - 2003, 2004, 2005, 2006, 2007

G23A U-MAX:
• Yamaha G23A U-Max 4 Cycle Gas - 2004, 2005, 2006, 2007, 2008, 2009

G27A U-MAX:
• Yamaha G27A U-Max 4 Cycle Gas - 2004, 2005, 2006, 2007, 2008

G28A U-MAX:
• Yamaha G28A U-Max 4 Cycle Gas - 2004, 2005, 2006, 2007, 2008, 2009

YDRA (DRIVE):
• Yamaha YDRA (Drive) Fleet 4 Cycle Gas - 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014
• Yamaha YDRA (Drive) Carbureted PTV 4 Cycle Gas - 2010, 2011, 2012
• Yamaha YDRA (Drive) EFI PTV 4 Cycle Gas - 2012, 2013, 2014
• Yamaha YDRA SVL (Drive) Concierge 6-Passenger 4 Cycle Gas - 2009, 2010, 2011, 2012
• Yamaha YDRA SVS (Drive) Concierge 4-Passenger 4 Cycle Gas - 2013, 2014, 2015, 2016

YTF1A ADVENTURER ONE:
• Yamaha YTF1A Adventurer One Carbureted Utility 4 Cycle Gas - 2009, 2010, 2011, 2012, 2013

YAMAHA UTV:

PRO HAULER:
• Yamaha Pro Hauler 700 YXP700A 357cc - 2004, 2005, 2006
• Yamaha Pro Hauler 1000 YXP1000A 357cc - 2004, 2005

JOHN DEERE:

GATOR:
• John Deere Gator Turf

NOTE:
• This is a 5 Terminal Motor Generator
• Fits by part number - verify OEM part number from your original unit before ordering
• 4 Cycle Gas models only

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 20.8 lbs.
  • W7.0000” x H7.0000” x L11.0000”
  • Free Shipping!
