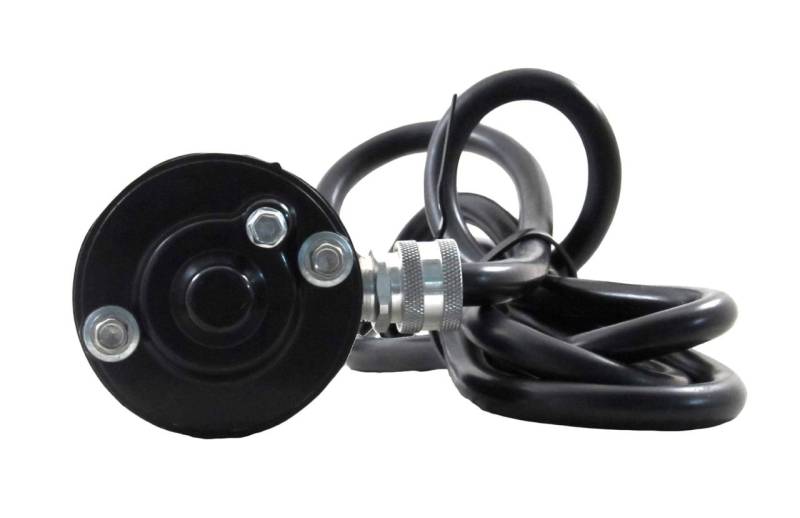

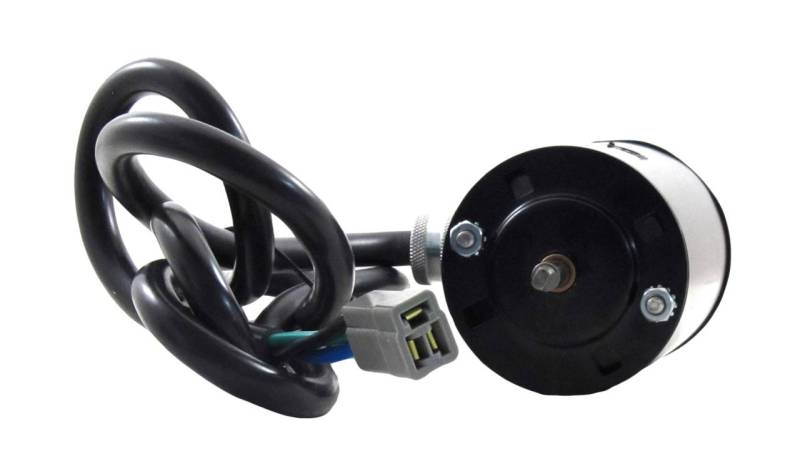

12V Tilt Trim Motor Compatible With Johnson Evinrude Outboard 20 25 30 35 40 50 55 60 65 70 75 Hp

OEM PART NUMBERS:
• OMC: 172588 / 0172588
• OMC: 173944 / 0173944
• EFT4003
• ESI4001 / ESI4001S
• ESZ4015 / ESZ4017
• 40-329 / 40329 / 40-329A / 40329A



AFTERMARKET CROSS REFERENCE:
• API Marine: PT102NM
• Arco Marine: 6228
SPECIFICATIONS:
• Type: Tilt Trim Motor
• OEM Design: Ametek
• Voltage: 12V
• Rotation: Reversible
• Connection: 3-Wire w/Female Spade Terminals
• Mounting: 2-Bolt
• Shaft OD: 6.5mm / Tanged Shaft (3.8mm Drive Tang)
• Overall Length: 134.7mm / 5.303in
• Field Housing OD: 71.3mm / 2.807in
• Pump Compatibility: OMC #173946 Pump Assembly
• Includes: 3-1/2 Ft Wire Harness & Mounting Gasket
• Weight: 4 lbs
• Condition: New

JOHNSON / EVINRUDE OUTBOARD APPLICATIONS:
• 20/25/30/35/40HP 2-Stroke (1981-1997)
• 50/55/60/65HP 2-Stroke (1985-1997)
• 70/75HP 2-Stroke (1986-1999)
• All OMC Small Outboard Engines w/#173946 Pump
