OEM PART NUMBERS:
• Mercury Marine: 17649
• Mercury Marine: 17649A1
• Mercury Marine: 17649T
• Mercury Marine: 87828
• Mercury Marine: 88183A12
• Mercury Marine: 891736T
SPECIFICATIONS:

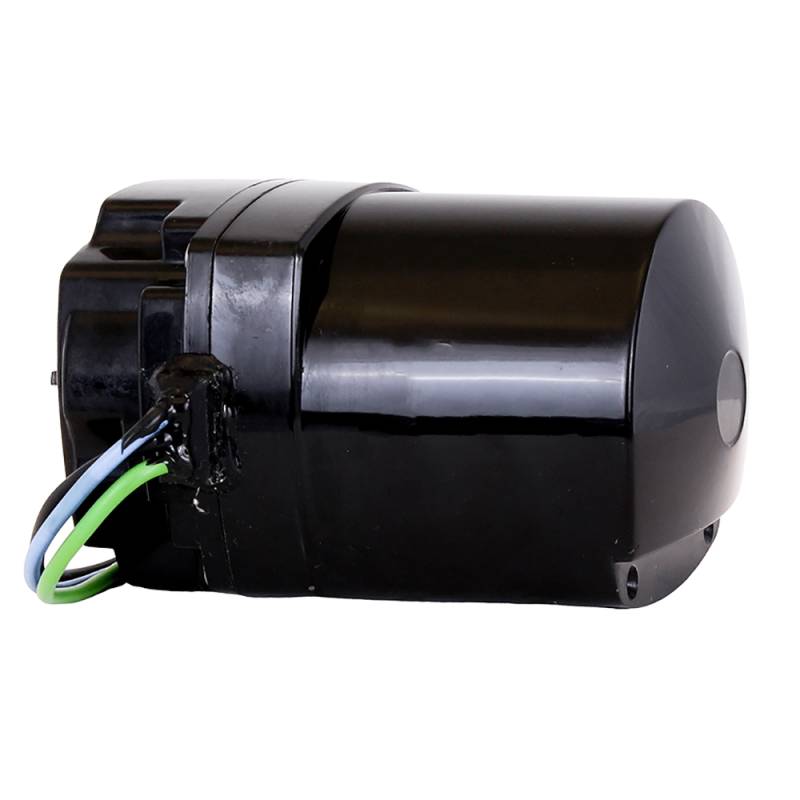

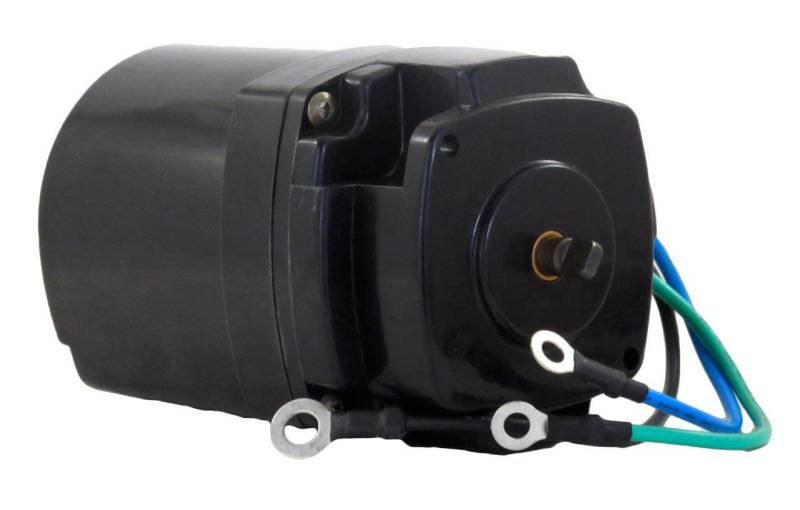

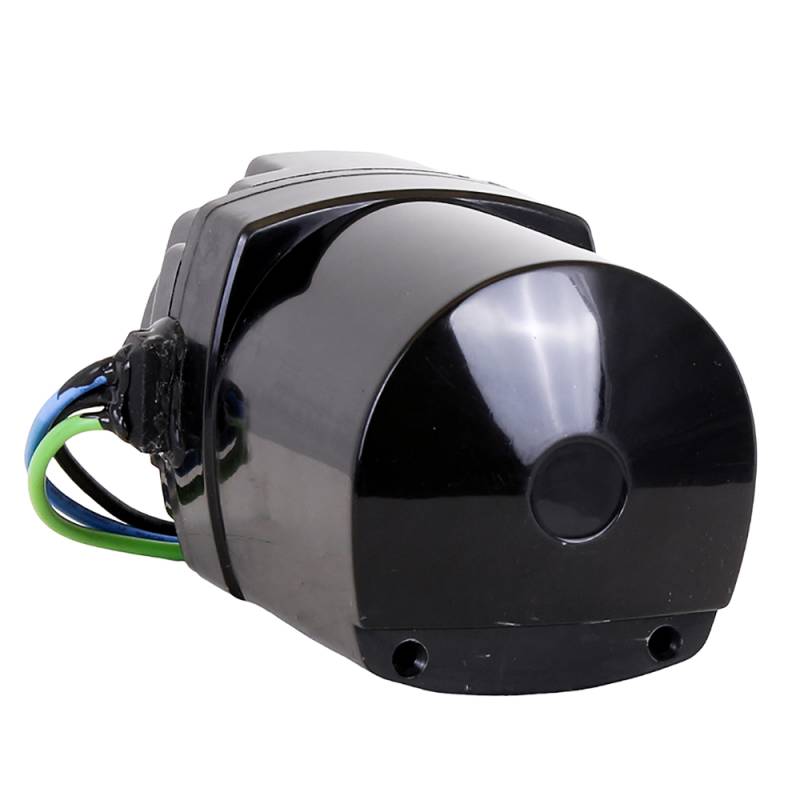

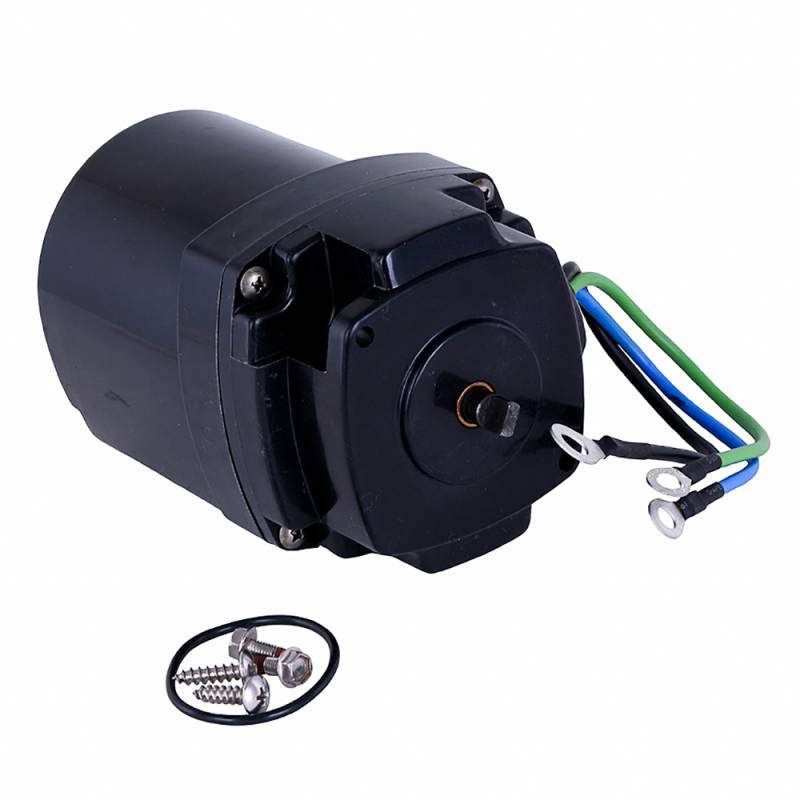

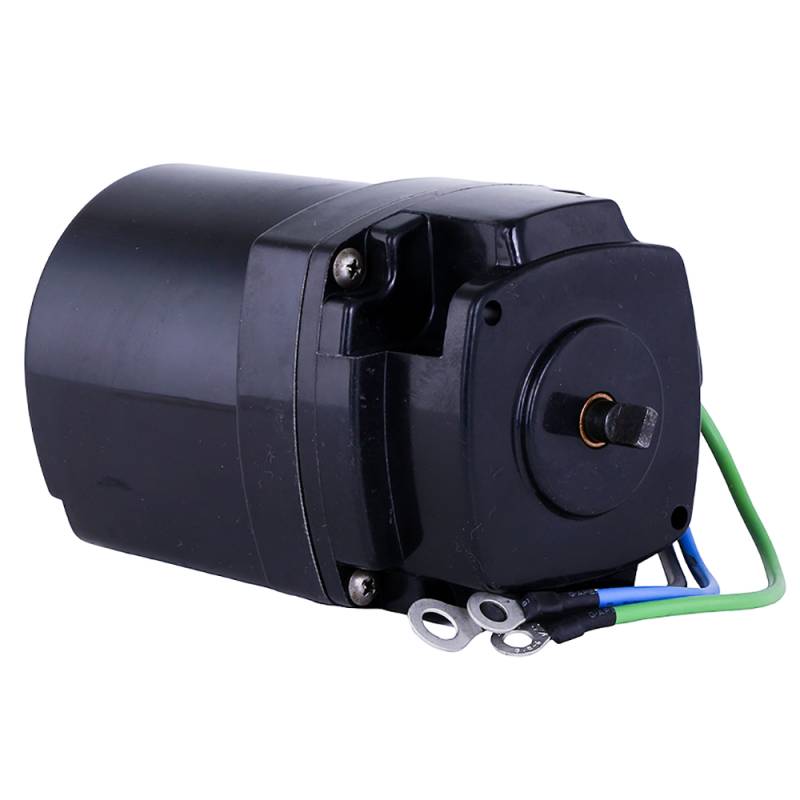

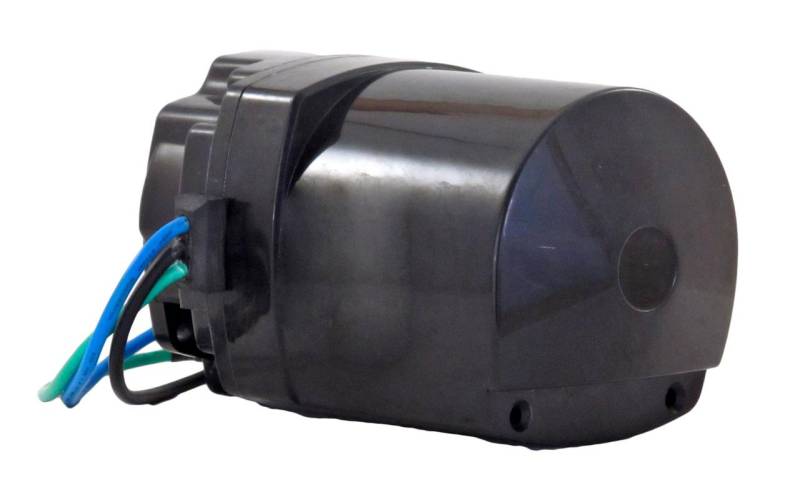

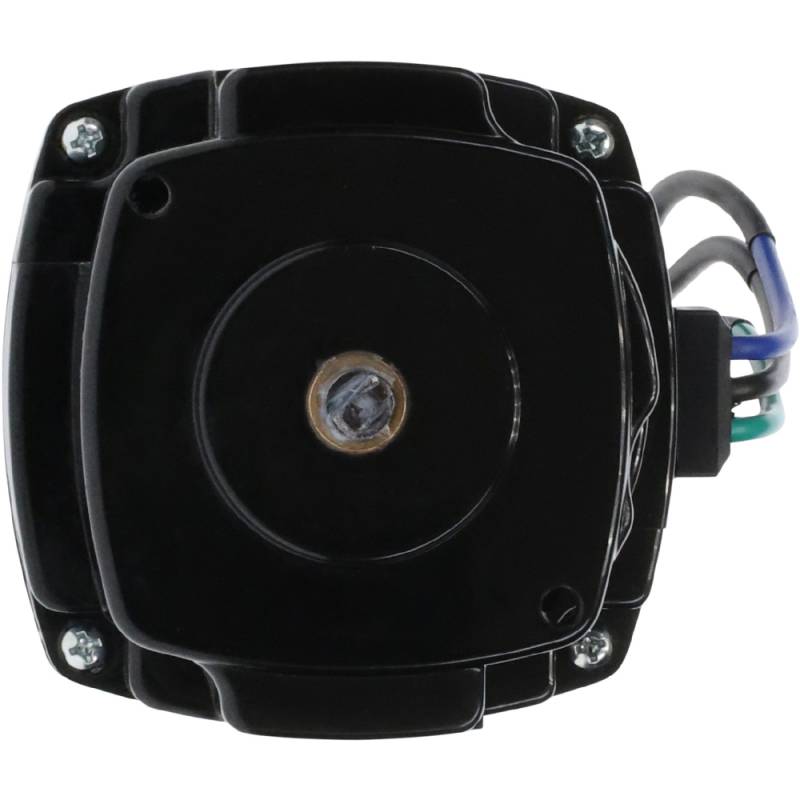

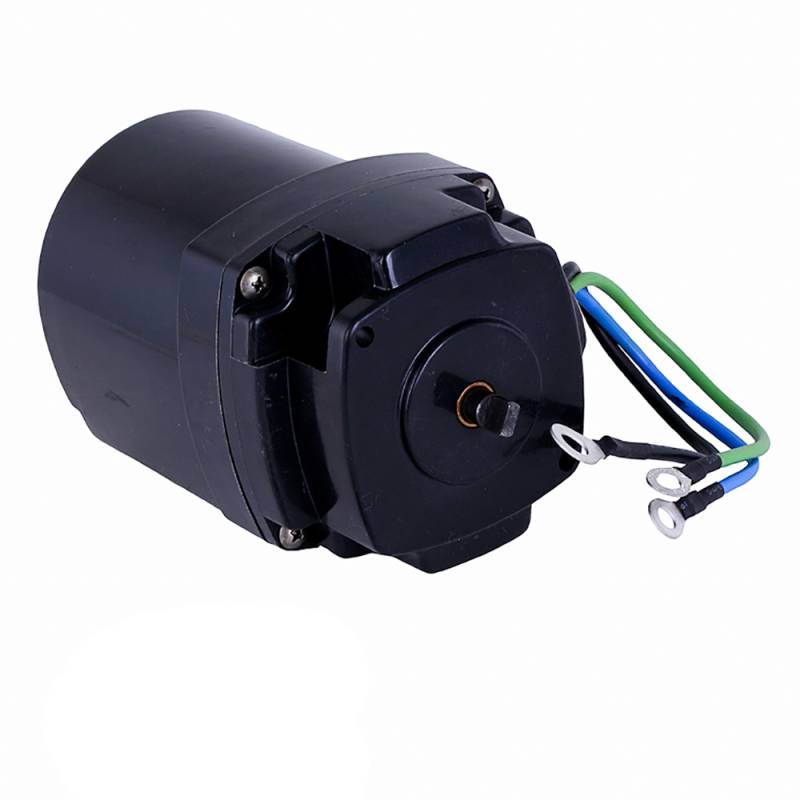

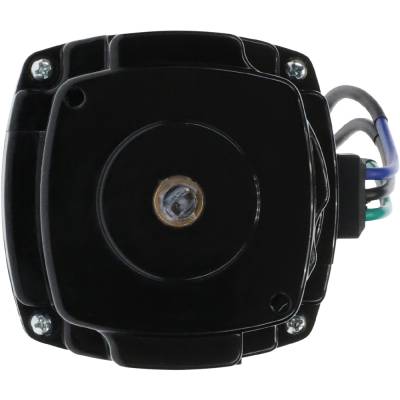

• Product Type: Tilt Trim Motor (Motor Only)
• Voltage: 12V DC
• Rotation: Reversible (Bi-Directional)
• Shaft OD: 9.6mm
• Shaft Type: 3.8mm Drive Tang
• Overall Length: 170.5mm / 6.713 inches
• Field Housing OD: 91.8mm / 3.614 inches
• Leads: 3 x 178mm long with Ring Terminals
• Style: Late Style - Replaces Early Square Body Motor
• Pump Compatibility: Oildyne
• Weight: 8 lbs
• Condition: New
APPLICATION:
• Mercury Outboards with Oildyne Trim Pump
• MerCruiser Alpha I / Alpha One Gen II
• MerCruiser Bravo One/Two/Three and variants
• MerCruiser TR/TRS Drives
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
