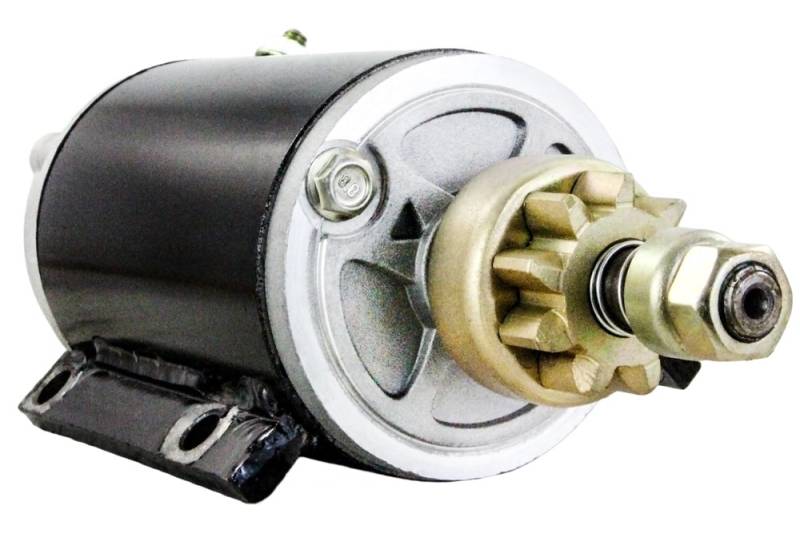

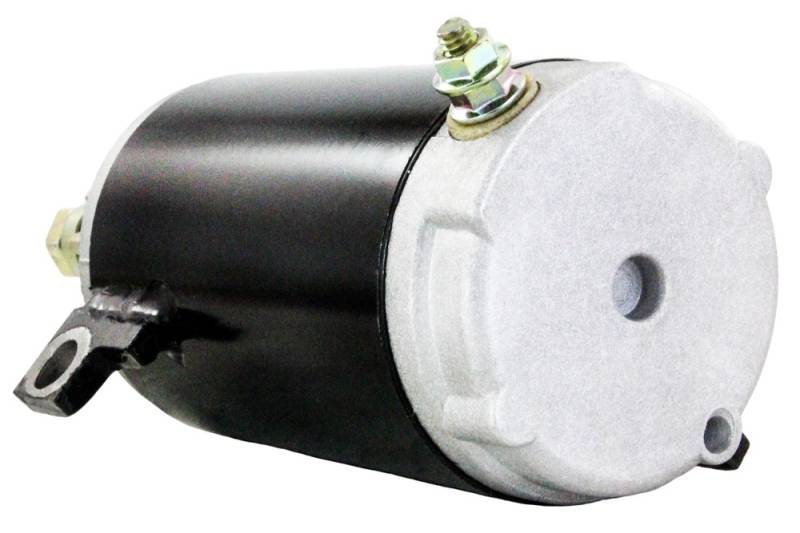

New 12V Ccw Pmdd Starter Compatible With 1991-1997 Evinrude E50j Johnson 50J Jet 35Hp Outboard

(0) Reviews: Write first review
5716B5
OEM CROSS-REFERENCE PART NUMBERS — OMC (JOHNSON/EVINRUDE):
• OMC: 384163
• OMC: 387684
• OMC: 389275
• OMC: 585063
• OMC: 585603
• OMC: 586280

OEM CROSS-REFERENCE PART NUMBERS — PRESTOLITE:
• Prestolite: 46-976
• Prestolite: 46-2122
• Prestolite: 46-2299
• Prestolite: 46-2400
• Prestolite: 46-2439
• Prestolite: MGD4007 / MGD4007A
• Prestolite: MGD4113
• Prestolite: MKW4006
• Prestolite: MKW4008
• Prestolite: 20513579TBA

OEM CROSS-REFERENCE PART NUMBERS — UNITED TECHNOLOGIES (UT):
• United Technologies: 1122940-M030SM / 1122940MO30SM
• United Technologies: 5705340-M030SM / 5705340MO30SM
• United Technologies: SM11229
• United Technologies: SM1122940
• United Technologies: SM57053
• United Technologies: SMH12B43

SPECIFICATIONS:
• Product Type: OMC Johnson/Evinrude Marine Outboard Starter Motor (PMDD)
• OEM Manufacturer: United Technologies (UT)
• Voltage: 12 Volt
• Rotation: Counterclockwise (CCW)
• Starter Type: PMDD (Permanent Magnet Direct Drive)
• Number of Teeth: 9
• Pinion / Gear OD: 36.6mm / 1.441"
• Field Case Length: 102.9mm
• Mounting Ear 1: 8.2mm ID Unthreaded
• Mounting Ear 2: 8.9mm ID Unthreaded
• Mounting Ear 3: 10.1mm ID Unthreaded (oblong 10.1mm x 11.5mm)
• Weight: 6.405 lbs / 2.91 kg
• Application: OMC Johnson/Evinrude 40-75HP Outboard (1960-1997)
• Engine: OMC 44.9ci 2-Cyl 2-Stroke OR 49.7ci 3-Cyl 2-Stroke
• Condition: New

APPLICATION SUMMARY — OMC JOHNSON/EVINRUDE 40-75HP OUTBOARDS 1960-1997:
• Evinrude E40 / E40E / E40EL / E40TE / E40TEL 40HP (44.9ci 2-cyl) 1960-1988
• Evinrude E50 / E50BE / E50BEL / E50TEL / E50TL / E50J Jet 50HP / 35HP Jet (44.9ci 2-cyl) 1971-1997
• Evinrude E60 / E60E / E60EL / E60TL 60HP (44.9ci 2-cyl) 1971-1985
• Evinrude E70 / E75 70-75HP Older Models (49.7ci 3-cyl) 1971-1979
• Johnson 40 / 40E / 40EL / 40R / 40TE / 40TEL / 40TL 40HP (44.9ci 2-cyl) 1970-1988
• Johnson 50 / 50E / 50EL / 50BE / 50BEL / 50TEL / 50TL / 50TLE / 50J Jet 50HP / 35HP Jet (44.9ci 2-cyl) 1971-1997
• Johnson 60 / 60E / 60EL / 60TL 60HP (44.9ci 2-cyl) 1971-1985
• Johnson 70 / 75 70-75HP Older Models (49.7ci 3-cyl) 1971-1979

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $194.93
Sale: $111.39
Save: 43%
Save: $83.54
Qty:
Free Shipping!

Description

EVINRUDE OLDER MODELS — 44.9CI / 49.7CI 2-STROKE (1960-1979):
• 1960-1976 Evinrude E40 40HP Older Models — 44.9ci Inline-2 2-Stroke (Original Prestolite System)
• 1971-1979 Evinrude E50 50HP Older Models — 44.9ci Inline-2 2-Stroke (Prestolite System)
• 1971-1976 Evinrude E60 60HP Older Models — 44.9ci Inline-2 2-Stroke (Prestolite System)
• 1971-1979 Evinrude E70 70HP Older Models — 49.7ci Inline-3 2-Stroke (Prestolite System)
• 1971-1979 Evinrude E75 75HP Older Models — 49.7ci Inline-3 2-Stroke (Prestolite System)

EVINRUDE 40HP — 44.9CI INLINE-2 2-STROKE (1985-1988):
• 1985-1988 Evinrude E40E 40HP Outboard — 44.9ci Inline-2 2-Stroke (Prestolite or UT Starter)
• 1985-1988 Evinrude E40EL 40HP Outboard — 44.9ci Inline-2 2-Stroke (Prestolite or UT Starter)
• 1985-1988 Evinrude E40TE 40HP Outboard — 44.9ci Inline-2 2-Stroke (Prestolite or UT Starter)
• 1985-1988 Evinrude E40TEL 40HP Outboard — 44.9ci Inline-2 2-Stroke (Prestolite or UT Starter)

EVINRUDE 50HP — 44.9CI INLINE-2 2-STROKE (1981-1988):
• 1981-1988 Evinrude E50BE 50HP Outboard — 44.9ci Inline-2 2-Stroke (Prestolite or UT Starter)
• 1981-1988 Evinrude E50BEL 50HP Outboard — 44.9ci Inline-2 2-Stroke (Prestolite or UT Starter)
• 1983-1988 Evinrude E50TEL 50HP Outboard — 44.9ci Inline-2 2-Stroke (Prestolite or UT Starter)
• 1984-1988 Evinrude E50TL 50HP Outboard — 44.9ci Inline-2 2-Stroke (Prestolite or UT Starter)

EVINRUDE 50HP JET (1991-1997):
• 1991-1997 Evinrude E50J Jet 35HP Outboard — 44.9ci Inline-2 2-Stroke Jet Propulsion (United Tech Starter System)

EVINRUDE 60HP 2-CYLINDER — 44.9CI INLINE-2 2-STROKE (1980-1985):
• 1980-1982 Evinrude E60E 60HP 2-Cyl Outboard — 44.9ci Inline-2 2-Stroke (Prestolite or UT Starter)
• 1980-1985 Evinrude E60EL 60HP 2-Cyl Outboard — 44.9ci Inline-2 2-Stroke (Prestolite or UT Starter)
• 1984-1985 Evinrude E60TL 60HP 2-Cyl Outboard — 44.9ci Inline-2 2-Stroke (Prestolite or UT Starter)

JOHNSON OLDER MODELS — 44.9CI / 49.7CI 2-STROKE (1970-1979):
• 1970-1976 Johnson 40 40HP Older Models — 44.9ci Inline-2 2-Stroke (Prestolite or UT Starter)
• 1971-1979 Johnson 50 50HP Older Models — 44.9ci Inline-2 2-Stroke (Prestolite or UT Starter)
• 1971-1976 Johnson 60 60HP Older Models — 44.9ci Inline-2 2-Stroke (Prestolite System)
• 1971-1979 Johnson 70 70HP Older Models — 49.7ci Inline-3 2-Stroke (Prestolite System)
• 1971-1979 Johnson 75 75HP Older Models — 49.7ci Inline-3 2-Stroke (Prestolite System)

JOHNSON 40HP — 44.9CI INLINE-2 2-STROKE (1985-1988):
• 1985-1988 Johnson 40E 40HP Outboard — 44.9ci Inline-2 2-Stroke (Prestolite or UT Starter)
• 1985-1988 Johnson 40EL 40HP Outboard — 44.9ci Inline-2 2-Stroke (Prestolite or UT Starter)
• 1985-1988 Johnson 40R 40HP Outboard — 44.9ci Inline-2 2-Stroke (Prestolite or UT Starter)
• 1985-1988 Johnson 40TE 40HP Outboard — 44.9ci Inline-2 2-Stroke (Prestolite or UT Starter)
• 1985-1988 Johnson 40TEL 40HP Outboard — 44.9ci Inline-2 2-Stroke (Prestolite or UT Starter)
• 1988 Johnson 40TL 40HP Outboard — 44.9ci Inline-2 2-Stroke (Prestolite or UT Starter)

JOHNSON 50HP — 44.9CI INLINE-2 2-STROKE (1980-1988):
• 1980 Johnson 50E 50HP Outboard — 44.9ci Inline-2 2-Stroke (Prestolite or UT Starter)
• 1980 Johnson 50EL 50HP Outboard — 44.9ci Inline-2 2-Stroke (Prestolite or UT Starter)
• 1981-1988 Johnson 50BE 50HP Outboard — 44.9ci Inline-2 2-Stroke (Prestolite or UT Starter)
• 1981-1988 Johnson 50BEL 50HP Outboard — 44.9ci Inline-2 2-Stroke (Prestolite or UT Starter)
• 1983-1988 Johnson 50TEL 50HP Outboard — 44.9ci Inline-2 2-Stroke (Prestolite or UT Starter)
• 1984-1988 Johnson 50TL 50HP Outboard — 44.9ci Inline-2 2-Stroke (Prestolite or UT Starter)
• 1984-1988 Johnson 50TLE 50HP Outboard — 44.9ci Inline-2 2-Stroke (Prestolite or UT Starter)

JOHNSON 50HP JET (1991-1997):
• 1991-1997 Johnson 50J Jet 35HP Outboard — 44.9ci Inline-2 2-Stroke Jet Propulsion (United Tech System)

JOHNSON 60HP 2-CYLINDER — 44.9CI INLINE-2 2-STROKE (1980-1985):
• 1980-1982 Johnson 60E 60HP 2-Cyl Outboard — 44.9ci Inline-2 2-Stroke (Prestolite or UT Starter)
• 1980-1985 Johnson 60EL 60HP 2-Cyl Outboard — 44.9ci Inline-2 2-Stroke (Prestolite or UT Starter)
• 1984-1985 Johnson 60TL 60HP 2-Cyl Outboard — 44.9ci Inline-2 2-Stroke (Prestolite or UT Starter)

FITMENT NOTES — CRITICAL APPLICATION REQUIREMENTS:
• 12 VOLT SYSTEM REQUIRED
• Counterclockwise (CCW) rotation, 9-tooth pinion, 1.441" (36.6mm) gear OD
• PMDD (Permanent Magnet Direct Drive) starter — original UT design
• Field case length: 102.9mm
• 3-ear mounting: 8.2mm, 8.9mm, 10.1mm ID (all unthreaded)
• Mounting hole #3 is OBLONG at 10.1mm x 11.5mm — CRITICAL FOR FITMENT
• Weight: 6.405 lbs (2.91 kg)
• Replaces both the older Prestolite system AND the later UT starter design used across overlapping production years
• Will NOT fit OMC 25/28/30/35HP outboards (those use — different starter)
• Will NOT fit post-1988 OMC 40-50HP outboards with PMDD (those use — different mounting/spec)
• Will NOT fit OMC 80-140HP outboards (those use series — different starter)
• Will NOT fit OMC 4-Stroke outboards (different starter family entirely)
• Will NOT fit OMC V4 / V6 outboards (different starter family)
• Always verify your OEM part number from the original starter unit before ordering
