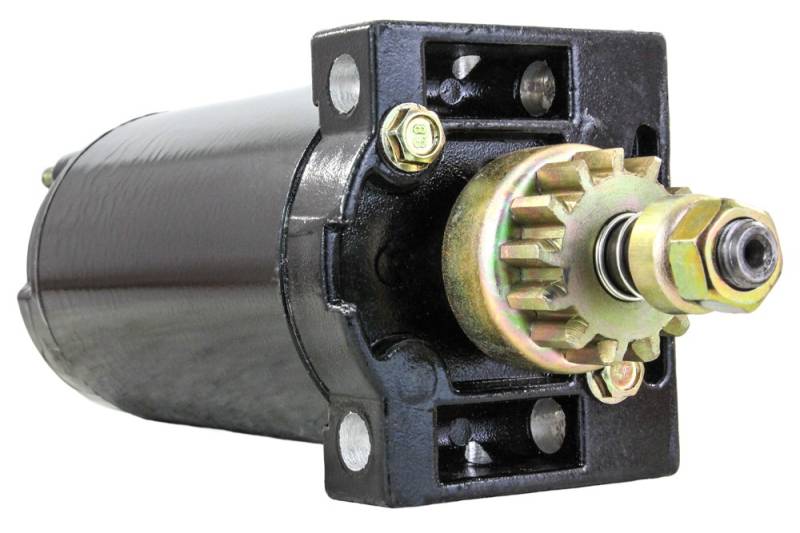

New 12V Ccw Pmdd Starter Compatible With 1995-1999 Force Marine 40El 40Elpt 40Hp Outboard United

SKU: 5738*2

OEM CROSS-REFERENCE PART NUMBERS — FORCE / MERCURY MARINE:
• Force / Mercury Marine: 50-820193 / 50820193
• Force / Mercury Marine: 50-820193-1 / 508201931
• Force / Mercury Marine: 50-820193-T1 / 50-820193T1 / 50820193T1

OEM CROSS-REFERENCE PART NUMBERS — JOHNSON ELECTRIC:
• Johnson Electric: 5676940
• Johnson Electric: SM56769

OEM CROSS-REFERENCE PART NUMBERS — UNITED TECHNOLOGIES (UT):
• United Technologies: 5676940-M030SM / 5676940MO30SM

SPECIFICATIONS:
• Product Type: Force / Mercury Marine Outboard Starter Motor (PMDD)
• OEM Manufacturer: Johnson Electric / United Technologies (UT)
• Voltage: 12 Volt
• Rotation: Counterclockwise (CCW)
• Starter Type: PMDD (Permanent Magnet Direct Drive)
• Number of Teeth: 13
• Pinion / Gear OD: 38mm / 1.496"
• Field Housing Length: 4.8" / 122mm
• Mounting Ear 1: 10.0mm ID Unthreaded
• Mounting Ear 2: 10.0mm ID Unthreaded

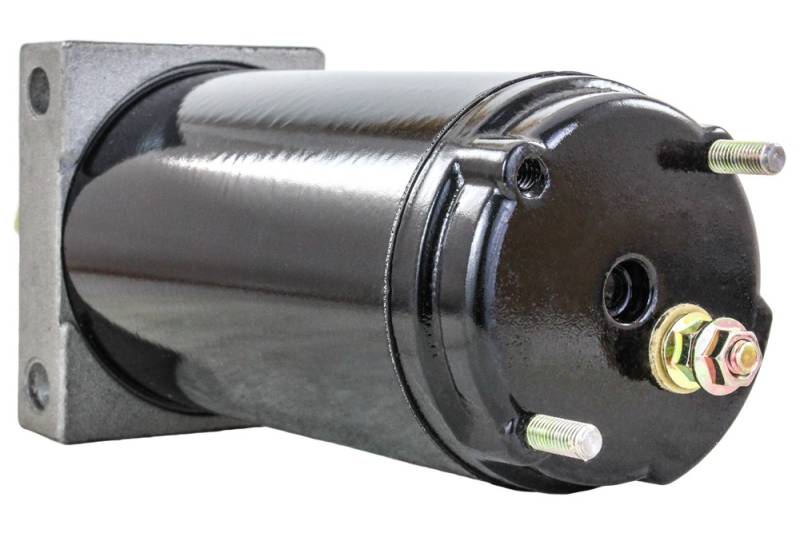

• Battery Stud Location: Exits REAR of CE Housing (CRITICAL fitment spec)
• Weight: 7.08 lbs / 3.22 kg
• Application: Force / Mercury 40HP / 50HP Outboard (1992-1999)
• Condition: New

APPLICATION SUMMARY — FORCE / MERCURY 40-50HP OUTBOARDS 1992-1999:
• 1995-1999 Force 40EL / 40ELPT 40HP Outboard with UT Starter System (Later Production)
• 1993-1994 Force 40EL / 40ELPT 40HP Outboard with UT Starter System (Serial #9500-936499)
• 1992 Force 507 / 508 50HP Outboard with UT Starter System (Serial #9500-936499)
• 1993-1999 Force 50EL / 50ELPT 50HP Outboard with UT Starter System

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $228.10

Sale: $130.34

Save: 43%

Save: $97.76

Description
Details
Shipping
Reviews

Description

FORCE 40HP MARINE OUTBOARDS — UT STARTER (1993-1999):
• 1995-1999 Force Marine 40EL 40HP Outboard — United Tech Starter (Later Production)
• 1993-1994 Force Marine 40EL 40HP Outboard — UT Starter (Requires Serial #9500-936499)
• 1995-1999 Force Marine 40ELPT 40HP Outboard — United Tech Starter (Power Trim, Later Production)
• 1993-1994 Force Marine 40ELPT 40HP Outboard — UT Starter (Power Trim, Requires Serial #9500-936499)

FORCE 50HP MARINE OUTBOARDS — UT STARTER (1992-1999):
• 1992 Force Marine 507 50HP Outboard — UT Starter (Requires Serial #9500-936499)
• 1992 Force Marine 508 50HP Outboard — UT Starter (Requires Serial #9500-936499)
• 1993-1999 Force Marine 50EL 50HP Outboard — United Tech Starter
• 1993-1999 Force Marine 50ELPT 50HP Outboard — United Tech Starter (Power Trim)

CRITICAL FITMENT DIFFERENTIATION — BATTERY STUD ORIENTATION:
• This starter: Battery stud exits the REAR of CE housing
• (separate starter): Battery stud exits the SIDE of CE housing
• Both starters are 12V CCW PMDD 13-tooth for Force/Mercury 40-50HP — but they are NOT interchangeable due to the battery stud orientation difference
• Buyers MUST verify the battery stud exit location on their original starter before ordering

FORCE → MERCURY HISTORICAL CONTEXT:
• Force outboards were built by U.S. Marine Power Equipment Corporation 1984-1996
• In 1996, Mercury Marine acquired U.S. Marine / Force
• Mercury continued to support Force production and parts through 1999
• Both Mercury Marine and Force share the same OEM part numbers (50-820193 series) since Mercury inherited Force's parts catalog post-acquisition
• Same starter spans the entire 1992-1999 Force / Mercury production era

FITMENT NOTES — CRITICAL APPLICATION REQUIREMENTS:
• 12 VOLT SYSTEM REQUIRED
• Counterclockwise (CCW) rotation, 13-tooth pinion, 1.496" (38mm) gear OD
• PMDD (Permanent Magnet Direct Drive) starter — original Johnson Electric / UT design
• Field housing length: 4.8" / 122mm
• 2-ear mounting: both ears 10.0mm ID unthreaded
• Battery stud EXITS THE REAR OF CE HOUSING — CRITICAL fitment specification
• Weight: 7.08 lbs (3.22 kg)
• OEM Manufacturer: Johnson Electric / United Technologies
• Will NOT fit Force/Mercury starters where battery stud exits the SIDE of CE housing (those use — separate listing)
• Will NOT fit Force 40EL/40ELPT/507/508 from 1992-1994 with serial numbers OUTSIDE the 9500-936499 range (different earlier starter)
• Will NOT fit Force 40-55HP 1984-1991 outboards (those use — different 11-tooth starter)
• Will NOT fit Force 75/85/90/120/125/150HP outboards (different starter family)
• Will NOT fit Mercury 40/50HP outboards from 1996+ that aren't the rebadged Force platform (different starter)
• Will NOT fit Mercury 40/50HP 4-Stroke outboards (different starter family)
• Always verify your OEM part number AND battery stud orientation from the original starter unit before ordering
