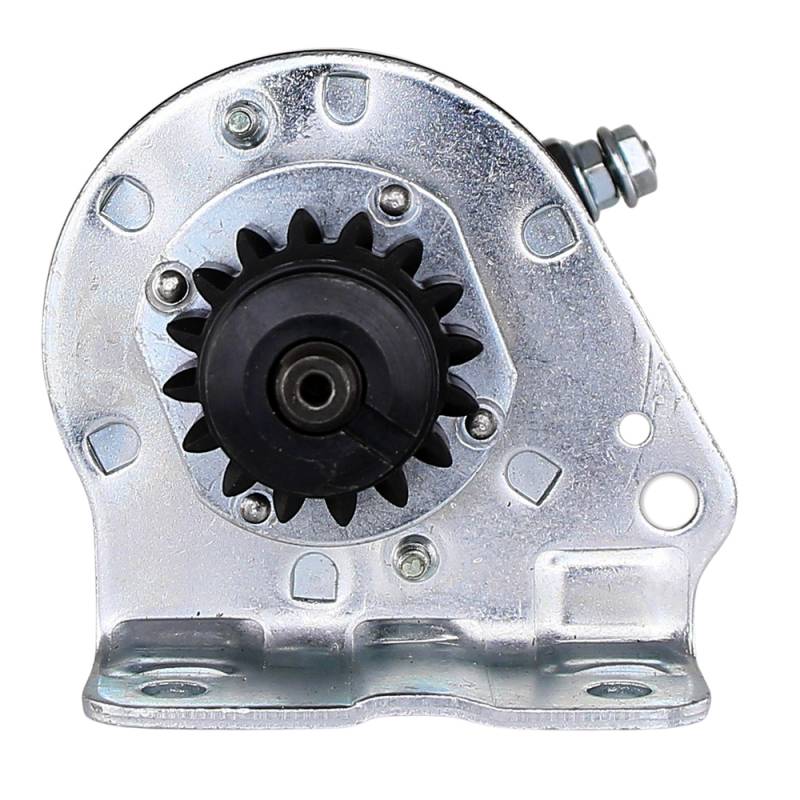

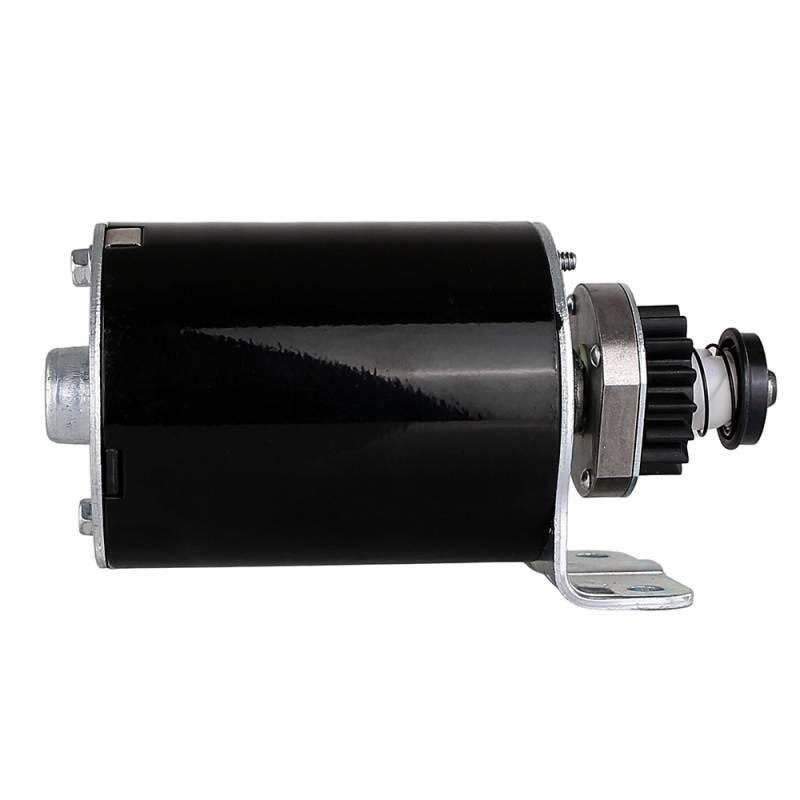

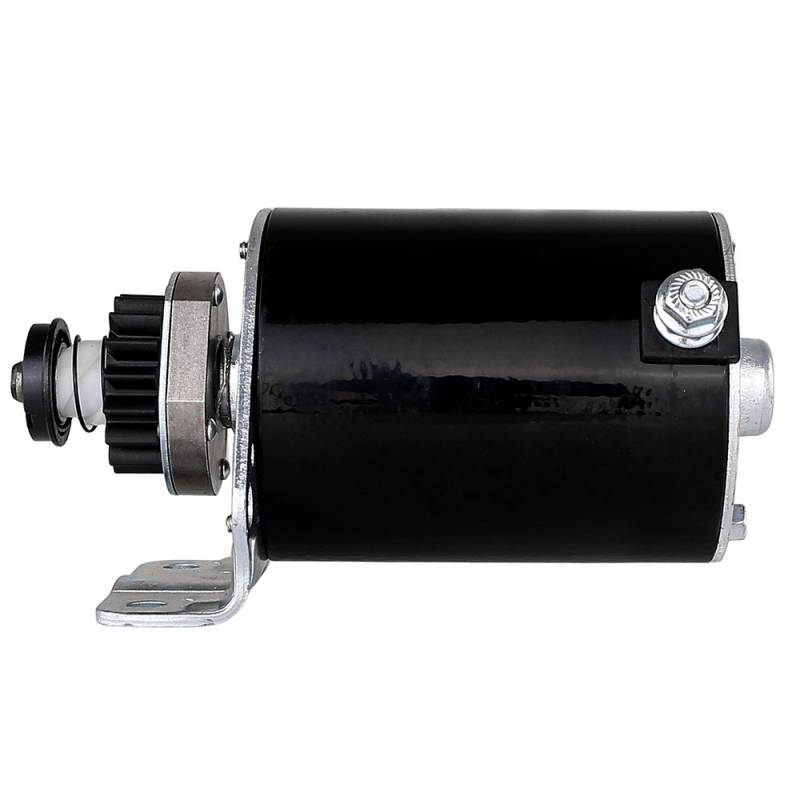

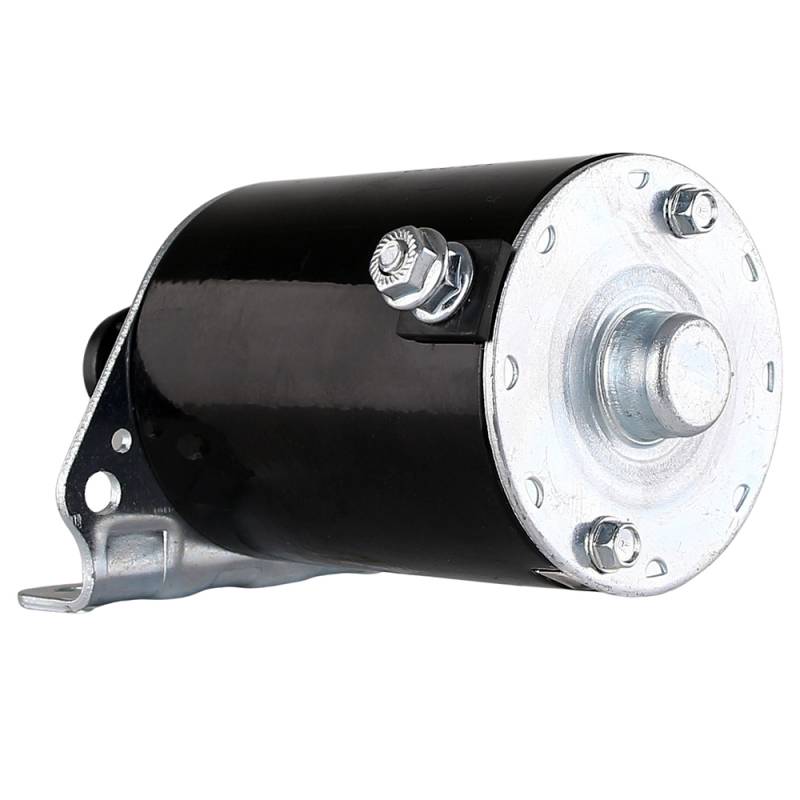

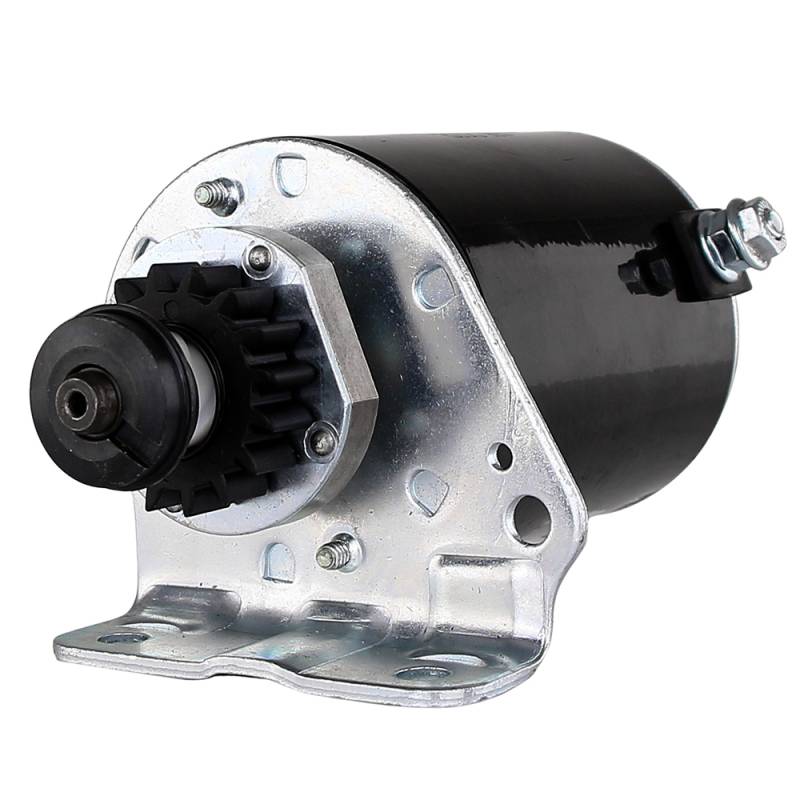

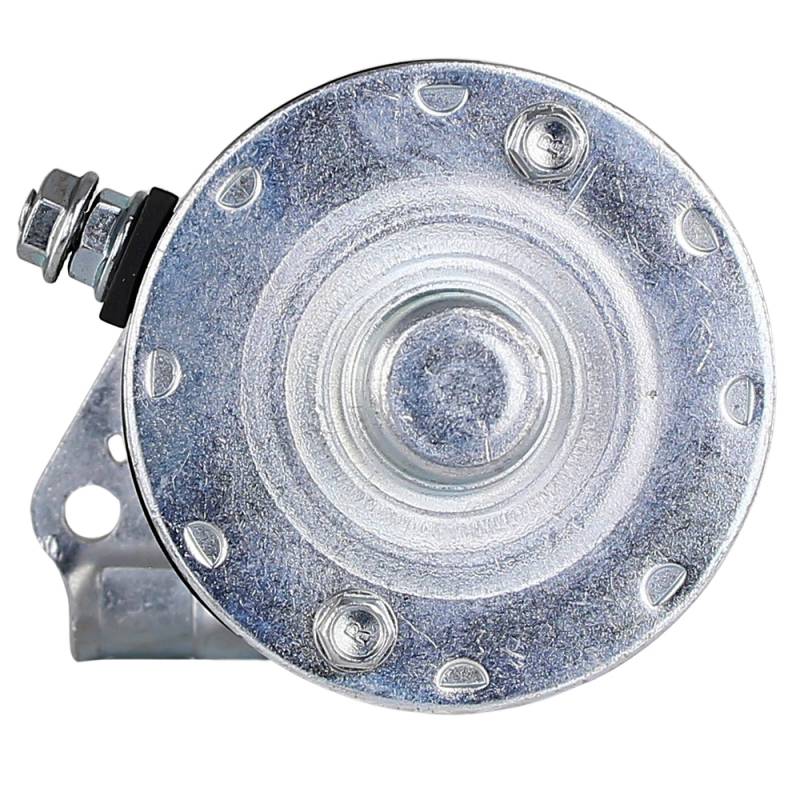

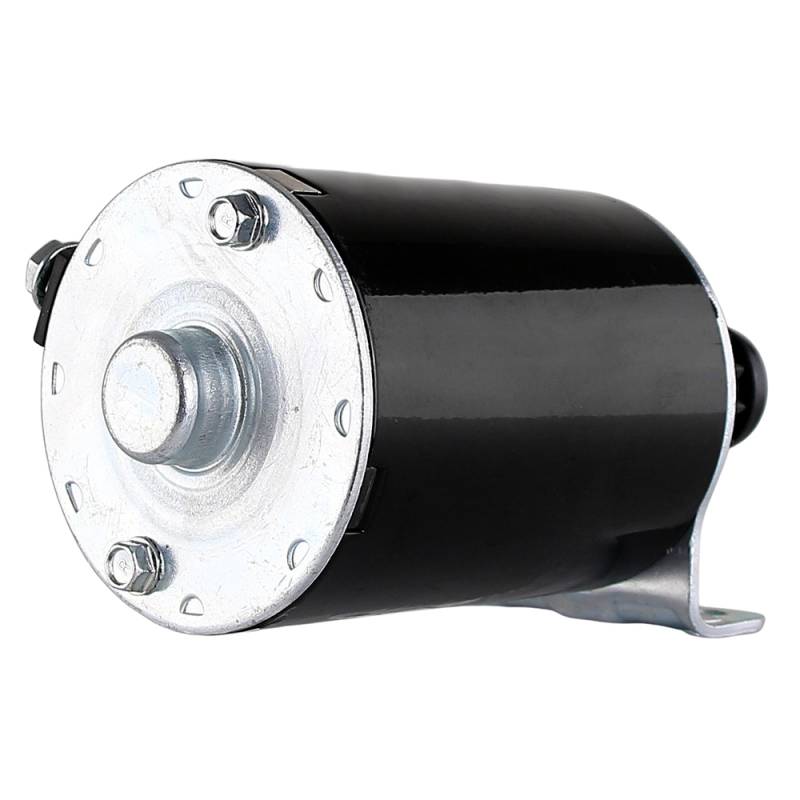

12V Starter Motor Compatible With Cub Cadet 70 80 81 111 382 383 805 1015 1020 1105 1110 1225 Rzt22

5742D3
BRIGGS & STRATTON PART NUMBERS:
• 497595, 693054
• 391423
• 394805
• 390838
• 392749
• 491766
• 497594
• 390849
• 391177
• 392744
• 494325
• 392749R
• 394399
• 497595P
• 5406H, 5406K (retail pack)

JOHN DEERE PART NUMBERS:
• LG497595
• AM37352, AM39137
• AM122337, AM122237
• SE501880 (exchange)
• MIA12048, MIU13772

REPLACEMENT PART NUMBERS:
• Stens 435-303, 435303
• Stens 435-320, 435320
• Oregon 33-700, 33700
• Rotary 9798
• Remy RS41075, 96763
• Lucas LRS2170, LRS02170
• Elmot 49-7955, 497955

OTHER BRIGGS & STRATTON STARTER NUMBERS REPLACED:
• 499521, 795121
• 497401, 494990

TORO PART NUMBERS:
• 78-4340, 784340

SPECIFICATIONS:
• Product: Starter
• Type: starter motor, PMDD (permanent magnet direct drive)
• Voltage: 12 volt
• Rotation: CCW (counterclockwise)
• Pinion: 16 tooth plastic gear, gear OD 40.6 mm (1.598 in)
• Field case length: 3.75 in (95.3 mm), short case
• Mounting: three unthreaded ears, 8.1 to 8.3 mm ID
• Power: 0.7 kW
• Flywheel: plastic or aluminum ring gears only, not for steel ring gears
• Replaces: both short 3.75 in (95.3 mm) and long 4.25 in (108 mm) field case originals

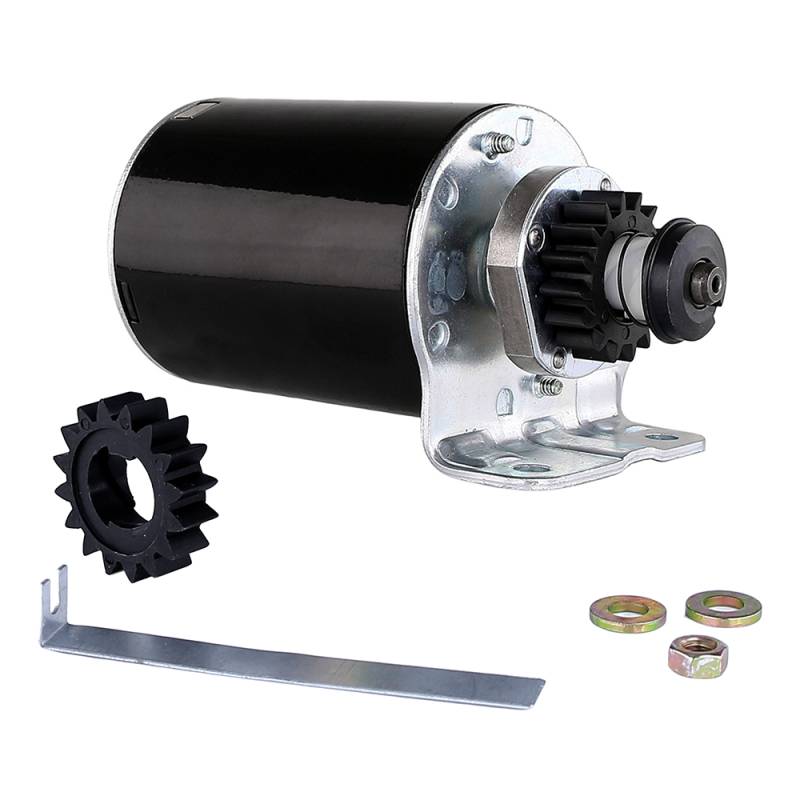

• Includes: extra 16 tooth plastic gear
• Weight: 2.34 kg (5.14 lb)
• Condition: New aftermarket

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $120.31
Sale: $68.75
Save: 43%
Save: $51.56
Qty:
Free Shipping!

Description

TORO LAWN TRACTORS (BRIGGS & STRATTON):
• Toro 12-32XL with the Briggs & Stratton 12 HP 1993-2003
• Toro 12-38XL with the Briggs & Stratton 12.5 HP 1993-1996
• Toro 12-38HXL with the Briggs & Stratton 12.5 HP 1993
• Toro 13-32XL with the Briggs & Stratton 12 HP 1997
• Toro 13-32XLE with the Briggs & Stratton 13 HP 1999-2001
• Toro 13-38XL with the Briggs & Stratton 13 HP 1995-1998
• Toro 13-38HXL with the Briggs & Stratton 13 HP 1994-1996
• Toro 14-38XL with the Briggs & Stratton 14.5 HP 1999
• Toro 14-38HXL with the Briggs & Stratton 14 HP 1996-1998
• Toro 15-44HXL with the Briggs & Stratton 15.5 HP 1995-1996
• Toro 16-44HXL with the Briggs & Stratton 16 HP 1996-1998
• Toro LT10 with the Briggs & Stratton 10 HP 1993
• Toro LT11 with the Briggs & Stratton 11 HP 1988-1989
• Toro LT12 1988-1991, LT12H 1989-1991, LT12G 1994-1995 with the Briggs & Stratton 12 HP
• Toro LT12.5 1992-1993, LT12.5H 1991-1993, LT12.5G 1995 with the Briggs & Stratton 12.5 HP
• Toro LT13H with the Briggs & Stratton 13 HP 1994-1995
• Toro LX466 with the Briggs & Stratton 22 HP 2008
• Toro 212-H 1989-1991 and 212-HSB 1990 with the Briggs & Stratton 12 HP

TORO RIDERS (BRIGGS & STRATTON):
• Toro 8-25 rear engine rider with the Briggs & Stratton 8 HP 1991-2001
• Toro 8-32 front engine rider 1977-1985, professional 1986-1989, rear engine 1983-1993, 8 HP
• Toro 11-32 rear engine rider with the Briggs & Stratton 11 HP 1978-1987, 11.5 HP 1996-1997
• Toro 11-38 Pro lawn tractor with the Briggs & Stratton 11 HP 1986-1987
• Toro 12-32 rear engine rider with the Briggs & Stratton 12 HP 1988-1995, 12.5 HP 1998-2002
• Toro 13-32 rear engine rider with the Briggs & Stratton 13 HP 1996-1997
• Toro 110-4 rear engine rider 10.5 HP 1989-1993, 112-6 rear engine rider 12.5 HP 1989-1992

CUB CADET ZERO TURN MOWERS (BRIGGS & STRATTON V-TWIN):
• Cub Cadet RZT22 with the Briggs & Stratton 22 HP 656 cc 2004
• Cub Cadet RZT50 with the Briggs & Stratton 22 HP 656 cc 2005-2006
• Cub Cadet Z-Force 44 with the Briggs & Stratton 20 HP 2004-2006
• Cub Cadet Z-Force 48 with the Briggs & Stratton 22 HP 2004-2006

TORO MODEL NUMBERS (BRIGGS & STRATTON):
• Toro 13AT61RH044 and 13RT61RH244
• Toro 56132, 56150 and 56175
• Toro 57356, 57357, 57360, 57365 and 57430
• Toro 70080, 71184, 71188 and 71201
• Toro 71203, 71208, 71213, 71218 and 71220
• Toro 71192 with the Briggs & Stratton 28Q777
• Toro 71199 with the Briggs & Stratton 219907
• Toro 71209 with the Briggs & Stratton 21A907
• Toro 71215 with the Briggs & Stratton 28N707

SPECIFICATIONS:
• Type: starter motor, PMDD (permanent magnet direct drive)
• Voltage: 12 volt
• Rotation: CCW (counterclockwise)
• Pinion: 16 tooth plastic gear, gear OD 40.6 mm (1.598 in)
• Field case length: 3.75 in (95.3 mm), short case
• Mounting: three unthreaded ears, 8.1 to 8.3 mm ID
• Power: 0.7 kW
• Flywheel: plastic or aluminum ring gears only, not for steel ring gears
• Replaces: both short 3.75 in (95.3 mm) and long 4.25 in (108 mm) field case originals
• Includes: extra 16 tooth plastic gear
• Weight: 2.34 kg (5.14 lb)
• Condition: New aftermarket
