12V Starter Motor Compatible With Cub Cadet 805 1015 1020 1105 1110 1225 1300 1405 Toro 14-38Hxl

5742C2
JOHN DEERE PART NUMBERS:
• LG497595 (current number)
• SE501880 (exchange)
• AM122337, AM122237
• MIA12048, MIU13772
• AM37352, AM39137

BRIGGS & STRATTON PART NUMBERS:
• 497595
• 693054
• 394805
• 391423
• 390838
• 392749
• 491766
• 497594
• 494325
• 392749R
• 394399
• 5406K, 5406H (retail pack)

REPLACEMENT PART NUMBERS:
• Stens 435-320, 435320
• Oregon 33-700, 33700
• Rotary 9798
• Remy RS41075, 96763
• Lucas LRS2170, LRS02170
• Johnson Evinrude SM01965, 0196540MO30SM
• Elmot 49-7955, 497955

OTHER BRIGGS & STRATTON STARTER NUMBERS REPLACED:
• 499521, 795121, 497401
• 494148, 494198

SPECIFICATIONS:
• Product: Starter
• Type: starter motor, PMDD (permanent magnet direct drive)
• Voltage: 12 volt
• Rotation: CCW (counterclockwise)
• Pinion: 16 tooth plastic gear, gear OD 40.6 mm (1.598 in)
• Field case length: 3.75 in (95.3 mm), short case
• Mounting: three unthreaded ears, 8.1 to 8.3 mm ID
• Power: 0.7 kW
• Flywheel: plastic or aluminum ring gears only, not for steel ring gears
• Replaces: both short 3.75 in (95.3 mm) and long 4.25 in (108 mm) field case originals

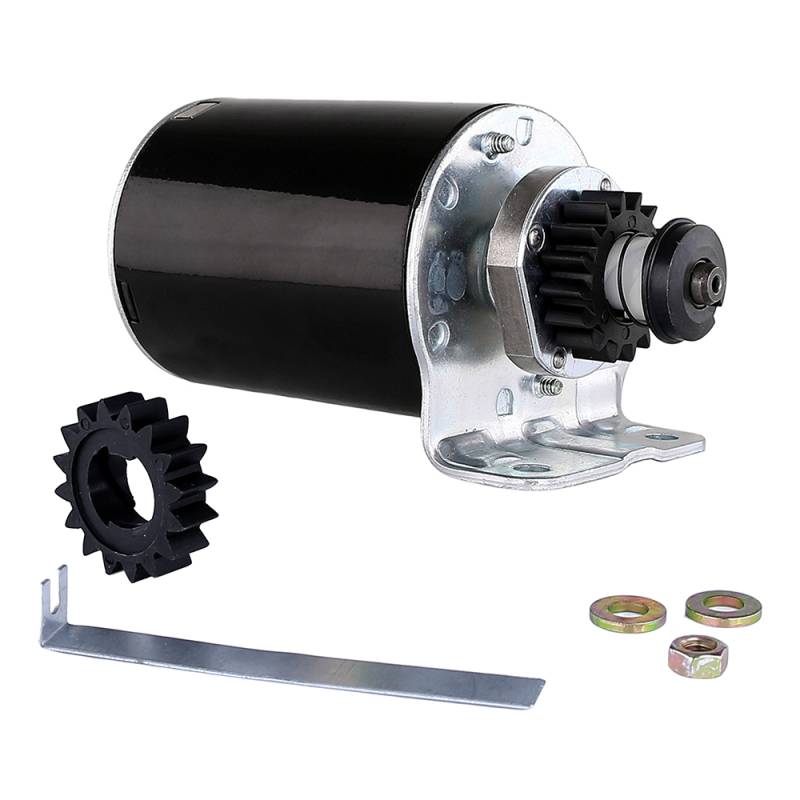

• Includes: extra 16 tooth plastic gear
• Weight: 2.34 kg (5.14 lb)
• Condition: New aftermarket

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $120.31
Sale: $68.75
Save: 43%
Save: $51.56
Qty:
Free Shipping!

Description

JOHN DEERE D SERIES LAWN TRACTORS (BRIGGS & STRATTON V-TWIN):
• John Deere D125 with the Briggs & Stratton 20 HP 655 cc 2014-2017
• John Deere D130 with the Briggs & Stratton 22 HP 655 cc 2011-2017
• John Deere D140 with the Briggs & Stratton 22 HP 655 cc 2011-2017
• John Deere D150 with the Briggs & Stratton 22 HP 655 cc 2011
• John Deere D130 and D140 with the Briggs & Stratton 407777 (as listed)
• John Deere D155 48 in with Briggs & Stratton
• John Deere D160 with the Briggs & Stratton 44M777 25 HP 724 cc 2011-2017
• John Deere D170 with the Briggs & Stratton 44P777 25 HP 724 cc 2011-2017

JOHN DEERE 100 SERIES LAWN TRACTORS (BRIGGS & STRATTON V-TWIN):
• John Deere 125 with the Briggs & Stratton 20 HP 724 cc 2006
• John Deere 135 with the Briggs & Stratton 22 HP 724 cc 2006
• John Deere 145 with the Briggs & Stratton 22 HP 724 cc 2006
• John Deere 155C with the Briggs & Stratton 25 HP 724 cc 2006
• John Deere 190C with the Briggs & Stratton 25 HP 724 cc 2006
• John Deere 92H with Briggs & Stratton
• John Deere 107H with Briggs & Stratton

JOHN DEERE X SERIES AND EZTRAK (BRIGGS & STRATTON V-TWIN):
• John Deere X130R with the Briggs & Stratton 655 cc 2010
• John Deere X135R with the Briggs & Stratton 655 cc 2013-2018
• John Deere X140 with the Briggs & Stratton 655 cc 2007-2010
• John Deere X155R with the Briggs & Stratton 655 cc 2011-2018
• John Deere X165 with the Briggs & Stratton 655 cc 2011-2017
• John Deere Z235 EZtrak with the Briggs & Stratton 20 HP 655 cc 2013-2015

CRAFTSMAN:
• Craftsman 917275671 with the Briggs & Stratton 445677
• Craftsman 12728875 and 12728876
• Craftsman PGT9000

BRIGGS & STRATTON V-TWIN ENGINES:
• Briggs & Stratton 401577, 403677, 404577, 4045A7, 405577, 405777
• Briggs & Stratton 406577, 406677, 406777, 407577, 407677, 407777, 40G777, 40H777, 40R877
• Briggs & Stratton 441577, 441677, 441777, 445577, 445677, 445977, 446677, 446777, 446877
• Briggs & Stratton 44H777, 44K777, 44M777, 44N777, 44P777, 44R677, 44R877, 44S777, 44S977, 49M877

SPECIFICATIONS:
• Type: starter motor, PMDD (permanent magnet direct drive)
• Voltage: 12 volt
• Rotation: CCW (counterclockwise)
• Pinion: 16 tooth plastic gear, gear OD 40.6 mm (1.598 in)
• Field case length: 3.75 in (95.3 mm), short case
• Mounting: three unthreaded ears, 8.1 to 8.3 mm ID
• Power: 0.7 kW
• Flywheel: plastic or aluminum ring gears only, not for steel ring gears
• Replaces: both short 3.75 in (95.3 mm) and long 4.25 in (108 mm) field case originals
• Includes: extra 16 tooth plastic gear
• Weight: 2.34 kg (5.14 lb)
• Condition: New aftermarket

Details

Shipping Information

  • Item Requires Shipping
  • 6.1 lbs.
  • W4.0000” x H4.0000” x L8.0000”
