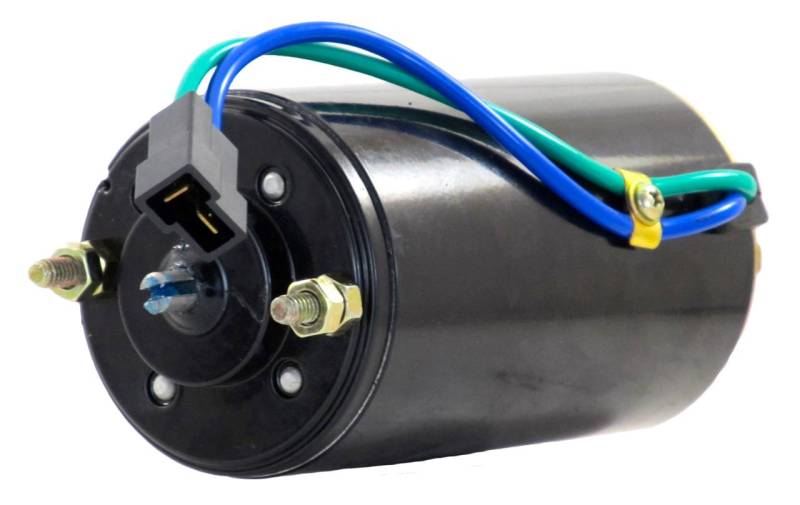

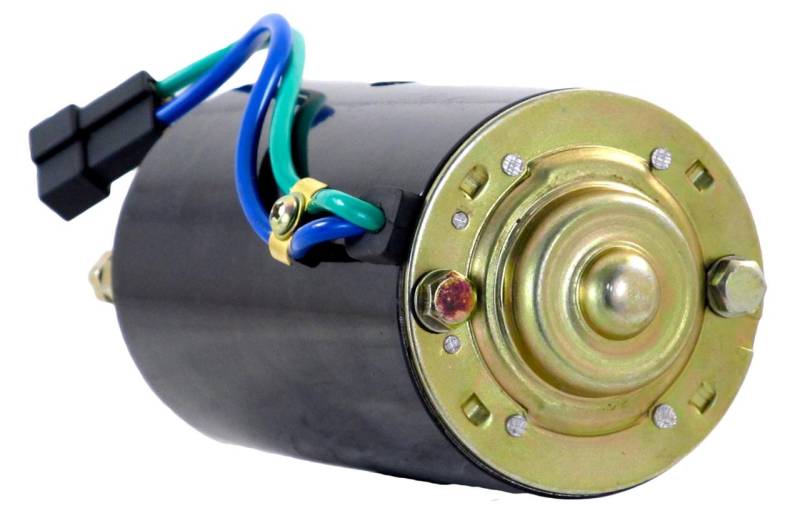

12V Tilt Trim Motor Compatible With Omc Johnson Evinrude Outboard 380361 382138 382220 Prestolite

10808*1
OMC OEM PART NUMBERS:
• 380361
• 382138
• 382220
• 0380361
• 0382138
• 0382220

PRESTOLITE OEM PART NUMBERS:
• 40-217
• 40-259
• ESW4005
• ETK4102

SIERRA MARINE:
• 18-6754

QUICKSILVER:
• 8M6007536

SPECIFICATIONS:
• Type: Tilt/Trim Motor
• Unit Type: OMC Outboard / Stern Drive
• Voltage: 12V DC
• Rotation: Reversible (Bi-Directional)
• Current Type: DC
• Shaft Outside Diameter: 8mm (0.315 in)
• Shaft Type: 1/8" Slotted
• Overall Length: 170.9mm (6.728 in)
• Field Housing OD: 78mm (3.071 in)
• Terminal Configuration: 2-Wire Harness with 2-Blade Plug
• Includes: O-Ring, Screws, and Bolts
• Weight: 8 lbs
• SAE J1171 Marine Ignition Protection Certified

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $170.50
Sale: $97.43
Save: 43%
Save: $73.07
Qty:
Free Shipping!

Description

COMPATIBLE WITH OMC STERN DRIVE SYSTEMS (1965-1979):

OMC Stern Drive Engine Models:
• 80 HP - 1967, 1968, 1969
• 90 HP - 1970, 1971
• 100 HP - 1972, 1973
• 120 HP - 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978
• 140 HP - 1973, 1974, 1975, 1976, 1977, 1978
• 155 HP - 1967, 1968, 1969, 1970, 1971, 1972
• 165 HP - 1972, 1973, 1974, 1975, 1976
• 170 HP - 1974
• 175 HP - 1975, 1976, 1977
• 185 HP - 1967, 1968, 1978
• 190 HP - 1974, 1975, 1976, 1977
• 200 HP - 1967, 1968
• 210 HP - 1967, 1968, 1969, 1970
• 215 HP - 1971
• 225 HP - 1972, 1973, 1974, 1975, 1976, 1978
• 235 HP - 1971, 1975, 1976, 1977
• 240 HP - 1978
• 245 HP - 1972, 1973, 1974, 1975
• 250 HP - 1979

Johnson/Evinrude Outboard Models (with Power Tilt/Trim):
• 30 HP - 1963-1979
• 40 HP - 1963-1979
• 45 HP - 1963-1979
• 48 HP - 1963-1979
• 50 HP - 1963-1979
• 60 HP V4 - 1963-1979
• 70 HP - 1963-1979
• 75 HP - 1963-1979
• 90 HP - 1963-1979
• 235 HP - 1963-1979

Note: This motor fits 1965-1979 OMC stern drive and outboard applications with 2-wire tilt/trim systems. Verify your OEM part number before ordering.
