Sea-Doo Rotax 947 Rebuild Kit Standard Bore 88Mm Compatible With 2000-2002 Rx 951 2001 Rx X 951

OEM PART NUMBERS:
• BRP/Sea-Doo: 290-889-045 / 290889045
• BRP/Sea-Doo: 420-889-045 / 420889045

SPECIFICATIONS:
• Type: Top End Rebuild Kit (Standard Bore)
• Bore Size: 88.00mm Standard (3.465")
• No Boring Required — Light Hone to Break Glaze
• Engine: Rotax 947 Carbureted RAVE (NOT for DI)
• Displacement: 951cc (Engine Type: 947)
• Configuration: 2-Cylinder 2-Stroke
• Bore × Stroke: 88.0mm × 78.0mm
• Power: ~130HP at 7000 RPM
• Fuel: Dual Mikuni BN46 Carburetors
• Exhaust: R.A.V.E. (Rotax Adjustable Variable Exhaust)
• Weight: 5 lbs
• Condition: New

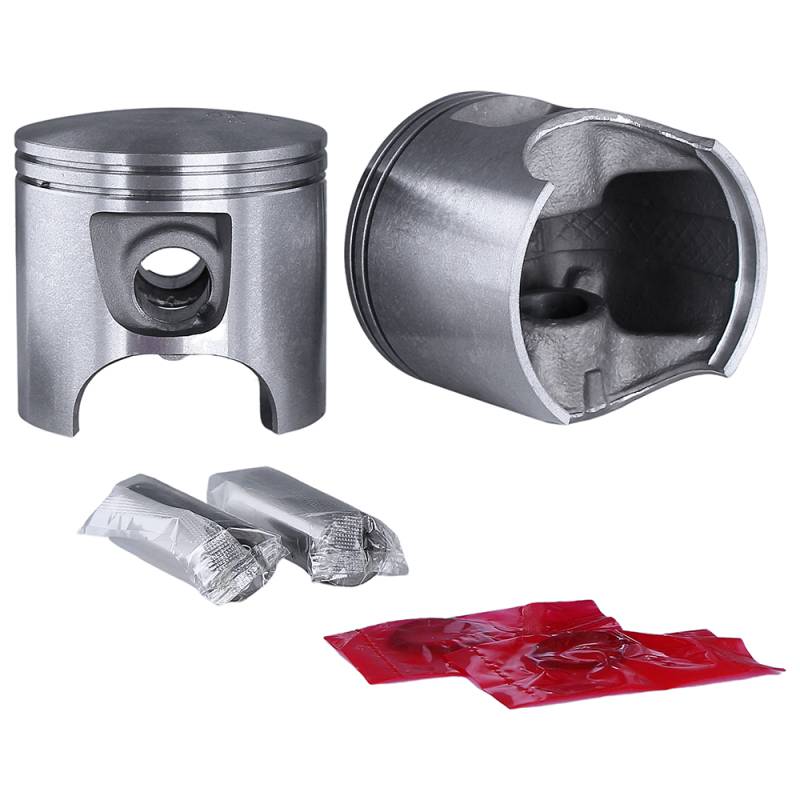

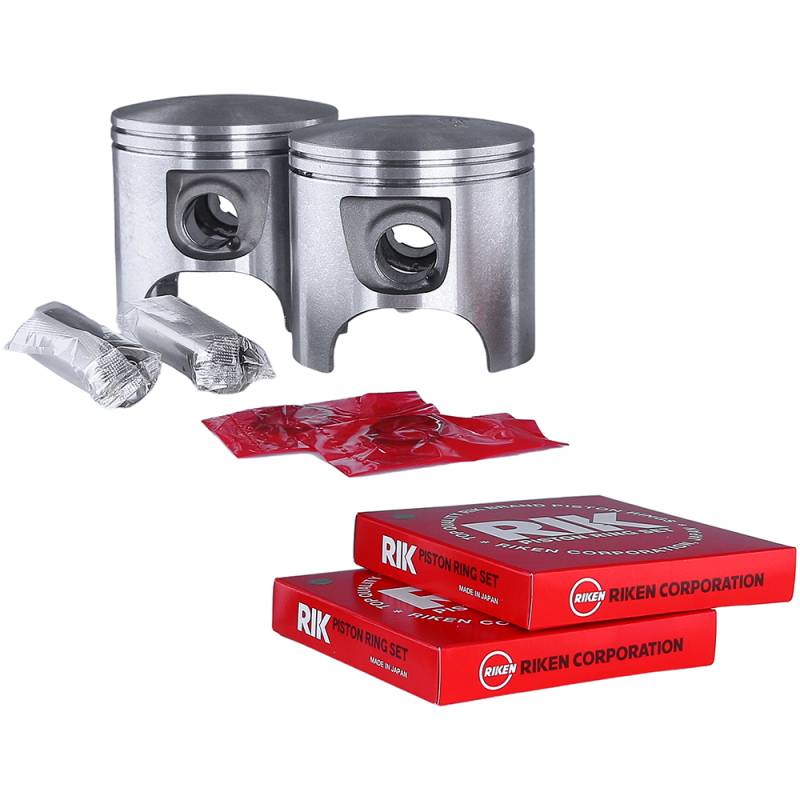

KIT CONTENTS (Complete 2-Cylinder Top End):

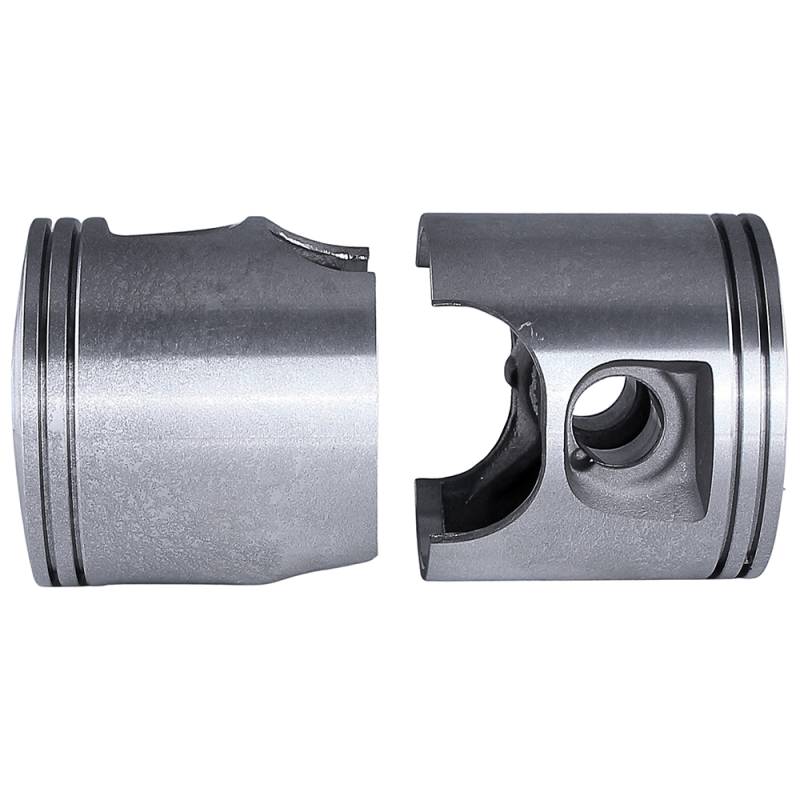

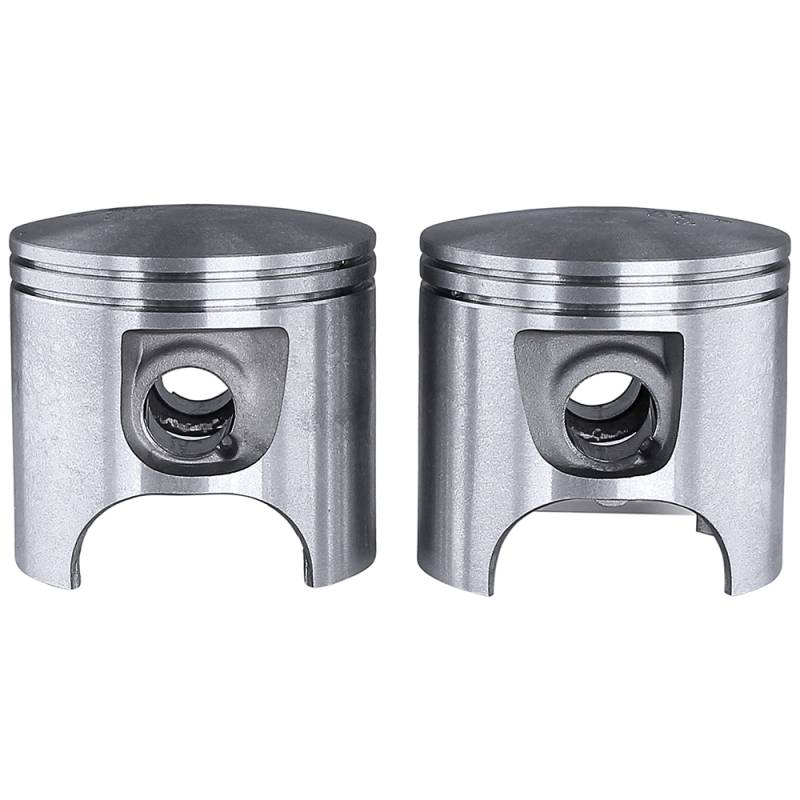

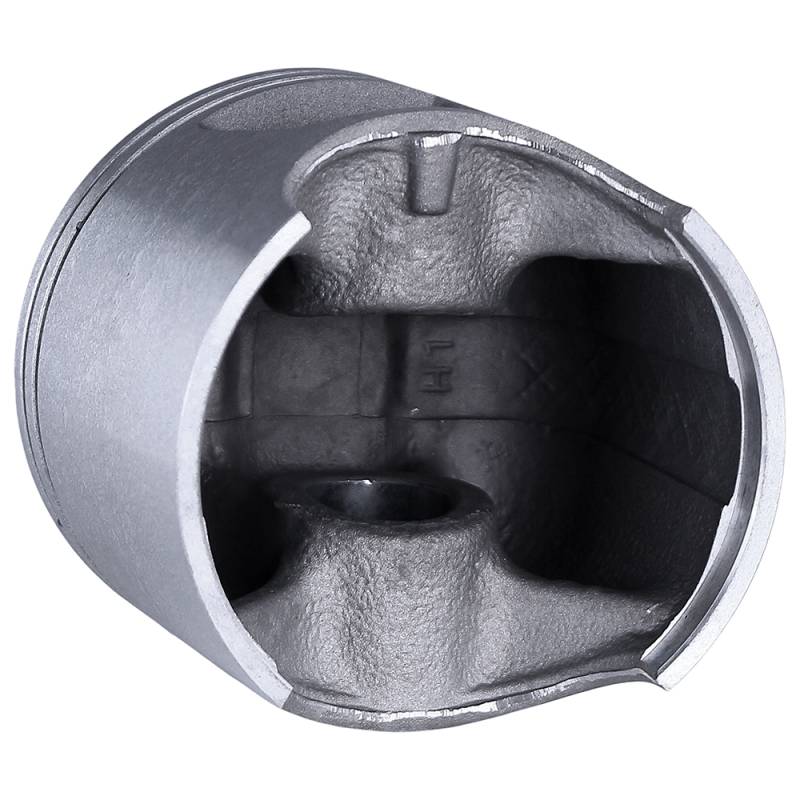

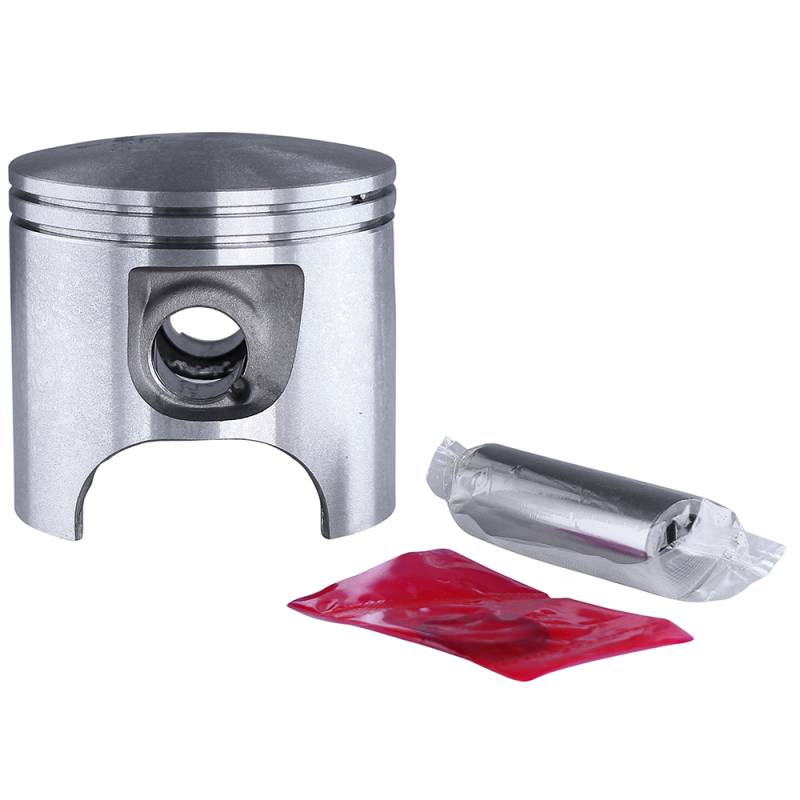

• (2) Cast Pistons with Ring Sets (Japanese RIK Performance)
• (2) Wrist Pins / (2) Wrist Pin Bearings / (4) Circlips

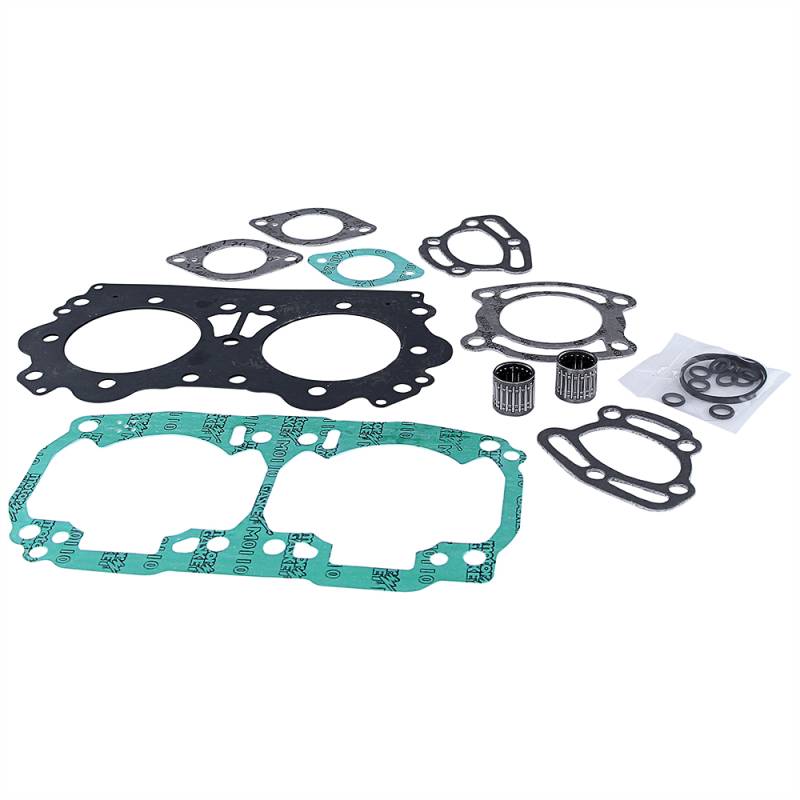

• Complete Gasket Set (Head, Base, Exhaust Gaskets, O-Rings)

BORE SIZE CHART — CARBURETED 951:

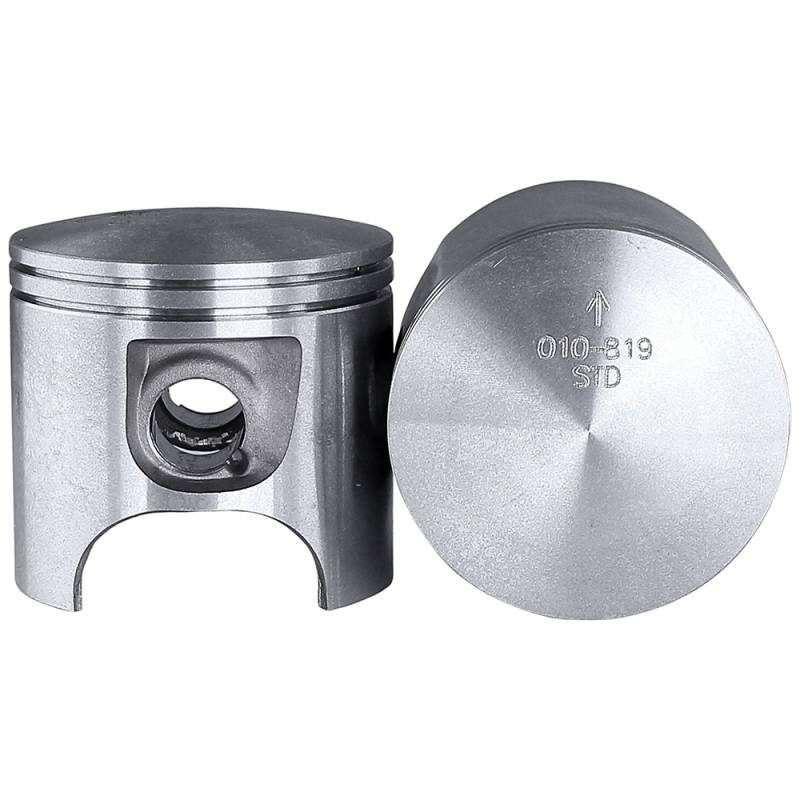

• Standard: 88.00mm (010-819-10) — THIS KIT
• 0.25mm Over: 88.25mm
• 0.50mm Over: 88.50mm
• 0.75mm Over: 88.75mm
• 1.00mm Over: 89.00mm

CARBURETED 951 PWC APPLICATIONS:
• GSX Limited 951 (1997-1999) / GTX / GTX LTD 951 (1998-2002)
• XP / XP LTD 951 (1998-2002) / RX 951 (2000-2002) / RX X 951 (2001)
• LRV 951 (2000-2001)

CARBURETED 951 JET BOAT:
• Sportster LE 951 (2000-2003)
