Standard Bore Rebuild Kit 76Mm Compatible With 1993-1996 Sea-Doo Spi 580 1993 Spx 580 1992 Xp 580

OEM PART NUMBERS:
• BRP/Sea-Doo: 290-887-300 / 290887300
• BRP/Sea-Doo: 420-887-670 / 420887670

SPECIFICATIONS:
• Type: Top End Rebuild Kit (Standard Bore)
• Bore Size: 76.00mm Standard (2.99")
• No Boring Required — Light Hone to Break Glaze
• Engine: Rotax 587 (Marketed as 580cc)
• Displacement: 580cc
• Configuration: 2-Cylinder 2-Stroke
• Engine Color: White (1992-1996 Models)
• Weight: 5 lbs
• Condition: New

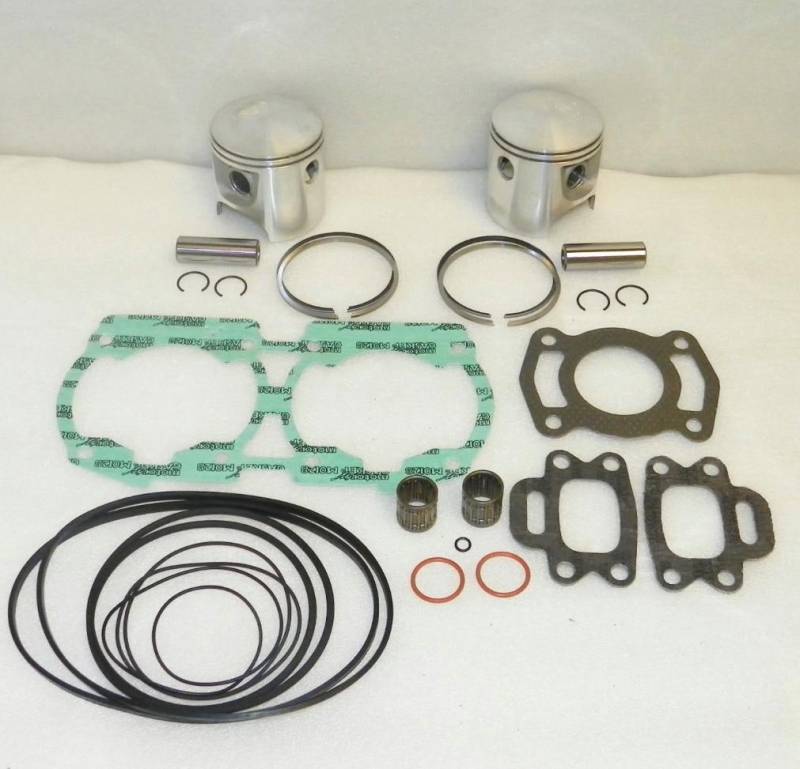

KIT CONTENTS (Complete 2-Cylinder Top End):
• (2) Cast Pistons with Ring Sets
• (2) Wrist Pins / (2) Wrist Pin Bearings / (4) Circlips
• Complete Gasket Set (Head, Base, Exhaust Gaskets)
• All O-rings and seals needed for top end rebuild

BORE SIZE CHART (Sea-Doo 580/587):
• Standard: 76.00mm (010-815-20) — THIS KIT
• 0.25mm Over: 76.25mm
• 0.50mm Over: 76.50mm
• 0.75mm Over: 76.75mm
• 1.00mm Over: 77.00mm

APPLICATIONS:
• Sea-Doo GT 580 (1990-1991) / GTS 580 (1992-1996) / GTX 580 (1992-1993)
• Sea-Doo SP 580 (1992-1996) / SPI 580 (1993-1996) / SPX 580 (1993) / XP 580 (1992)

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
