OEM PART NUMBERS:
• OMC: 982058
• OMC: 982706 (supersedes 982058)
• Prestolite: 40-393
• Prestolite: 40-416
• Prestolite: EVD4001
• Prestolite: EVD4002
SPECIFICATIONS:
• Voltage: 12V
• Motor Type: Prestolite
• Rotation: Reversible
• Shaft OD: 8mm / 0.315in
• Shaft: Slotted
• Length: 154.9mm / 6.098in
• Field Housing OD: 73.9mm / 2.909in
• Wiring: 3-Wire Harness, 2 Spade + 1 Ring Terminal
• Weight: 6 lbs
• Condition: New
APPLICATION:
• OMC Stern Drive 2.5L Engine (1980-1985)
• OMC Stern Drive 3.0L Engine (1980-1985)
• OMC Stern Drive 5.7L Engine (1980-1985)
• All OMC Stern Drive Models Except 2.5L, 3.0L (1978-1985)

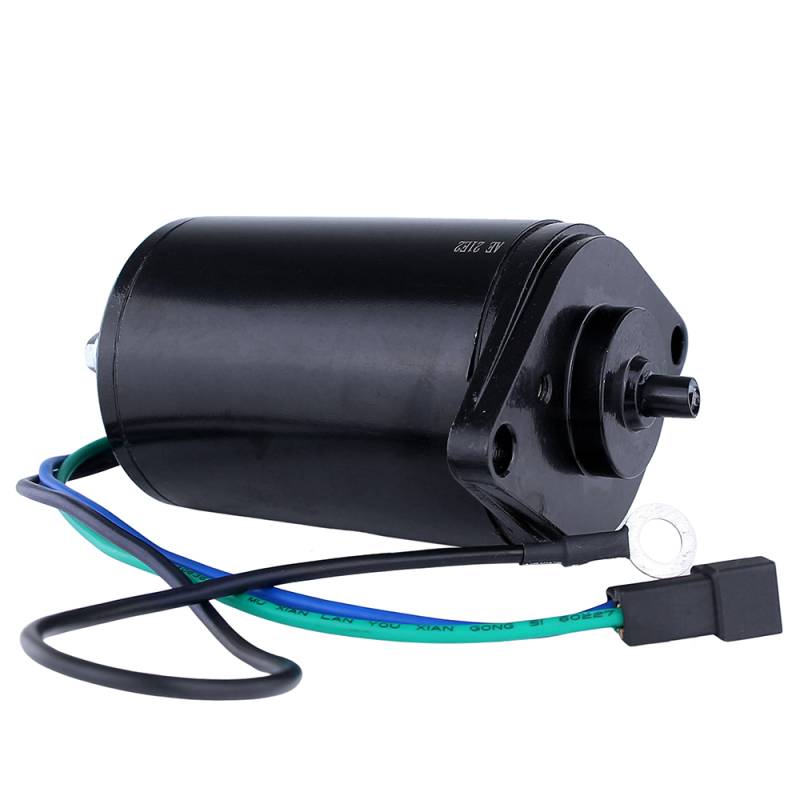

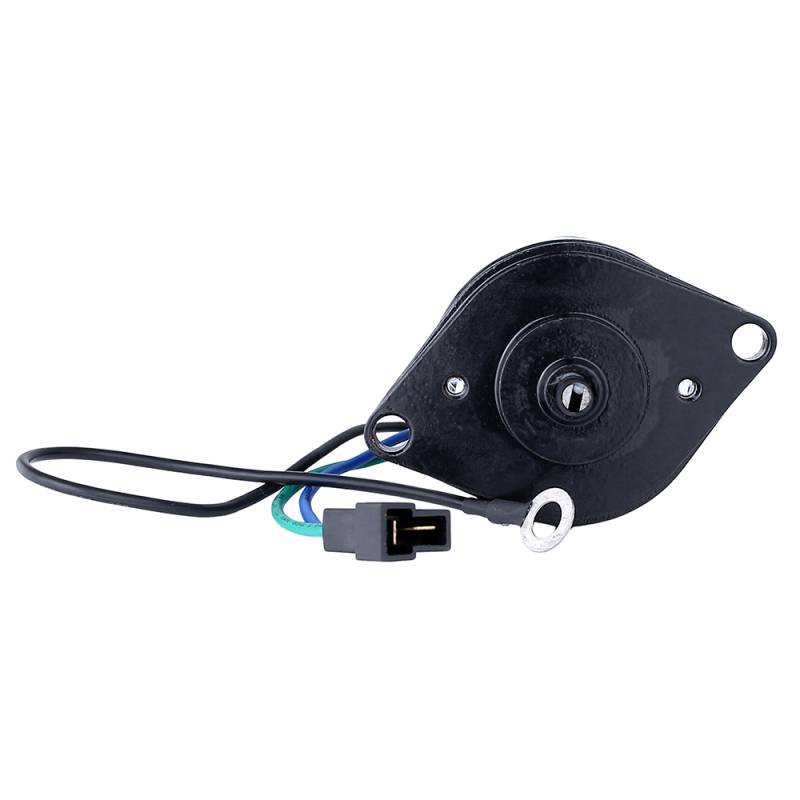

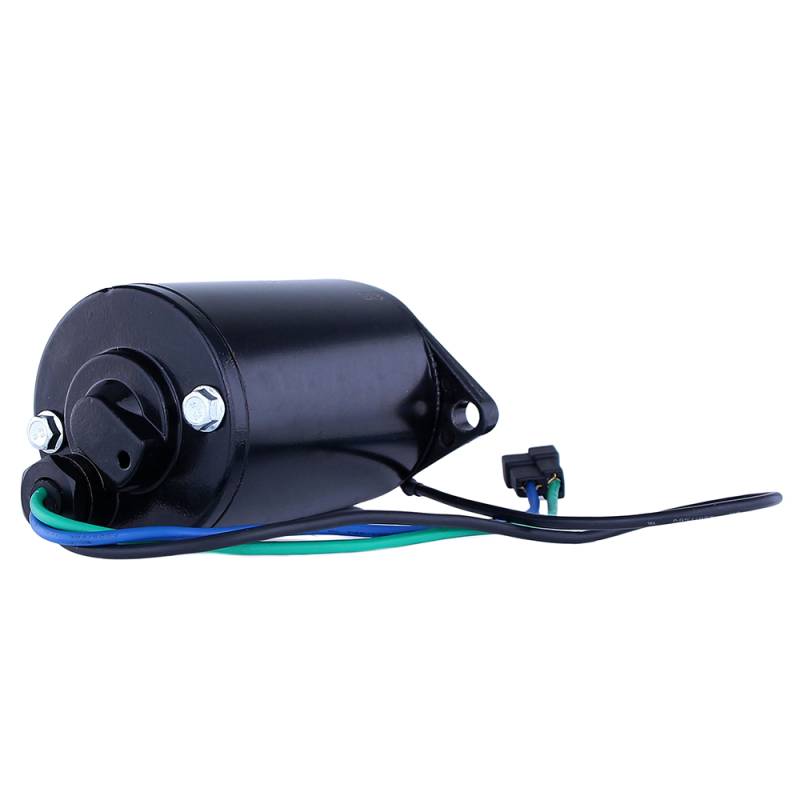

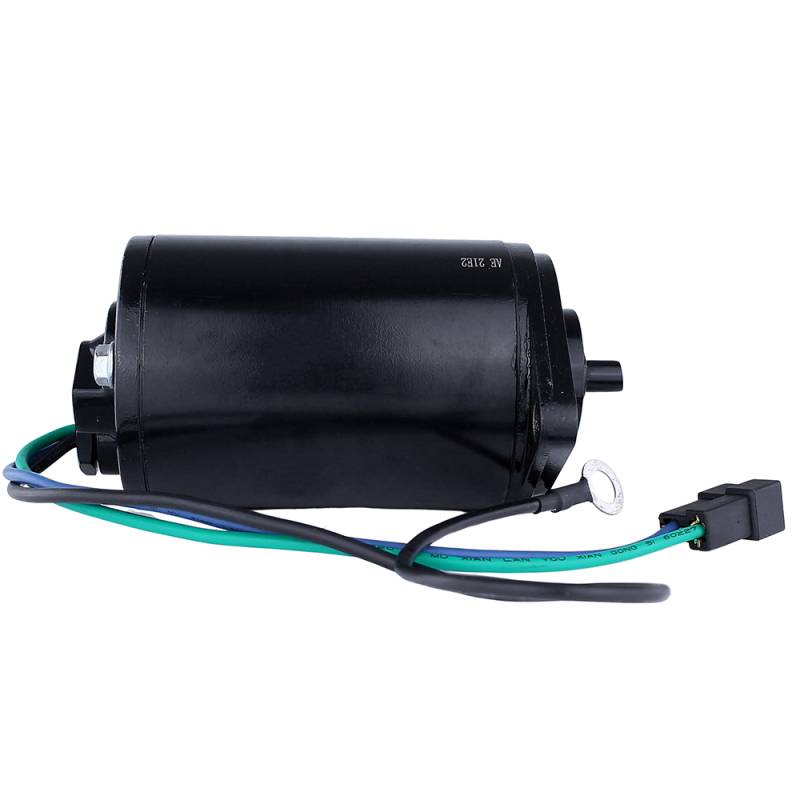

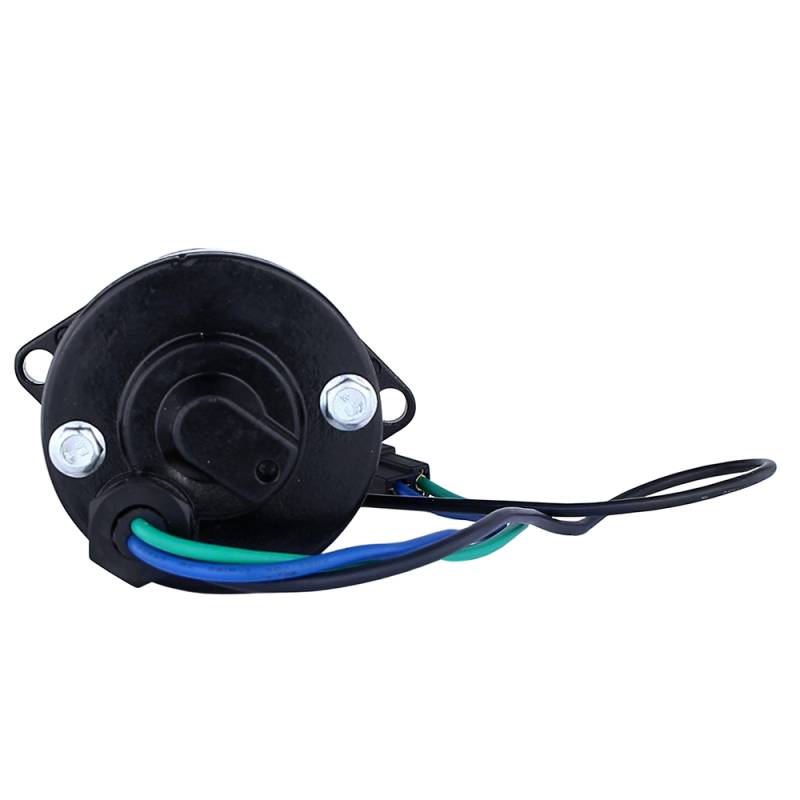

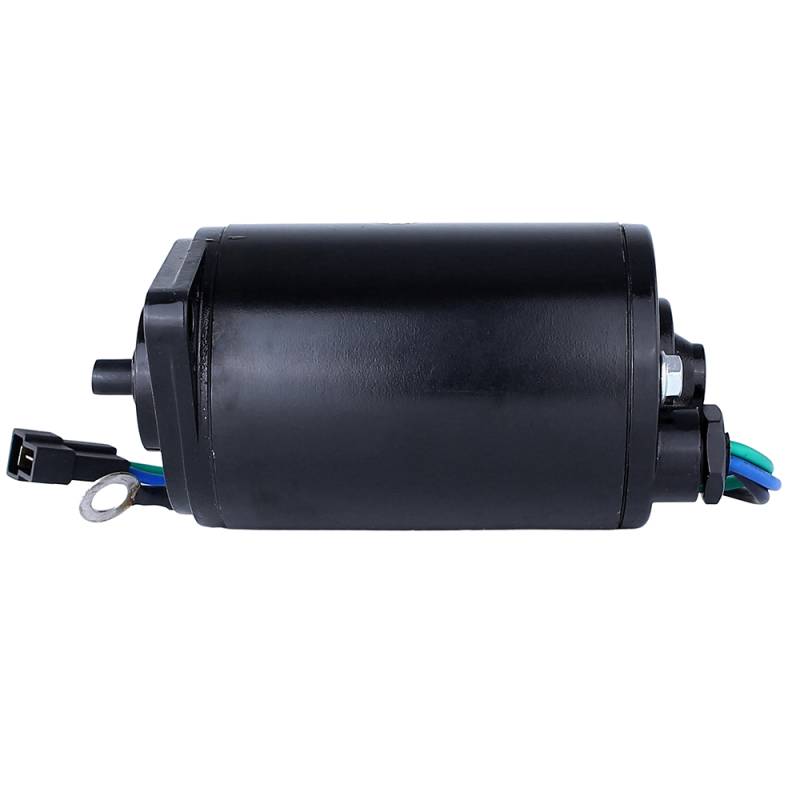

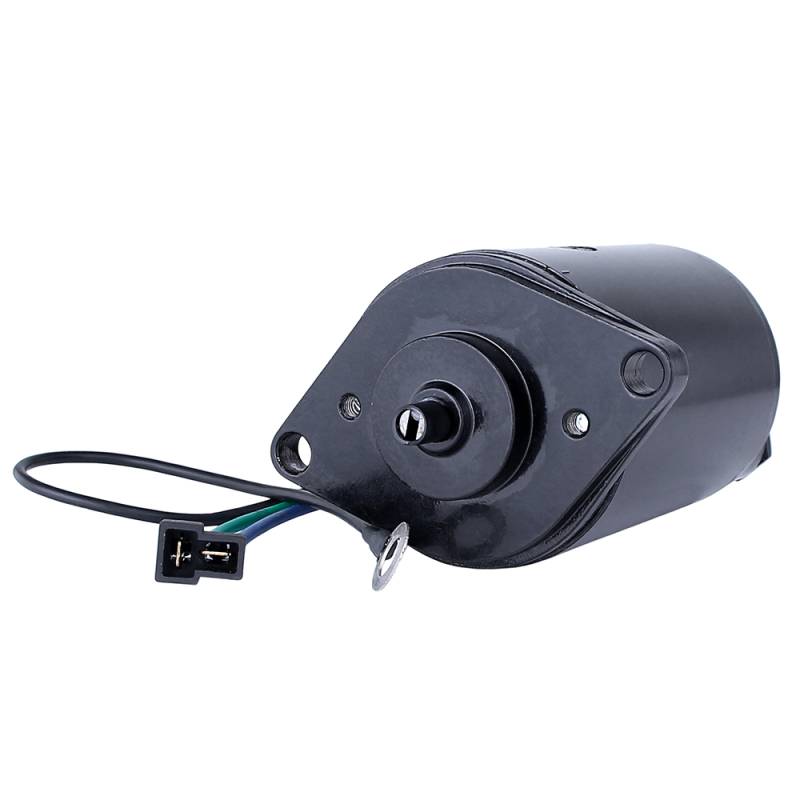

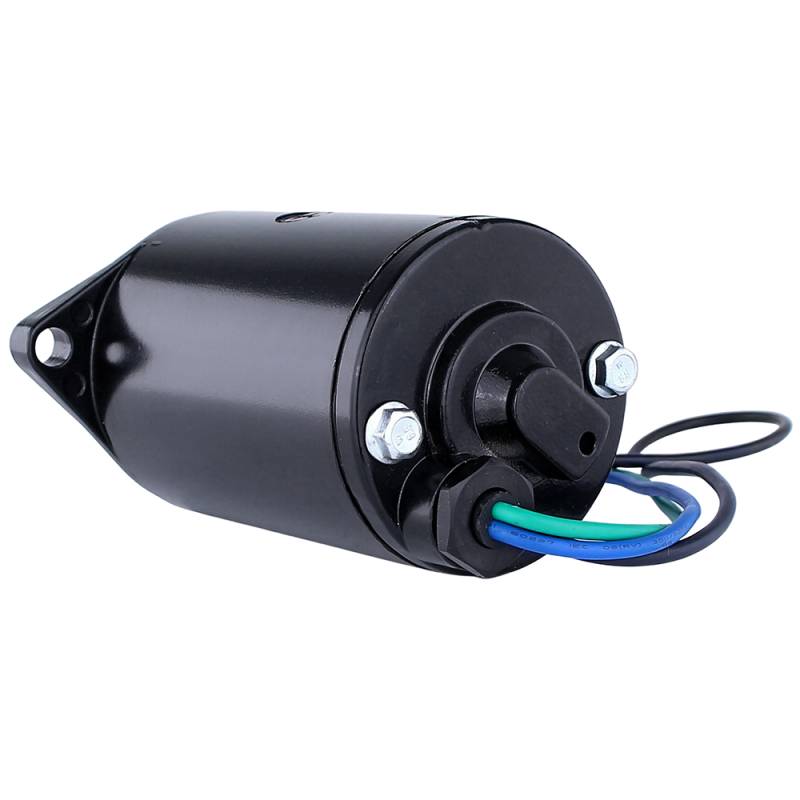

OMC Stern Drive Tilt Trim Motor - 12V Reversible Power Tilt (1978-1985)
New aftermarket 12 volt reversible tilt trim motor for 1978-1985 OMC stern drive marine applications. This Prestolite-type unit features an 8mm slotted output shaft and compact 73.9mm housing diameter with 154.9mm overall length for direct drop-in replacement. Equipped with a 3-wire harness connection using 2 spade terminal plug and 1 ring terminal for secure and reliable marine operation. Replaces original OMC numbers 982058 and 982706 as well as Prestolite 40-416, 40-393, EVD4001, and EVD4002.
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
