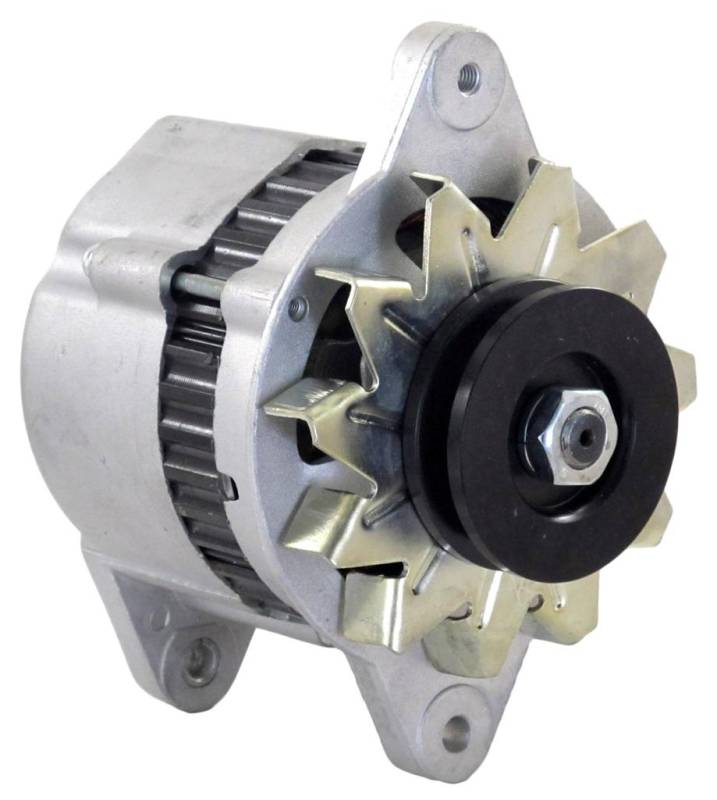

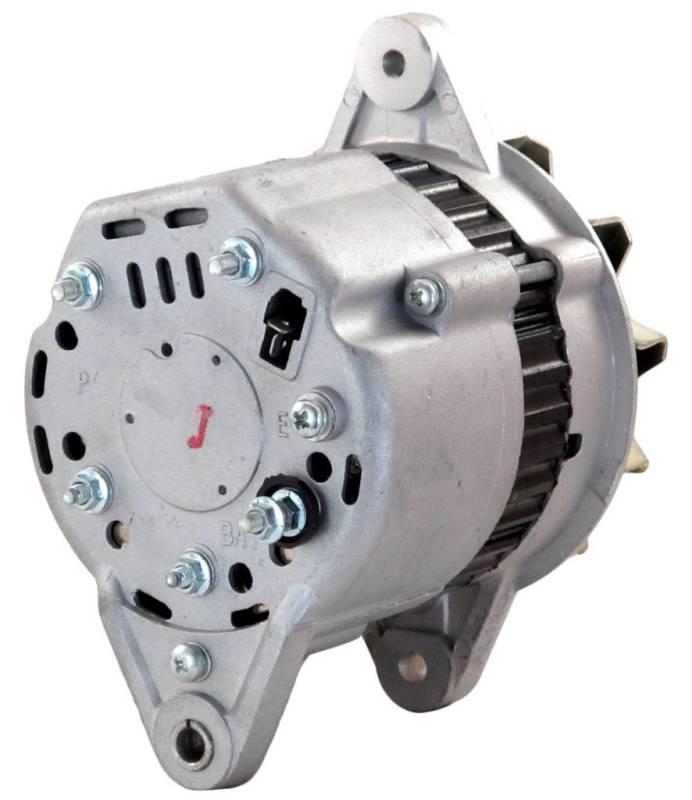

Alternator Compatible With Tcm Equipment Lift Truck Fhg30n Sg10n Sg12n Lr135-107

14231C5
NISSAN PART NUMBERS:
• B310M-01B15EX, B310M01B15EX
• 23100-01B15, 2310001B15
• 23100-03B05, 2310003B05
• 23100-10110, 2310010110
HITACHI PART NUMBERS:
• LR135-107, LR135107
• LR135-108, LR135108
TOWMOTOR PART NUMBERS:
• 973485
LUCAS PART NUMBERS:
• LRA01218
BOSCH PART NUMBERS:
• 0-986-035-411, 0986035411
MITSUBISHI PART NUMBERS:
• A1T22971
• A001T22971

SPECIFICATIONS:
• Type: Mitsubishi type alternator
• Voltage: 12V
• Output: 35 amp
• Regulator: Internal
• Fan: External
• Pulley: V belt, 1 groove, 67 mm (2.638 in) OD
• Plug clock position: 12:00
• Polarity: Negative ground
• Rotation: CW
• Mounting ear 1: M8-1.25 threaded
• Mounting ear 2: 8.5 mm unthreaded
• Mounting ear 3: 8.4 mm unthreaded
• Weight: 8.97 lbs / 4.08 kg
• Condition: New aftermarket

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $286.76
Sale: $163.86
Save: 43%
Save: $122.90
Qty:
Free Shipping!

Description

TCM LIFT TRUCKS AND EQUIPMENT:
• TCM EQUIPMENT LIFT TRUCK FG25N A15 ENGINE 1985-2006
• TCM EQUIPMENT LIFT TRUCK FG25N H20 ENGINE 1980-1999
• TCM EQUIPMENT LIFT TRUCK FG28N H20 ENGINE 1979-1999
• TCM EQUIPMENT LIFT TRUCK FG30N H20 ENGINE 1979-1999
• TCM EQUIPMENT LIFT TRUCK FG35N3 NISSAN GAS 1977-1997
• TCM EQUIPMENT LIFT TRUCK FG35N7 TB42 ENGINE 1988-2007
• TCM EQUIPMENT LIFT TRUCK FG40N7 TB42 ENGINE 1988-2007
• TCM EQUIPMENT LIFT TRUCK FG9 A15 ENGINE 1985-2006
• TCM EQUIPMENT LIFT TRUCK FG9N A15 ENGINE 1985-2006
• TCM EQUIPMENT LIFT TRUCK FHG15N H20 ENGINE 1980-2001
• TCM EQUIPMENT LIFT TRUCK FHG18N H20 ENGINE 1980-2001
• TCM EQUIPMENT LIFT TRUCK FHG20N Z24 ENGINE 1989-2007
• TCM EQUIPMENT LIFT TRUCK FHG25N Z24 ENGINE 1989-2007
• TCM EQUIPMENT LIFT TRUCK FHG30N Z24 ENGINE 1989-2007
• TCM EQUIPMENT MISC. EQUIPMENT SG10N H20 ENGINE 1980
• TCM EQUIPMENT MISC. EQUIPMENT SG12N H20 ENGINE 1980

ENGINES:
• Nissan A15, H20, Z24, TB42

SPECIFICATIONS:
• Type: Mitsubishi type alternator
• Voltage: 12V
• Output: 35 amp
• Regulator: Internal
• Fan: External
• Pulley: V belt, 1 groove, 67 mm (2.638 in) OD
• Plug clock position: 12:00
• Polarity: Negative ground
• Rotation: CW
• Mounting ear 1: M8-1.25 threaded
• Mounting ear 2: 8.5 mm unthreaded
• Mounting ear 3: 8.4 mm unthreaded
• Weight: 8.97 lbs / 4.08 kg
• Condition: New aftermarket

Details

Shipping Information

  • Item Requires Shipping
  • 11.6 lbs.
  • W10.0000” x H10.0000” x L14.0000”
  • Free Shipping!
