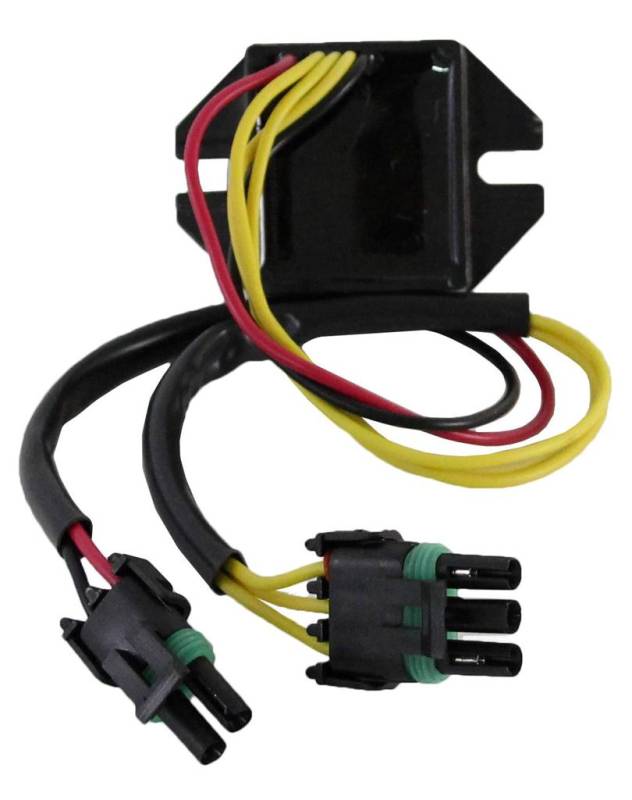

Voltage Regulator Rectifier Compatible With 1997-1999 Sea-Doo Gsx 800 Xp 800 Challenger 1800

004-226
Replaces Part Numbers

278001240
278001073
278-001-240
278-001-073


Specifications

Type: Voltage Regulator / Rectifier
Output: 12V, 25A Continuous / 45A Peak
Connector: 4-Pin


Applications

Sea-Doo GSX 800 (1997), XP 800 (1997), Challenger 1800 (1998-1999), Speedster (1998-1999)


Sea-Doo 800 Voltage Regulator
This voltage regulator rectifier replaces Sea-Doo OEM 278001240 and 278001073. Converts AC from the stator to regulated 12V DC at 25A continuous with 45A peak capacity. Designed for the Rotax 787 RAVE engine producing 110 HP from 782cc. The GSX was the sport model and the XP was the performance model, both powered by the same twin-cylinder 2-stroke engine. The Challenger 1800 and Speedster jet boats used twin Rotax 787 engines. When the regulator fails, the battery will not charge or may overcharge. Direct plug-in replacement with 4-pin connector.

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $107.54
Sale: $61.45
Save: 43%
Save: $46.09
Qty:
Free Shipping!

Description

Applications

Sea-Doo 800cc PWC (1997-1999):
GSX 800 (1997)
XP 800 (1997)
Challenger 1800 (1998-1999)
Speedster (1998-1999)

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 0.8 lbs.
  • W7.0000” x H3.0000” x L7.0000”
  • Free Shipping!
