OEM PART NUMBERS:
• Yamaha: 67C-43880-00-00 / 67C438800000
• Yamaha: 67C-43880-01-00 / 67C438800100
• Yamaha: 67C-43880-10-00 / 67C438801000
• Yamaha: 65W-43880-10-00 / 65W438801000
• Yamaha: 65W-43880-00-00 / 65W438800000
• Yamaha: 65W-43880-01-00 / 65W438800100
• API Marine: PT620NM
• Arco Marine: 6296
• Sierra: 18-6748
• Quicksilver: 8M6007562

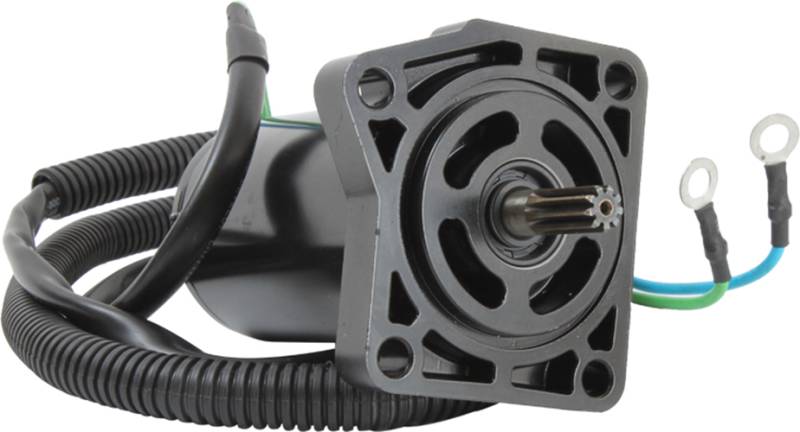

SPECIFICATIONS:
• Type: Power Tilt Trim Motor
• Voltage: 12V
• Rotation: Reversible
• Connection: 2-Wire with Ring Terminals
• Mount: 4-Bolt Flange (6mm Unthreaded Holes)
• Motor OD: 2.047" (52mm)
• Shaft OD: 8.8mm
• Overall Length: 5.236"
• Weight: 6 lbs
• Condition: New
YAMAHA OUTBOARD APPLICATIONS:
• F40 40HP 4-Stroke — TLR/EJR/ESR/MLH/MJH/MSH/LA/B-Series (2000-2016)
• F30 30HP 4-Stroke — TLR (2001-2006), LA (2014-2016)
• T25 25HP 4-Stroke — TLR (2001-2006), LA (2010-2016)
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
