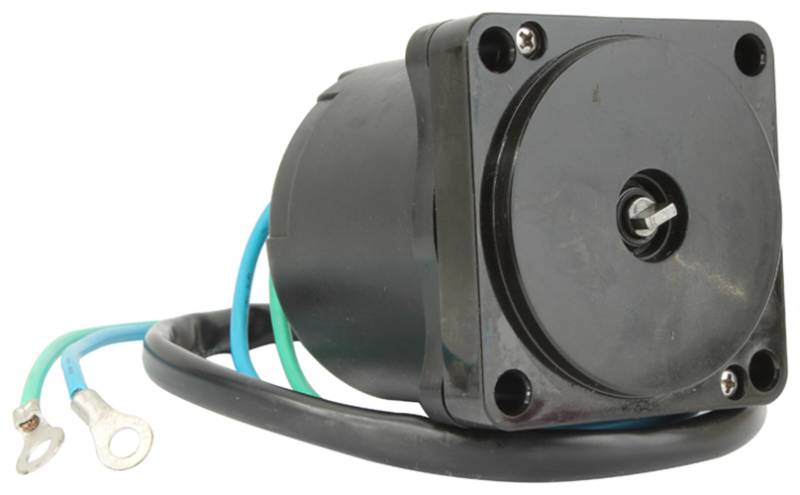

12V Tilt Trim Motor Compatible With 2001-2007 Suzuki Df60 Df70 Df90 Df115 Df140 60-140Hp 4-Stroke

OEM PART NUMBERS:
• Suzuki: 38100-92J02 / 3810092J02
• Suzuki: 38100-92J10 / 3810092J10
• Suzuki: 38100-93J01 / 3810093J01
• Suzuki: 38100-93J02 / 3810093J02
• Suzuki: 38100-96J00 / 3810096J00
• Suzuki: 38100-92J00 / 3810092J00
• Suzuki: 38100-92J01 / 3810092J01
• Suzuki: 38100-92J03 / 3810092J03
• Suzuki: 38100-99E01 / 3810099E01
• Suzuki: 38100-96J01 / 3810096J01
• OMC/Johnson/Evinrude: 5032636, 5033838, 5033925
• OMC/Johnson/Evinrude: 5034525, 5034526
• API Marine: PT653NM
• Arco Marine: 6236
• Sierra: 18-18303

SPECIFICATIONS:
• Type: Power Tilt Trim Motor
• Voltage: 12V
• Rotation: Reversible
• Connection: 2-Wire with Ring Terminals
• Mount: 4-Bolt
• Motor OD: 76mm (2.99")
• Shaft OD: 8mm (0.315")
• Overall Length: 103mm (4.06")
• Drive Tang: 2.6mm
• Weight: 6 lbs
• Condition: New

SUZUKI / JOHNSON / EVINRUDE APPLICATIONS:
• Suzuki DF60T / DF70T — 60-70HP 4-Stroke (2001-2007)
• Suzuki DF90TL — 90HP 4-Stroke (2001-2007)
• Suzuki DF115T / DF140T / DF140TX — 115-140HP 4-Stroke (2002-2007)
• Suzuki DF150TX/ZX / DF175TX/ZX — 150-175HP 4-Stroke (2006-2007)
• Suzuki DF200Z / DF225T/Z / DF250T/Z / DF300T — 200-300HP V6 (2004-2007)
• Johnson/Evinrude 60-140HP Suzuki-Powered 4-Stroke (2001-2003)

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
