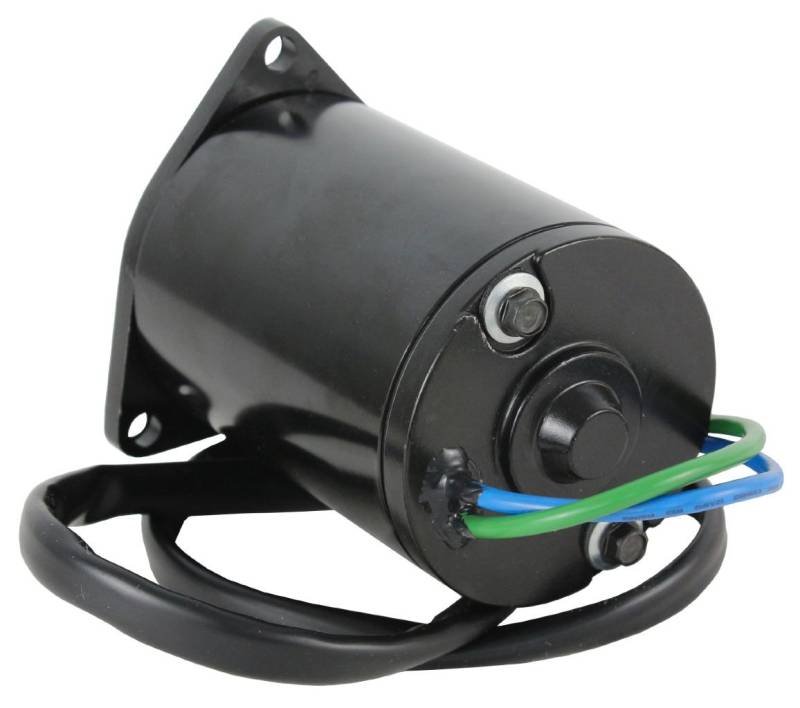

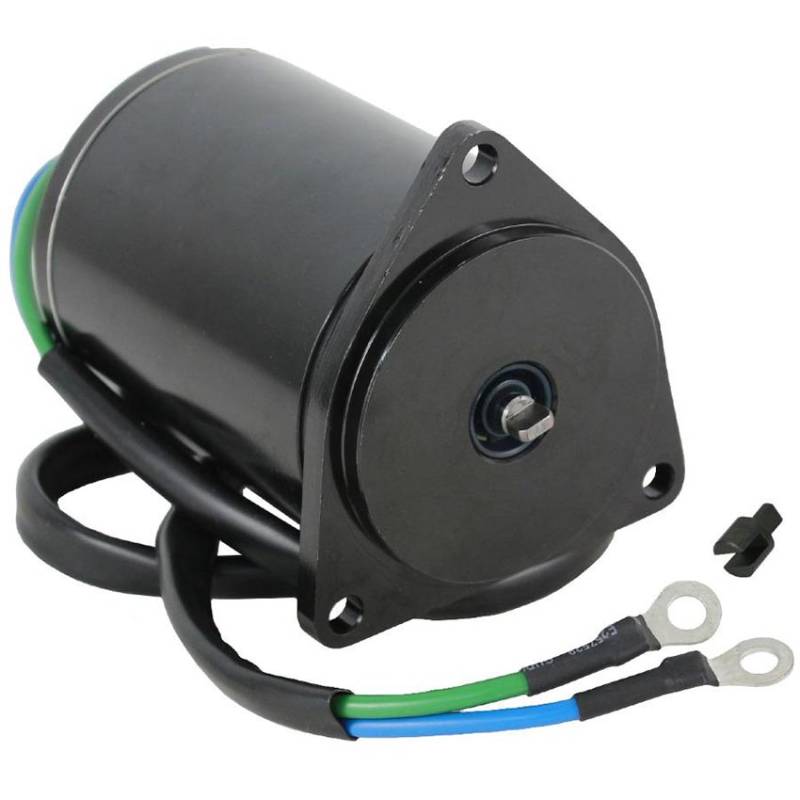

Tilt Trim Motor Compatible With Yamaha C115 C150 L130 L150 L200 P115 P150 P175 P200 S115 S130

OEM PART NUMBERS:
• Yamaha: 6G5-43880-02-00 / 6G54388002 / 6G5438800200
• Yamaha: 6G5-43880-02 / 6G54388002
• Yamaha: 6G5-43880-01 / 6G54388001
• Yamaha: 6G5-43880-00 / 6G54388000
• Quicksilver: 8M6007569



AFTERMARKET CROSS REFERENCE:
• Arco Marine: 6265
• 18-6760
SPECIFICATIONS:
• Type: Tilt Trim Motor (Motor Only)
• Voltage: 12V DC
• Rotation: Reversible
• Connection: 2-Wire Configuration
• Terminals: Ring Terminals (x3)
• Mounting: (3) 6mm Unthreaded Holes
• Shaft OD: 8mm / 0.315in
• Shaft Type: 2.5mm Drive Tang
• Field Housing OD: 64mm / 2.52in
• Overall Length: 130mm / 5.118in
• Includes: O-Rings and Shaft Adaptor
• Weight: 3.29 lbs / 1.5 kg
• Condition: New

YAMAHA APPLICATIONS:
• 115HP / 130HP / 140HP (1986-1996)
• 150HP / 175HP / 200HP (1986-1995)
• 225HP (1990-1995)
• Standard, C-Series, L-Series, P-Series, S-Series Models
