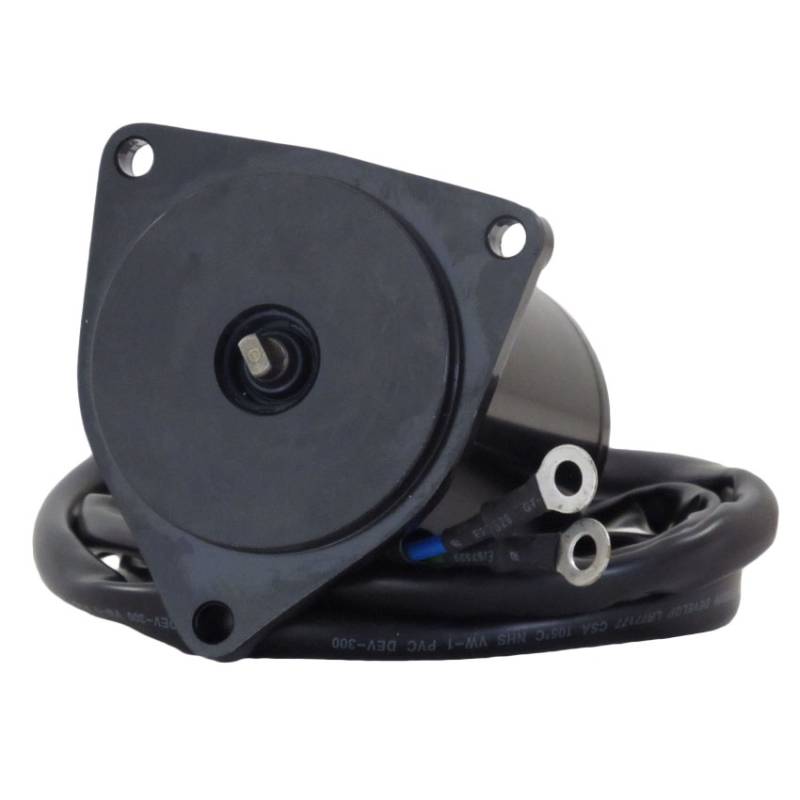

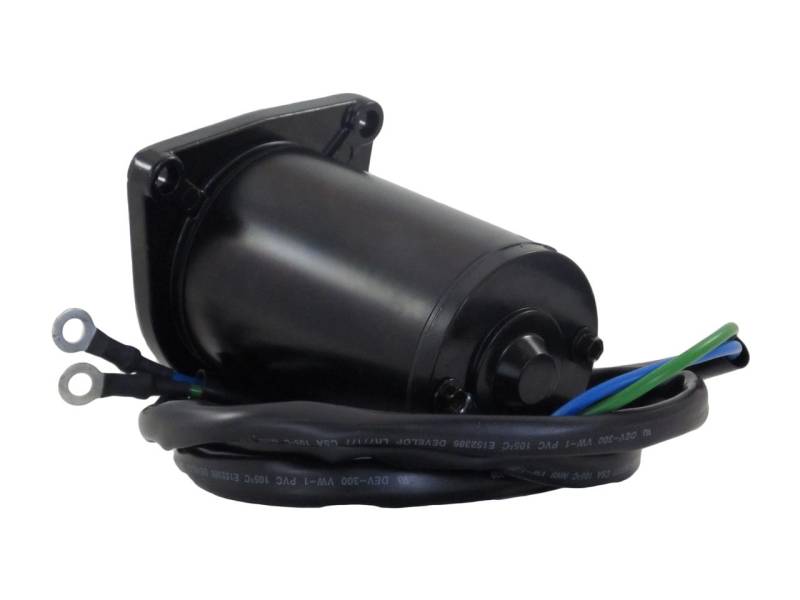

Tilt Trim Motor Compatible With Yamaha C40 C55 C60 C75 C80 C85 P50 P60 P75 2-Stroke Outboard

OEM PART NUMBERS:
• Yamaha: 6H1-43880-02 / 6H14388002
• Yamaha: 6H1-43880-02-00 / 6H1438800200
• Quicksilver: 8M6007572



AFTERMARKET CROSS REFERENCE:
• API Marine: PT602NM
• Arco Marine: 6260
• 18-6781
SPECIFICATIONS:
• Type: Tilt Trim Motor (Motor Only)
• Voltage: 12V DC
• Rotation: Reversible
• Connection: 2-Wire Configuration
• Terminals: Ring Terminals (x3)
• Mounting: 3-Bolt / (3) 6mm Unthreaded Holes
• Shaft OD: 8mm / 0.315in
• Shaft Type: 4mm Drive Tang
• Field Housing OD: 64mm / 2.52in
• Overall Length: 119mm / 4.685in
• Weight: 4 lbs / 1.82 kg
• Condition: New

YAMAHA APPLICATIONS (1992-2001):
• 40 (1994) / C40 (1997)
• P50 (1992-1994) / C55 (1994-1995)
• C60 / P60 (1992-2001) / 70 (1992-2001)
• 75 / C75 (1994-1999) / P75 (1996-1999)
• C80 (1997) / C85 (1992-2001) / 90 (1992-2001)
