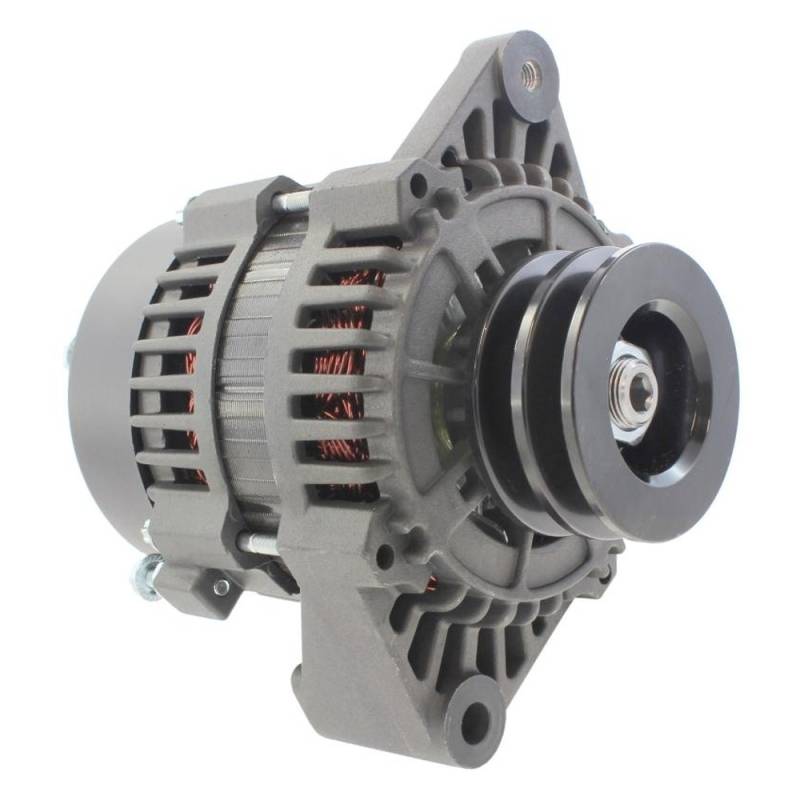

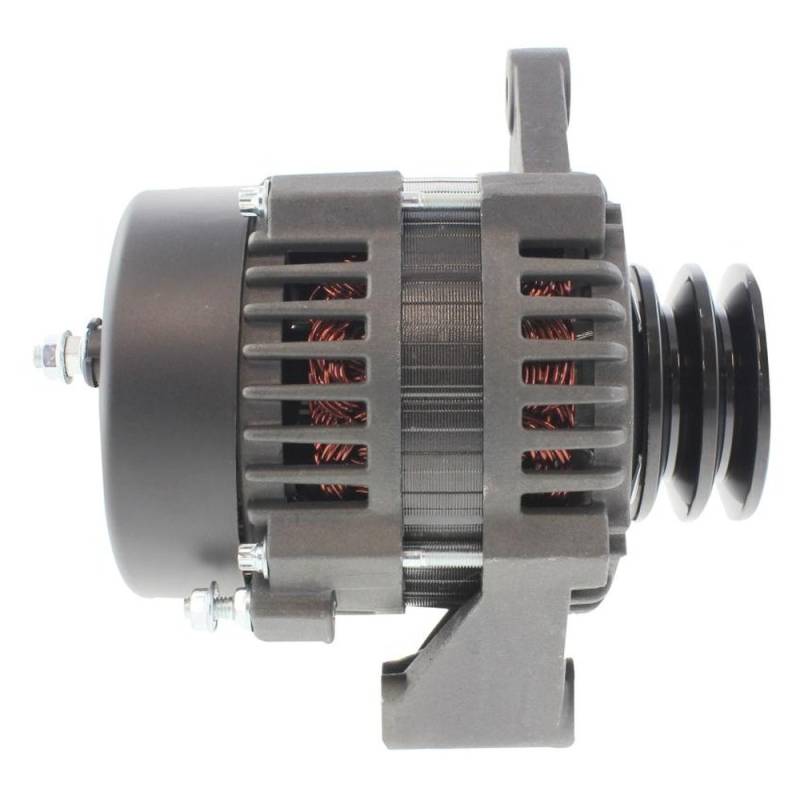

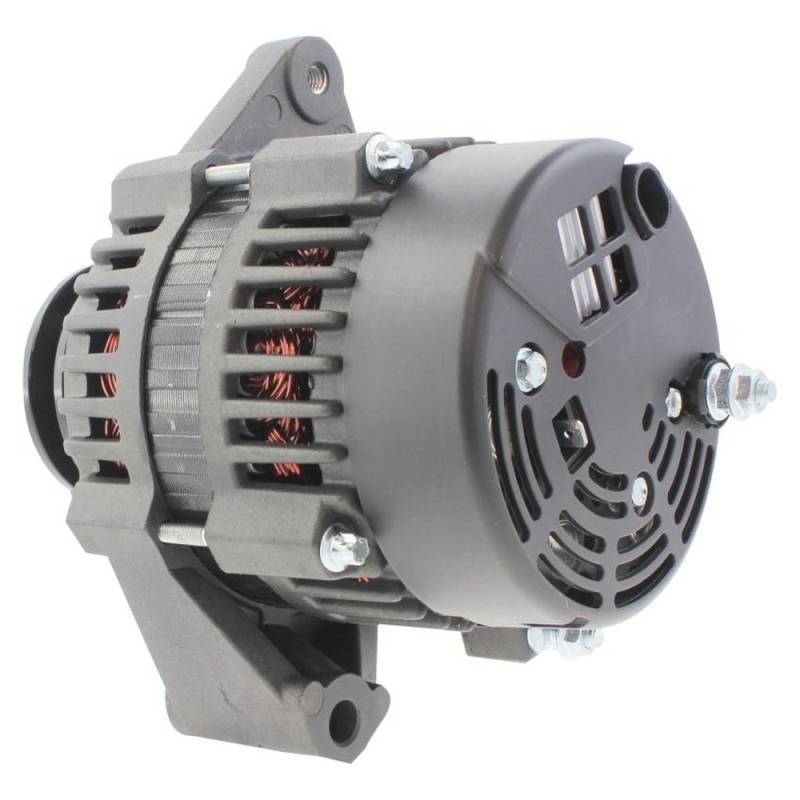

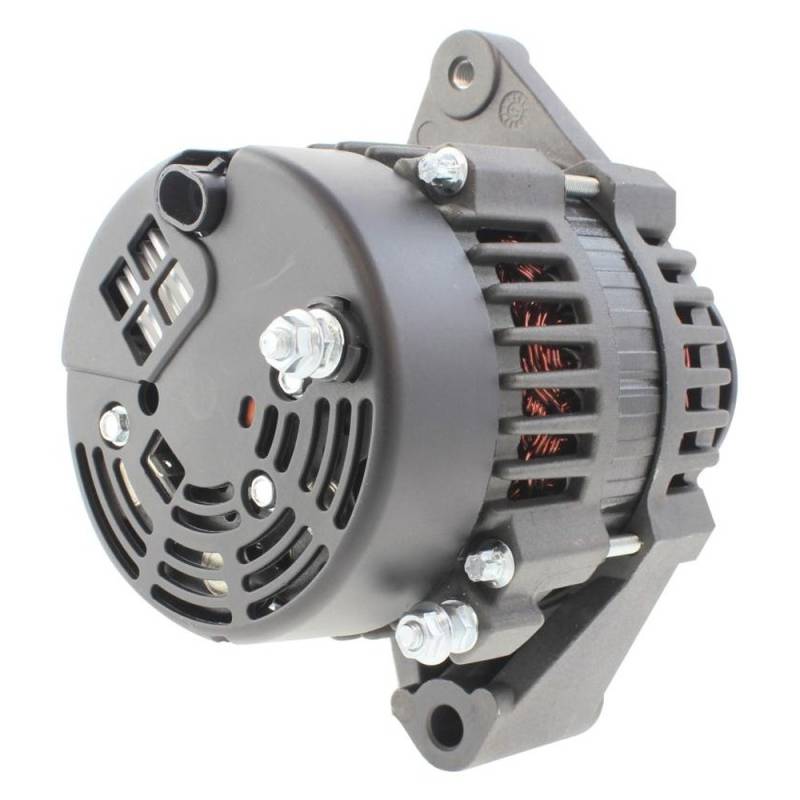

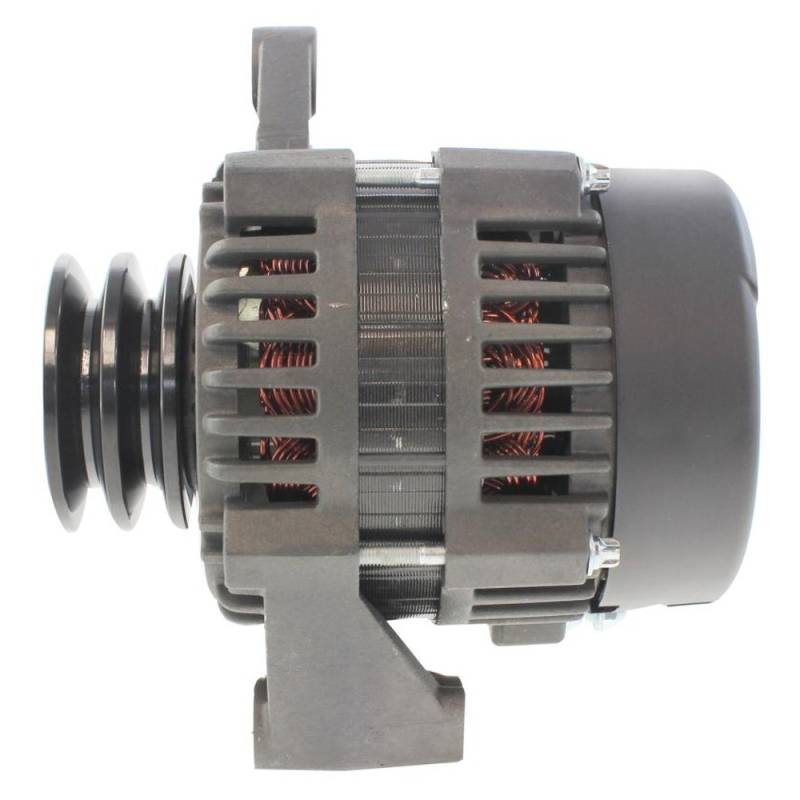

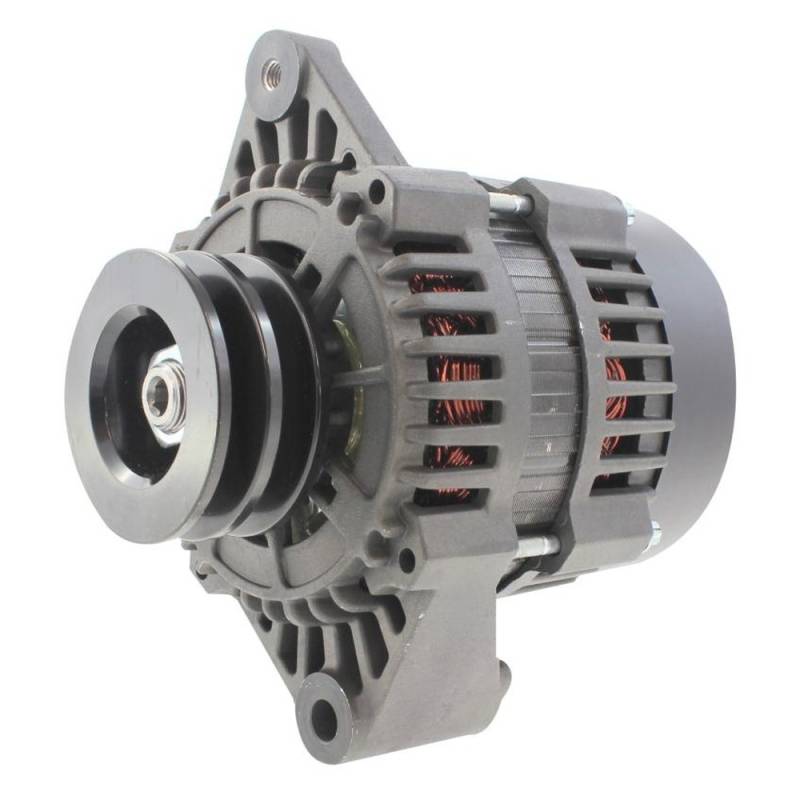

12V 105A Alternator Fits 2001-2006 Hyster S40xm S50xm Truck

⚠️ 105 AMP, AND THE PULLEY HAS TWO GROOVES:
• This is the 105 AMP build, the original unit on these was 70 AMP
• The pulley is a TWO groove V belt for 3/8 inch belts, 69 mm
• The forklift engines run V belts and take this pulley
• Many Crusader and Pleasurecraft engines run a SIX groove belt
• Count the grooves on the old pulley before you order

HYSTER LIFT TRUCK:
• Hyster S-120XMS lift truck, 2001 to 2006
• Hyster S-120XMSPRS lift truck, 2001 to 2006
• Hyster S40XM and S45XM, GM 4.3L Vortec
• Hyster S50XM and S55XM, GM 4.3L Vortec
• Hyster S60XM, GM 4.3L Vortec
• Yale lift truck on 580026829

MARINE POWER:
• Marine Power inboard and sterndrive, various models, 1997 to 2008
• Marine Power numbers this unit 000E-05157 and 471203

PLEASURECRAFT PCM INBOARD:
• Pleasurecraft 496CI 8.1L, 2001 to 2004
• Pleasurecraft 350CI 5.7L, 2002 to 2004
• Pleasurecraft 305CI 5.0L, 2002 to 2004
• Pleasurecraft numbers it RA097007, RA097007A, RA097007B, RA097007C

CRUSADER INBOARD:
• Crusader 496, 2001 to 2004
• Crusader 364, 1999 to 2004
• Crusader 350, 2002 to 2004
• Crusader 305, 2002 to 2004

THE 105 AMP UPGRADE:
• The original unit on these machines is a 70 AMP 7SI
• This is the same 7SI case and the same mounting ears
• It gives 105 AMP, 35 more than the unit coming off
• Check that the charge wire and the belt suit the higher output
• A worn or glazed belt will slip under the extra load

HOW TO VERIFY FIT:

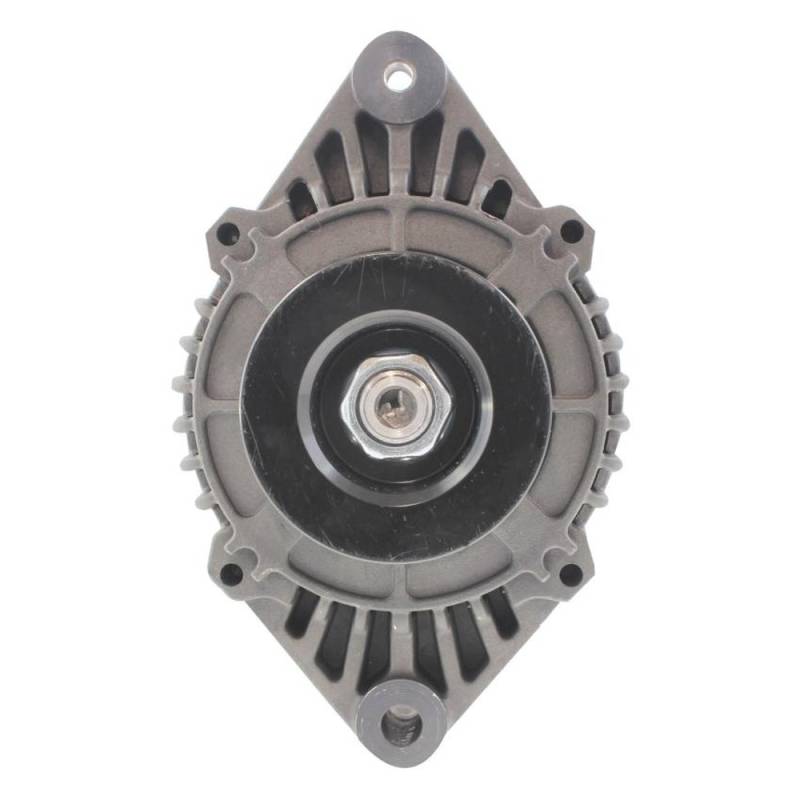

• Count the pulley grooves, this unit has TWO V grooves
• The belts are 3/8 inch and the pulley is 69 mm
• Ear 1 is M8-1.25 threaded, ear 2 is 10 mm plain and 50.6 mm thick

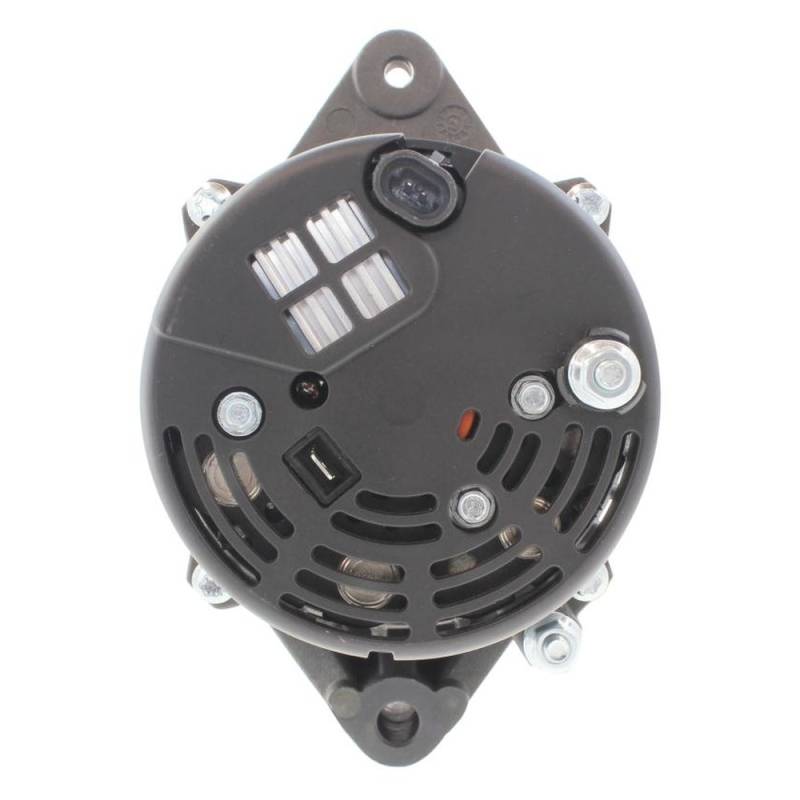

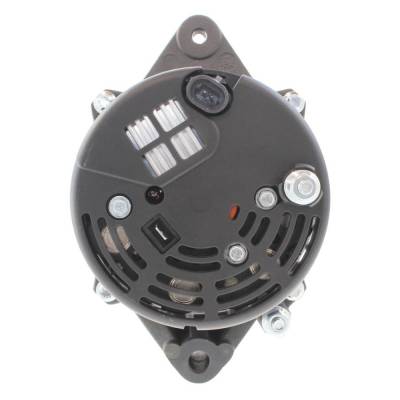

• The B+ stud is M6-1.0 and the regulator clock is 12:30
• The regulator and the fan are both inside the case

DO NOT ORDER IF:
• Your engine runs a SIX groove serpentine belt
• Your pulley is a single groove serpentine
• Your charge circuit is not rated for 105 amps
• Your machine is 24 volt, this unit is 12 volt
• Your old unit turns counterclockwise, this one turns clockwise

CROSS REFERENCE:
• Delco 19020614, 19020615, 19020616, 19020617
• Hyster 1469597, 1469598, 1469599, 1469697
• Yale 580026829, 5800268-29
• SMH Forklift SYAN0134, SYAR0134
• ARCO Marine 20820, 20821, 20822
• Sierra Marine 18-5984, 18-6453
• API Marine 20112, Mallory 9-19107
• Pleasurecraft RA097007, RA097007A, RA097007B, RA097007C
• Marine Power 000E-05157, 471203
• Prestolite 20115014TBA, Indmar 575011, S575011
• Wilson 90-01-4406, 90014406, EMP 4-1051XMP
