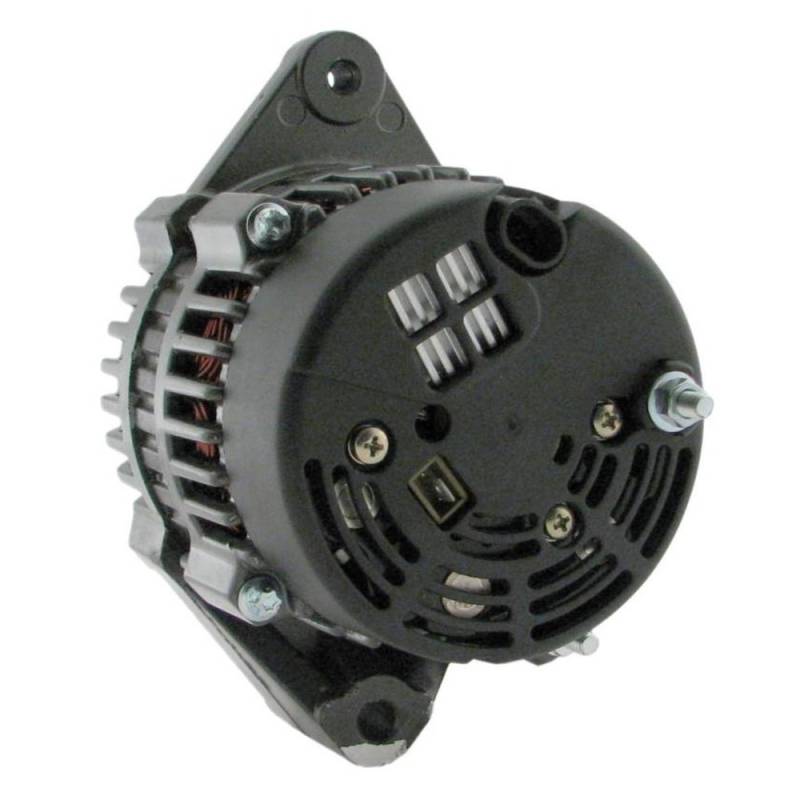

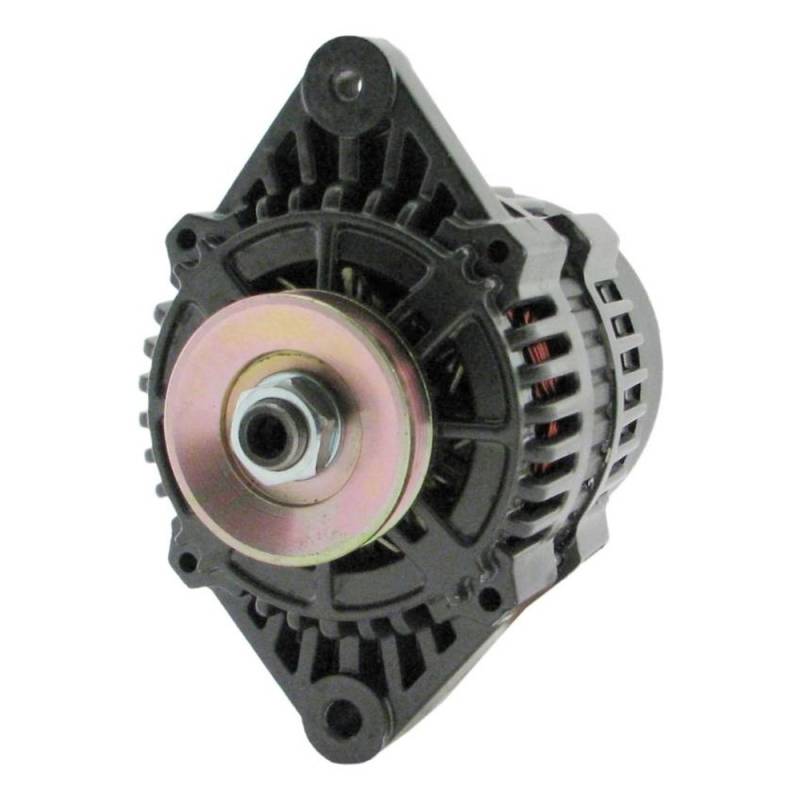

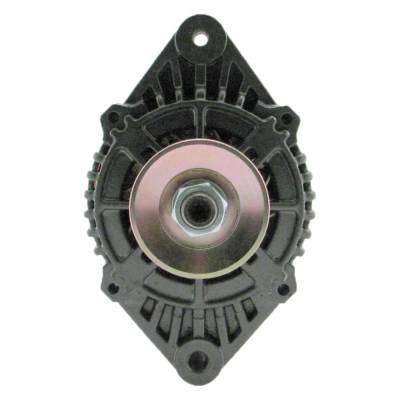

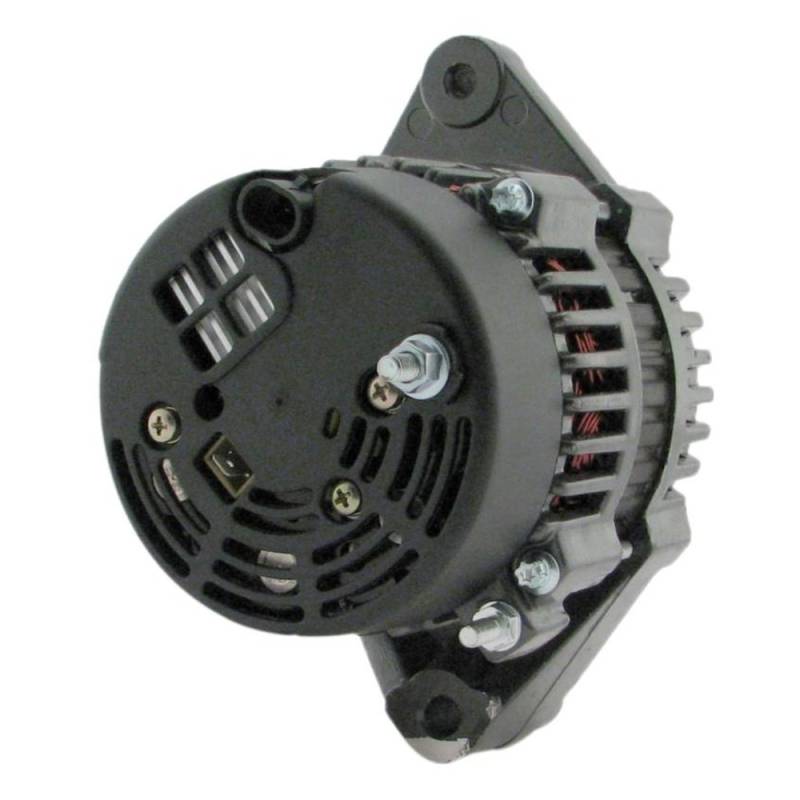

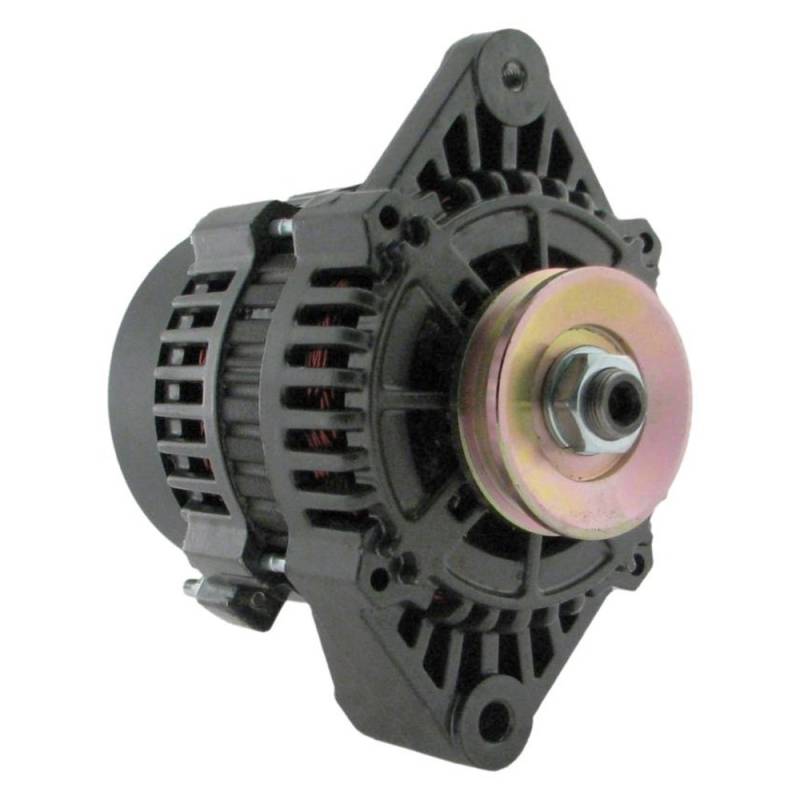

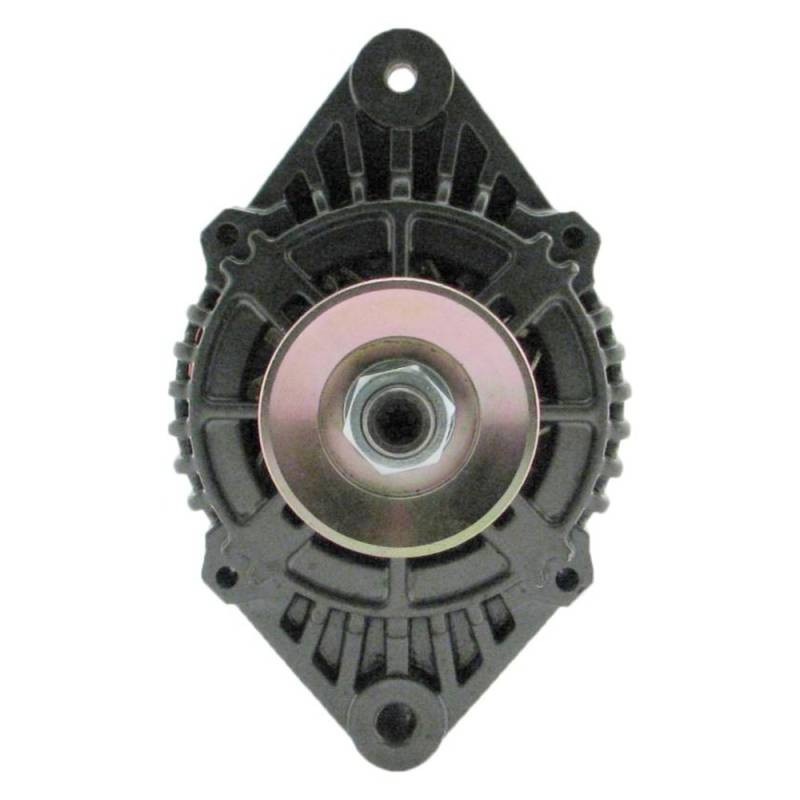

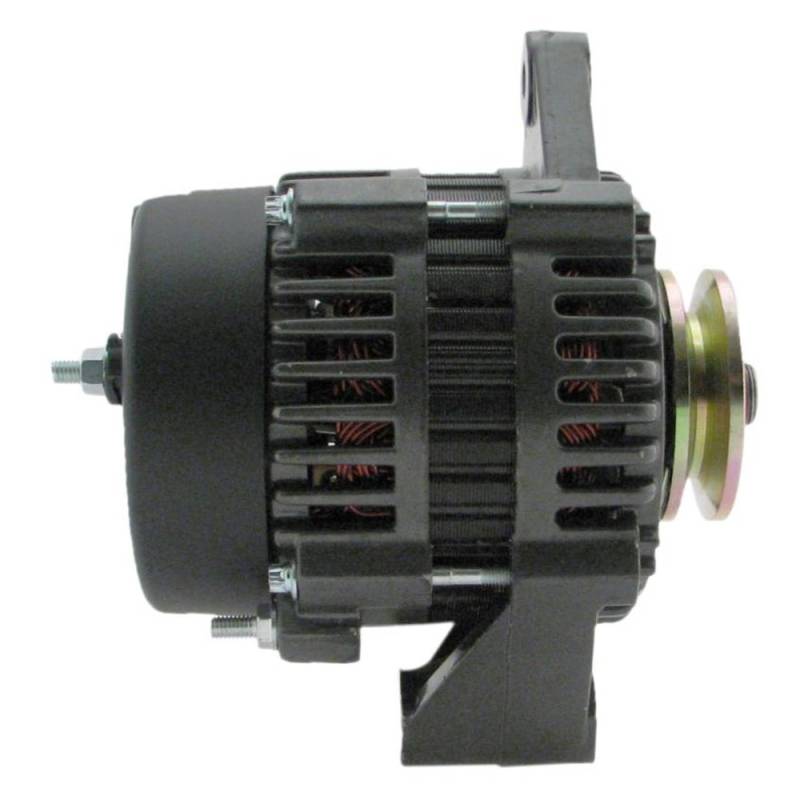

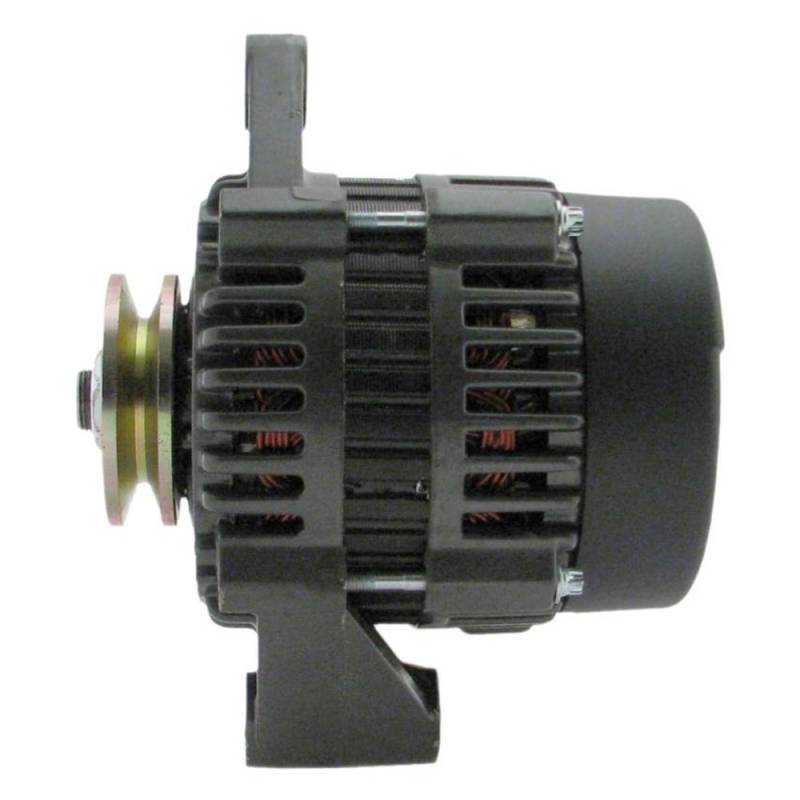

12V 105A Alternator Fits 2002-2004 Crusader 305 350 5.7L

⚠️ 105 AMP, AND THE PULLEY HAS ONE V GROOVE:
• This is the 105 AMP build, the original on these was 70 AMP
• The pulley is ONE groove V belt on a spool mount
• The regulator clock is 12 o'clock, not 12:30
• Ear 1 is M8-1.25 threaded, ear 2 is 9 mm plain
• Count the grooves on the old pulley before you order

CRUSADER INBOARD, GM SMALL BLOCK:
• Crusader 305, GM 305CI 5.0L V8, 2002 to 2004
• Crusader 5.0, GM 305CI 5.0L V8, 2002 to 2004
• Crusader 350, GM 350CI 5.7L V8, 2002 to 2004
• Crusader 5.7, GM 350CI 5.7L V8, 2002 to 2004

CRUSADER INBOARD, GM BIG BLOCK:
• Crusader 496, GM 496CI 8.1L V8, 2001 to 2004

PLEASURECRAFT PCM INBOARD AND STERNDRIVE:
• Pleasurecraft 305CI, GM 305CI 5.0L V8, 2002 to 2005
• Pleasurecraft 350CI, GM 350CI 5.7L V8, 2002 to 2005
• Pleasurecraft 496CI, GM 496CI 8.1L V8, 2001 to 2004
• Pleasurecraft numbers it RA097007B and RA097007L

INDMAR INBOARD:
• Indmar Monsoon, 5.0L and 5.7L V belt engines, 2002 and up
• Indmar LCR, 5.0L and 5.7L V belt engines, 2002 and up
• Indmar 8.1L V belt engines
• Indmar numbers it 575010

BOATS THAT CARRY THESE ENGINES:
• Malibu, Supra and Moomba run Indmar engines
• Nautique, Centurion and Supreme run Pleasurecraft engines
• MasterCraft runs Pleasurecraft and Crusader engines
• Cruisers and sportfishing boats run Crusader inboards

THE 105 AMP UPGRADE:
• The original unit on these engines is a 70 AMP 7SI
• This is the same 7SI case, the same mount and the same pulley
• It gives 105 AMP, 35 more than the unit coming off
• API Marine numbers the 105 amp build 20113
• Check the charge wire and belt suit the higher output

HOW TO VERIFY FIT:
• Count the pulley grooves, this unit has ONE V groove
• The regulator clock is 12 o'clock
• Ear 1 is M8-1.25 threaded and ear 2 is 9 mm plain, 50 mm thick
• The B+ stud is M6-1.0 and the mount is a spool
• The regulator and the fan are both inside the case

DO NOT ORDER IF:
• Your pulley has TWO V grooves, that is a 12:30 clock unit
• Your pulley has SIX serpentine grooves
• Your charge circuit is not rated for 105 amps
• Your old unit turns counterclockwise, this one turns clockwise
• Your engine is 24 volt, this unit is 12 volt

CROSS REFERENCE:
• Delco 19020608, RA00104
• Pleasurecraft RA097007B, RA097007L
• Indmar 575010
• Prestolite 20115016TBA
• Quicksilver Mercury 8M6007460
• ARCO Marine 20825
• Sierra Marine 18-6288, 186288
• API Marine 20113
