⚠️ PRO-F IS THE PRO SERIES PUMP:
• This is the PRO-F assembly for the Power-Pole Pro Series
• The Sportsman takes the SPN-F assembly, a different pump
• The Blade takes its own pump, also different
• Power-Pole states plainly that its pumps do NOT interchange
• Read the number on the old pump before you order
POWER-POLE SHALLOW WATER ANCHOR:
• Power-Pole Pro Series shallow water anchor, various models
• Power-Pole Pro Series II shallow water anchor
• The Pro Series is the light anchor between Blade and Sportsman
• Pro Series II comes in 4 foot, 6 foot and 8 foot lengths
• Rated to boats up to about 28 feet or 4500 lb
SOLD UNDER THESE BRANDS:
• Mercury Marine sells this assembly as 8M6007544
• Power-Pole calls it PUMP-PRO-F and Pump PRO-F
• EMP numbers it 4-6819
• It also carries the numbers 4-6788 and P881N
WHY THE PUMPS DO NOT SWAP:
• Power-Pole's own manual says the HPUs are not interchangeable
• They are identical in appearance from the outside
• Each is set to a different hydraulic pressure by anchor model
• A bigger anchor needs more pressure to drive the spike
• C-Monster units also carry model specific firmware on a board
PRO-F AGAINST SPN-F, ONE DIGIT APART:
• Pro Series: PUMP-PRO-F, EMP 4-6819, other OEM 4-6788 and P881N
• Sportsman: PUMP-SPN-F, EMP 4-6818, other OEM 4-6789 and P882N
• 4-6819 against 4-6818, one digit
• 4-6788 against 4-6789, one digit
• P881N against P882N, one digit
• Sellers mix the two lists up, so trust the pump not the listing
HOW TO VERIFY FIT:
• Read the label on the old pump, this one is PRO-F
• Check the terminals, this unit has TWO female spades
• It runs on 12 Volt DC and the motor is REVERSIBLE
• The reservoir is part of the assembly, not a separate tank
• Note the anchor serial number and revision letter first

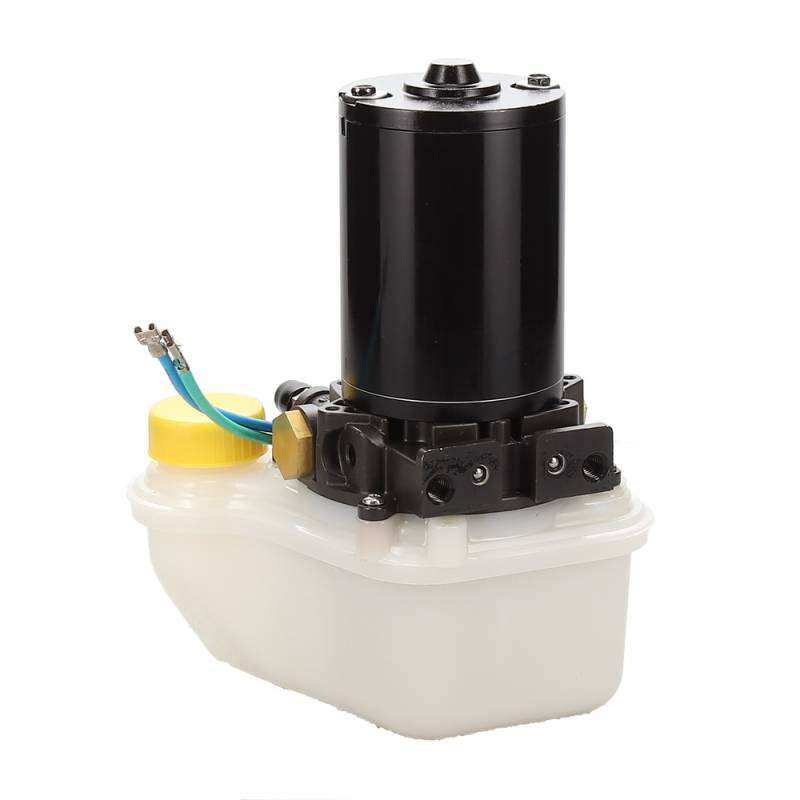

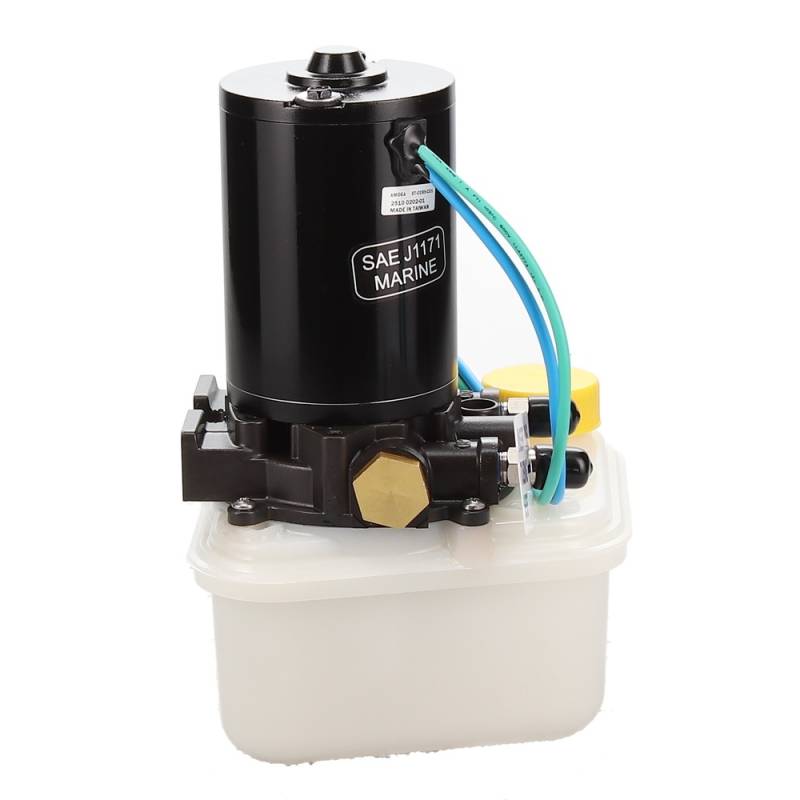

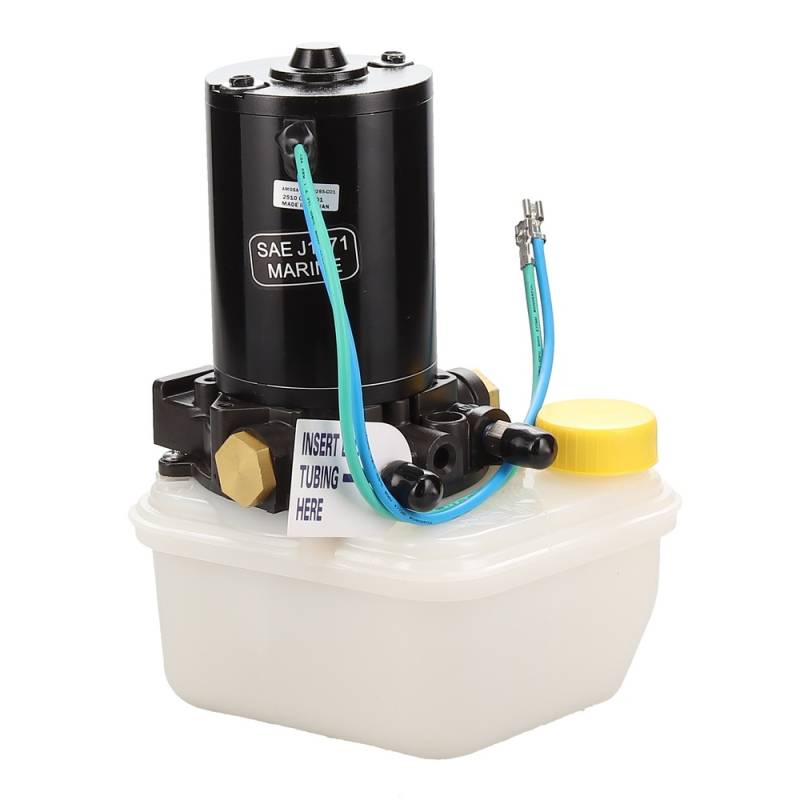

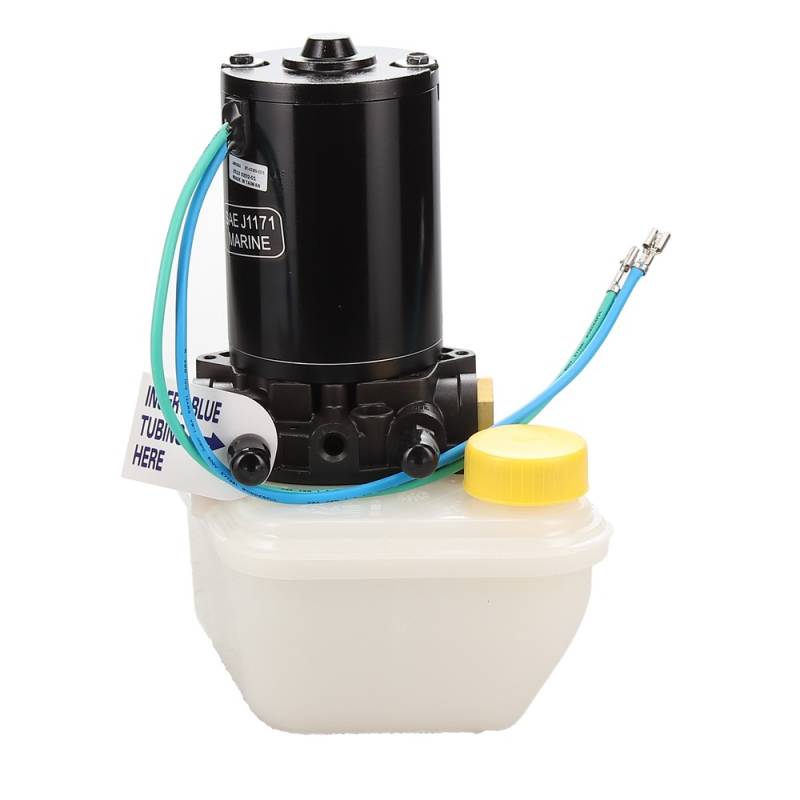

WHAT IS IN THE BOX:
• Motor, hydraulic pump and reservoir as one assembly
• No hydraulic hose, that is ordered separately
• No hydraulic fluid, use Green Marine or an ISO 32 fluid
• No C-Monster circuit board, keep and refit your own
DO NOT ORDER IF:
• Your anchor is a Sportsman, that takes the SPN-F pump
• Your anchor is a Blade, that takes its own pump
• Your old pump reads 4-6818, 4-6789 or P882N
• Your system is 24 volt, this unit is 12 volt
• You need the C-Monster circuit board supplied with it
CROSS REFERENCE:
• Mercury Marine 8M6007544
• Power-Pole PUMP-PRO-F, Pump PRO-F
• EMP 4-6819
• Other OEM 4-6788, P881N
