12V 100A Alternator Fits 1996-1997 Mercruiser 454 Mag Bravo

(0) Reviews: Write first review
12176HAA4
MERCURY MARINE PART NUMBERS:
• 807652
• 807652T

MANDO PART NUMBERS:
• AC155616

VOLVO PENTA PART NUMBERS:
• 3857813

LUCAS PART NUMBERS:
• LRA02062
• LRA2062

PRESTOLITE PART NUMBERS:
• 20130179

MARINE REPLACEMENT NUMBERS:
• ARCO Marine 60055
• Sierra Marine 18-5967

SPECIFICATIONS:

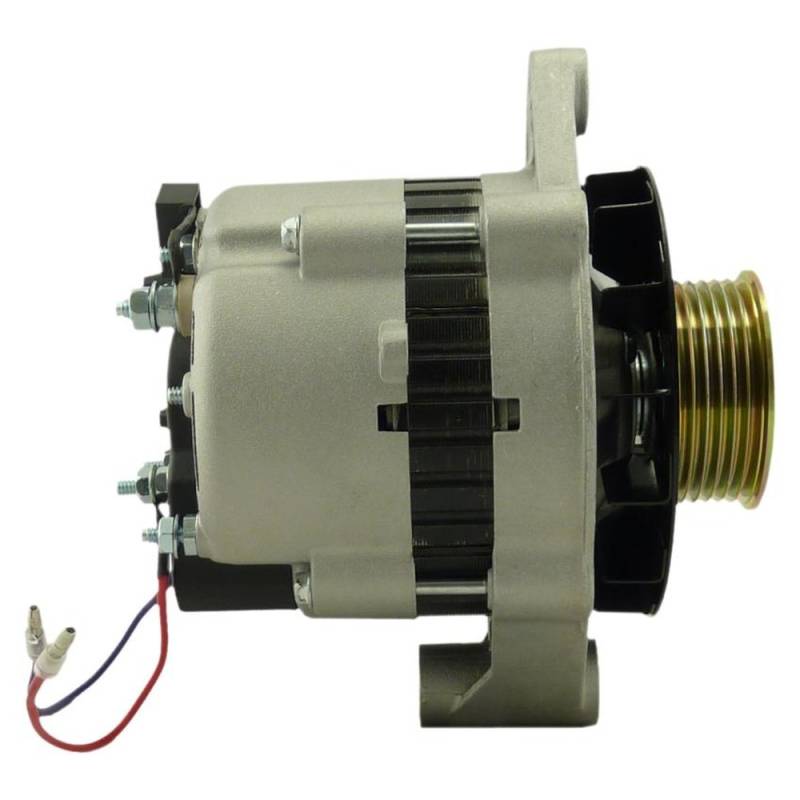

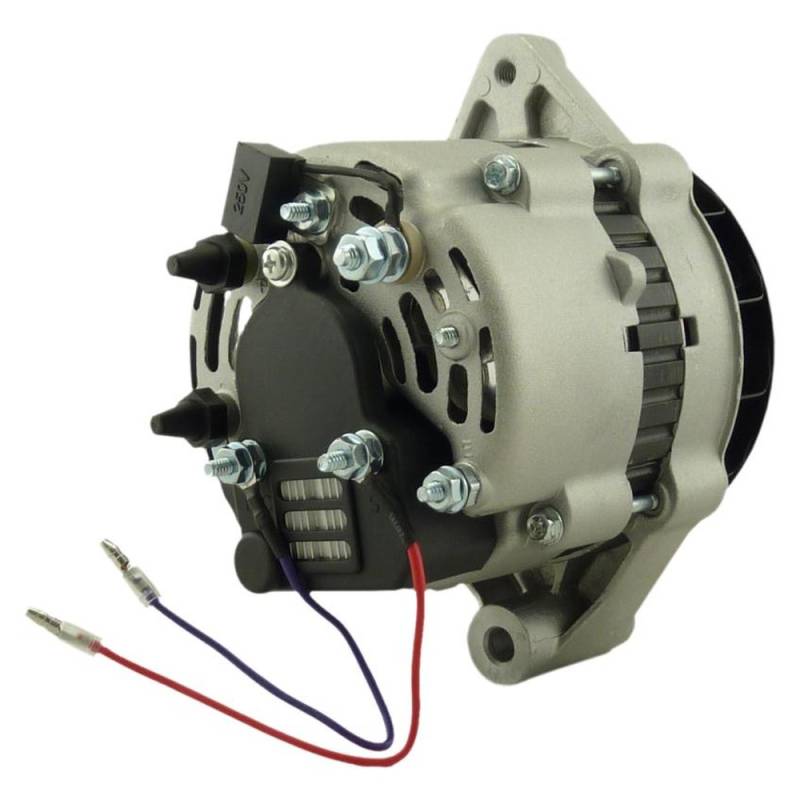

• Type: Mando marine alternator, 6 groove serpentine
• Voltage: 12 Volt
• Amperage Rating: 100 Amp high output
• Original Rating Replaced: 55 Amp and 66 Amp
• Rotation: Bi-directional

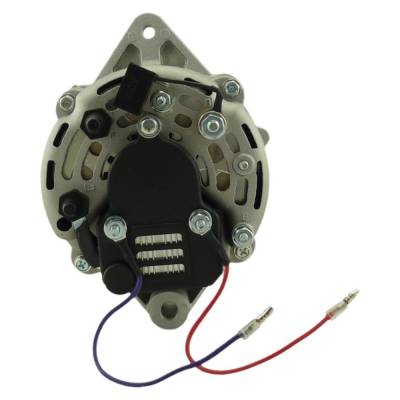

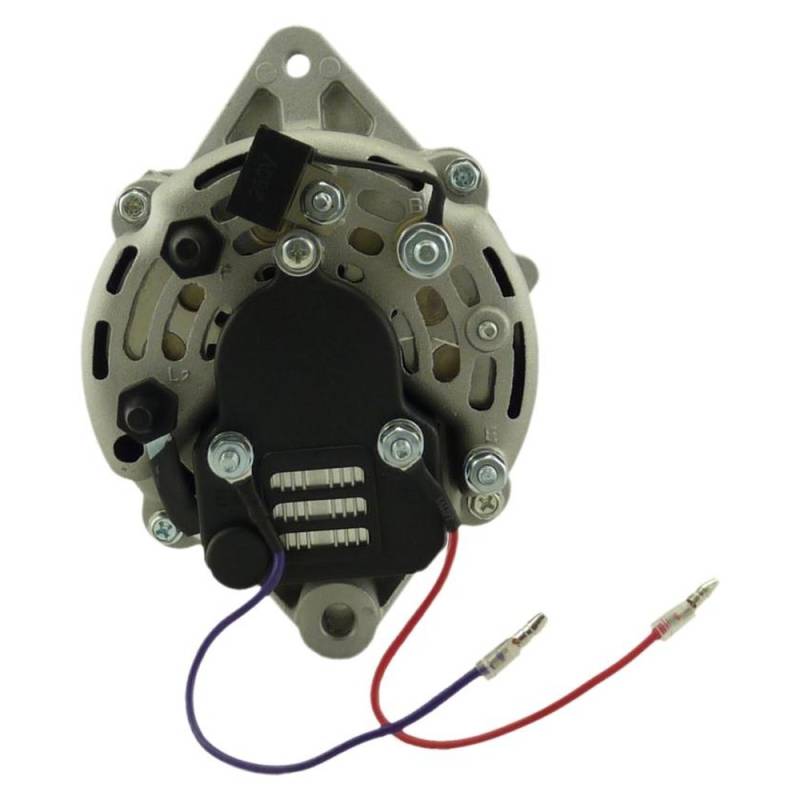

• Regulator: Internal
• Fan: External

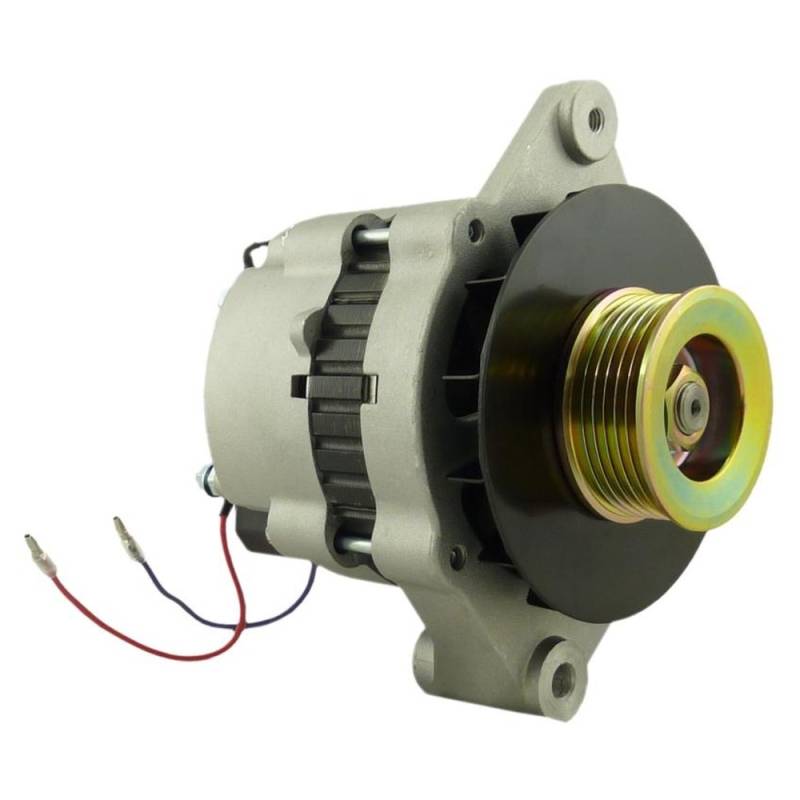

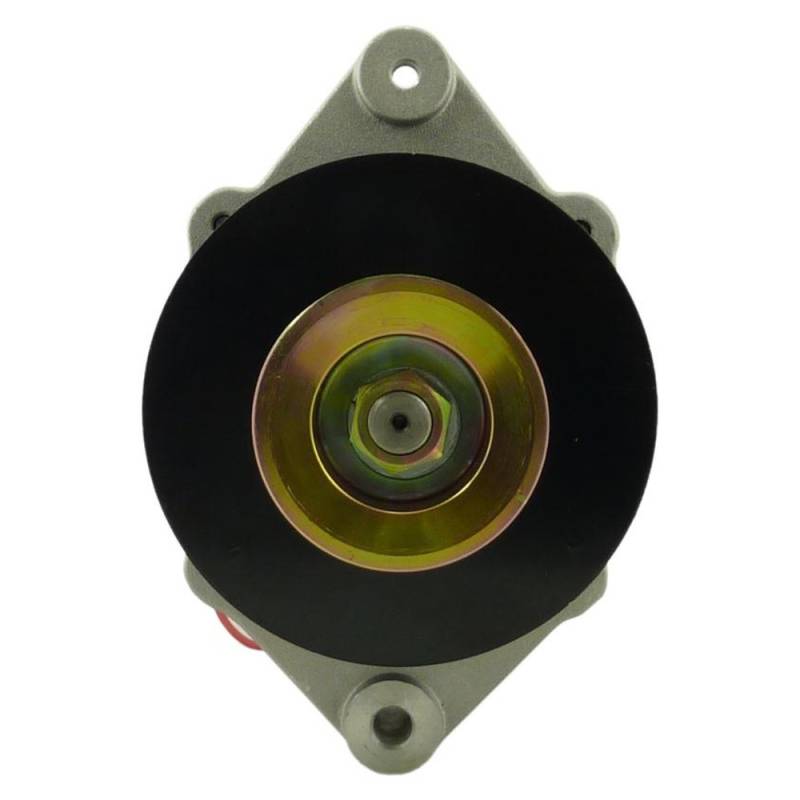

• Pulley: 6 groove serpentine, solid, 63 mm OD
• B+ Terminal: 1/4-20
• Mounting: one 5/16-18 threaded, one 3/8 in unthreaded
• Polarity: Negative ground
• Certification: SAE J1171 marine ignition protected
• Weight: about 11.26 lb / 5.12 kg
• Condition: New

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $334.02
Sale: $190.87
Save: 43%
Save: $143.15
Qty:
Free Shipping!

Description

⚠️ SERPENTINE BELT ENGINES ONLY:
• This alternator carries a 6 groove serpentine pulley, 63 mm OD
• MerCruiser moved to serpentine drive on the late GM engines
• The earlier V belt engines take a single groove alternator
• Count the ribs on your belt before ordering, this one needs six
• A single V groove on your old pulley means the V belt build

MERCRUISER STERN DRIVE, GM V6 AND 4 CYLINDER:
• 1996-1997 MerCruiser 4.3L Gen+, GM 4.3L 262 cid V6
• 1996-1997 MerCruiser 4.3LH Gen+ 4-BBL, GM 4.3L 262 cid V6
• 1996-1997 MerCruiser 4.3LHX Gen+ 4-BBL, GM 4.3L 262 cid V6
• 1995-1998 MerCruiser 4.3LX Gen+ 2-BBL, GM 4.3L 262 cid V6
• 1996-1998 MerCruiser 3.0 and 3.0LX, GM 3.0L 181 cid 4 cylinder

MERCRUISER STERN DRIVE, GM V8 5.0L AND 5.7L:
• 1997-2002 MerCruiser 5.0L 2-BBL Gen+, GM 5.0L 305 cid V8
• 1996-1998 MerCruiser 5.0LX, GM 5.0L 305 cid V8
• 1996-1998 MerCruiser 5.7L 2-BBL, GM 5.7L 350 cid V8
• 1996 MerCruiser 5.7LX 4-BBL, GM 5.7L 350 cid V8
• 1996-1998 MerCruiser 5.7L Bravo, GM 5.7L 350 cid V8
• 1998 MerCruiser 5.7L EFI Gen+, GM 5.7L 350 cid V8
• 1996-1997 MerCruiser 350 Mag Alpha, GM 5.7L 350 cid V8

MERCRUISER STERN DRIVE, GM V8 7.4L AND 8.2L:
• 1996-1997 MerCruiser 454 Mag Bravo Gen VI, GM 7.4L 454 cid V8
• 1996-1997 MerCruiser 7.4L Bravo Gen VI, GM 7.4L 454 cid V8

MERCRUISER INBOARD, MIE AND SKI:
• 1996-1998 MerCruiser 5.7L MIE, GM 5.7L 350 cid V8
• 1998 MerCruiser 5.7L EFI Gen+ MIE, GM 5.7L 350 cid V8
• 1996-1997 MerCruiser 7.4L MIE LH Gen VI, GM 7.4L 454 cid V8
• 1996 MerCruiser 8.2L MIE Gen V, GM 8.2L 502 cid V8
• 1996-1997 MerCruiser 5.7L Competition Ski, GM 5.7L 350 cid V8
• 1996-1997 MerCruiser 350 Mag Ski, GM 5.7L 350 cid V8
• MerCruiser 5.7L Ski Gen+, GM 5.7L 350 cid V8

VOLVO PENTA MARINE ENGINES:
• 1995-1996 Volvo Penta 3.0L GL, GM 181 cid 4 cylinder
• 1995-1996 Volvo Penta 4.3L GL and 4.3L GS, GM 262 cid V6
• 1995-1996 Volvo Penta 5.0L FL, Ford 302 cid V8
• 1995-1996 Volvo Penta 5.8L FL, Ford 351 cid V8
• 1996 Volvo Penta 5.7L GL, GM 350 cid V8
• 1996 Volvo Penta 7.4L GL, GM 454 cid V8
• 1996 Volvo Penta 8.2L GL, GM 502 cid V8
• Volvo Penta numbers this alternator 3857813

CRUSADER, PLEASURECRAFT AND MARINE POWER:
• Crusader GM V8 inboard engines on serpentine belt drive
• Pleasurecraft GM inboard engines on serpentine belt drive
• Marine Power GM inboard engines on serpentine belt drive
• These builders used the same Mando alternator and pulley

HOW TO VERIFY FIT:
• Count the ribs on the pulley, this unit has 6 grooves
• Measure the pulley OD, this unit is 63 mm and solid
• Confirm a 2 inch mounting foot with one 5/16-18 threaded hole
• Confirm the second hole is 3/8 in and unthreaded
• Confirm the regulator is internal and the fan is external
• Output is 100 amps, the original was 55 or 66 amps
