Alternator Compatible With 1997-12 Caterpillar 545 10R9789

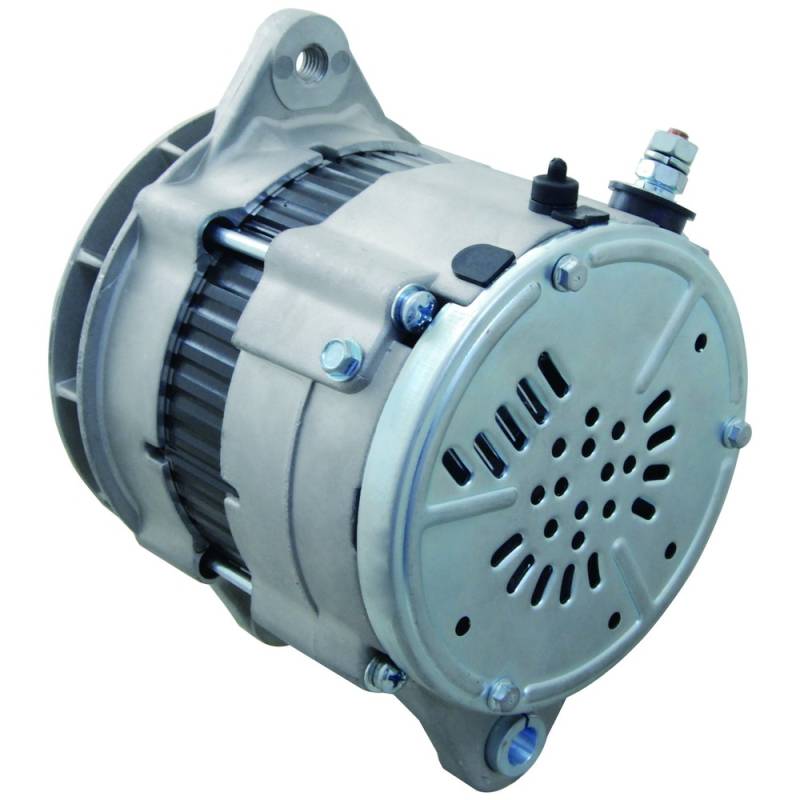

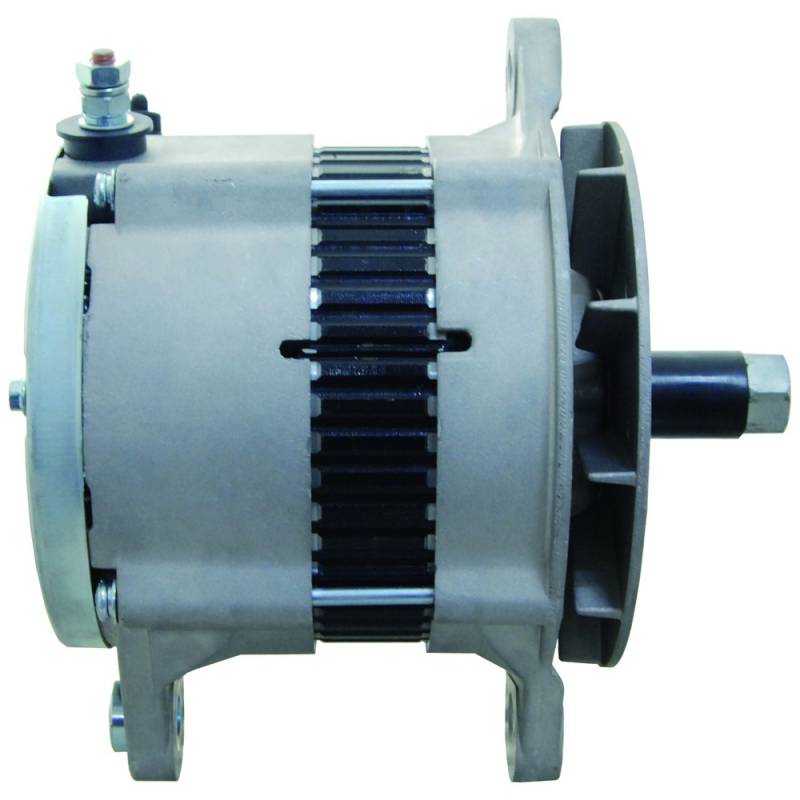

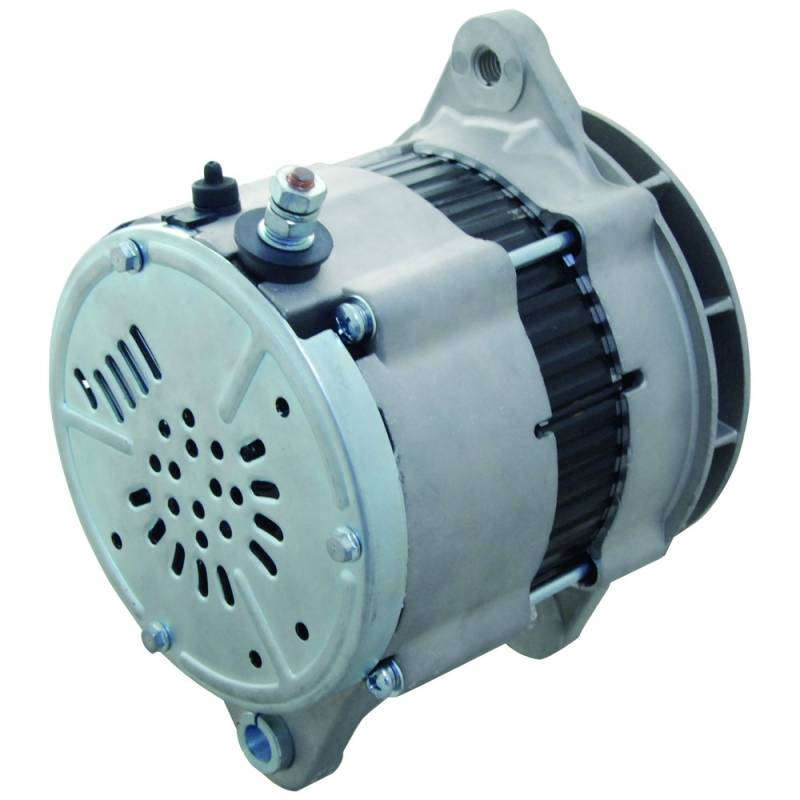

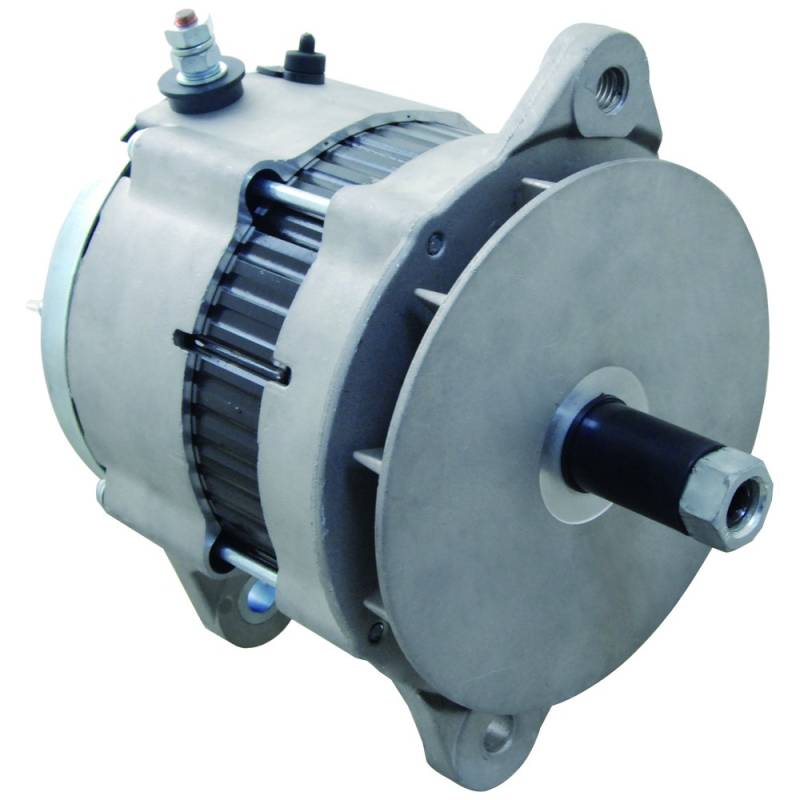

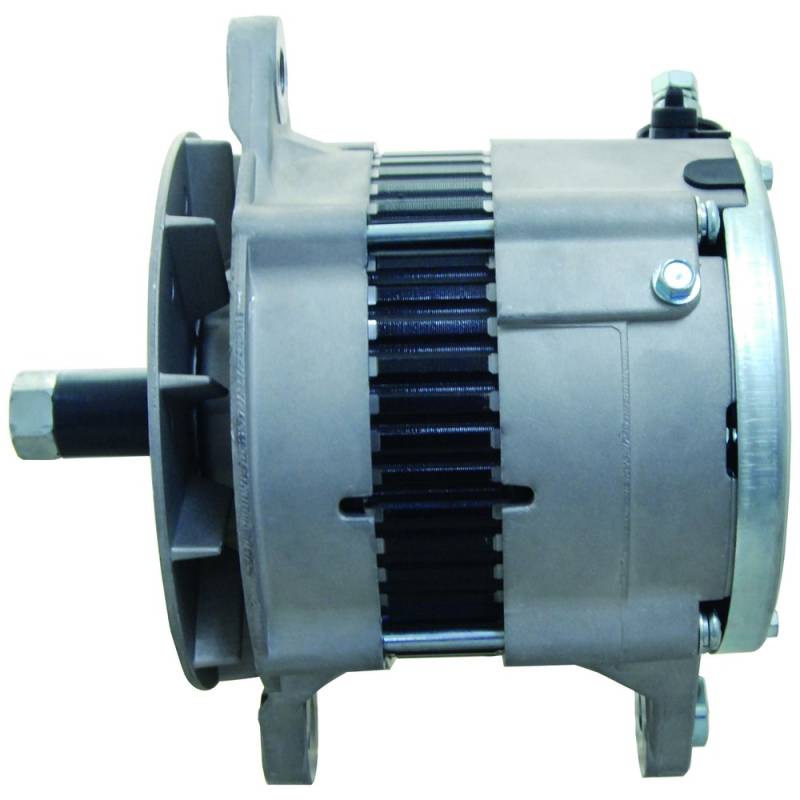

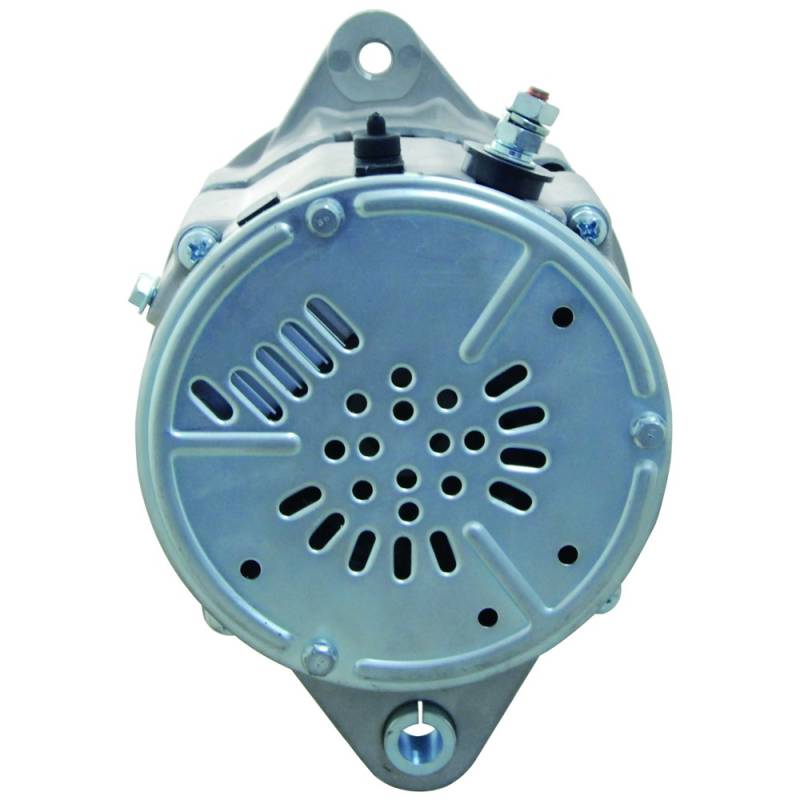

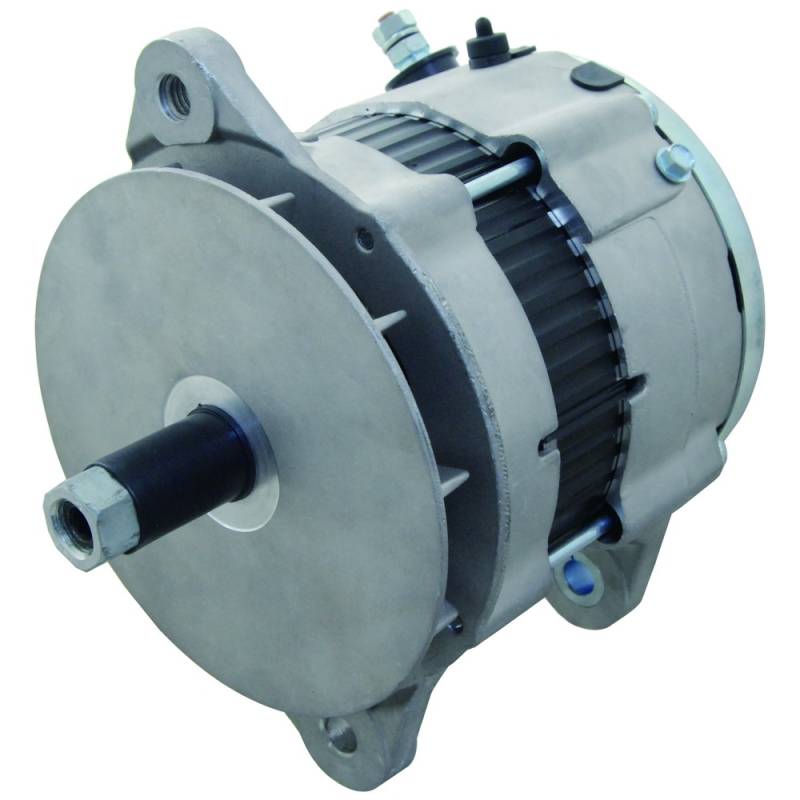

DENSO D150 BRUSHLESS 24 VOLT 95 AMP ALTERNATOR — CATERPILLAR HEAVY EQUIPMENT APPLICATIONS:

HYDRAULIC EXCAVATORS — 3066 3126B C6.4 AND C7 DIESEL:
• Caterpillar 320C / 320C L / 320C FM / 320C LRR 6.4L 3066 Excavator (2001-2008)
• Caterpillar 320D / 320D L / 320D FM / 320D RR / 320D Log Loader 6.4L C6.4 Excavator (1996-2013)
• Caterpillar 322C / 322C L / 322C FM / 322C LGP 7.2L 3126B Excavator (2001-2007)
• Caterpillar 324D / 324D L / 324D LN / 324D FM / 324D FM LGP 7.2L C7 Excavator (2005-2014)
• Caterpillar 325C / 325C L / 325C FM 7.2L 3126 and 3126B Excavator (2000-2008)
• Caterpillar 325D / 325D L / 325D MH / 325D FM LL 7.2L C7 Excavator (2002-2012)
• Caterpillar 326D / 326D L / 328D / 328D LCR 7.2L C7 Excavator (2006-2015)
• Caterpillar 329D / 329D L / 329D LN / 330 GC 7.2L C7 Excavator (2006-2023)

LARGE EXCAVATORS SHOVELS AND MATERIAL HANDLERS — C9 C15 C18 3176C 3196 3456:
• Caterpillar 330C / 330C L / 330C LN / 330C MH 8.8L C9 Excavator (2001-2006)
• Caterpillar 330D / 330D L / 330D LN / 330D MH 8.8L C9 Excavator (2006-2018)
• Caterpillar 336D / 336D L / 336D LN / 336D2 / 336D2 L 8.8L C9 Excavator (2008-2014)
• Caterpillar 340D L / 340D2 L 8.8L C9 Excavator (2011-2023)
• Caterpillar 345B / 345B L / 345B II / 345B LC / 345B MH 10.3L 3176C Excavator (1998-2007)
• Caterpillar 365B / 365B L / 365B II / 365B MH 12.0L 3196 Excavator (1999-2007)
• Caterpillar 365C / 365C L / 365C MH / 365C FS 15.2L C15 Excavator (2004-2010)
• Caterpillar 374D / 374D L 15.2L C15 Excavator (2009-2014)
• Caterpillar 385B / 385B L 15.8L 3456 Excavator (2000-2007)
• Caterpillar 385C / 385C L / 385C FS / 385C LMH 18.1L C18 Excavator (2003-2013)
• Caterpillar 390D / 390D L 18.1L C18 Excavator (2011-2014)
• Caterpillar 5090B 15.8L 3456 Front Shovel (2000-2004)
• Caterpillar 5110B / 5110B ME 27.0L 3412E Mining Shovel (2001-2004)
• Caterpillar 5130 / 5130B 34.5L 3508B Mining Shovel (1993-2000)
• Caterpillar 5230 / 5230B 69.0L 3516B Mining Shovel (1995-2001)
• Caterpillar M325C / M325C MH / M325D / M325D L / M325D MH 7.2L Material Handler (2002-2016)
• Caterpillar M330D 8.8L C9 Material Handler (2008-2014)
• Caterpillar W345B II 10.3L 3176C Material Handler (1998-2007)

MOTOR GRADERS — 3116 3306 3406C 3412E AND C7 DIESEL:
• Caterpillar 120H / 120H NA 6.6L 3116 Motor Grader (1996-2007)
• Caterpillar 120K / 120K II / 12K 7.2L C7 Motor Grader (2007-2024)
• Caterpillar 12H / 12H ES / 12H NA 10.5L 3306 Motor Grader (1996-2007)
• Caterpillar 135H / 135H NA 6.6L 3116 Motor Grader (1996-2008)
• Caterpillar 140H / 140H ES / 140H NA 10.5L 3306 Motor Grader (1996-2007)
• Caterpillar 140K / 140K II / 140M / 140M AWD 7.2L C7 Motor Grader (2007-2023)
• Caterpillar 143H / 14H 10.5L 3306 Motor Grader (1996-2007)
• Caterpillar 160H / 163H / 163H NA 10.5L 3306 Motor Grader (1996-2007)
• Caterpillar 160K / 160M / 160M AWD / 12M 7.2L C7 Motor Grader (2007-2022)
• Caterpillar 16H / 16H NA 14.6L 3406C Motor Grader (1996-2007)
• Caterpillar 24H 27.0L 3412E Motor Grader (1996-2007)

WHEEL LOADERS TRACK LOADERS AND INTEGRATED TOOLCARRIERS:
• Caterpillar 910G 6.4L 3064 Wheel Loader (2001-2004)
• Caterpillar 924G / 924GZ / 924H / 924HZ 6.0L 3056 and 6.6L C6.6 Wheel Loader (2000-2015)
• Caterpillar 928G / 928GZ / 928H / 928HZ 6.0L 3056 and 6.6L C6.6 Wheel Loader (1996-2013)
• Caterpillar 930G / 930H 6.0L 3056 and 6.6L C6.6 Wheel Loader (2005-2014)
• Caterpillar 938G / 938G II 7.2L 3126B Wheel Loader (1996-2008)
• Caterpillar 950G / 950G II / 950H 7.2L 3126 and C7 Wheel Loader (1998-2013)
• Caterpillar 962G / 962G II / 962H 7.2L 3126B and C7 Wheel Loader (1998-2013)
• Caterpillar 966F / 966F II / 966G II 7.2L 3126 Wheel Loader (1996-2006)
• Caterpillar 972G II 12.0L 3196 Wheel Loader (2002-2006)
• Caterpillar 980G / 980G II / 980H 14.6L C15 Wheel Loader (1998-2014)
• Caterpillar 986H 14.6L C15 Wheel Loader (2013-2019)
• Caterpillar 988G / 988H / 990 / 990 II 27.0L 3412 Wheel Loader (1996-2007)
• Caterpillar 992G 34.5L 3508B Wheel Loader (1998-2007)
• Caterpillar 994 / 994D / 994F / 994H 69.0L 3516B Wheel Loader (1992-2021)
• Caterpillar 953C / 953C LGP / 953C WH 6.6L 3116 Track Loader (1996-2008)
• Caterpillar 963C / 963C LGP / 963C WH / 973C / 973D 10.5L 3306 Track Loader (1999-2009)
• Caterpillar IT28G / IT38G II / IT62G / IT62G II / IT62H Toolcarrier (1995-2008)

TRACK TYPE TRACTORS — 3126B C9 3176C 3406E 3408 3412E 3508B:
• Caterpillar D5N / D5N LGP / D5N XL 7.2L 3126B Track Type Tractor (2003-2007)
• Caterpillar D6N / D6N DS / D6N LGP / D6N XL 7.2L 3126B Track Type Tractor (2001-2020)
• Caterpillar D6G XL II / D6G2 XL 10.5L 3306 Track Type Tractor (1996-2007)
• Caterpillar D6R / D6R II / D6R III / D6T with LGP XL XW and VP builds 8.8L C9 (1995-2020)
• Caterpillar D7H / D7R / D7R II with LGP and XR builds 10.3L 3176C (1995-2010)
• Caterpillar D8L / D8R / D8R II / D8T 14.6L 3406E Track Type Tractor (1992-2014)
• Caterpillar D9N / D9R / D9T 18.0L 3408 Track Type Tractor (1995-2005)
• Caterpillar D10N / D10R / D10T 27.0L 3412E Track Type Tractor (1996-2006)
• Caterpillar D11N / D11R / D11R CD 34.5L 3508B Track Type Tractor (1996-2008)

OFF-HIGHWAY TRUCKS ARTICULATED TRUCKS WHEEL DOZERS AND COMPACTORS:
• Caterpillar 735 / 740 14.6L 3406E and C15 Articulated Truck (2001-2015)
• Caterpillar 770 / 772 D-343 and D-346 Off-Highway Truck (1978)
• Caterpillar 771D / 773D / 773E / 775D / 775E 27.0L 3412E Off-Highway Truck (1995-2024)
• Caterpillar 776C / 776D / 777 / 777B / 777C / 777D 34.5L 3508B Off-Highway Truck (1984-2009)
• Caterpillar 784B / 784C / 785 / 785B / 785C / 785D 51.8L 3512B Off-Highway Truck (1992-2017)
• Caterpillar 789B / 789C / 793B / 793C / 793D 69.0L 3516B Off-Highway Truck (1992-2014)
• Caterpillar 797 / 797B 117.1L 3524B Off-Highway Truck (1999-2003)
• Caterpillar D250E II / D300E II 10.5L 3306 Articulated Truck (1996-2002)
• Caterpillar 824C / 824H / 825C / 825H / 826C / 826H 14.6L C15 Soil Compactor (1996-2016)
• Caterpillar 834G / 834H / 844 / 854G 27.0L 3412E Wheel Dozer (1996-2008)
• Caterpillar 69D 18.0L Off-Highway Truck (1997-1998)

FELLER BUNCHERS SKIDDERS AND FORESTRY MACHINES:
• Caterpillar 511 / 521 / 521B / 521T / 522 / 522B 8.8L C9 Feller Buncher (2004-2016)
• Caterpillar 532 / 541 / 541 II / 551 / 552 / 552 II 8.8L C9 Feller Buncher (2004-2013)
• Caterpillar 2290 / 2390 / 2391 / 2491 / 2590 8.8L C9 Track Feller Buncher (2004-2014)
• Caterpillar 1090 / 1090T / 1190T / 1290T / 1390 / 1490 8.3L Cummins QSC Feller Buncher (2003-2010)
• Caterpillar TK370 / TK371 / TK380 / TK381 / TK711 / TK721 / TK722 Feller Buncher (2001-2013)
• Caterpillar TK732 / TK741 / TK751 / TK752 / TK1051 8.8L Feller Buncher (2001-2013)
• Caterpillar 517 / 517GR / 527 / 527GR / 527CA 7.0L 3304 Track Skidder (1997-2012)
• Caterpillar 525B / 525C / 535B / 535C / 545 / 545C 7.2L 3126 Wheel Skidder (1997-2011)
• Caterpillar 533 / 543 7.2L 3126 Feller Buncher (1999-2003)
• Prentice 1190T 8.3L Cummins QSC Feller Buncher (2003-2010)
• Timberjack TK732 8.8L Track Feller Buncher (2001-2012)
• Timberking TK711 / TK721 / TK722 / TK732 Feller Buncher

PAVING COLD PLANERS PIPELAYERS AND UNDERGROUND MINING:
• Caterpillar AP655C / AP755 / BG2255C 6.0L 3056 and C7 Asphalt Paver (2000-2007)
• Caterpillar PM-200 / PM-201 18.1L C18 Cold Planer (2008-2011)
• Caterpillar PM-465 / PM-565 14.6L 3406 and 18.0L 3408 Cold Planer (1992-2003)
• Caterpillar RM350B / RM500 14.6L C15 Reclaimer Mixer (2000-2017)
• Caterpillar 561N 7.2L 3126B Pipelayer (2003-2008)
• Caterpillar 572R / 572R II 10.3L 3176C Pipelayer (1993-2012)
• Caterpillar 583T / 587R / 587T / PL83 / PL87 Pipelayer
• Caterpillar R1300 / R1300G / R1600G / R1600H / R1700G Underground Loader (2002-2017)
• Caterpillar R2900 / R2900G / R3000H 14.6L C15 Underground Loader (2002-2022)
• Caterpillar AD22 / AD30 / AD45B / AD55 18.1L C18 Underground Truck (2004-2017)
• Caterpillar MD5125 / MD6290 Drill • Caterpillar Deuce Track Machine

INDUSTRIAL AND POWER GENERATION ENGINES:
• Caterpillar C10 / C11 / C13 / C15 / C16 / C27 Industrial Engine
• Caterpillar 3116 / 3126B / 3126E / 3176C / 3306 Industrial Engine
• Caterpillar 3406C / 3406E / 3408A / 3408C / 3408E Industrial Engine
• Caterpillar 3412C / 3412E / 3456 Industrial Engine
• Caterpillar 3508B / 3512B / 3512C / 3512C HD / 3516B / 3516C HD Industrial Engine
• Caterpillar CX31 / CX31DB / CX35 / CX48 Transmission Package
• Komatsu PC650 Hydraulic Excavator

CHECKS BEFORE YOU BUY:
• Output: 24 Volt 95 Amp — read the rating plate on your original
• Family: Denso D150 Brushless — 20 Amp output at engine idle
• Mount: J180 three ear pad — 1/2-13 threaded and two 13mm unthreaded
• Terminals: B+ 5/16-18 stud with a pin type R relay terminal

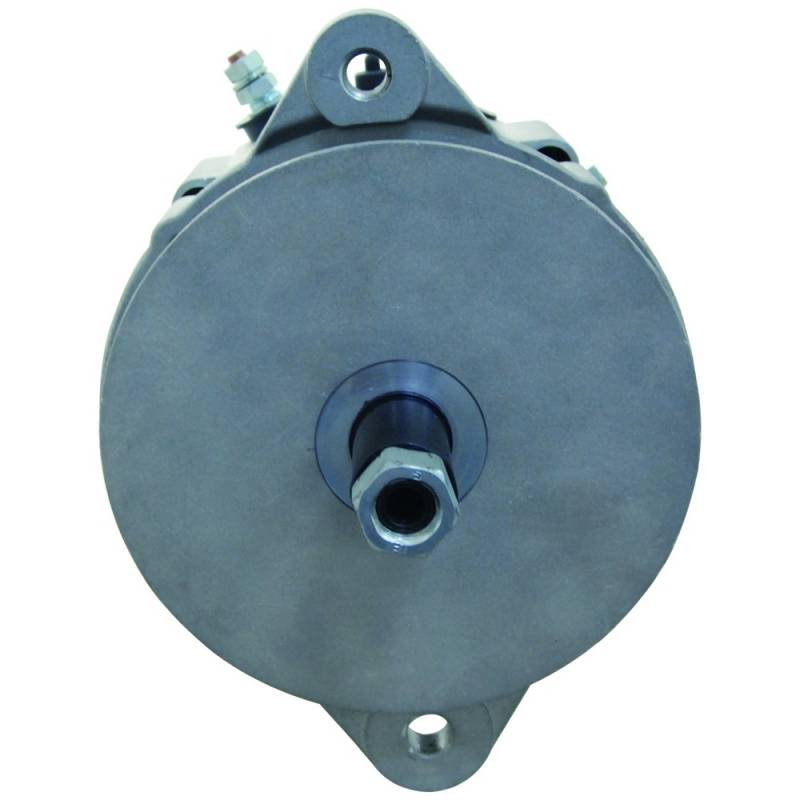

• Pulley: supplied without a pulley — transfer the one on your original
• Rotation: CW clockwise viewed from the drive end

HOW TO VERIFY FIT:
• Match one Caterpillar number: 0R4841 / 1978820 / 10R-9789 / 10R-9790 / 1693345
• Match one Denso number: 1012118340 / 1012118341 / 1012118300 / 1012118310
• Komatsu machines: match 6008218260
• Confirm the engine: 3066 3116 3126 3306 3406 3412 C6.4 C7 C9 C15 C18 C27
• Confirm the charging system is 24 Volt

CROSS REFERENCE:
• Caterpillar: 0R4841 / 0R-4841 / 0R4843 / 10R-9789 / 10R9789 / 10R-9790 / 10R9790
• Caterpillar: 1693345 / 1693345 / 1779953 / 1779953 / 1855294 / 1855294
• Caterpillar: 1906564 / 1978820 / 1978820 / 2098384 / 2101675 / 2176635
• Caterpillar: 2379470 / 2408521 / 2486952 / 2504044 / 2536265 / 2564715
• Caterpillar: 2579466 / 2609802 / 2609802 / 2625046 / 2802703 / 3457649
• Caterpillar: 4398544 / 5612986 / 5669549 / 5669549
• Denso: 1012118130 / 1012118130 / 1012118140 / 1012118140 / 1012118270
• Denso: 1012118271 / 1012118272 / 1012118300 / 1012118310 / 1012118311
• Denso: 1012118340 / 1012118340 / 1012118341 / 1012118341
• Denso: 0210800730 / 0210800730 / 2118004 / 2118004 / 2118006 / 2118006
• Komatsu: 6008218260 / 6008218260
