OEM PART NUMBERS: • Denso: 104210-6181 / 1042106181, 104210-6182 / 1042106182, 104210-6180 / 1042106180, 104210-6185 / 1042106185, 104210-6630 / 1042106630, 210-0704 / 2100704
• Ford: 9C2T-10300-CA / 9C2T10300CA, 9C2T-10300-EA / 9C2T10300EA, 9C2Z-10346-C / 9C2Z10346C, 9C2Z-10346-A / 9C2Z10346A, DC2Z-10346-B / DC2Z10346B, DC2Z-10346-C / DC2Z10346C, GC2Z-10346-B / GC2Z10346B, GC2Z-10346-C / GC2Z10346C
• Motorcraft: GL-8683 / GL8683, GL-8786 / GL8786, GL-8946 / GL8946
• Bosch: AL7809X
• Bosch Service Europe: 0986UR6424
• AS-PL: UD13831A

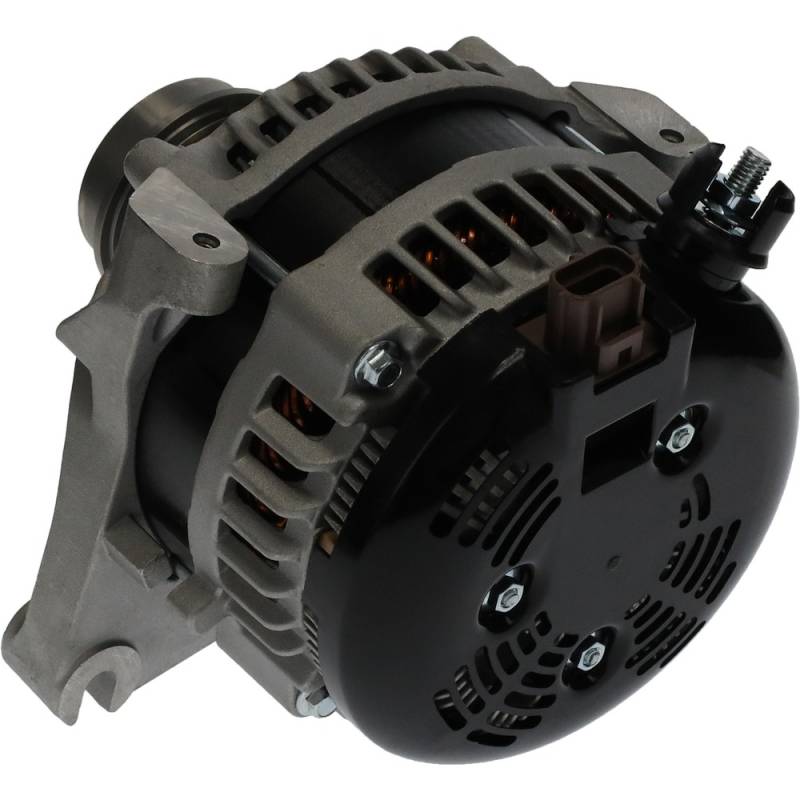

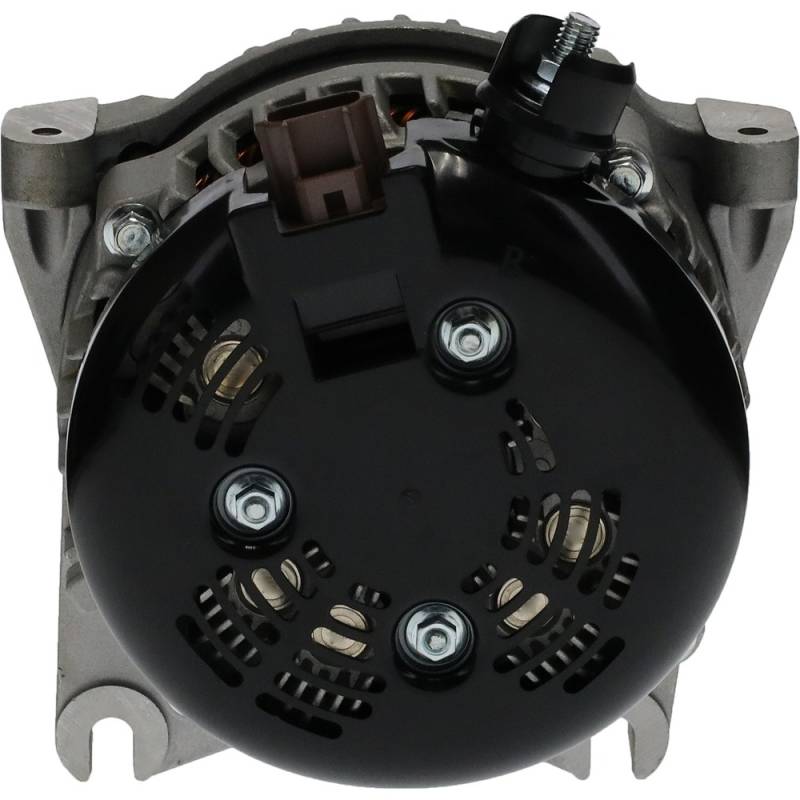

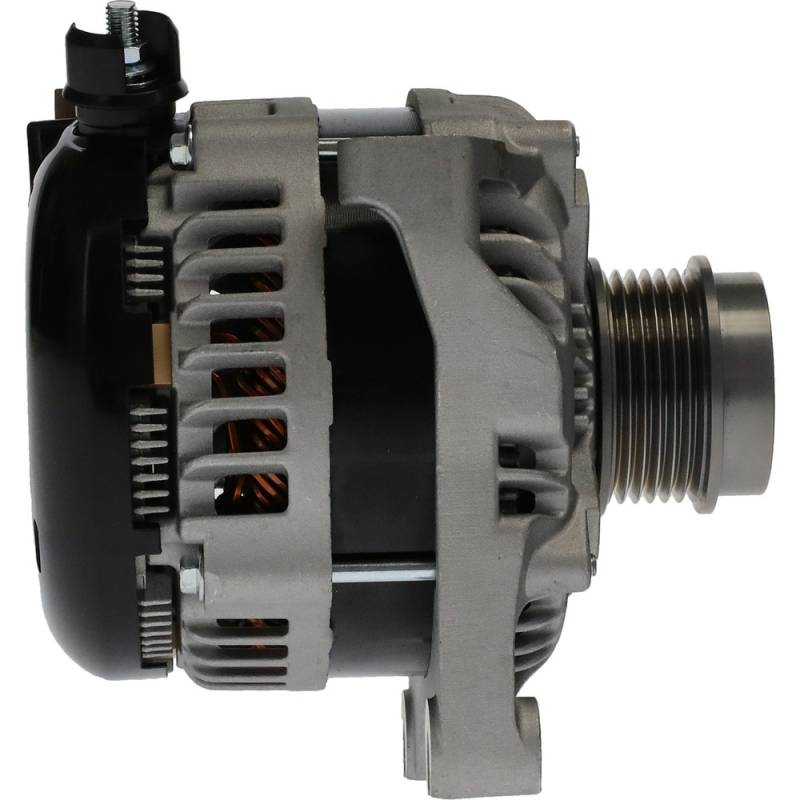

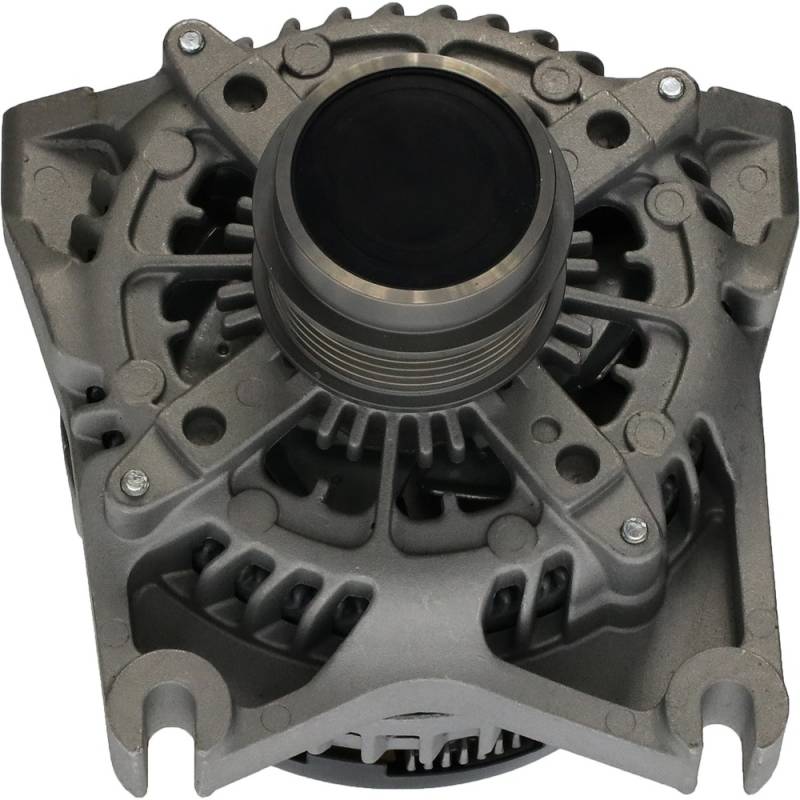

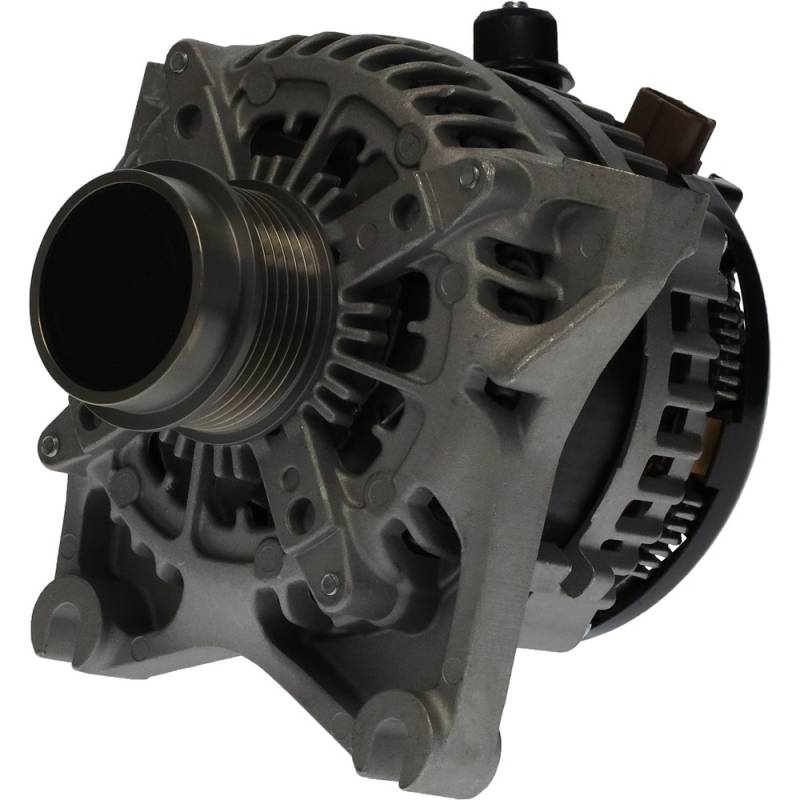

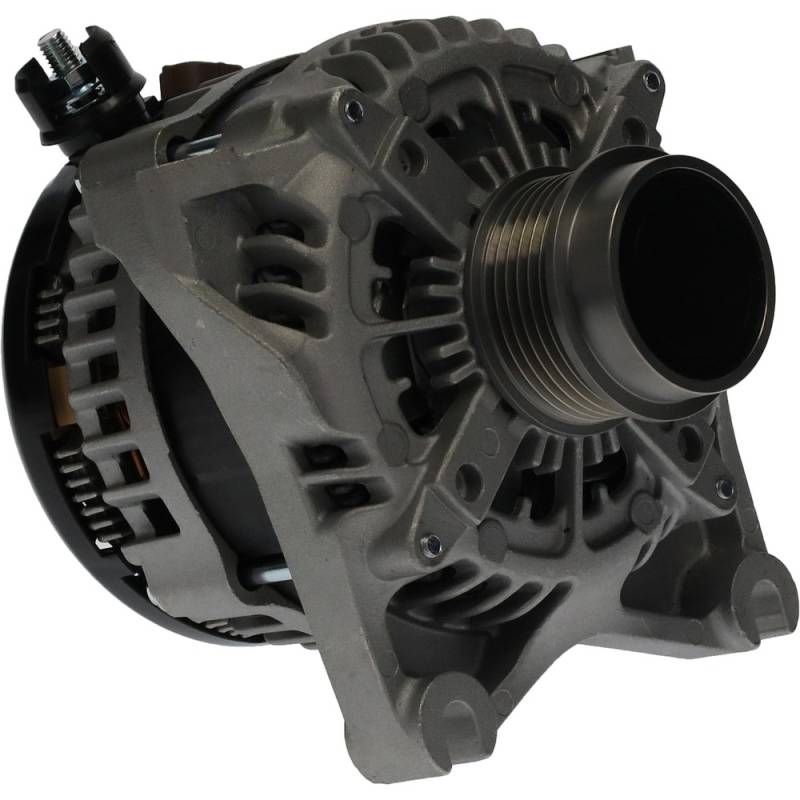

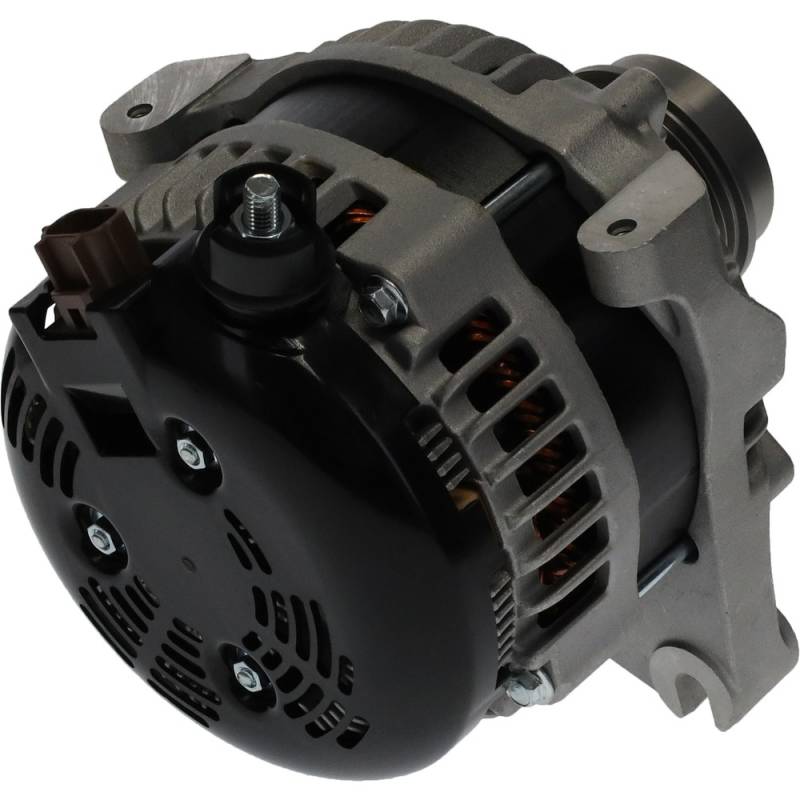

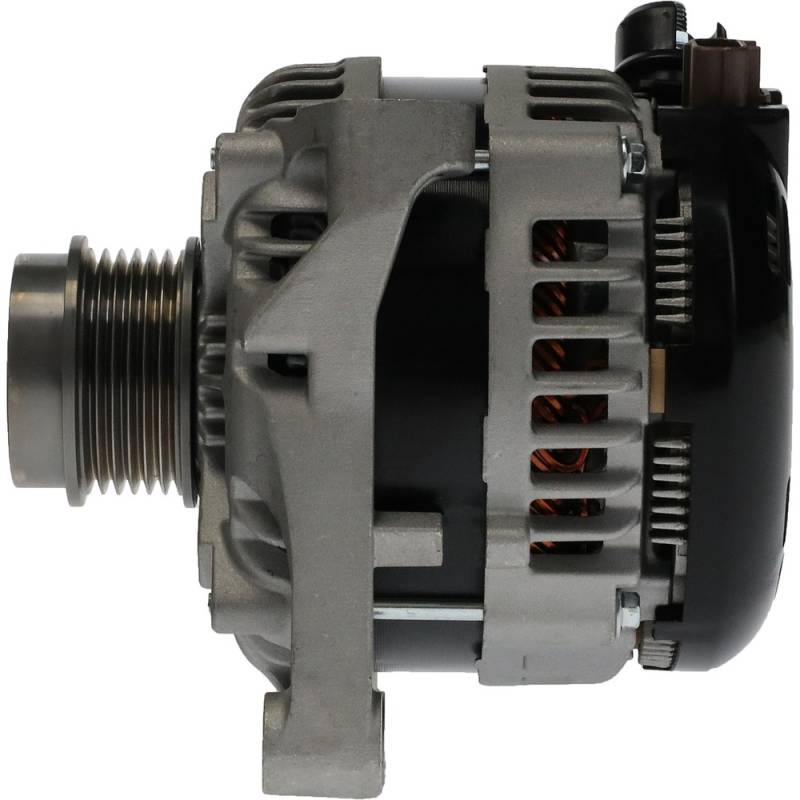

SPECIFICATIONS: • Type: Alternator
• OE Manufacturer: Denso
• Family: Denso SC Hairpin
• Voltage: 12V
• Amperage: 195A
• Rotation: Clockwise
• Regulator Clock Position: 11:30
• Regulator Location: Internal
• Fan Location: Internal
• Mount Hole ID 1: M6-1.0 Threaded
• Mount Hole ID 2: M6-1.0 Threaded
• Terminal 2: B+ M8-1.0
• Terminal 3: FR Blade
• Terminal 4: SIG Blade
• Terminal 5: A Blade
• Polarity: Negative
• Pulley Type: Clutch Decoupler
• Number Of Grooves: 6
• Groove Outside Diameter: 54.6mm 2.150in
• Pulley Outside Diameter: 60mm 2.362in
• Condition: New
APPLICATIONS: • Ford E-150 and E-250 4.6 281cid and 5.4 330cid V8 2009
• Ford E-350 Super Duty and E-450 Super Duty 5.4 330cid V8 2009
• Ford E-350 Super Duty and E-450 Super Duty 6.8 415cid V10 2009
• Ford Econoline E-Series Van 2009
