OEM PART NUMBERS: • Delco Reman 24V 70 Amp: 10459273 • 10459274 • 10459280
• Delco New 24V 70 Amp: 19011005 • 19011010 • 19011019
• Delco New PIN R Terminal: 19011014
• Caterpillar: 155-7434
• Cummins ReCon: 3675250RX
• Mercury Marine: 8M6007456
• Delco Current Replacement: 8600388 — 24SI 24 Volt 70 Amp
SPECIFICATIONS: • 24 Volt / 70 Amp / Clockwise (CW) Rotation
• Family: Delco Remy 23SI Brushless
• Mount: SAE J180 Hinge • Poles: 12
• B Plus: 5/16 • R Terminal: PIN • I Terminal: #10
• Regulator: Internal • Fan: External
• Speed: 10000 rpm continuous / 12000 intermittent
• Temperature Rating: 93C / 200F
• Weight: 19.1 lb / 8.7 kg • Length: 247.5mm
• Pulley: Not Supplied
• Polarity: Negative Ground
• Condition: New Aftermarket
VEHICLE APPLICATIONS: • Caterpillar 990 and 990 Series II 3412 (1993-2002)
• Caterpillar 924G 924GZ 928G and IT28G (2000-2009)
• Caterpillar 769C 771C and 775B trucks (1978-2000)
• Caterpillar 24H Motor Grader 3412E (1996-1997)
• Caterpillar 5110B 5130 5230 and 5230B (2006-2012)
PART NUMBER CHAIN: • 10459273 — reman 24 Volt 70 Amp with a PIN R terminal
• 10459274 and 10459280 — reman 24 Volt 70 Amp
• 19011005 19011010 and 19011019 — new 24 Volt 70 Amp
• 19011014 — new 24 Volt 70 Amp with a PIN R terminal
• 155-7434 — the Caterpillar number for this alternator
• 8600388 — the Delco current replacement
ENGINE GATE — READ THIS FIRST: • Output required: 24 Volt 70 Amp
• Delco built the 24 Volt 23SI at two outputs
• This listing is the 70 Amp build
• Terminals: imperial 5/16 B Plus with a PIN R terminal
• Read the amperage off your own alternator before ordering
• Confirm a SAE J180 hinge mount

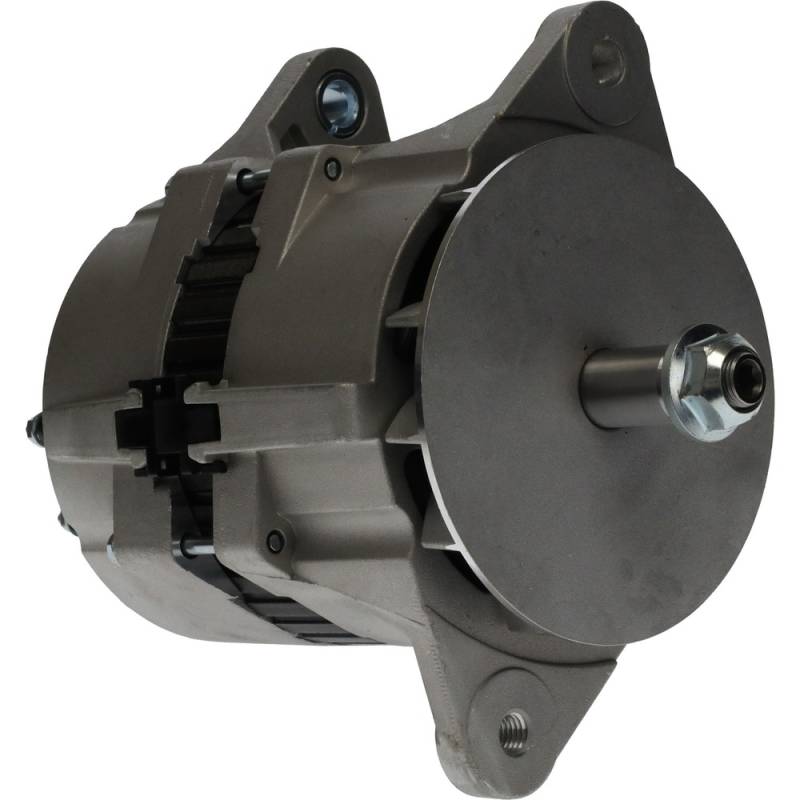

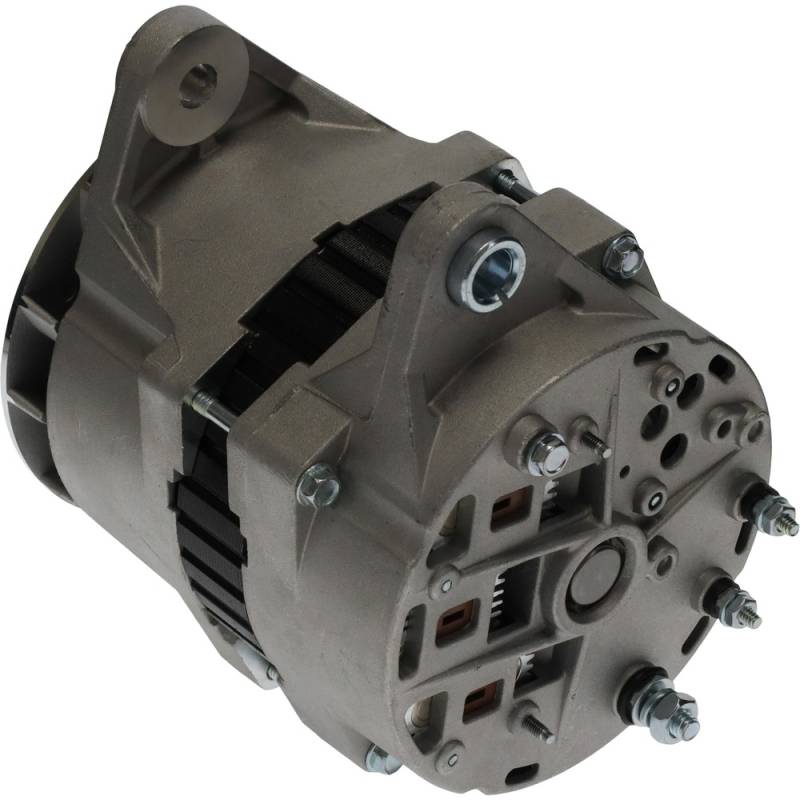

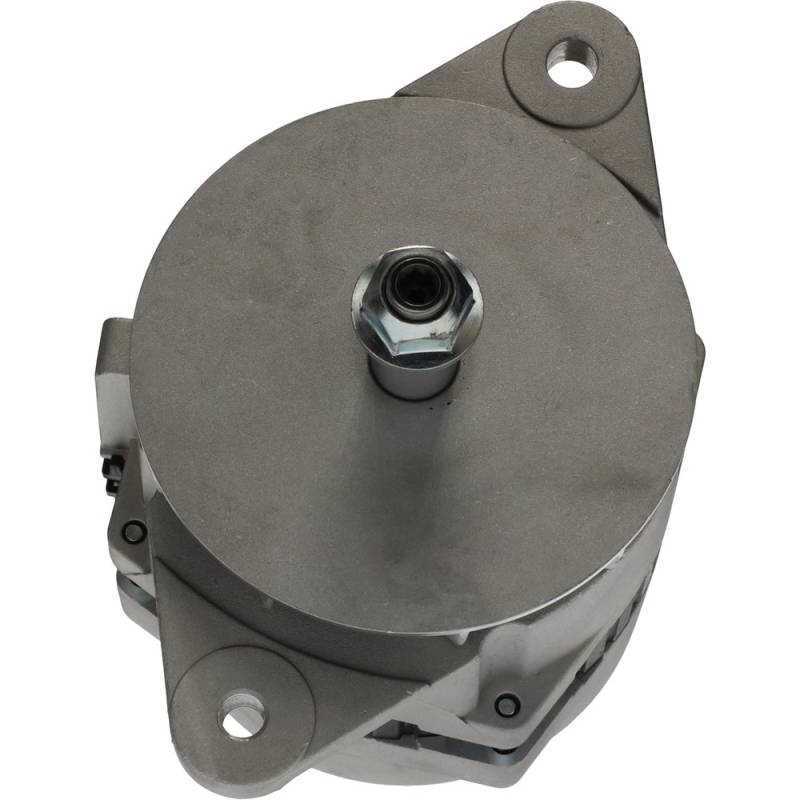

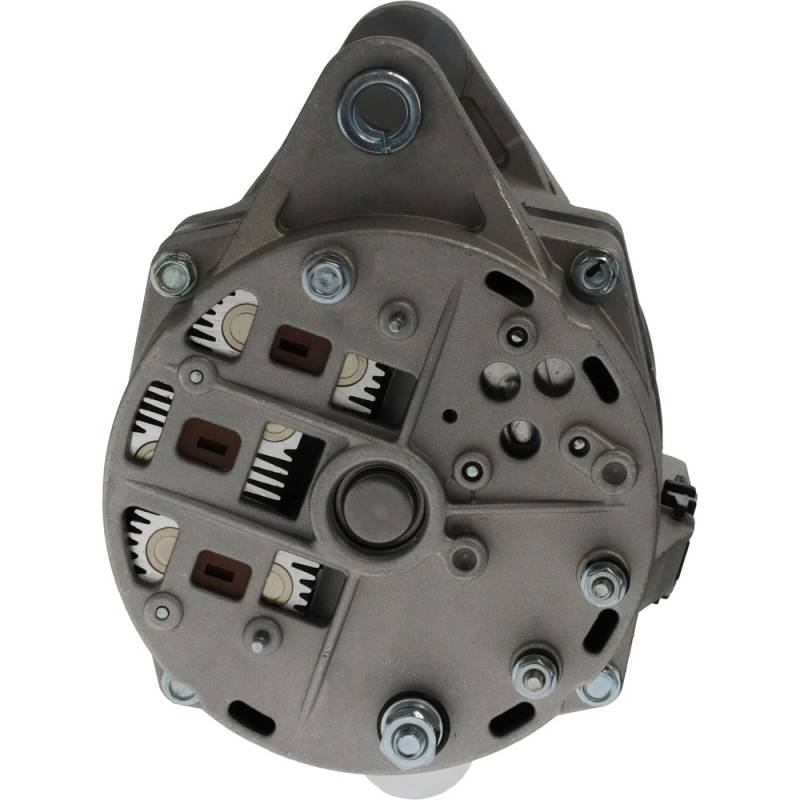

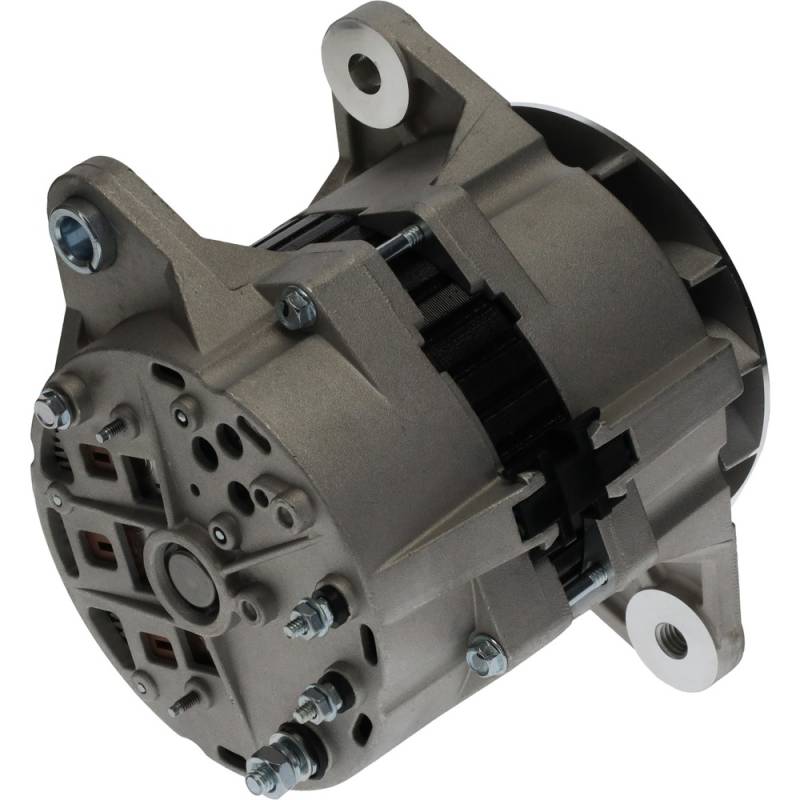

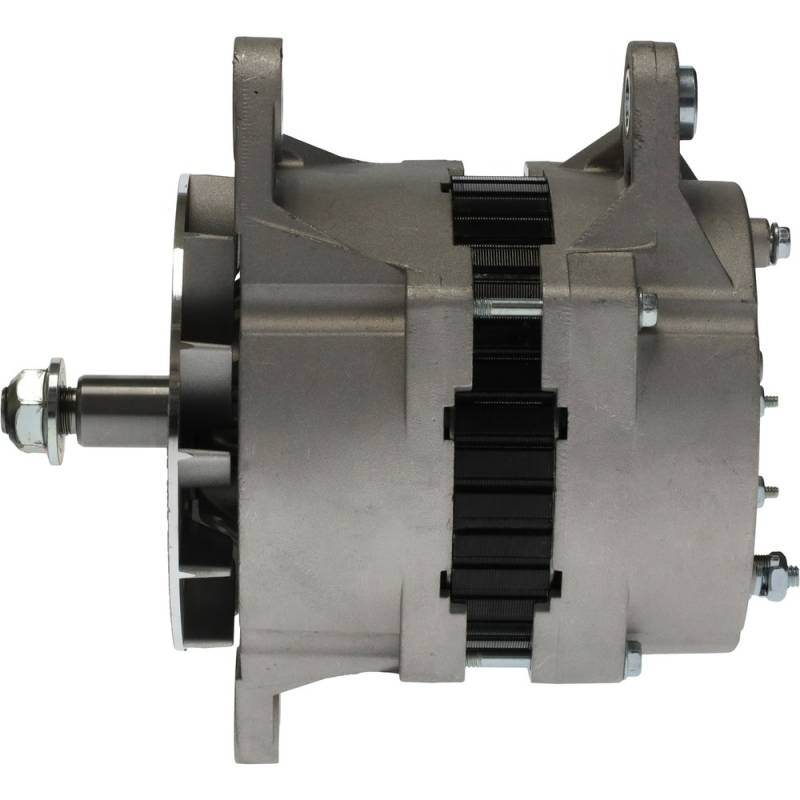

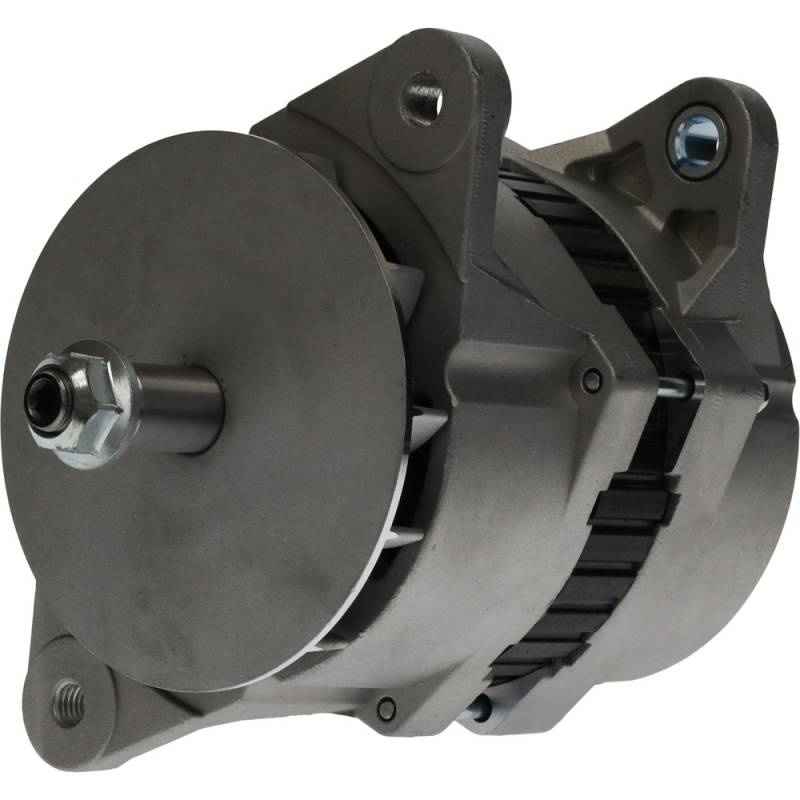

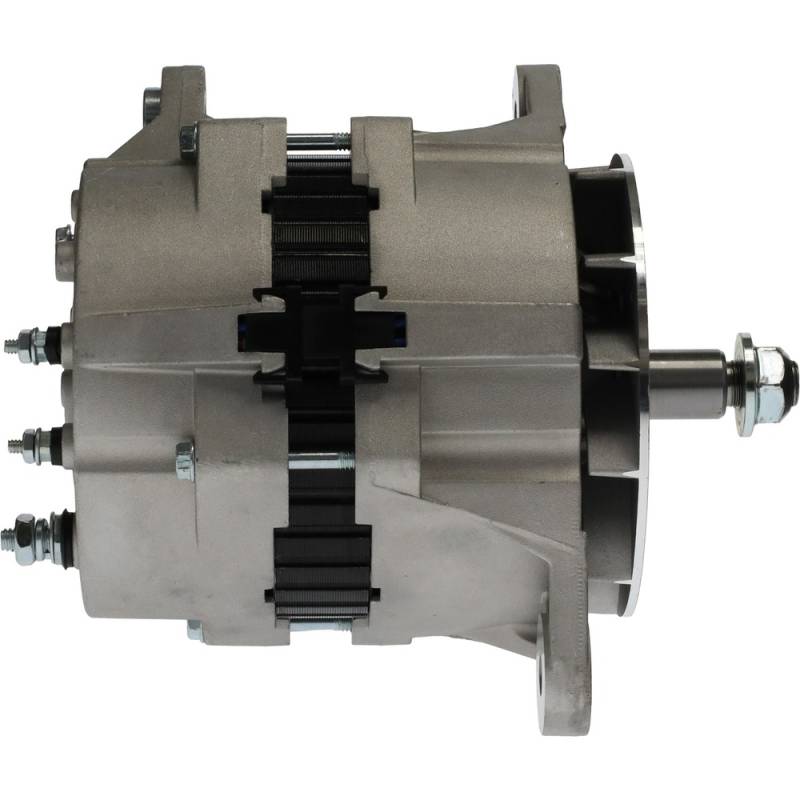

WHAT THIS UNIT IS: • Output: 24 Volt 70 Amp clockwise brushless
• Mount: SAE J180 hinge with 12 poles
• Terminals: B Plus 5/16 with R and I
• Family: Delco Remy 23SI
• Weight: 19.1 lb at 247.5mm long
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
