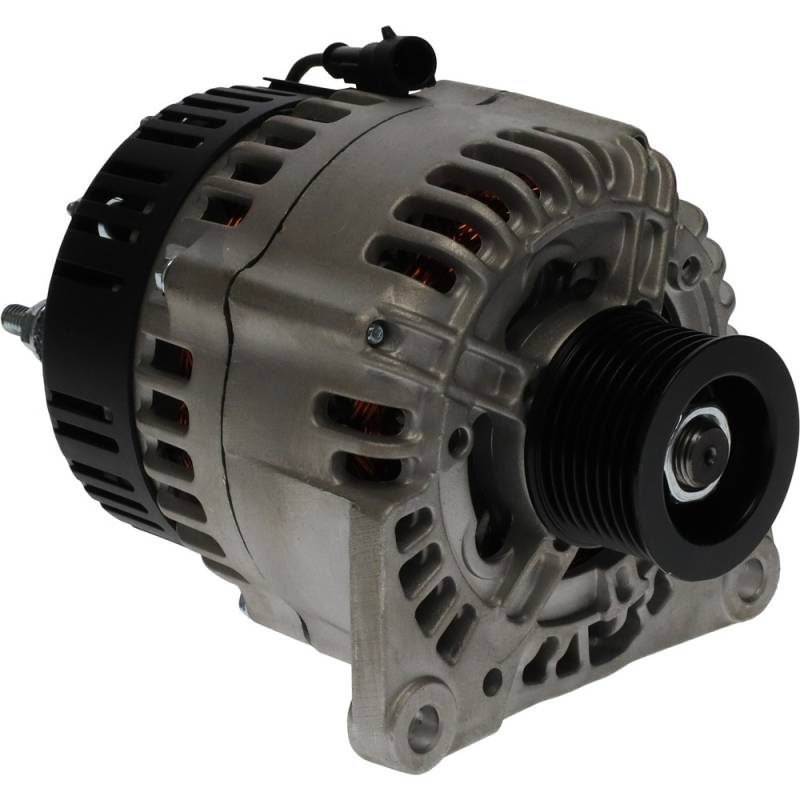

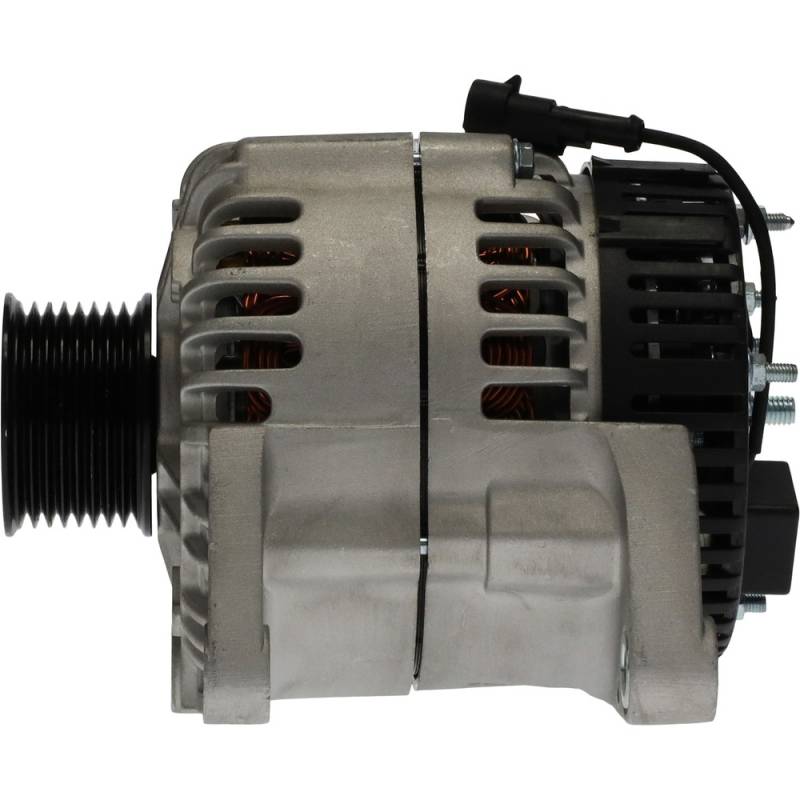

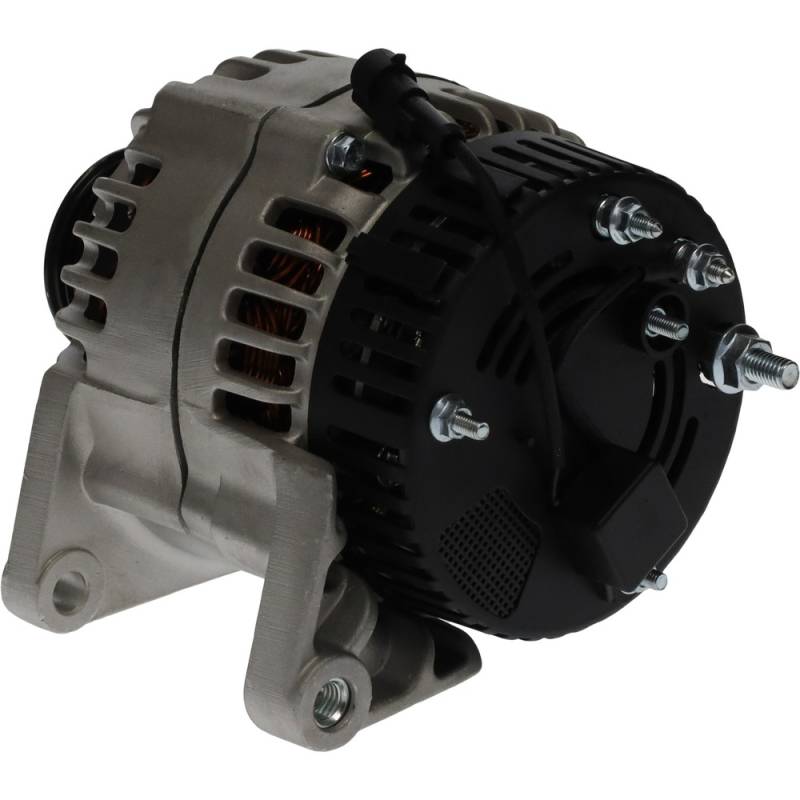

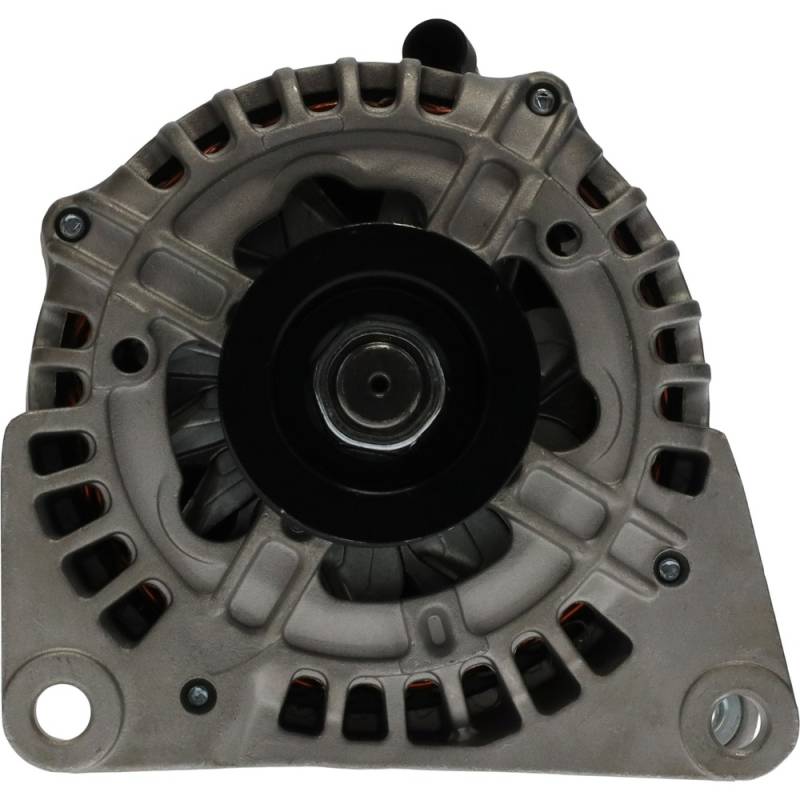

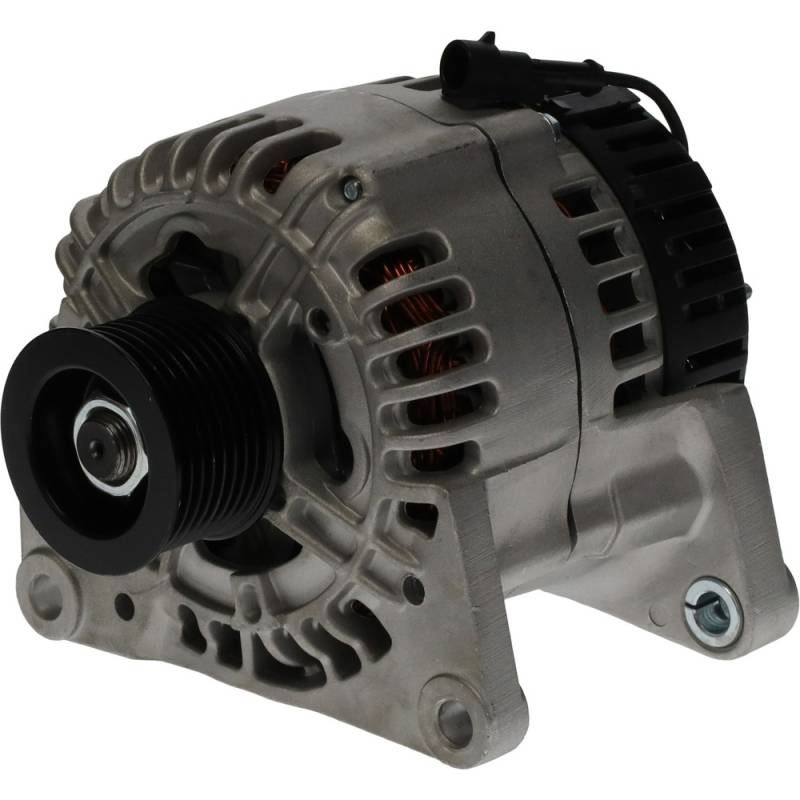

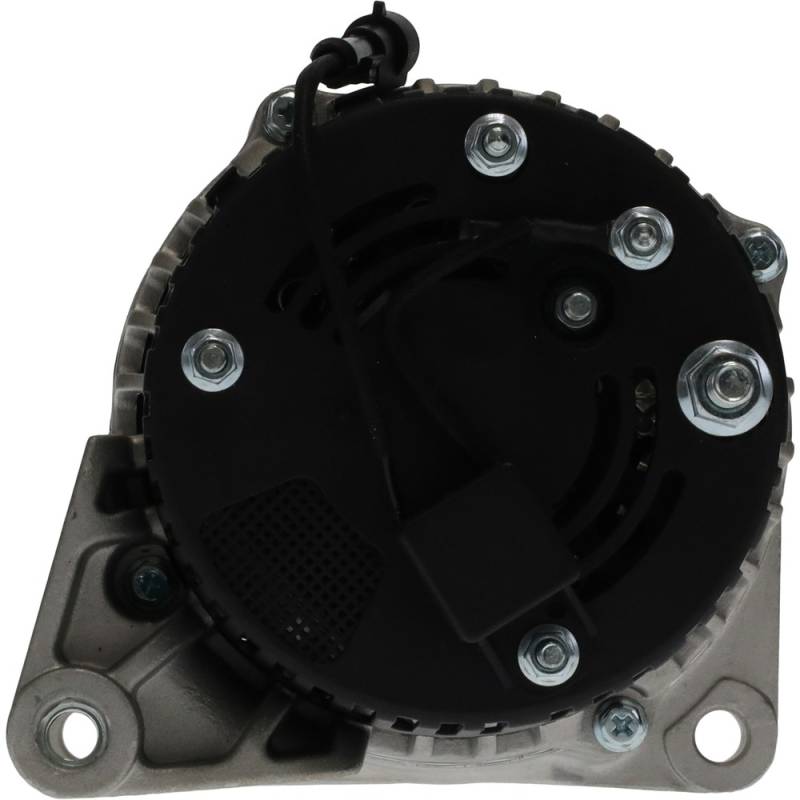

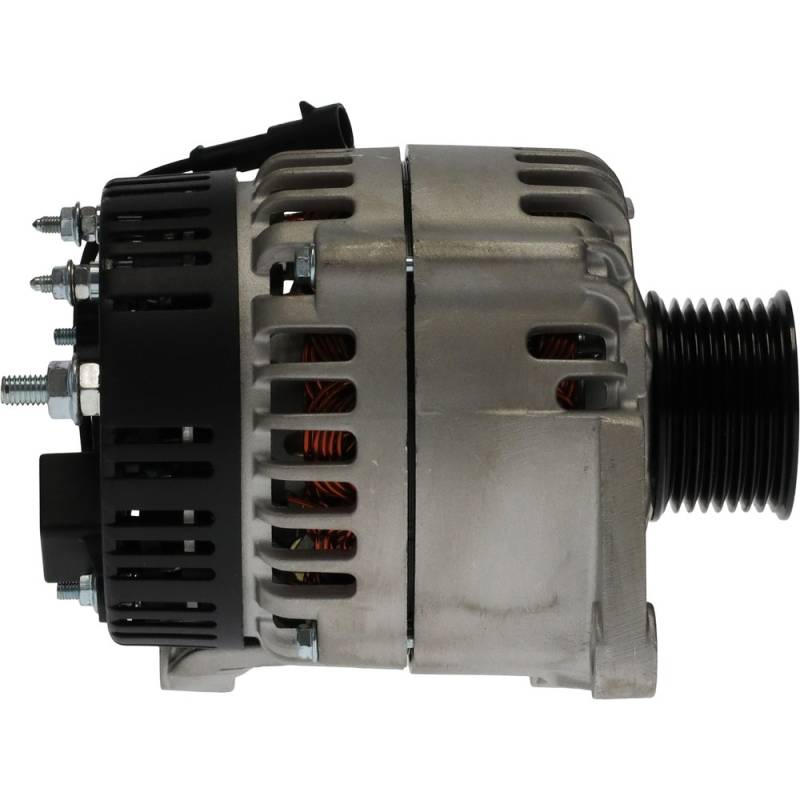

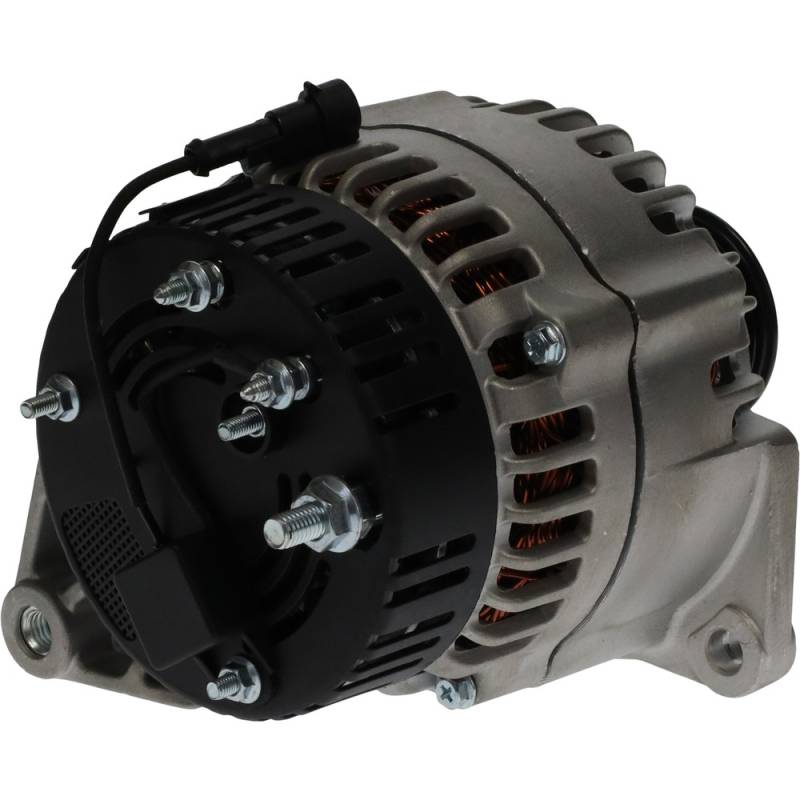

Alternator Compatible With 2013-17 Jcb Js235 320/08678-S

(0) Reviews: Write first review
21537A5
JCB OEM PART NUMBERS:
• JCB: 320/08678 / 32008678
• JCB: 320/08678-S / 32008678S
• JCB: 320/E9551 — current JCB number

LETRIKA ISKRA PART NUMBERS:
• Letrika Iskra: 11.204.920 / 11204920 — current build
• Letrika Iskra: 11.203.993 / 11203993 — earlier build
• Letrika Iskra Sales: IA1469 / IA 1469
• Letrika Iskra Tech: AAK5885 — current build
• Letrika Iskra Tech: AAK5787 — earlier build

MAHLE PART NUMBERS:
• Mahle: MG 623 / MG623
• Mahle: 72735622

SPECIFICATIONS:
• 24 Volt / 55 Amp / Clockwise (CW) Rotation
• Internal Regulator, Internal Fan, Dust Cover Fitted
• Pulley: 8-Groove V-Ribbed Solid (S8) / 56.0mm OD
• Pulley to housing: 30.5mm
• Mounting: 2 bores / 10.2mm / 78.0mm spacing / 93.7mm point diameter
• Weight: 5.68 kg • Condition: New Aftermarket

JCB APPLICATIONS:
• JCB JS130NLC Excavator EcoMax 444 4.4L 81kW (2013-2017)
• JCB JS160NLC Excavator EcoMax 444 4.4L 93kW (2013-2017)
• JCB JS210LC Excavator EcoMax 448 4.8L 126kW (2013-2017)
• JCB JS220 Excavator EcoMax 448 4.8L (2013-2017)
• JCB JS235 Excavator EcoMax 448 4.8L (2013-2017)

GEAX APPLICATIONS:
• GEAX EK60 Piling Rig JCB EcoMax
• GEAX EK90 Piling Rig JCB EcoMax
• GEAX EK110 Piling Rig JCB EcoMax

WHAT THIS UNIT IS:
• System: 24 Volt — two 12 Volt batteries in series
• Output: 55 Amp clockwise with an 8-groove solid pulley
• Case number: 320/08678 320/08678-S IA1469 or MG 623
• Engine: JCB Dieselmax EcoMax 444 4.4L or 448 4.8L
• Machines: JCB JS tracked excavators and GEAX piling rigs

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $703.06
Sale: $401.75
Save: 43%
Save: $301.31
Qty:
Free Shipping!

Description

ALTERNATOR 24V 55 Amp CW S8 — JCB JS EXCAVATOR ECOMAX 444 AND 448:

THREE CHECKS BEFORE YOU BUY:
• System: 24 Volt — two 12 Volt batteries wired in series
• Output: 55 Amp clockwise
• Pulley: 8-groove V-ribbed solid 56.0mm outer diameter
• Case number: 320/08678 320/08678-S IA1469 MG 623 or 11.204.920

JCB JS EXCAVATOR — ECOMAX 444 4.4L:
• JCB JS130NLC Tracked Excavator 444 4.4L 81kW (2013-2017)
• JCB JS130NL Tracked Excavator 444 4.4L 81kW (2013-2017)
• JCB JS160NLC Tracked Excavator 444 4.4L 93kW (2013-2017)

JCB JS EXCAVATOR — ECOMAX 448 4.8L:
• JCB JS210LC Tracked Excavator 448 4.8L 126kW (2013-2017)
• JCB JS220 Tracked Excavator 448 4.8L (2013-2017)
• JCB JS235 Tracked Excavator 448 4.8L (2013-2017)

GEAX PILING RIG:
• GEAX EK60 Rotary Piling Rig JCB EcoMax
• GEAX EK90 Rotary Piling Rig JCB EcoMax
• GEAX EK110 Rotary Piling Rig JCB EcoMax
• GEAX builds its rigs on JCB engines and driveline

ENGINE:
• JCB Dieselmax EcoMax 444 — 4.4L 4399cc 269 CID four cylinder
• JCB Dieselmax EcoMax 444 — 55kW to 93kW
• JCB Dieselmax EcoMax 448 — 4.8L 4765cc four cylinder
• JCB Dieselmax EcoMax 448 — 108kW to 129kW at 2200rpm
• EcoMax is JCB's Tier 4 Interim and Stage IIIB Dieselmax generation
• Both engines take this one alternator

OEM PART NUMBERS:
• JCB: 320/08678 / 32008678 • JCB: 320/08678-S / 32008678S
• JCB: 320/E9551 — current JCB number
• Letrika Iskra: 11.204.920 / 11204920 — current build
• Letrika Iskra: 11.203.993 / 11203993 — earlier build
• Letrika Iskra Sales: IA1469 / IA 1469
• Letrika Iskra Tech: AAK5885 / AAK5787
• Mahle: MG 623 / MG623 • Mahle: 72735622

PART NUMBER CHAIN:
• Letrika 11.203.993 with Tech number AAK5787 — earlier build
• Letrika 11.204.920 with Tech number AAK5885 — current build
• Both sit under one Sales number IA1469
• Both sit under one Mahle number MG 623
• Iskra became Letrika and Letrika was acquired by MAHLE
• Three brand names on one alternator is normal here

MEASUREMENTS:
• Pulley: 8-Groove V-Ribbed Solid (S8) / 56.0mm outer diameter
• Pulley face to housing: 30.5mm
• Mounting bores: 2 off / 10.2mm diameter
• Mounting bore spacing: 78.0mm centre to centre
• Mounting point diameter: 93.7mm
• Weight: 5.68 kg

WHAT THIS UNIT IS:
• System: 24 Volt — two 12 Volt batteries in series
• Output: 55 Amp clockwise with an 8-groove solid pulley
• Regulator: Internal • Fan: Internal • Dust Cover: Fitted
• Brand lineage: Iskra to Letrika to MAHLE on one unit
• Case number: 320/08678 320/08678-S IA1469 or MG 623
• Engine: JCB Dieselmax EcoMax 444 4.4L or 448 4.8L
• Machines: JCB JS tracked excavators and GEAX piling rigs
